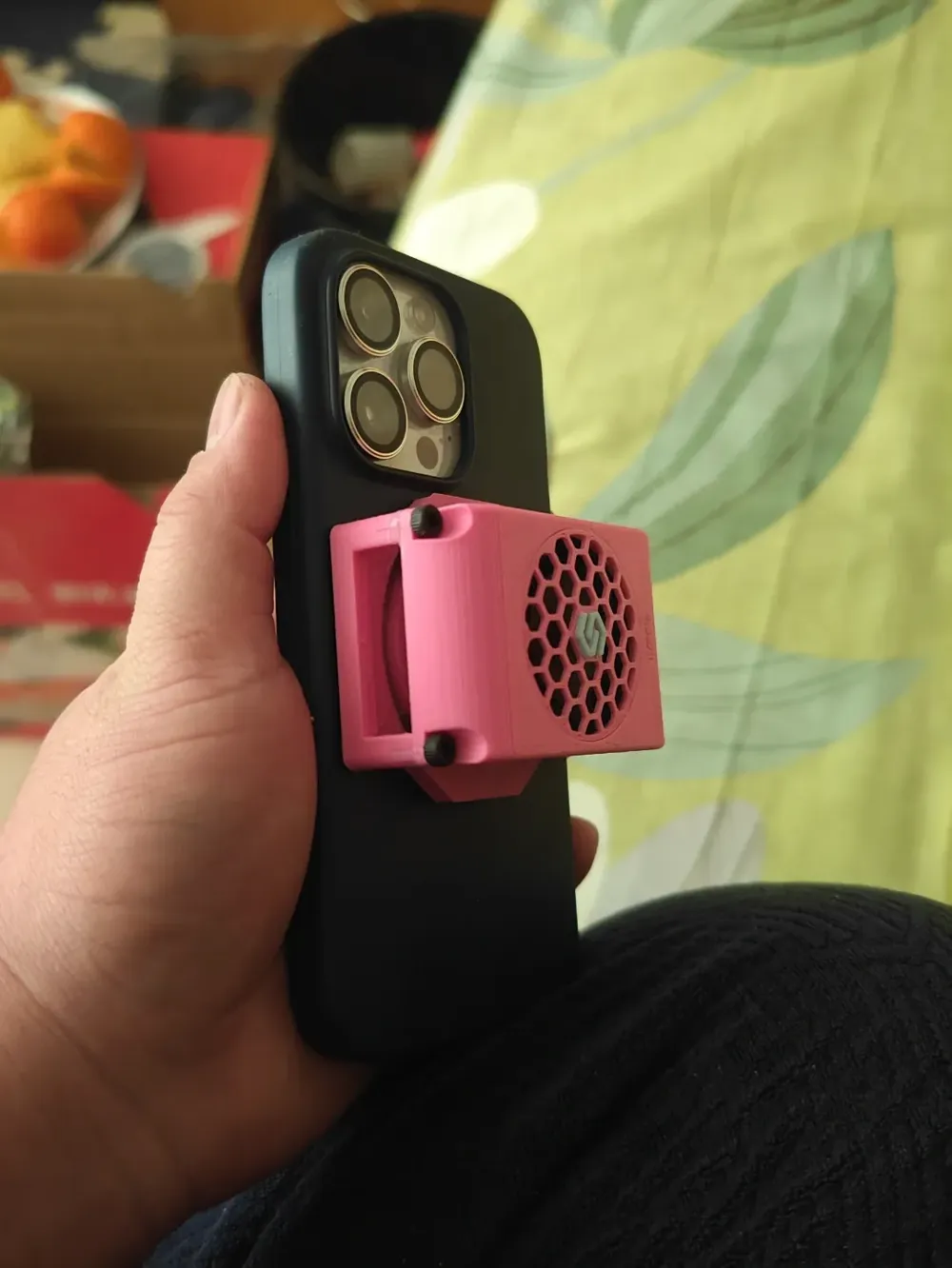

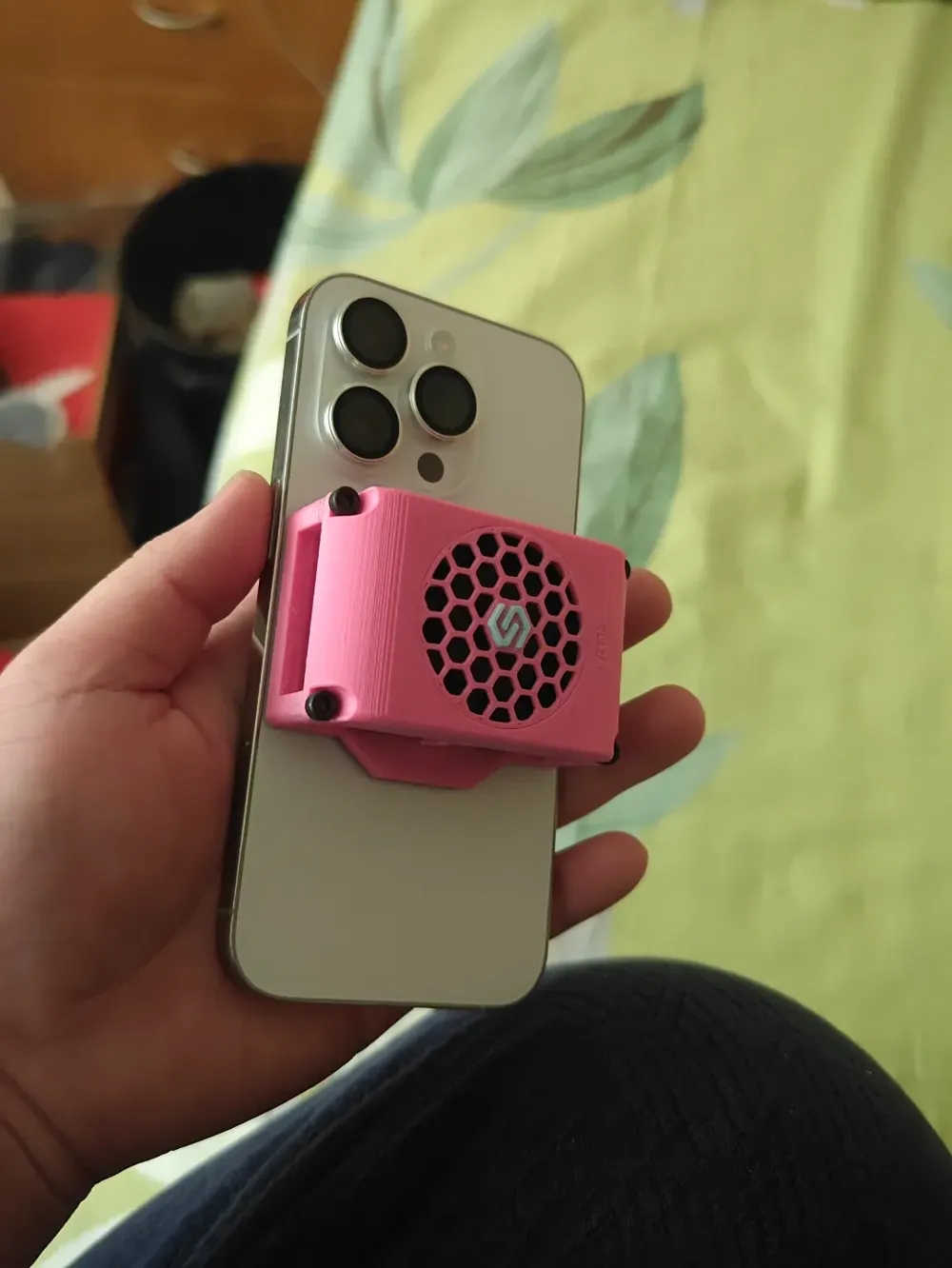

Smartphone Semiconductor Magnetic Adsorption Cooler:
1. Due to printing errors in FDM printing, it is recommended to enlarge it to 101%-102% for printing;

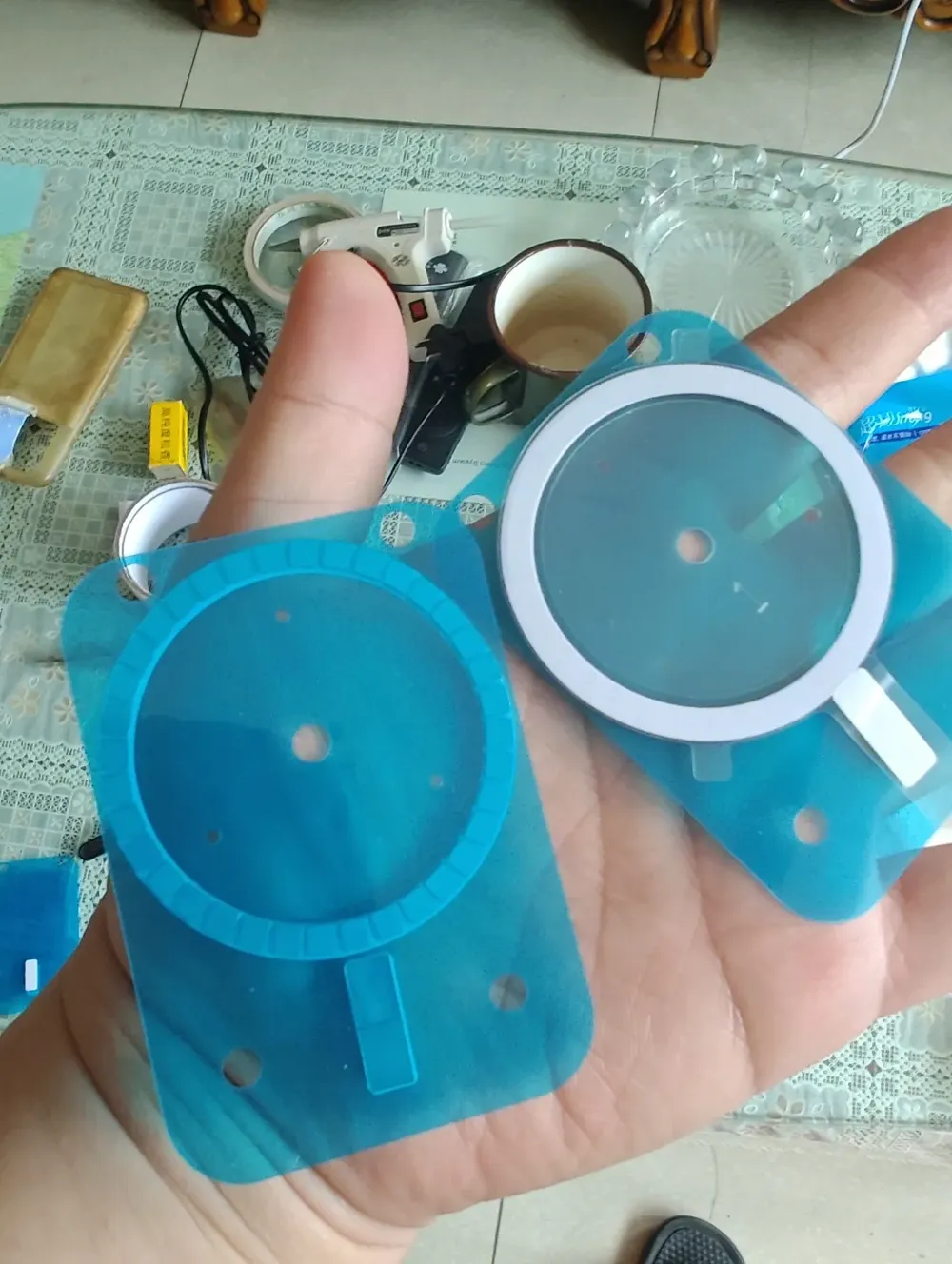

2. IPHONE magsafe magnetic adsorption kit;
3. M3 screws, 3*8 screws, 4 pieces;
4. 40*10mm 5V fan, 1 piece;
5. 40*40*11mm heatsink, 1 piece;

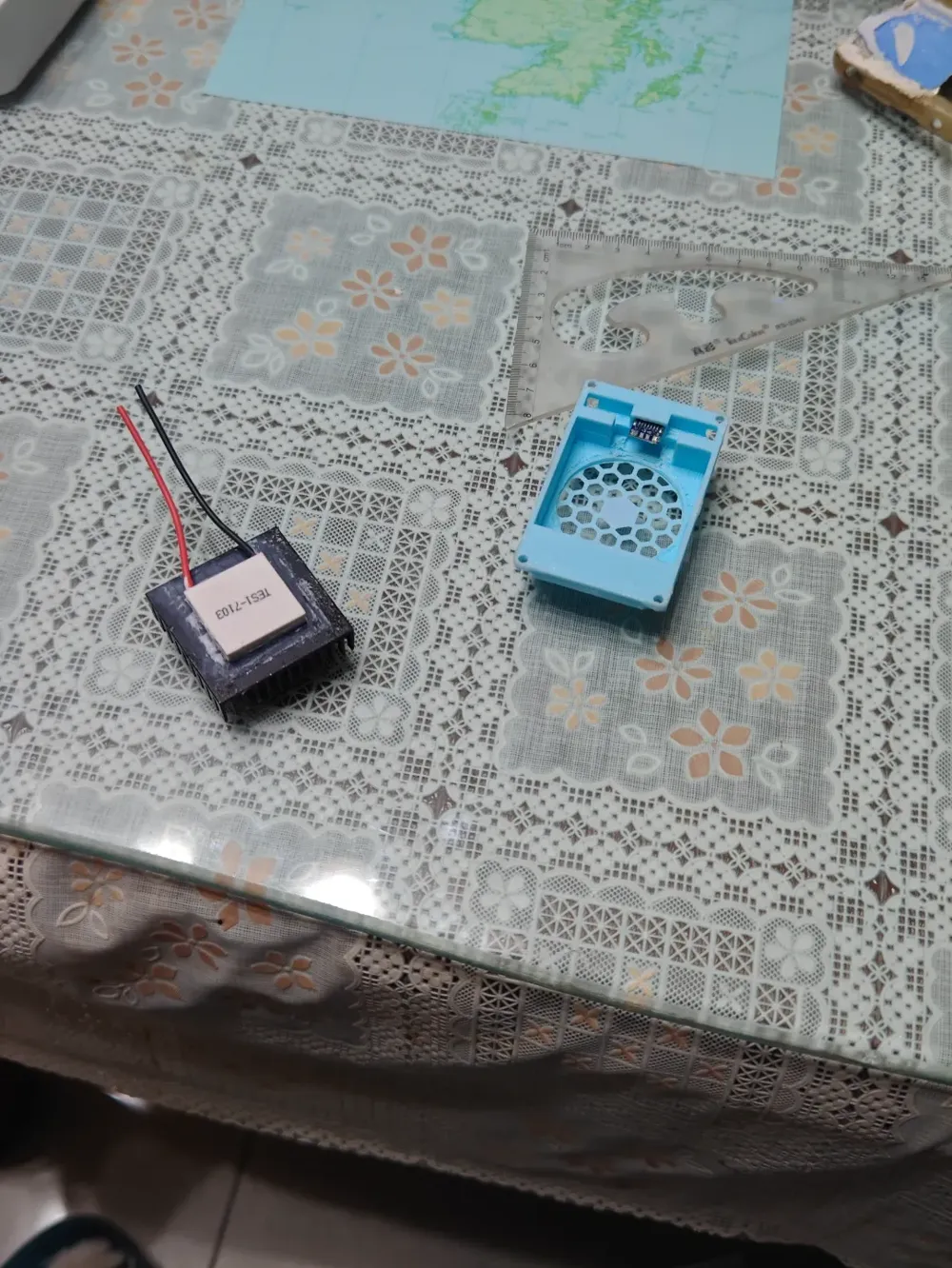

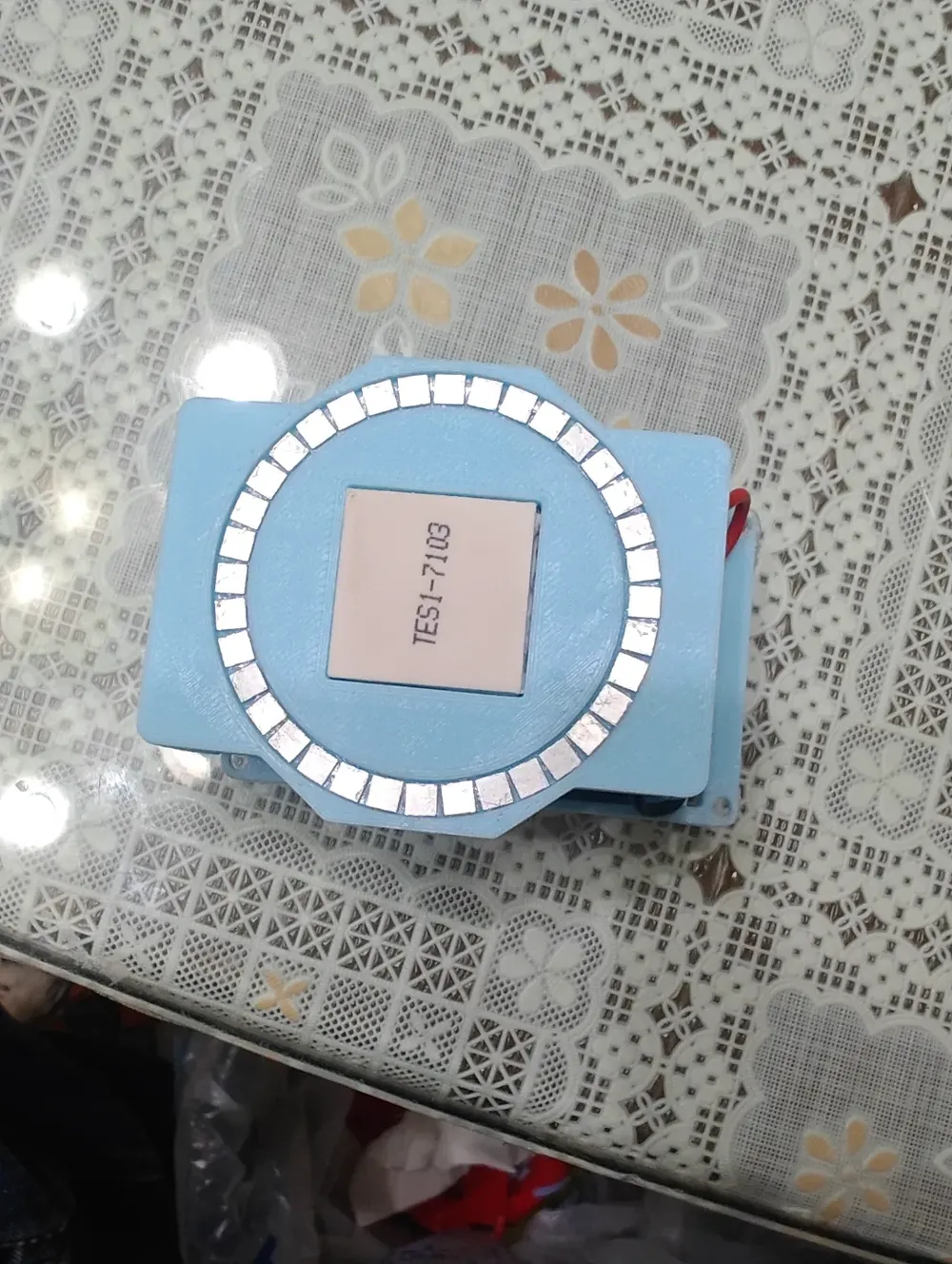

6. TEC1-7104 heatsink, 30*30*4mm, 1 piece;
7. Type-C female socket, 1 piece;

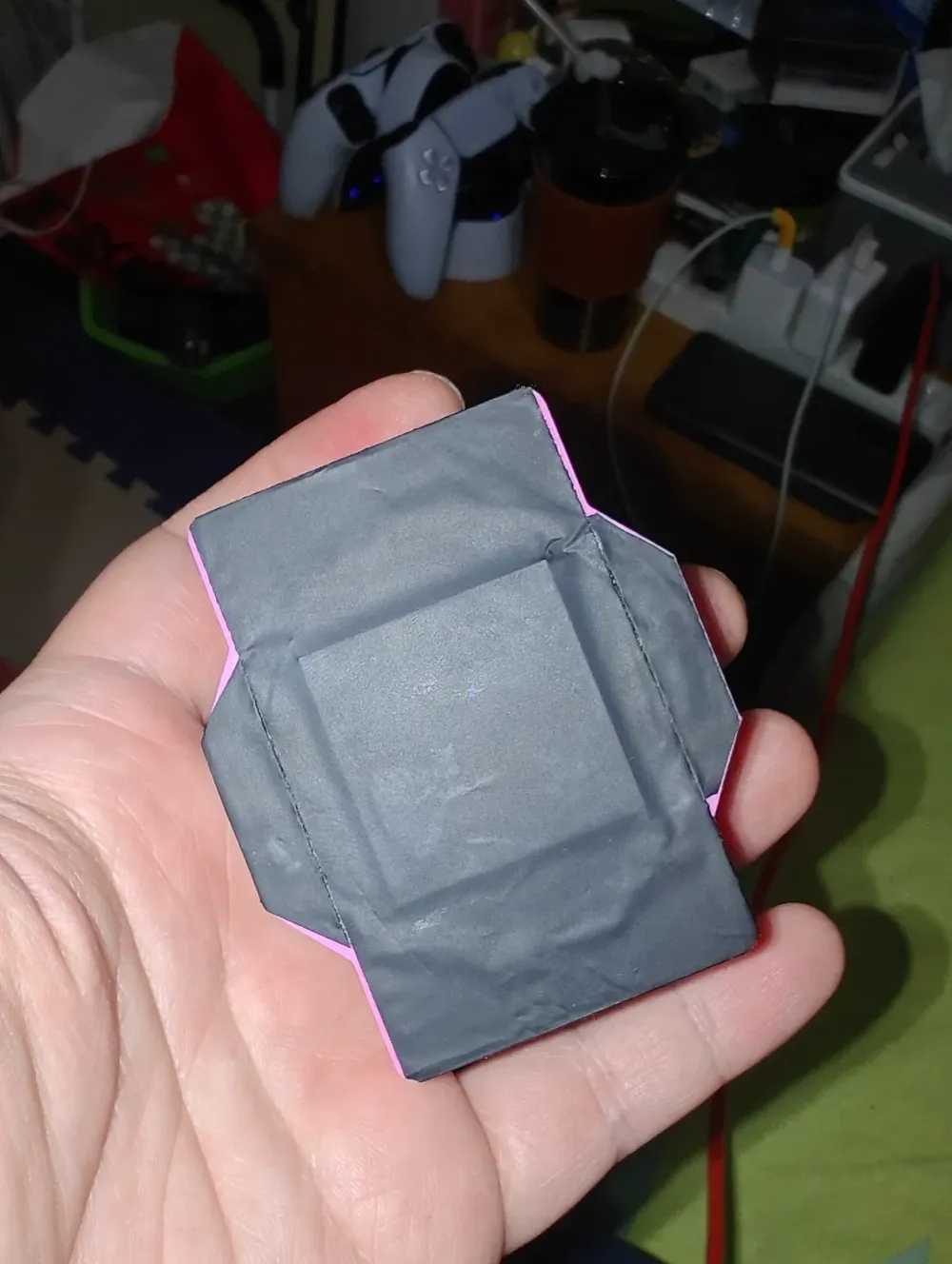

8. Nano graphene sticker, 1 piece;

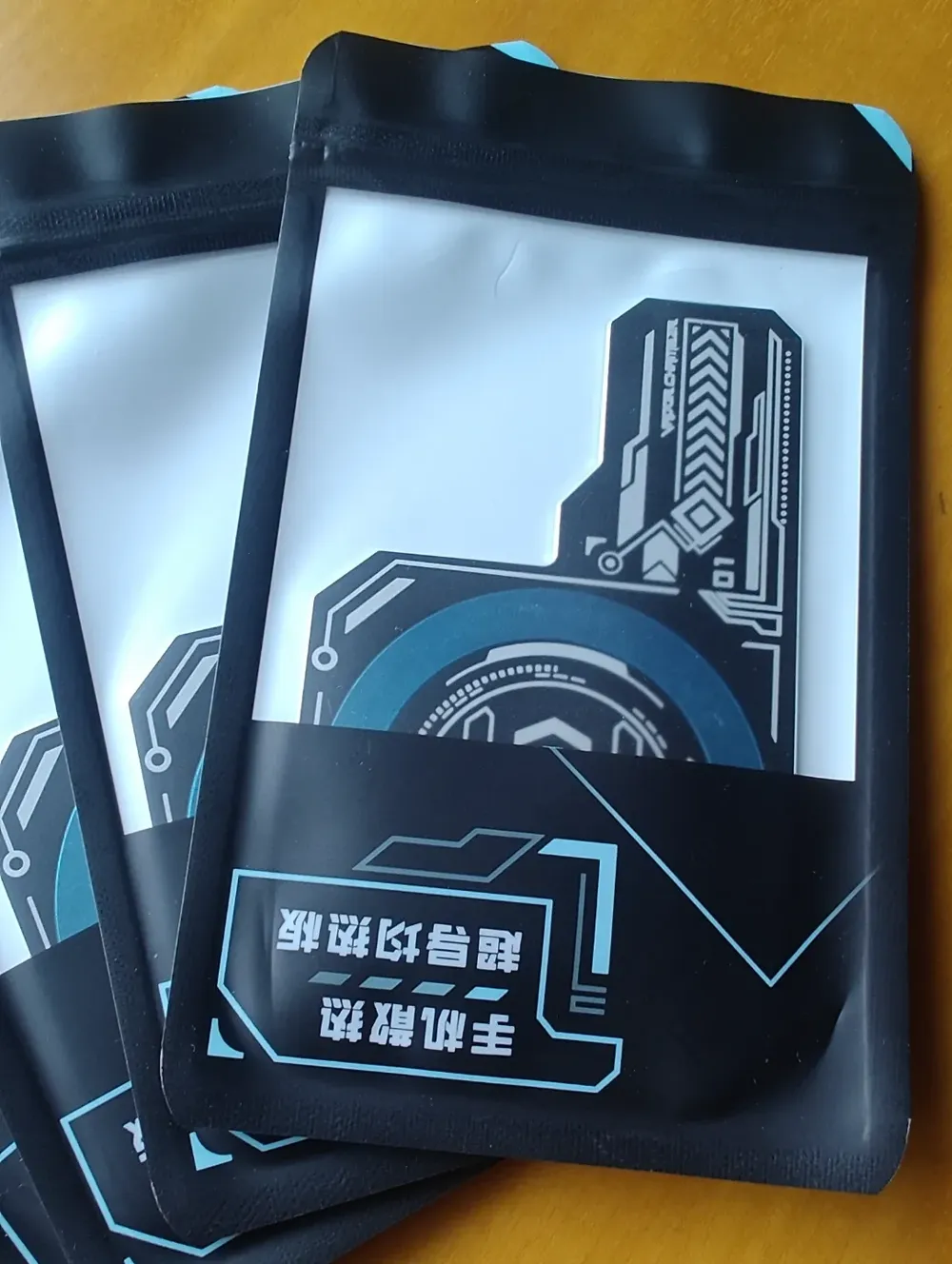

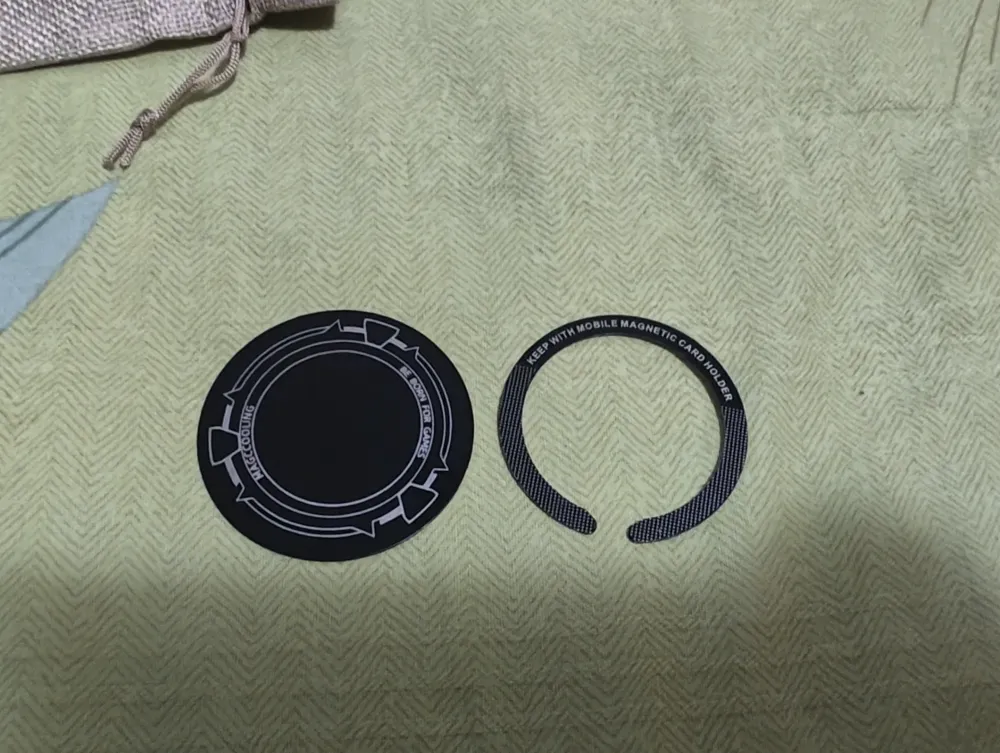

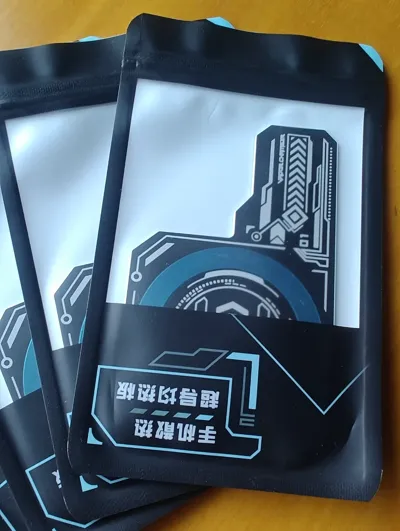

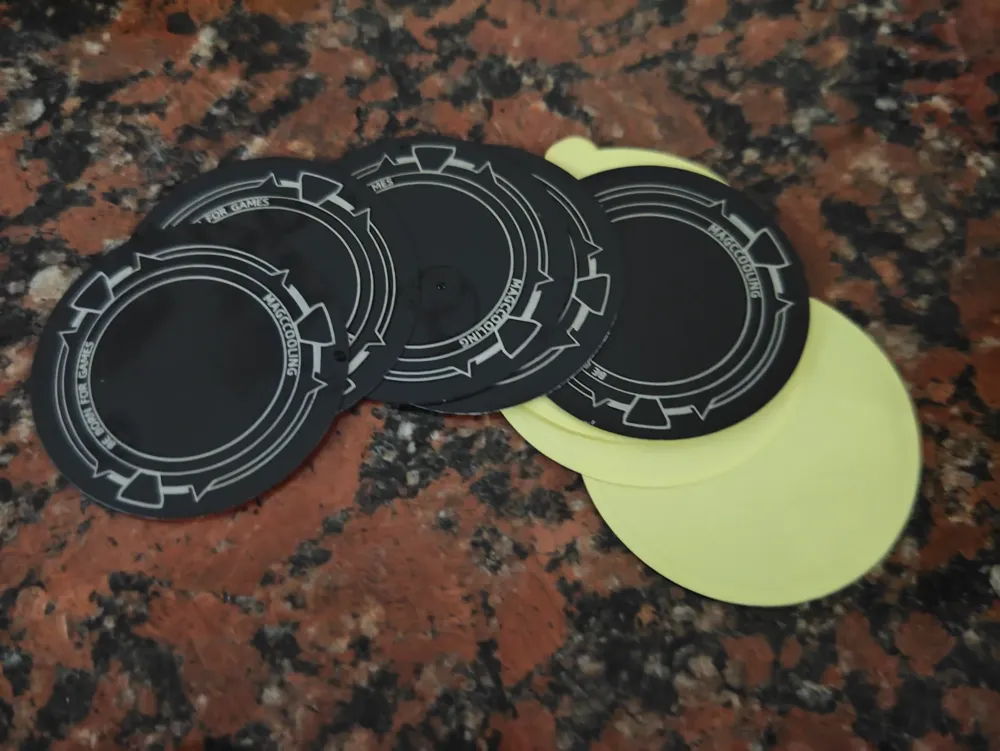

9. Smartphone heat spreader/magnetic plate/magnetic ring, 1 piece (IPhone does not need it, only Android phones need it, if the phone heats up seriously use the heat spreader, other devices can use magnetic plate or magnetic ring).

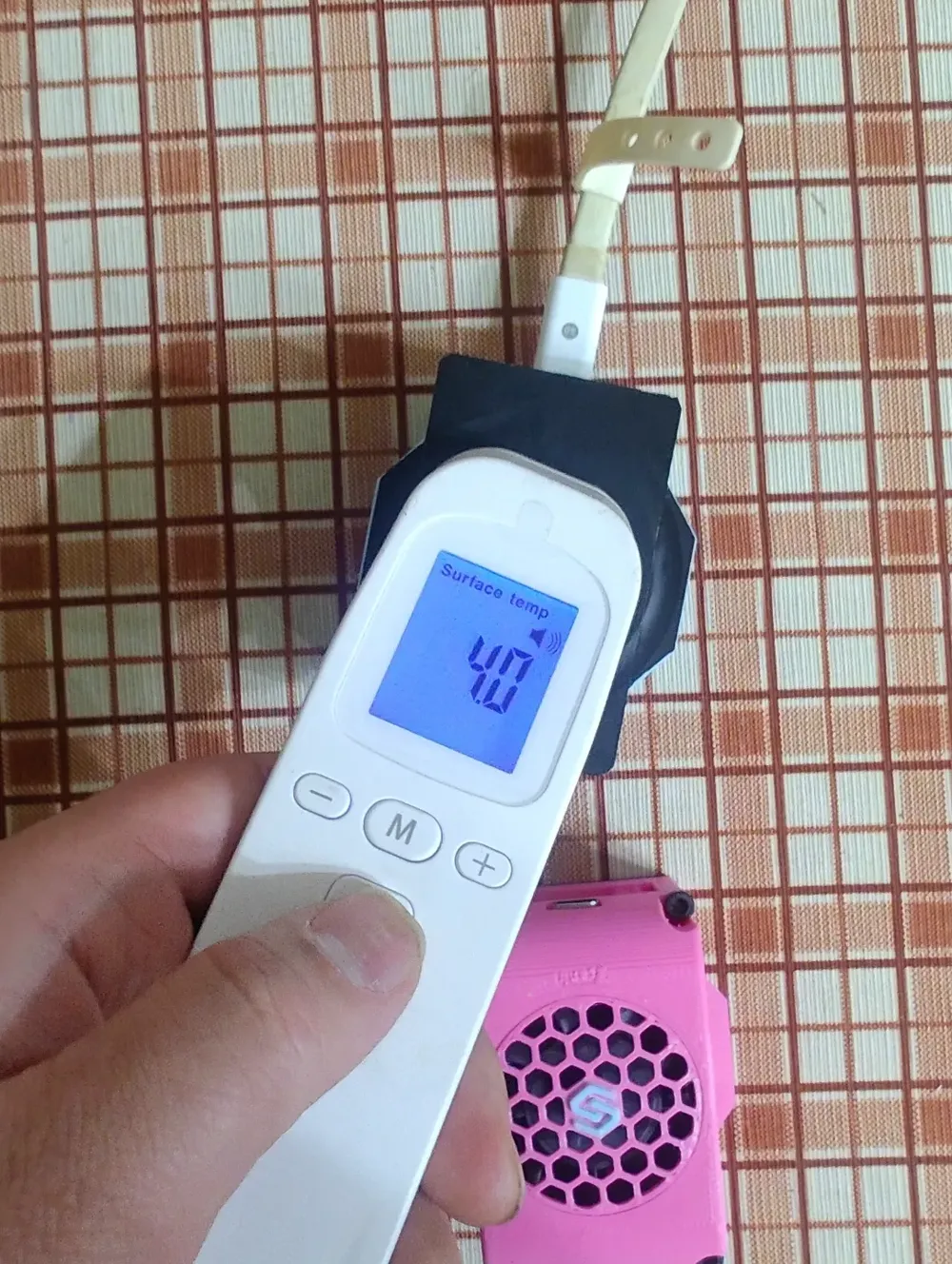

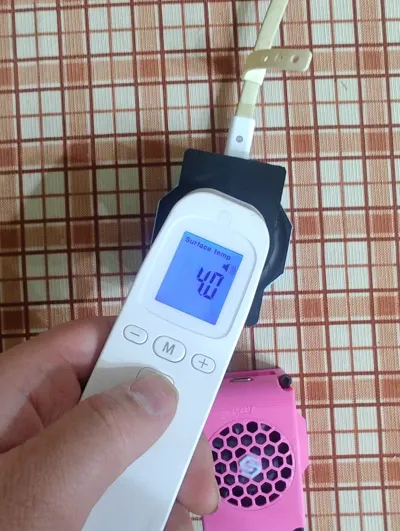

In Chongqing, with temperatures around 40 degrees Celsius, using a 5V2A output power, the surface temperature of the cooler can be reduced to about 4 degrees Celsius, which will not cause condensation on the phone and effectively protects the phone's motherboard.
If a stronger cooling effect is required, you can add a lure or use a higher power charger.
