Description
I've seen lots of iphone chargers with unique functionality and options, however in the spirit of learning how to design objects in OnShape I've developed my own.
I printed with custom filament types, so you will need to use one that you are comfortable with.
Goal:
Realively quick print 5.5 hours
Designed to be useable and functional
Have the ability to hide weights in the base so that it doesn't move as easy.
Features:

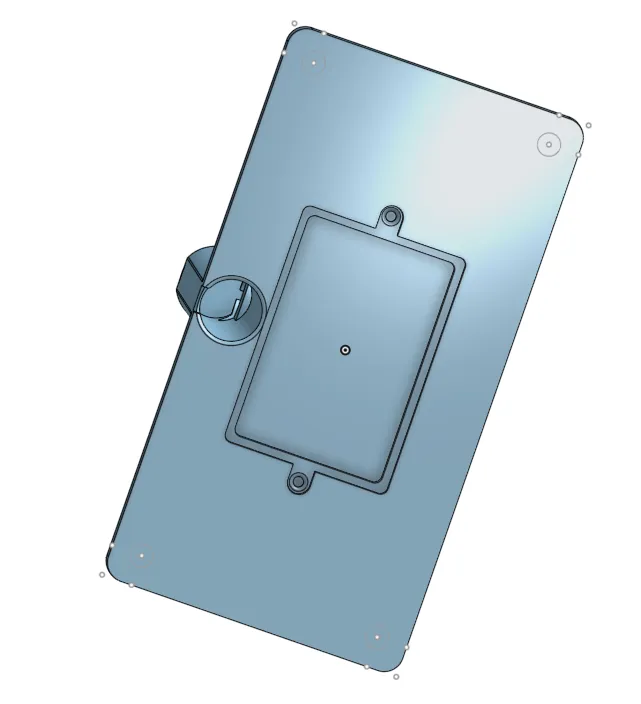

Each base has a box on the bottom where you can add weights and a cover is included
Charge both Iphone and Watch at the same time
Tight fitting Mag chargers so they don't fall out.
Three different base designs
- Iphone + watch charger with the apple logo on the base
- Iphone + watch charger without the apple logo

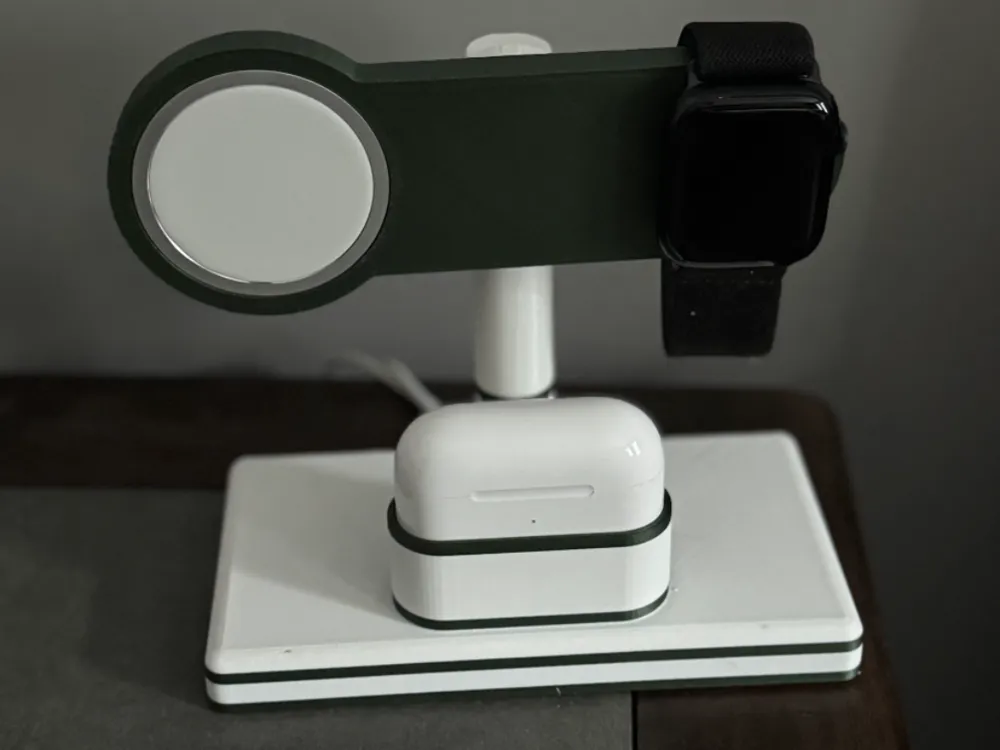

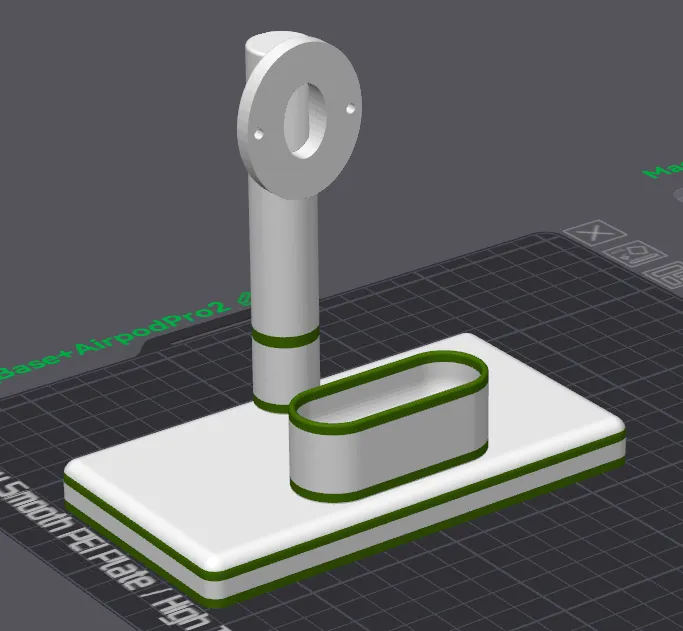

Iphone + watch charger with Airpod pro 2 storage location
Additional Parts
Base (1) and Base (2) Needs 2 m3x8 cone screws to secure bottom base plate and 2 m3x12 MM screws
Base (3) I updated the screw hole size to use heat inserts. This design needs 2 m3x8 cone screws to secure bottom base plate and 2 m3x12 MM screws and 2 M3X3 Heat inserts for the weight box top. This gives the ability to have a more secure weight storage.
