My entry for the Games of the 90s contest!

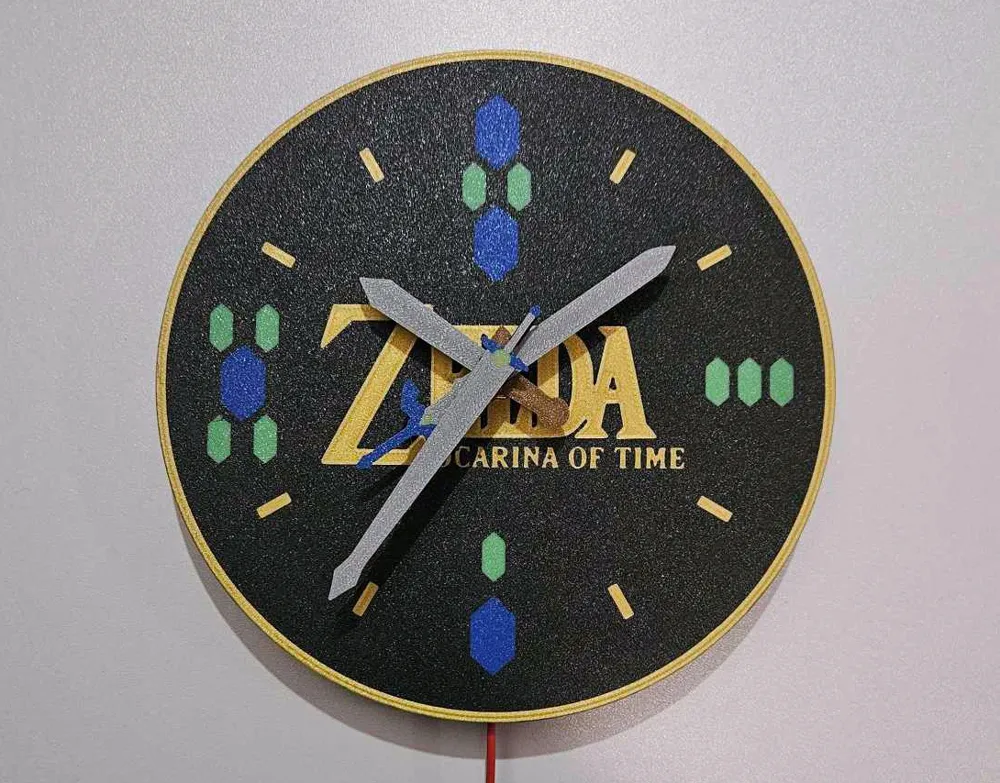

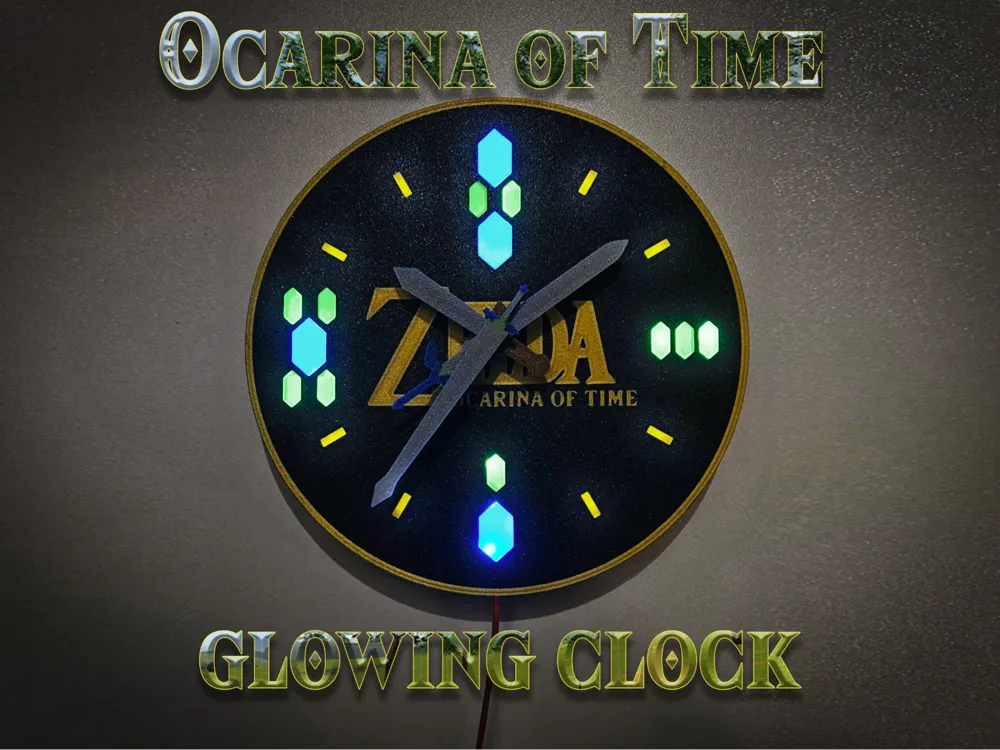

The Legend of Zelda: Ocarina of Time, released in 1998, is undoubtedly one of the best games of all time in my opinion! This is an Ocarina of Time clock with optional LEDs inside. The rupees serve as numbers, and the game’s logo is on the front! Enjoy :)

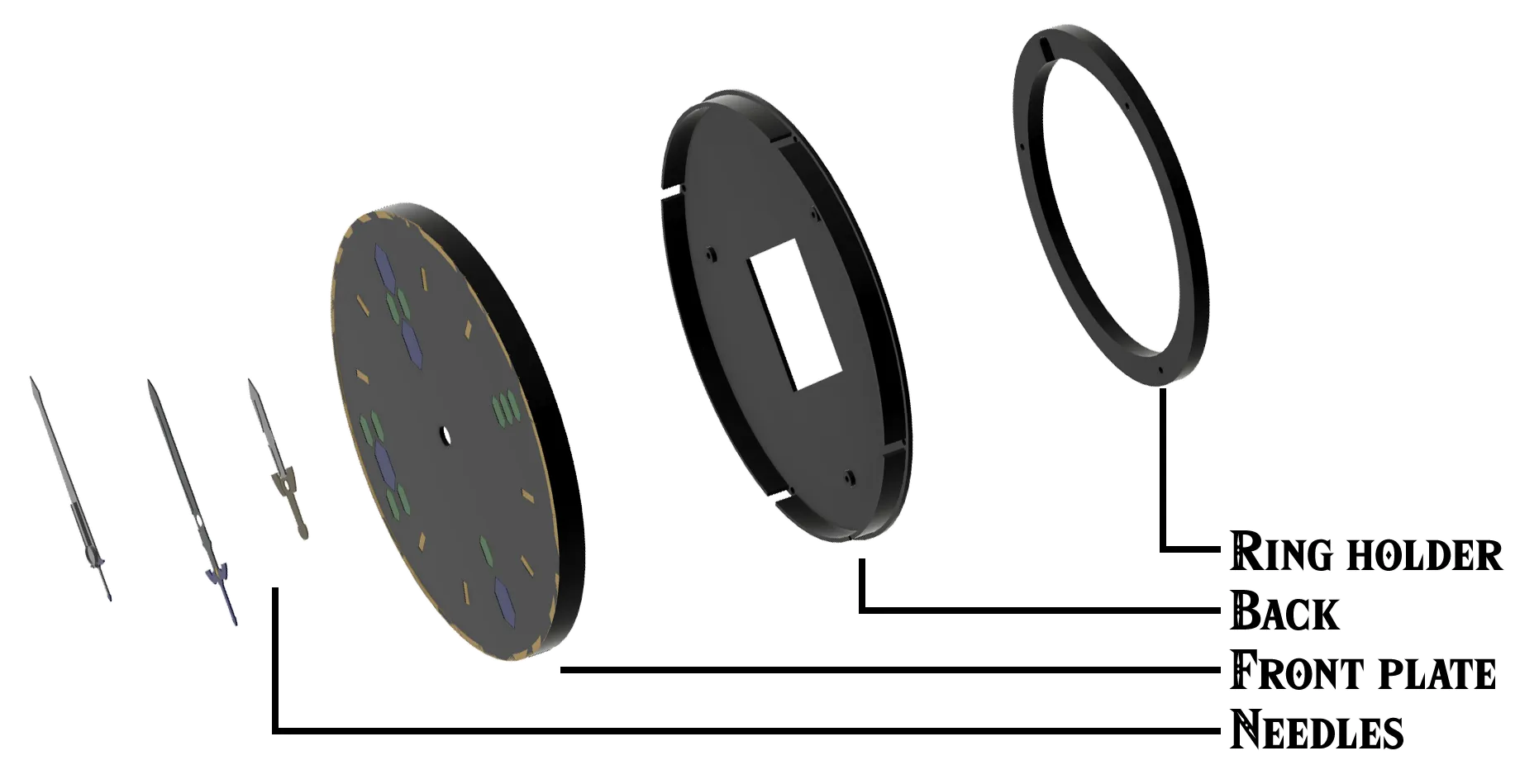

Assembly:
- Attach the "Ring holder" to the "Back" (3 screws).
- Wrap the LED strip all the way around and cut off any excess or wrap it around more than once.

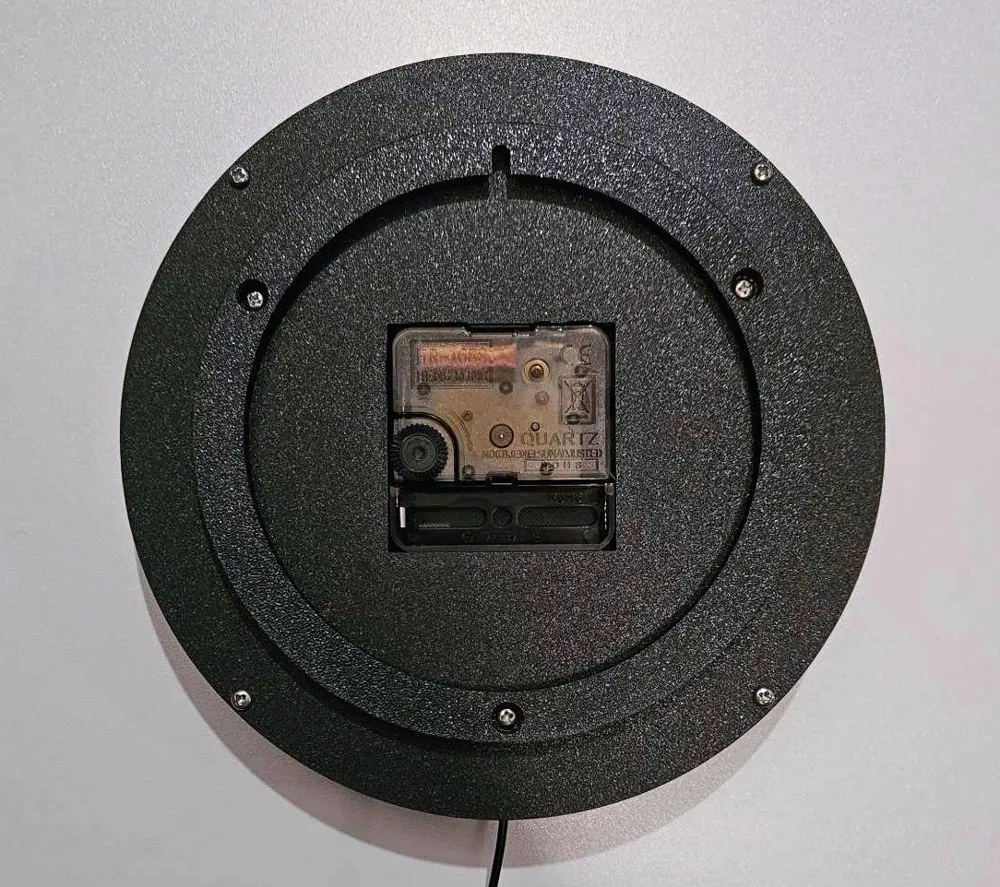

- Insert the Clock Component Kit into the "Face plate".
- Attach the "Face plate" to the "Back". (4 screws)

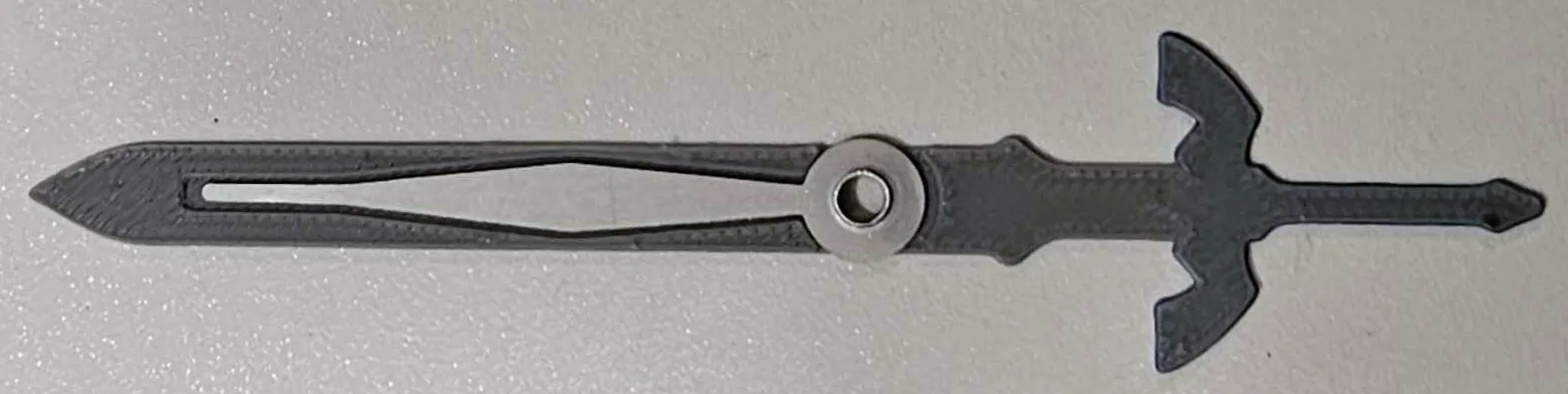

Glue the swords onto the needles; the shapes of the original needle from the Clock component kit from Maker’s Supply are embedded into the swords to help align correctly:

- Attach the needles to the clock.
Hardware needed:
Tips/settings:
- 10mm brim (except for needles)
- The needles are very thin and need to be perfectly straight to avoid catching on each other. To prevent warping when removing them from the build plate, WAIT UNTIL THE PLATE IS FULLY COOLED before taking them off.
- Arachne wall for the swords (unless you're using a 0.2mm nozzle)
- The tolerance is quite tight, and I haven’t tried it with anything other than PLA, so proceed at your own filament! 😃

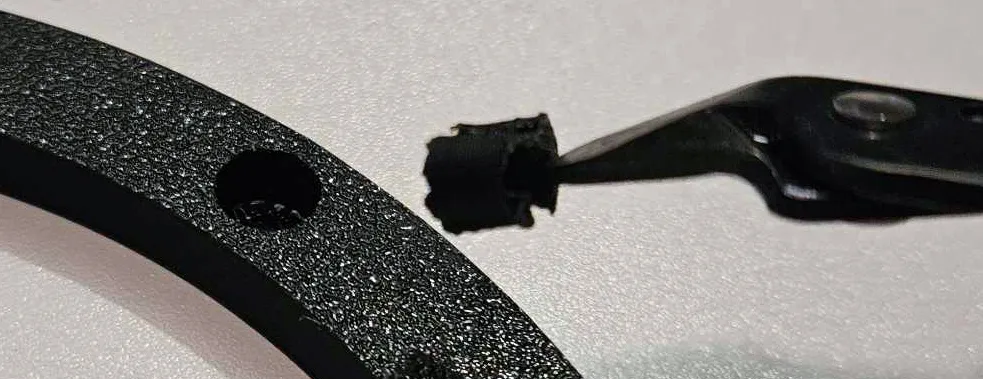

Use flush cutters to remove the supports from the "Ring holder" piece:

*This design is a tribute inspired by the Ocarina of Time logo, an element from The Legend of Zelda universe. All rights to the original work belong to Nintendo. This model is intended for personal use only. Any commercial use or redistribution without explicit permission from Nintendo is strictly prohibited.
