Altura de capa 0,15Capa inicial 0,215% rellenoSoporte normal, soportes pintados personalizados, estilo por defecto, ángulo 30, distancia soporte x/y: 0,64

Layer height 0.15Initial layer 0.215% infillNormal support, custom painted supports, default style, angle 30, support distance x/y: 0.64

0.15mm layer, 2 walls, 15% infill

ArTi



You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

samu

Sonic

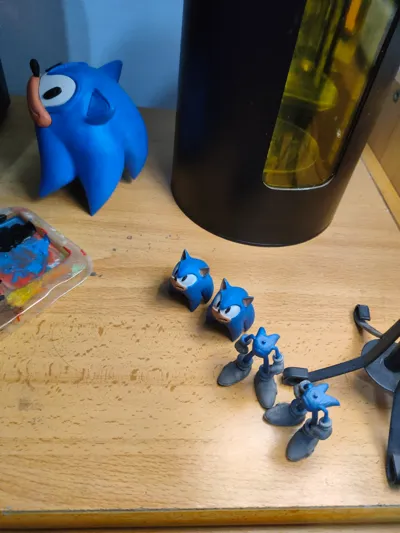

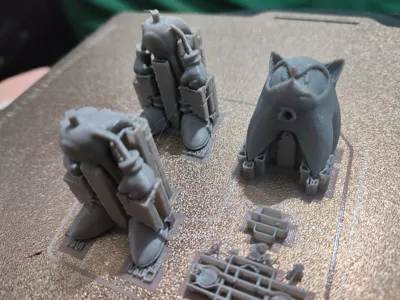

El modelo presentaba muchos fallos en la malla, vértices no soldados lo que daba fallo en los zapatos y la boca. La mano era demasiado delgada, por lo que al remover los soportes se rompían. No tenía estabilidad por lo que tendía a caerse hacia detrás la figura. Remodele la malla, amplié el grosor de los brazos y corregí el fallo de la boca por lo que ahora es un archivo perfectamente imprimible. Recomiendo quitar los soportes con cuidado pero en principio salen bien con una distancia de soporte al modelo de 0,64. Adjunto imágenes que muestran el acabado final del modelo y su perfeto funcionamiento. Lo he partido en dos piezas para que tengan la opción de girar la cabeza y darle una postura más natural si así lo quieren y para disminuir el tiempo de impresión.

The model presented many mesh errors, unwelded vertices which caused errors in the shoes and mouth. The hand was too thin, so when removing the supports it would break. It had no stability so the figure tended to fall backwards. I remodeled the mesh, increased the thickness of the arms and corrected the mouth error, so now it is a perfectly printable file. I recommend removing the supports carefully but in principle they come out well with a support distance from the model of 0.64. I attach images showing the final finish of the model and its perfect operation. I have divided it into two pieces so that you have the option to turn the head and give it a more natural posture if you wish and to reduce the printing time.
