Description

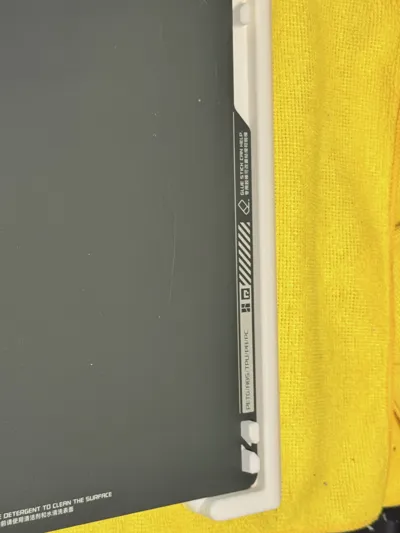

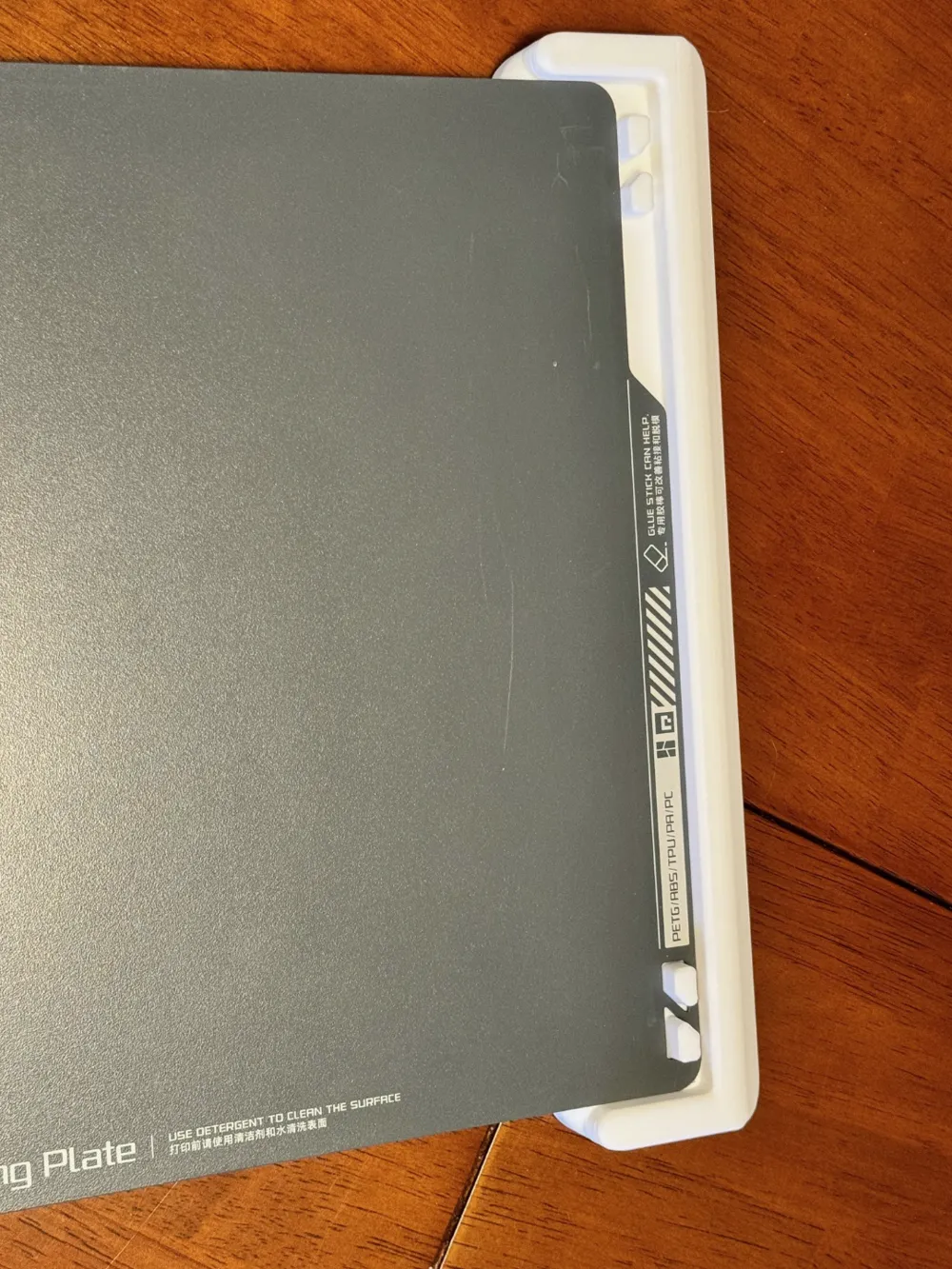

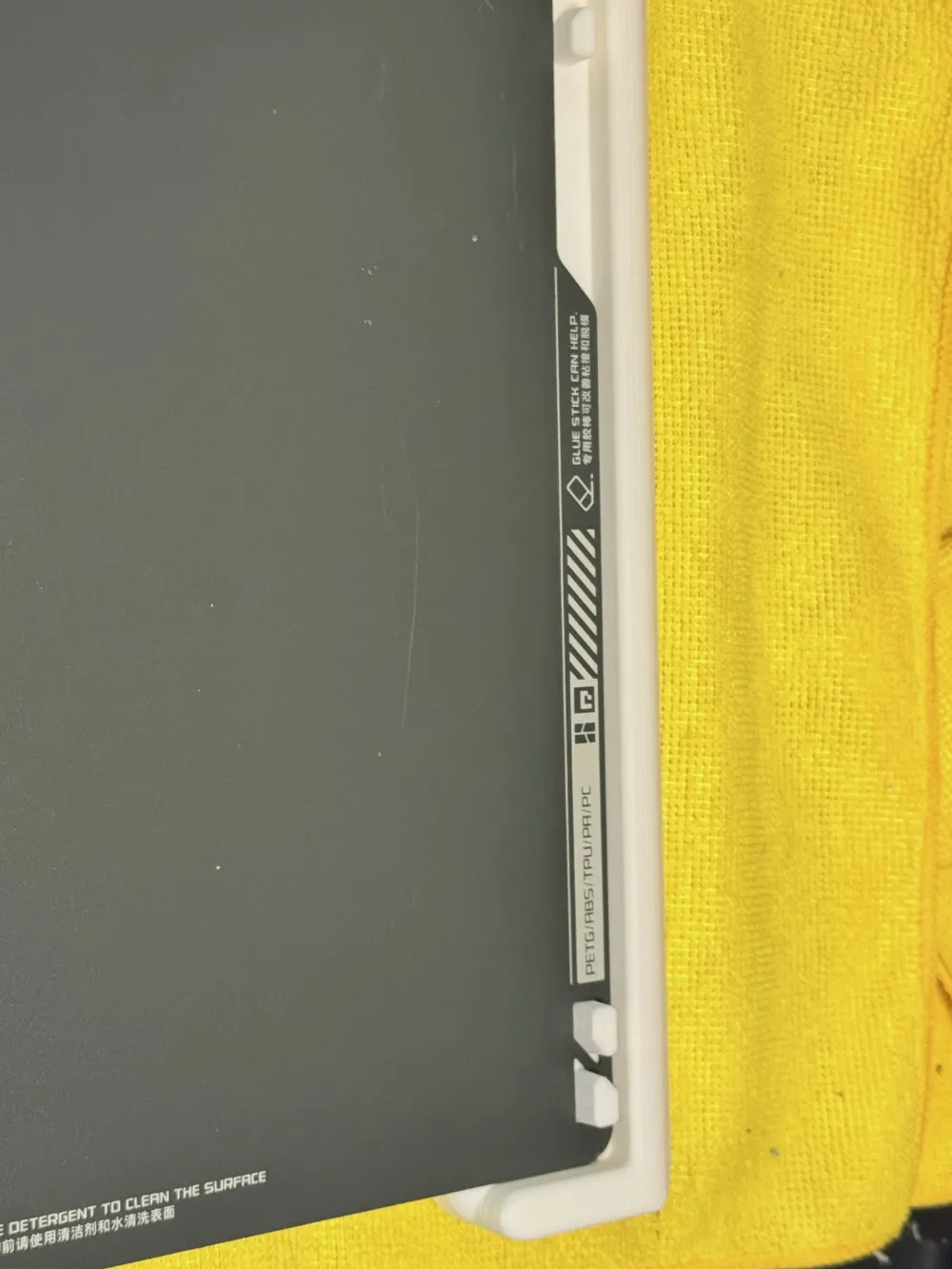

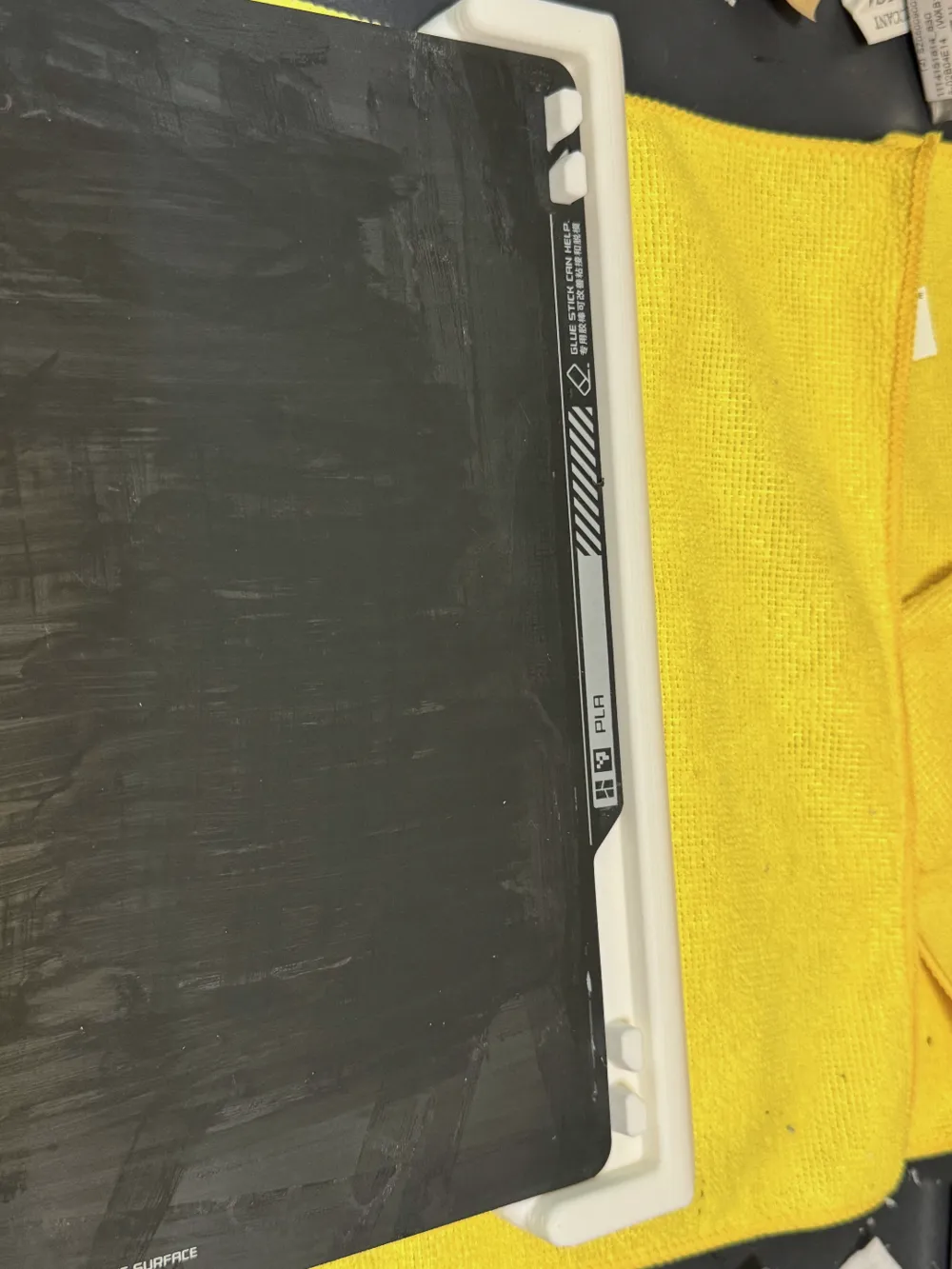

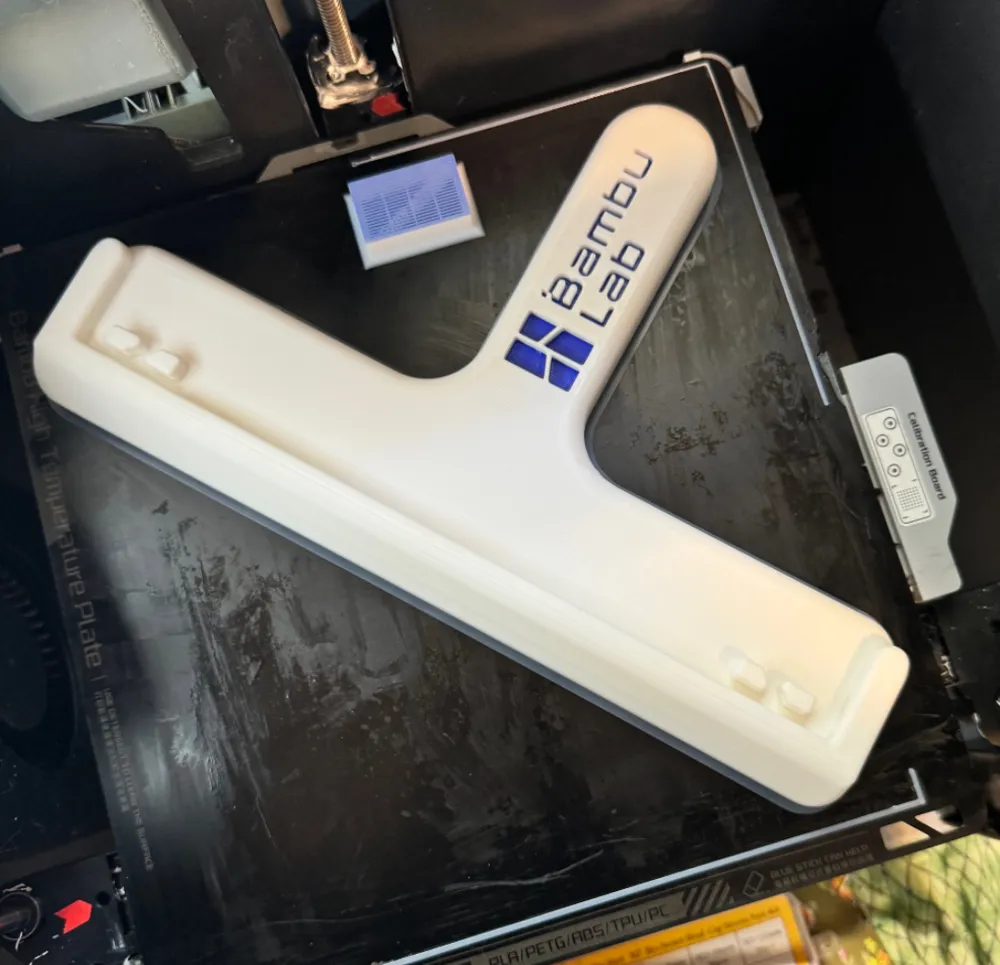

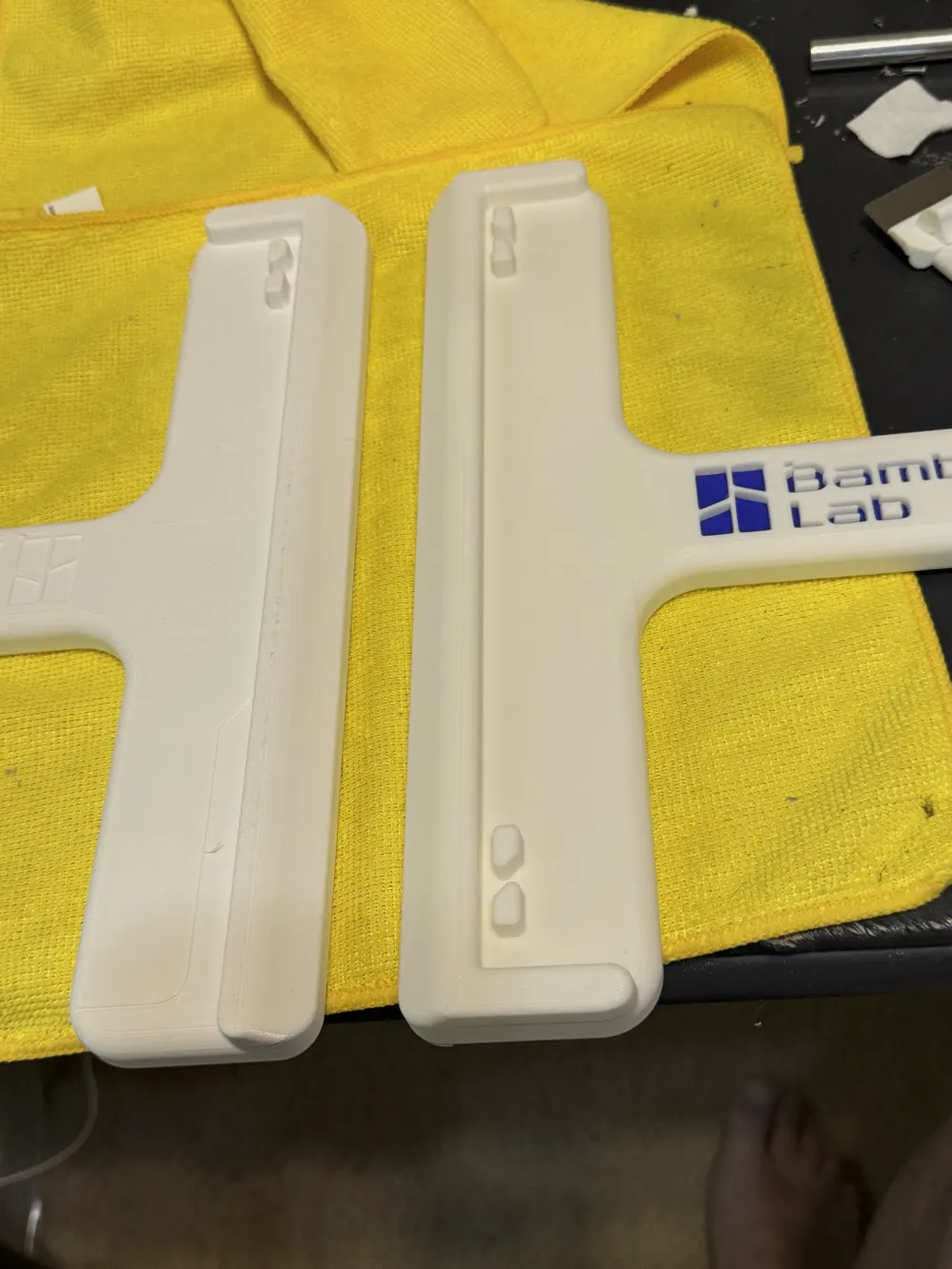

Since I had two Engineering Plates I wanted to change one Engineering Plate with the High Temperature Plate, but that was the wrong side for my Film Sticking Fixture. So, I decided to mirror the Bambu Lab Film Sticking Fixture. But, why print a new mirrored fixture and have two tools, when I could combine the two into a single tool. I couldn't find where this had been done, so I modeled a Dual Film Sticking Fixture. Hope someone finds it useful.

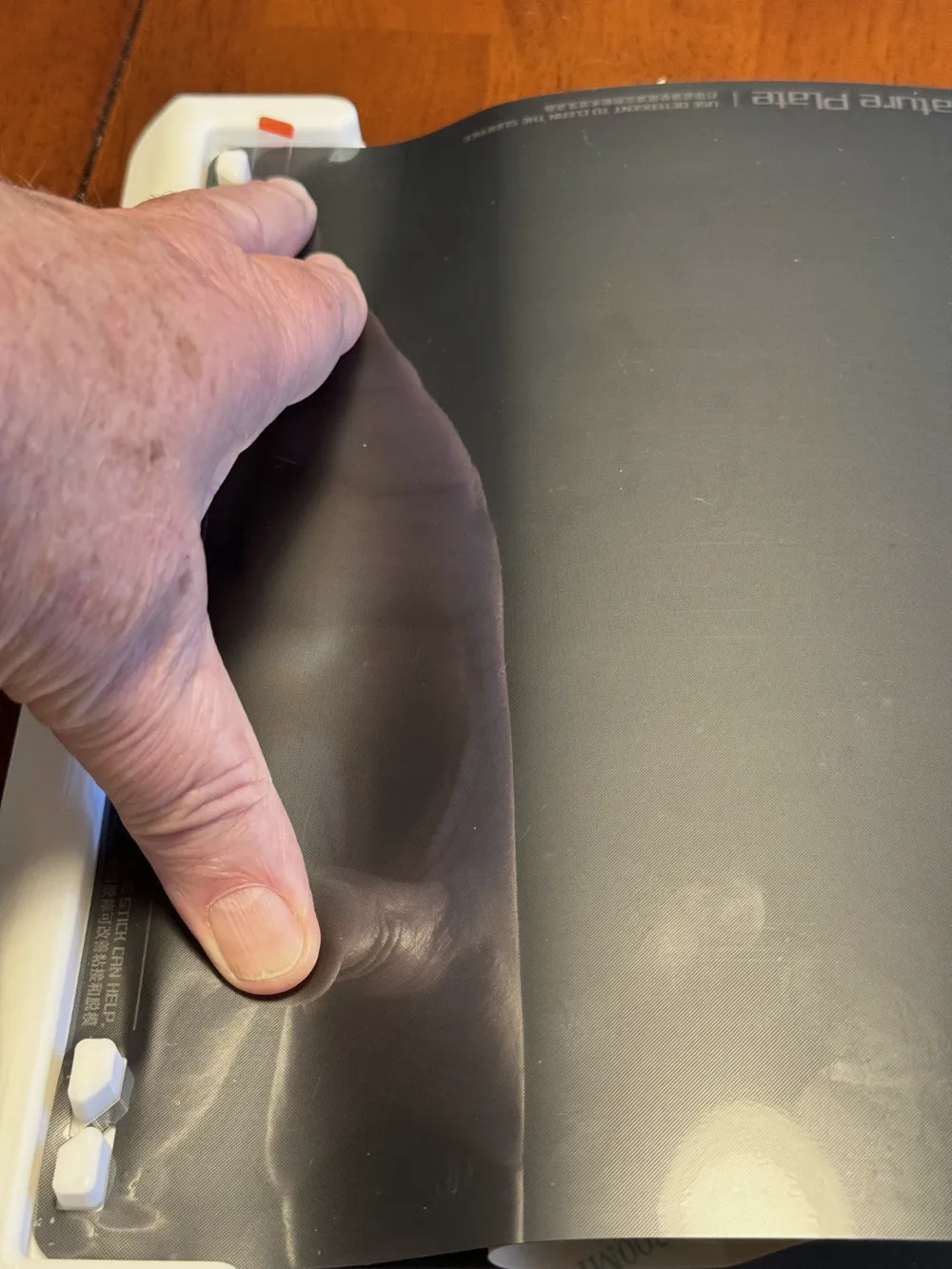

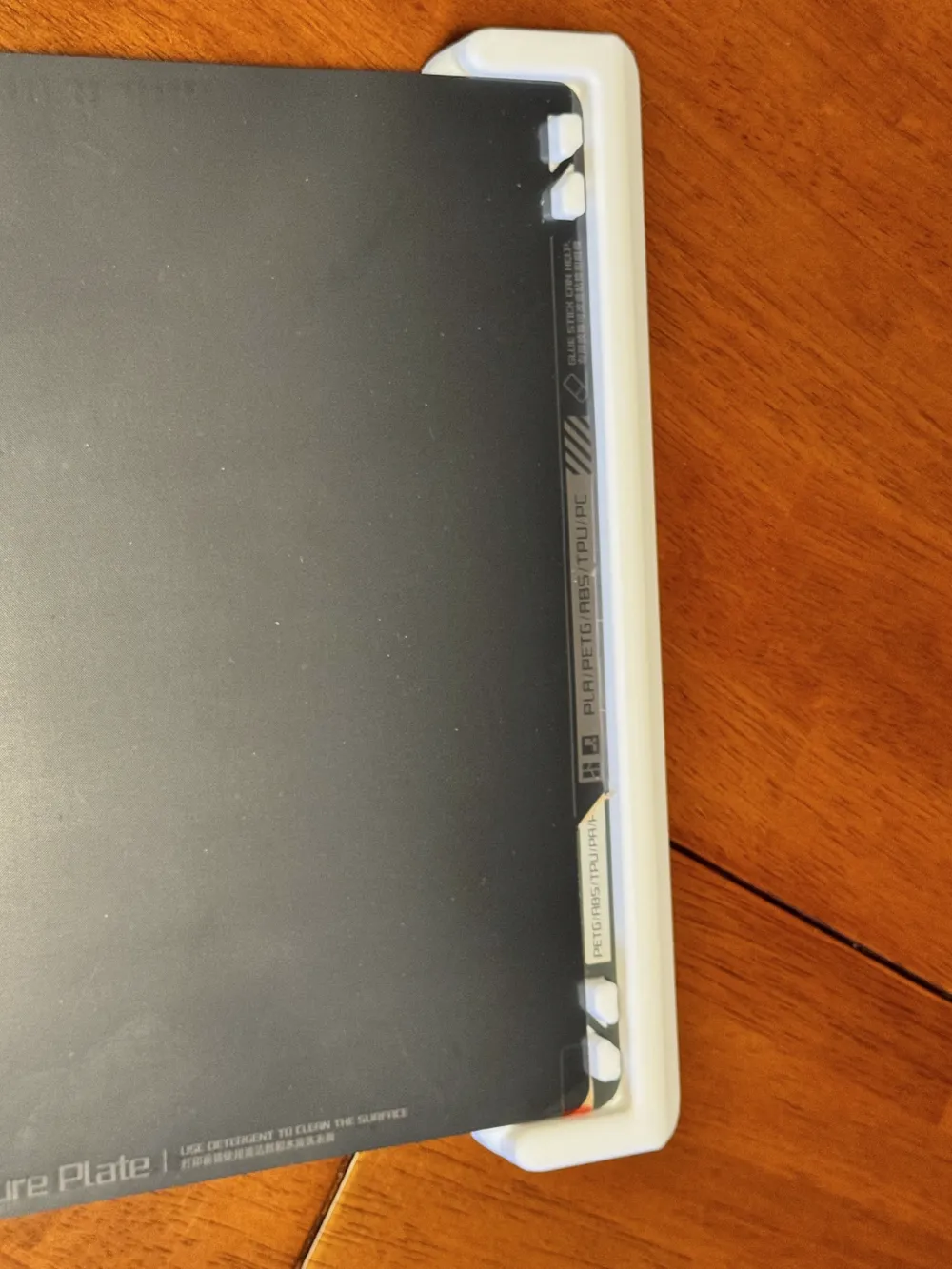

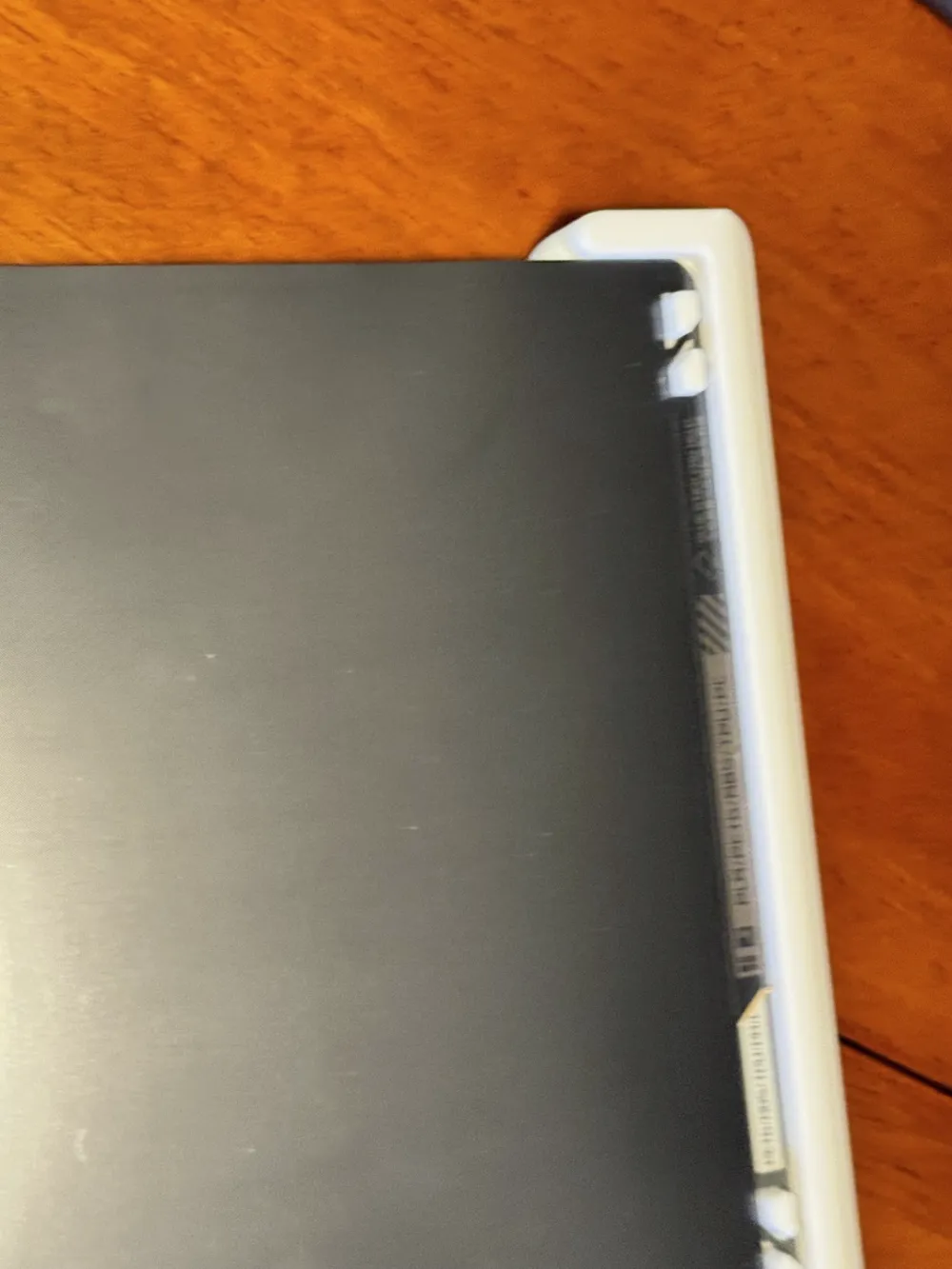

UPDATE: Be sure you align the sides or the new surface may slightly extend over the edge on a side.  It this happens, do not try to pull up and readjust, just cut off the overlapping edges.  The last pictures illustrates this.
