Round Stock Drill Press / Mill Center Finder
Print Profile(1)
Description
This is a snap together center finder tool for drilling round stock along its axis at the thickest part of the stock.

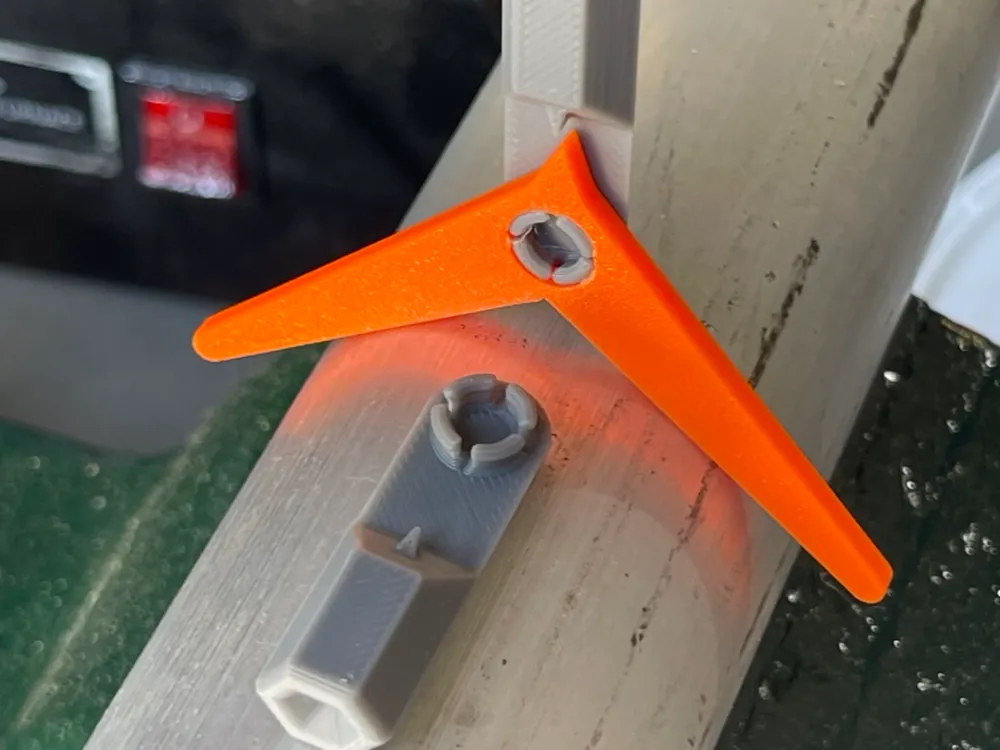

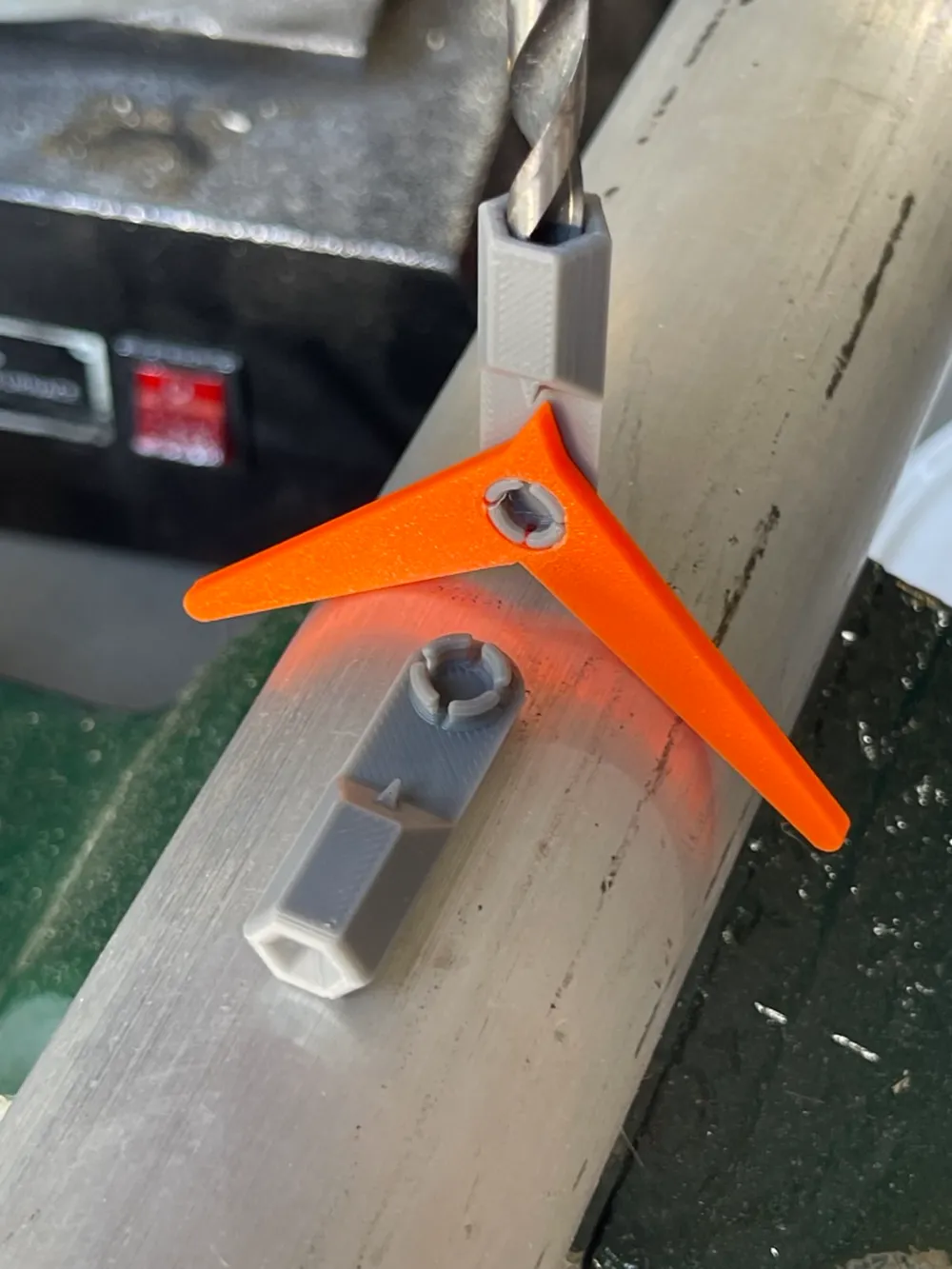

Simply choose the style sleeve you want.
-One sleeve can be drilled out to whatever size you desire.
-One sleeve is for a ¼" drill bit
The moving part only goes on ONE WAY as printed on the model. If you try to snap it together the wrong way you'll break the tabs off.

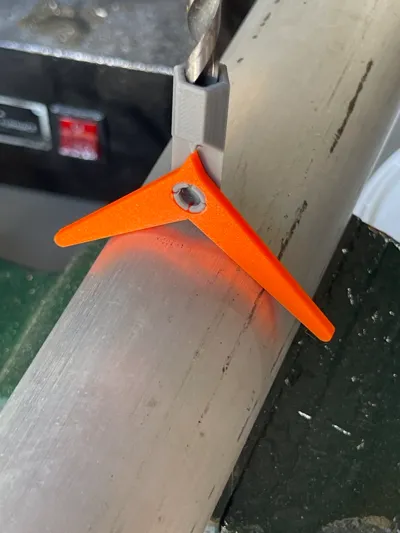

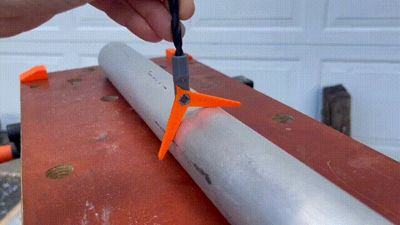

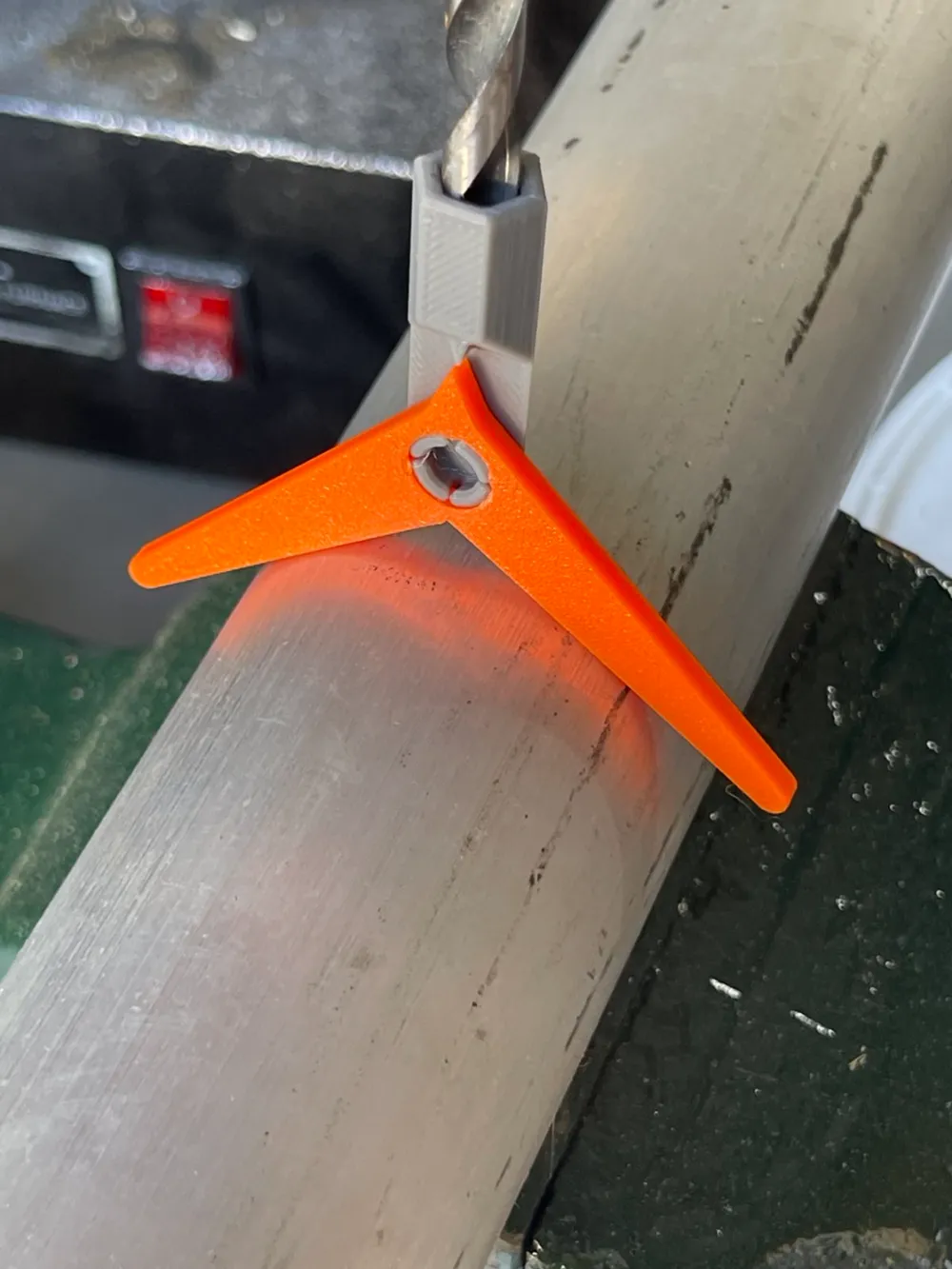

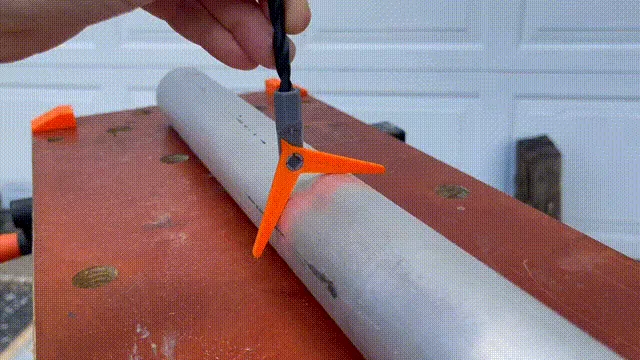

Snap the two parts together and put your round stock in your vise, then move your vise back and forth until the two arrows line up. Once they line up; you're at top dead center.
