phillipjfry

cover








0.21 layer (intentional, the supports will fall right off).&nbsp;fully support underneath. use any color PLA, profile is 97% flow for filament.

0.21mm layer, 3 walls, 15% infill

Angelol


This profile works with any file type of this project

0.28mm layer, 2 walls, 5% infill

Single Gang x2

Single Gang x3

Double Gang

Triple Gang


ua_marksman








The print times shown are for my CF-PETG which is a fair bit slower than PLA. If you have a calibrated PLA and dialed in your max volumetric flow rate you should be able to cut these times in half.&nbsp;I&#39;ve optimized the supports, including placement and bridge/infill angles. Every model now uses less than 2g of support, whereas the original profile used up to 14.40g for the triple gang. Example of how the supports are laid out on the triple gang is in the photos.&nbsp;I&#39;ve also made plates of 2 and 3 single gang covers for anyone printing from the app that can&#39;t simply add more in.&nbsp;&nbsp;Other notes:<ul><li>Kept 3 walls to get the inner/outer/inner wall order.</li><li>Scarf seams.</li><li>Precise Z Height, just so the studs are super perfect.</li><li>Arachne wall generator because I find that I get better quality walls.</li><li>0.6mm line width for everything except inner walls. Wider lines &gt; fewer passes &gt; faster prints. 0.6mm is also the ideal width for layer strength as per CNC Kitchen. Inner walls were left at 0.42mm to save material, outer wall lines were widened because scarf joints tend to look better that way.</li><li>I went with Cross Hatch (easier on the printer, quieter, faster than gyroid) for sparse infill and kept the 15%, but it really doesn&#39;t matter since there&#39;s so little of it.</li></ul>&nbsp;Many thanks to <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/@phillipjfry">phillipjfry</a> for creating these, there aren&#39;t many wallplate designs out there for Decora switches!

Adaptive Layers, Less Support, Multi-Print

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

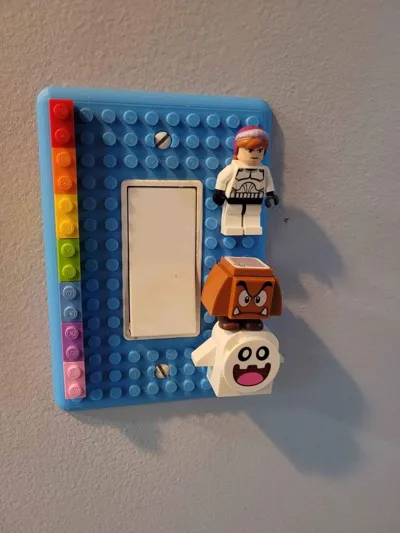

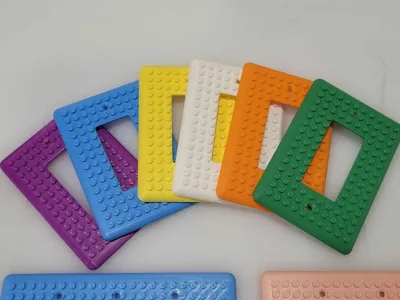

<h3>Bricks Compatible Switch Covers 1, 2, and 3 Gang (Bricks because L.E.G.O crazy trying to stop people 3D printing it…just crazy doing themselves no service)</h3>&nbsp;3 Plates: 1. Single gang cover2. Double Gang Cover3. Triple Gang Cover (Not compatible with the A1-Mini)&nbsp;I designed these a few years ago when learning CAD, it is not my original idea (the design is mine from scratch) but I love the company that we can&#39;t speak it&#39;s name on Makerworld and it seemed like good design challenge for my early learning of fusion 360. Like the vast majority of my models, this is free and you can sell them if you want, please just give attribution. the 1 and 2 gang covers will print on any bambu printer, unfortunately the 3 gang version is not compatible with the A1-Mini. (I will not make a version for outlets so please don&#39;t ask).  Pictures Printed in:Various PLA&nbsp;Hope you like my models, if you do please leave a rating and check my profile here: <a target="_blank" href="https://makerworld.com/en/@phillipjfry" rel="nofollow noopener">https://makerworld.com/en/@phillipjfry</a>Maybe <a target="_blank" href="https://www.buymeacoffee.com/phillipjfry" rel="nofollow noopener">buy me a coffee</a>, I go through lots of it, thanks.&nbsp;Have a great day and happy printing!!!

Bricks Compatible Switch Covers 1, 2, and 3 Gang

ASIA

Print Profile(3)

Description

Bricks Compatible Switch Covers 1, 2, and 3 Gang (Bricks because L.E.G.O crazy trying to stop people 3D printing it…just crazy doing themselves no service)
