Bill of Materials

List other parts

LM8LUU bearings x 2:
Bars D=8mm x L=382mm x 2:
insert the Voron M3 x 13:
insert M2 x 2:

Description

Content has been automatically translated.

Show original

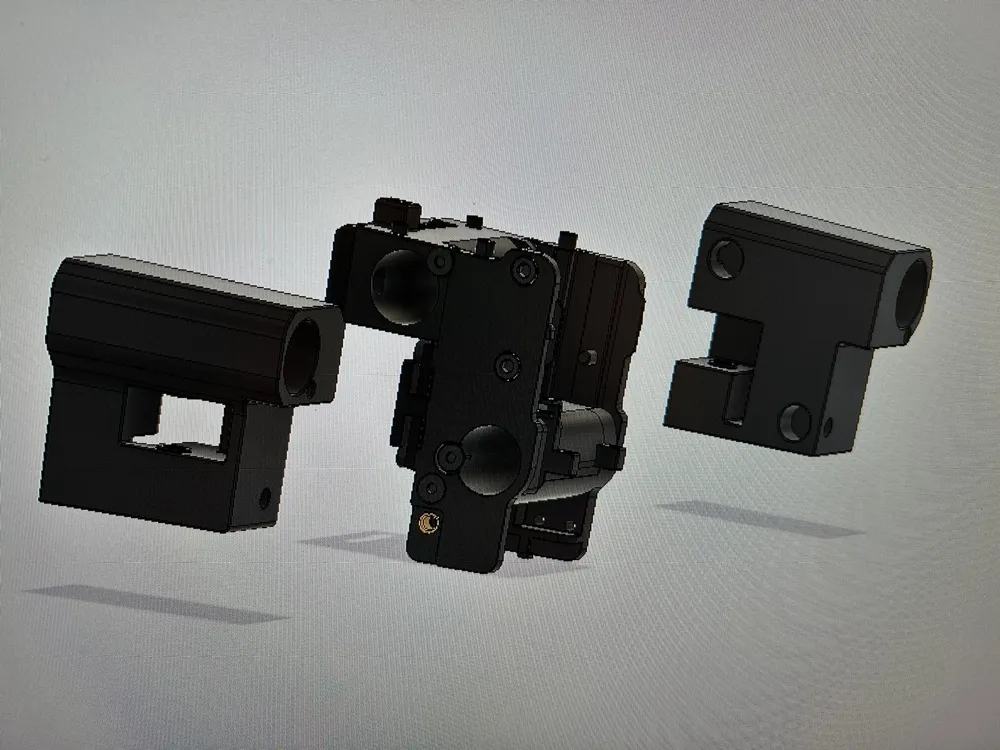

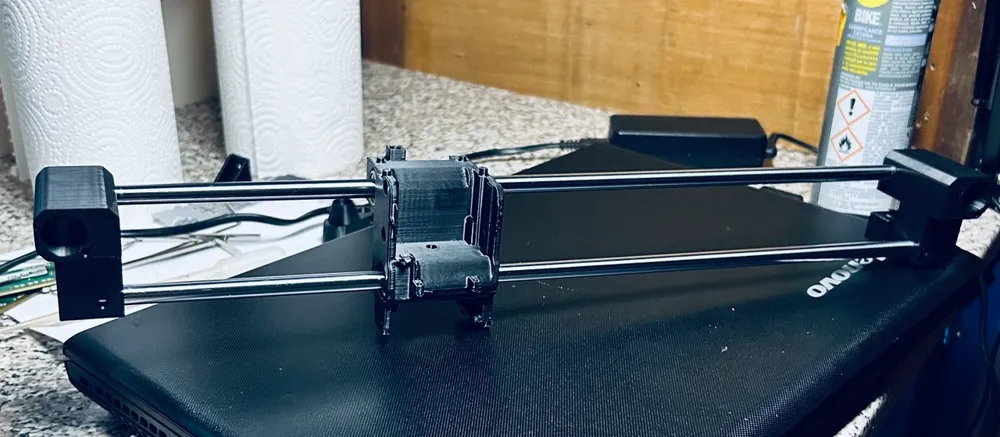

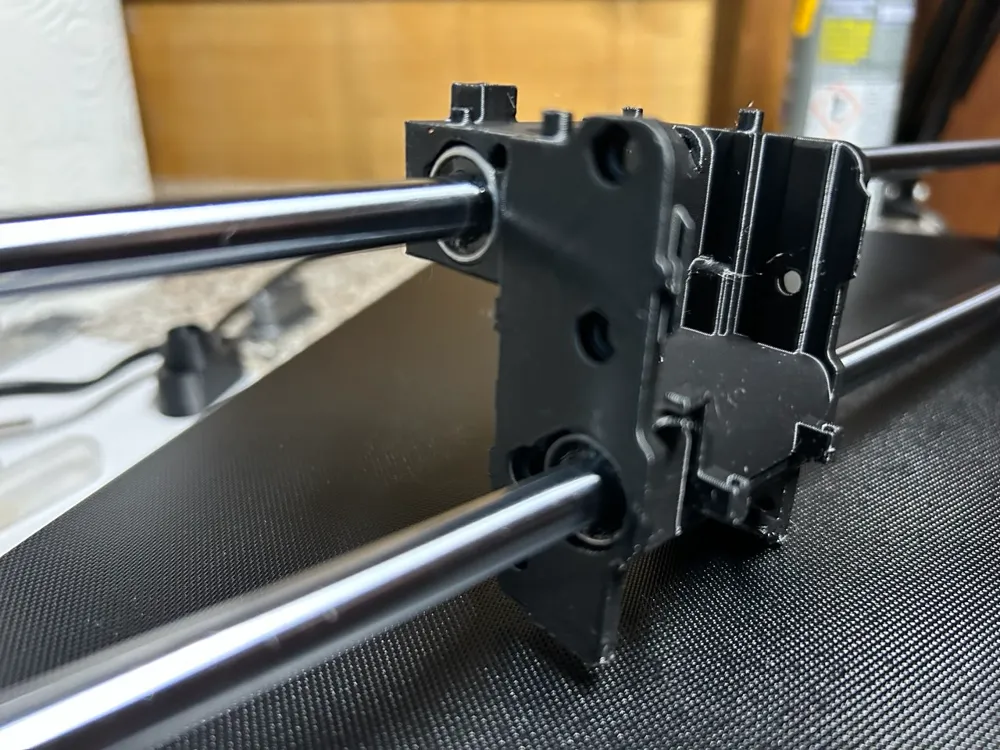

I have designed this modification to replace the standard graphite bearings with linear bearings.

ABS or ASA material, with a 40% infill.

For K1-Max Bars, D=8mm x L=382mm, Quantity=2

https://www.dhm-online.com/albero-temprato-cromato/4527-alberi-temprati-cromati-taglio-a-misura-acciaio-temprato-rettificato-e-cromato.html

For k1-Kac Bars, D=8mm x L=302.5 mm, Quantity=2

LM8LUU bearings, Quantity=2

https://www.dhm-online.com/boccola-chiusa/302-cuscinetto-lineare-lm8luu.html

M3 screws, Quantity=13

M2 screws, Quantity=2
