Stackable Magnetic Storage Box (Magnets and Glue are Optional)

Work demonstration:

• 3D printable expandable magnetic storage box_哔哩哔哩_bilibili

Name:

• Mini drawer storage box
• Standard drawer storage box
• Large drawer storage box

Use:

• Mainly for storing small parts

Function:

• Magnetic adsorption, magnetic overlapping placement, magnetic merging, replaceable nameplate label, drawer magnetic force feedback, extremely smooth sliding

Introduction:

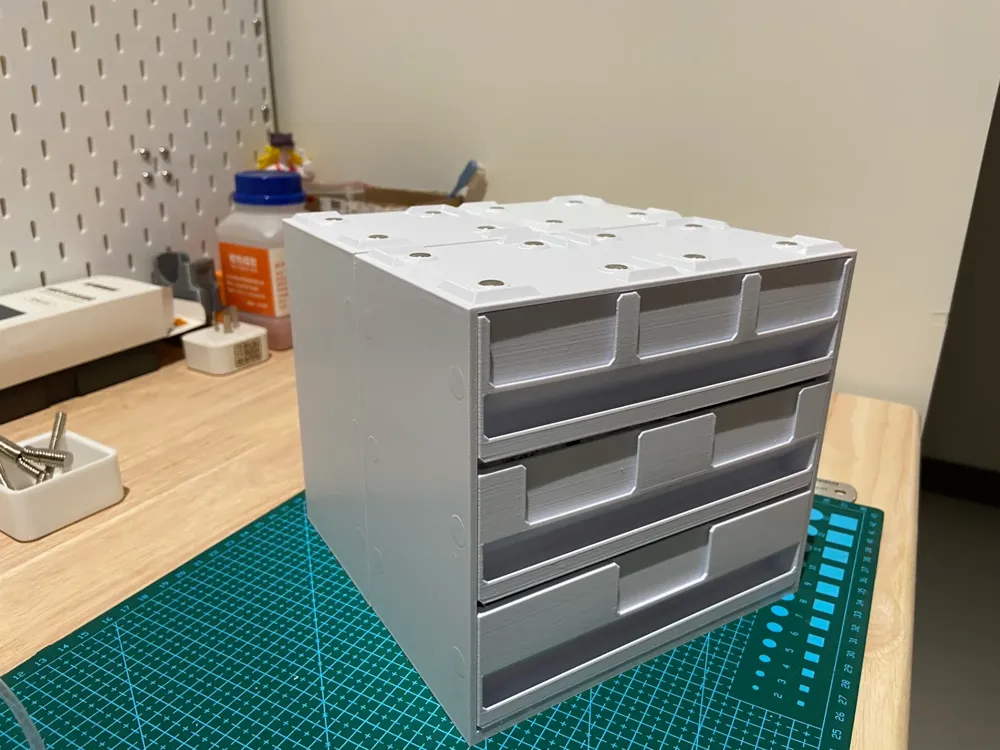

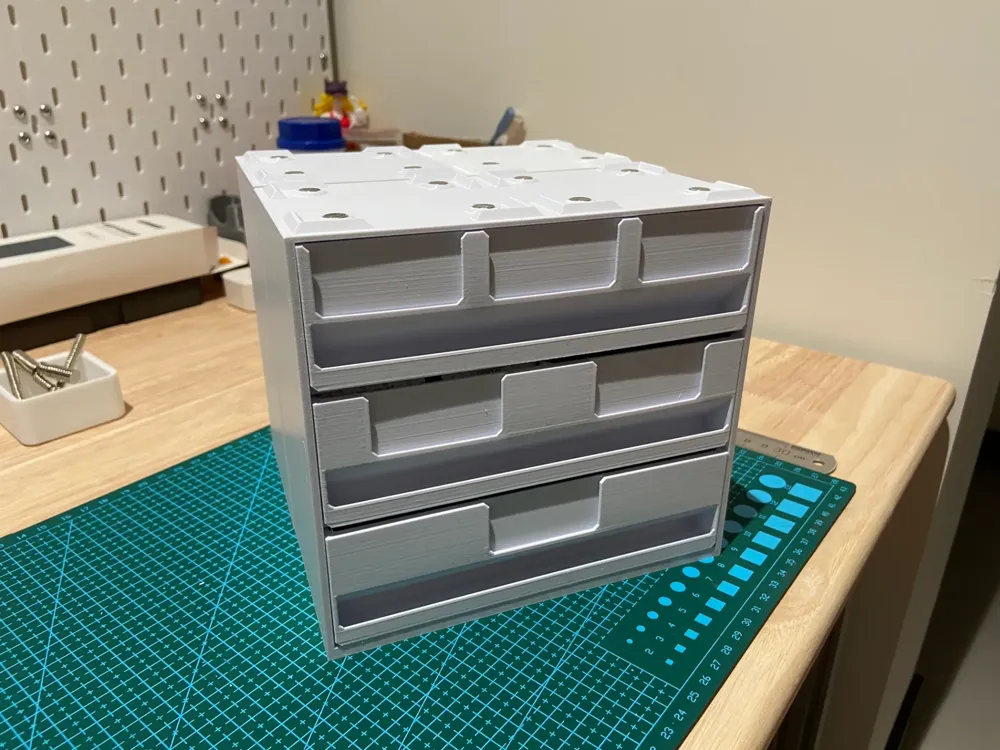

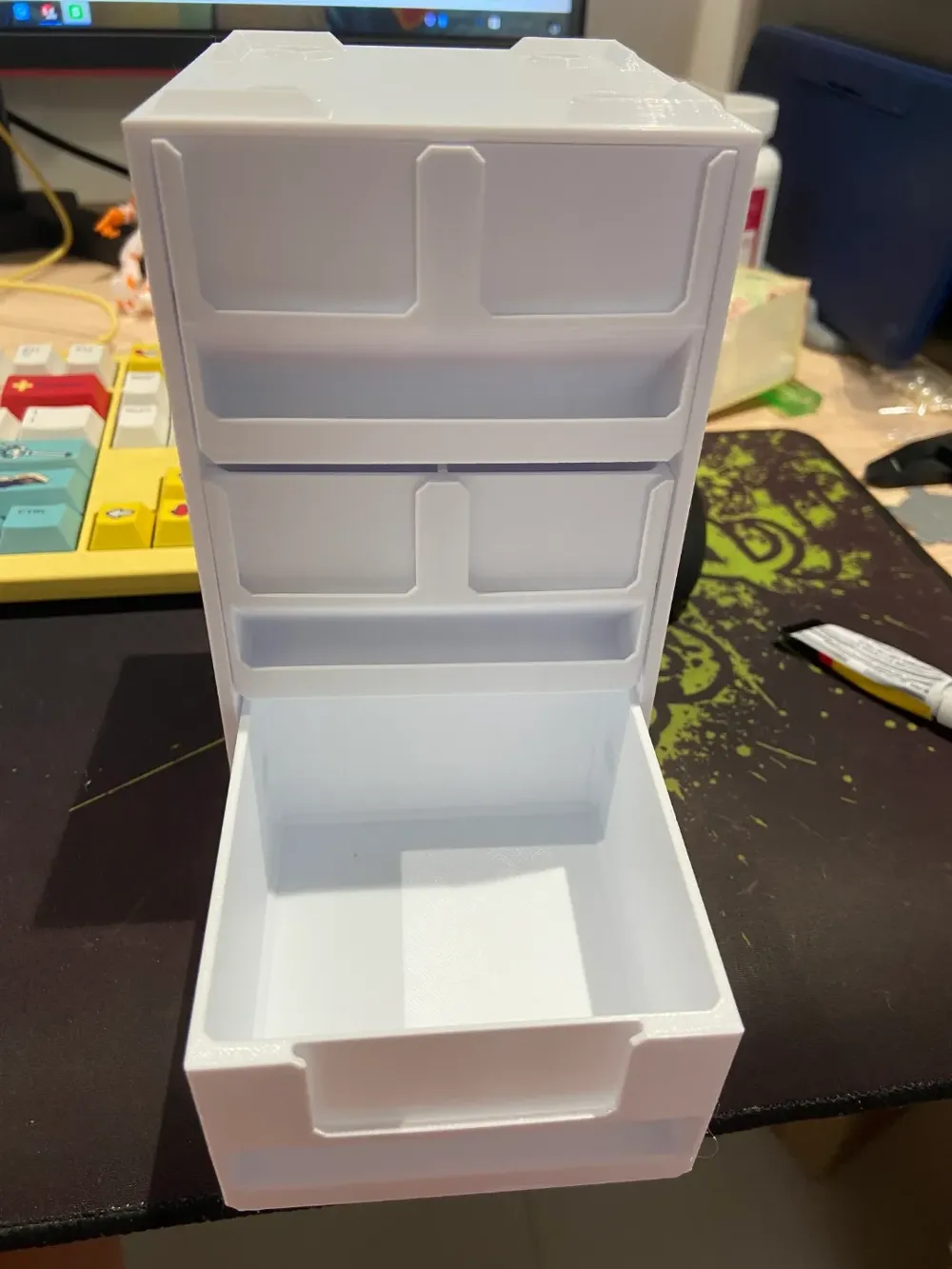

• This storage box has three sizes, mini (length, width, height 90*90*166), standard (length, width, height 180*90*166), large (length, width, height 180*180*166)

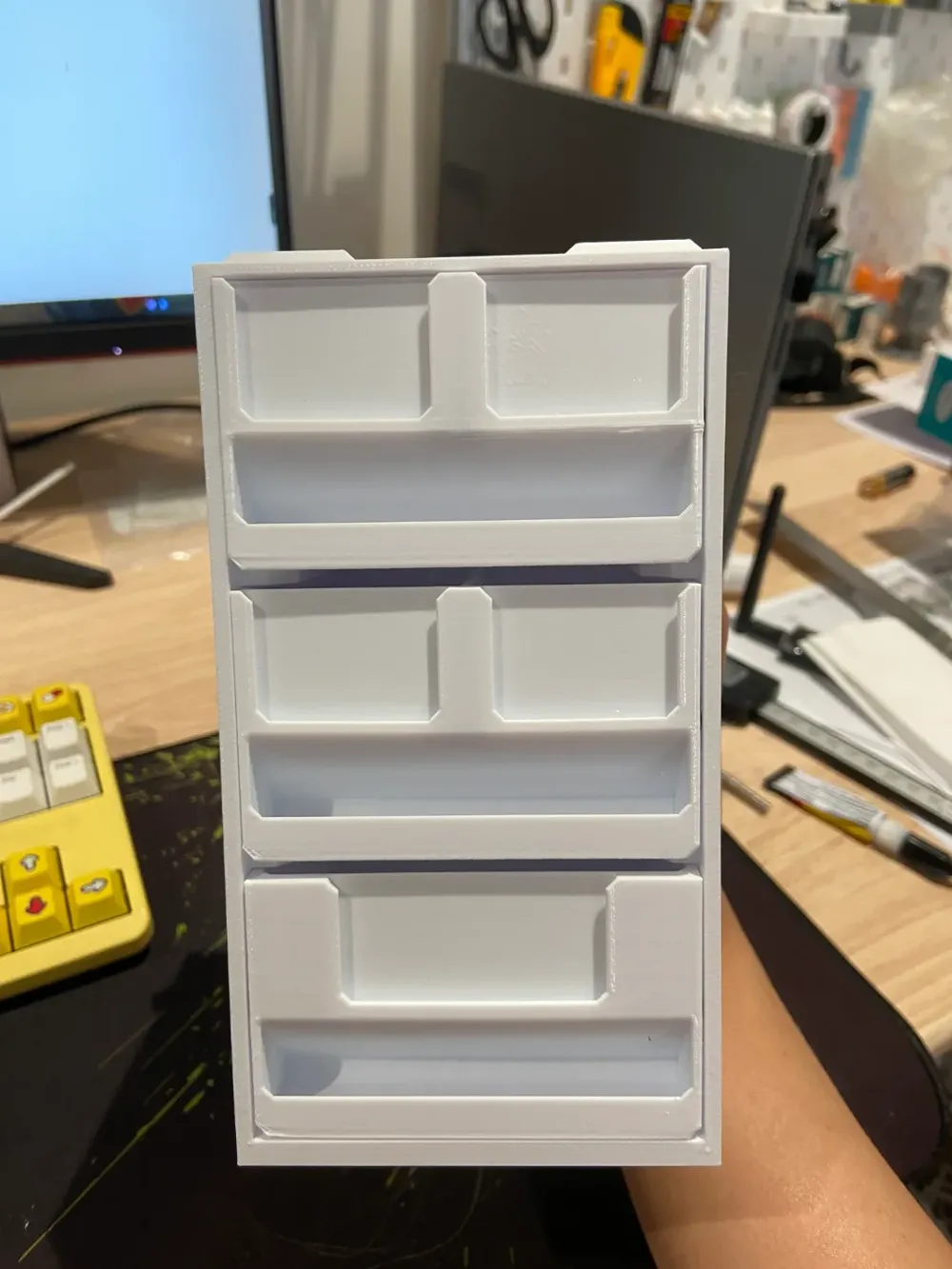

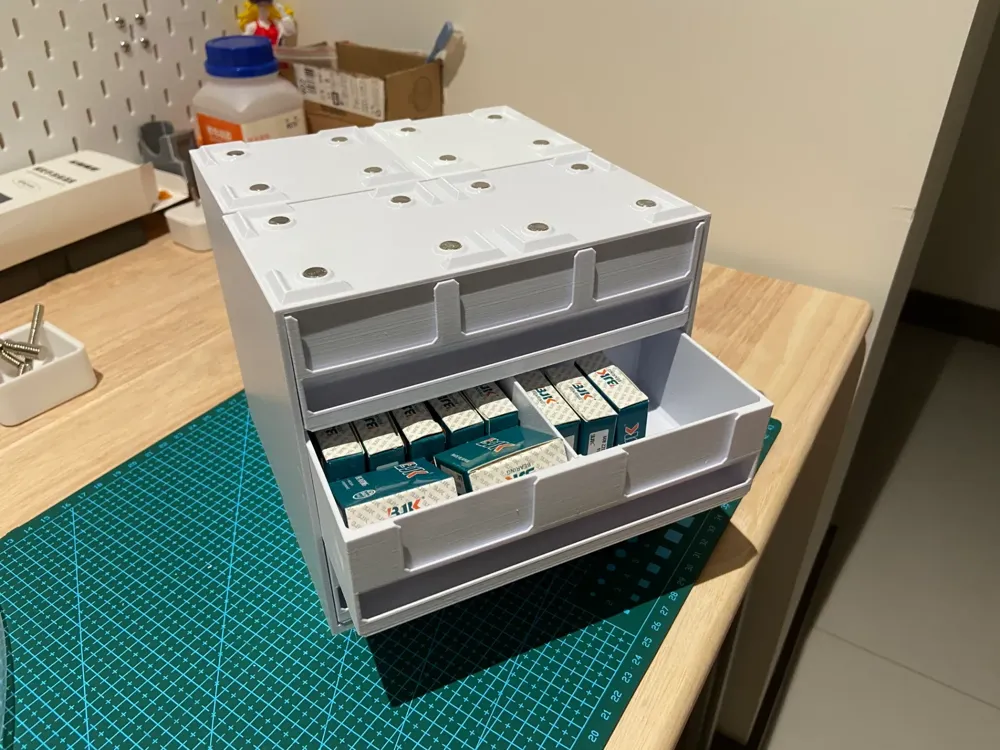

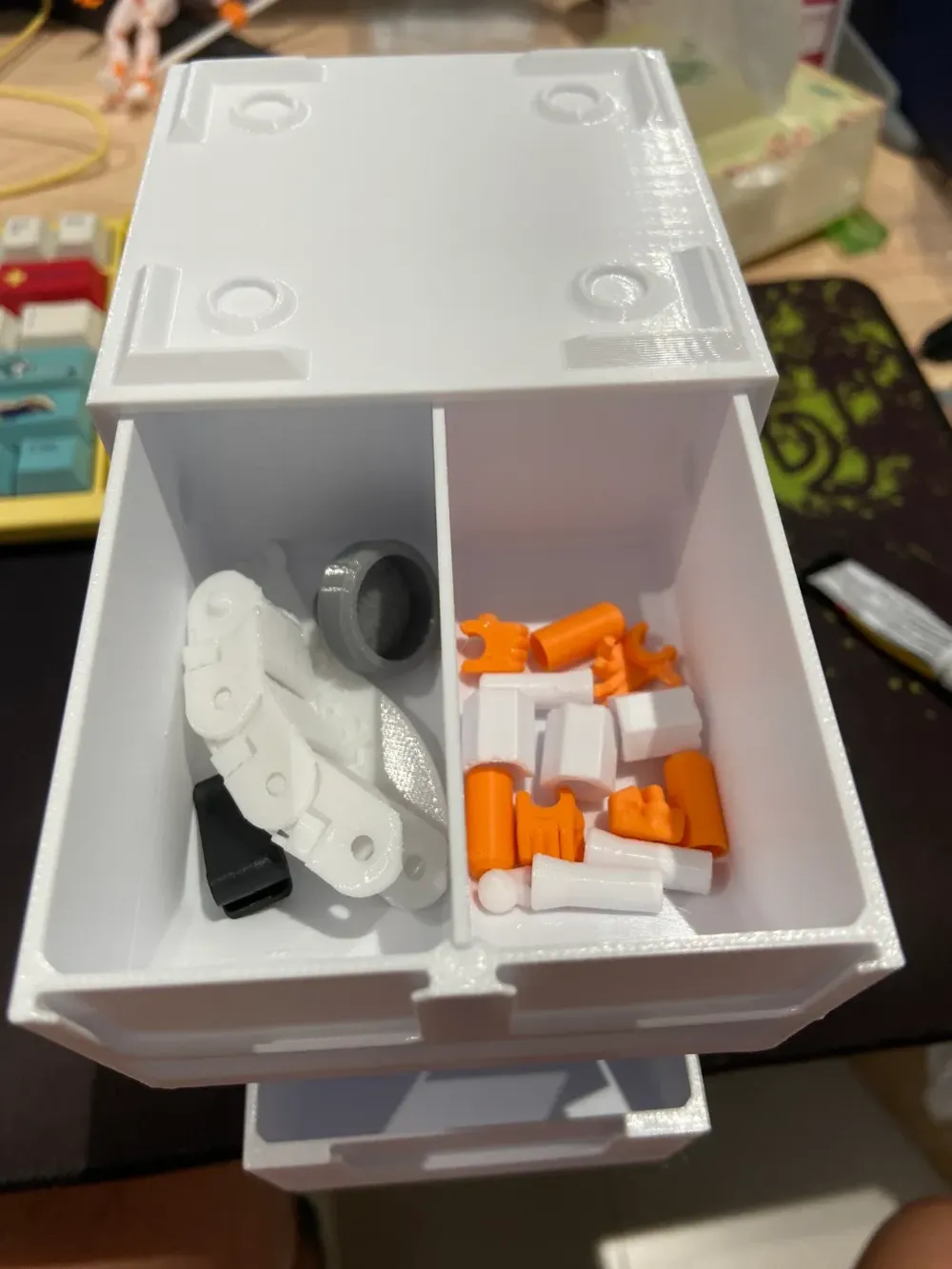

• This is a small and flexible drawer storage box that can quickly take out parts, mainly used to store parts

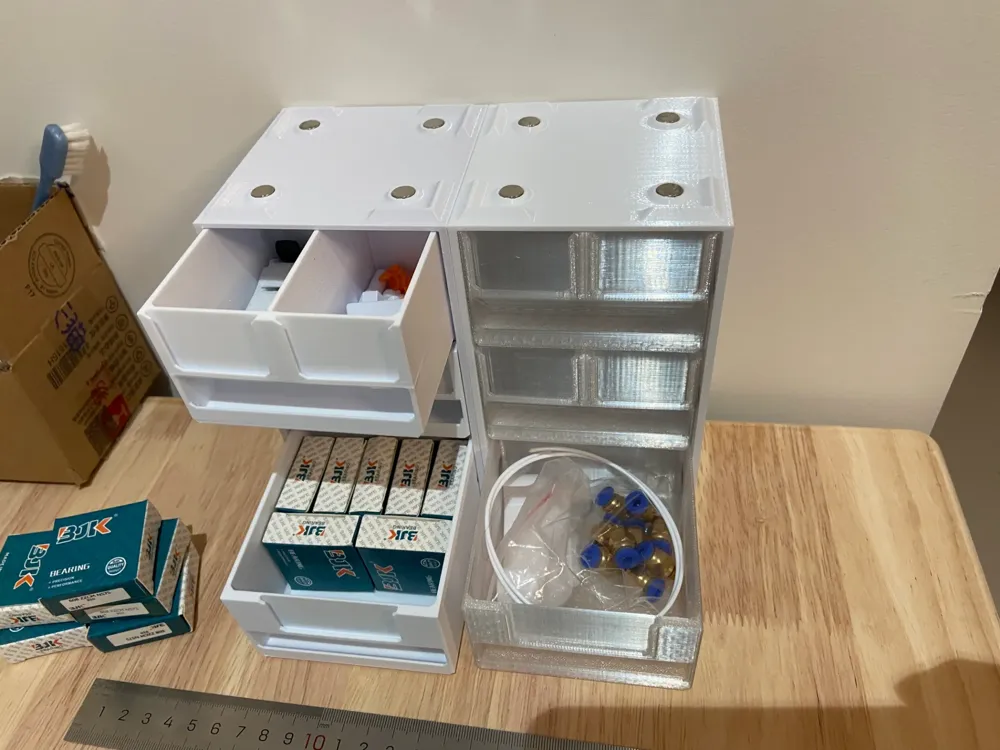

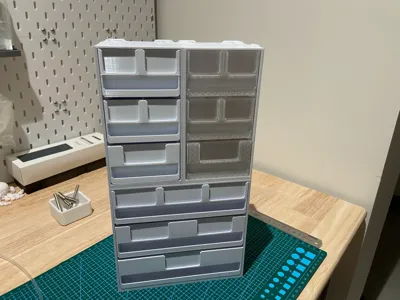

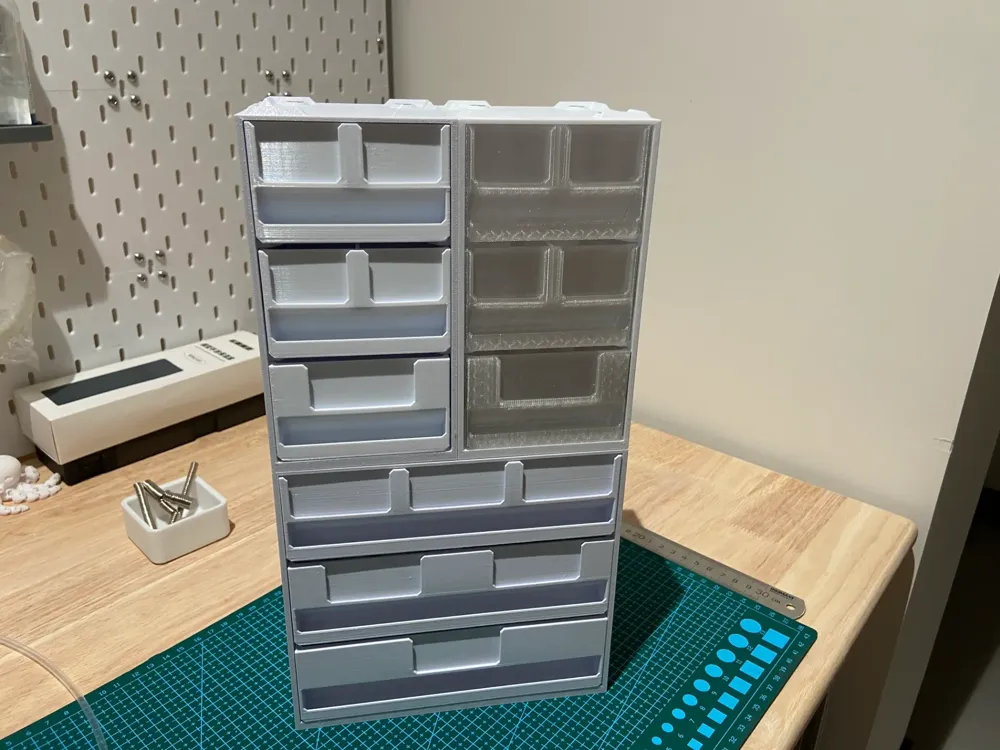

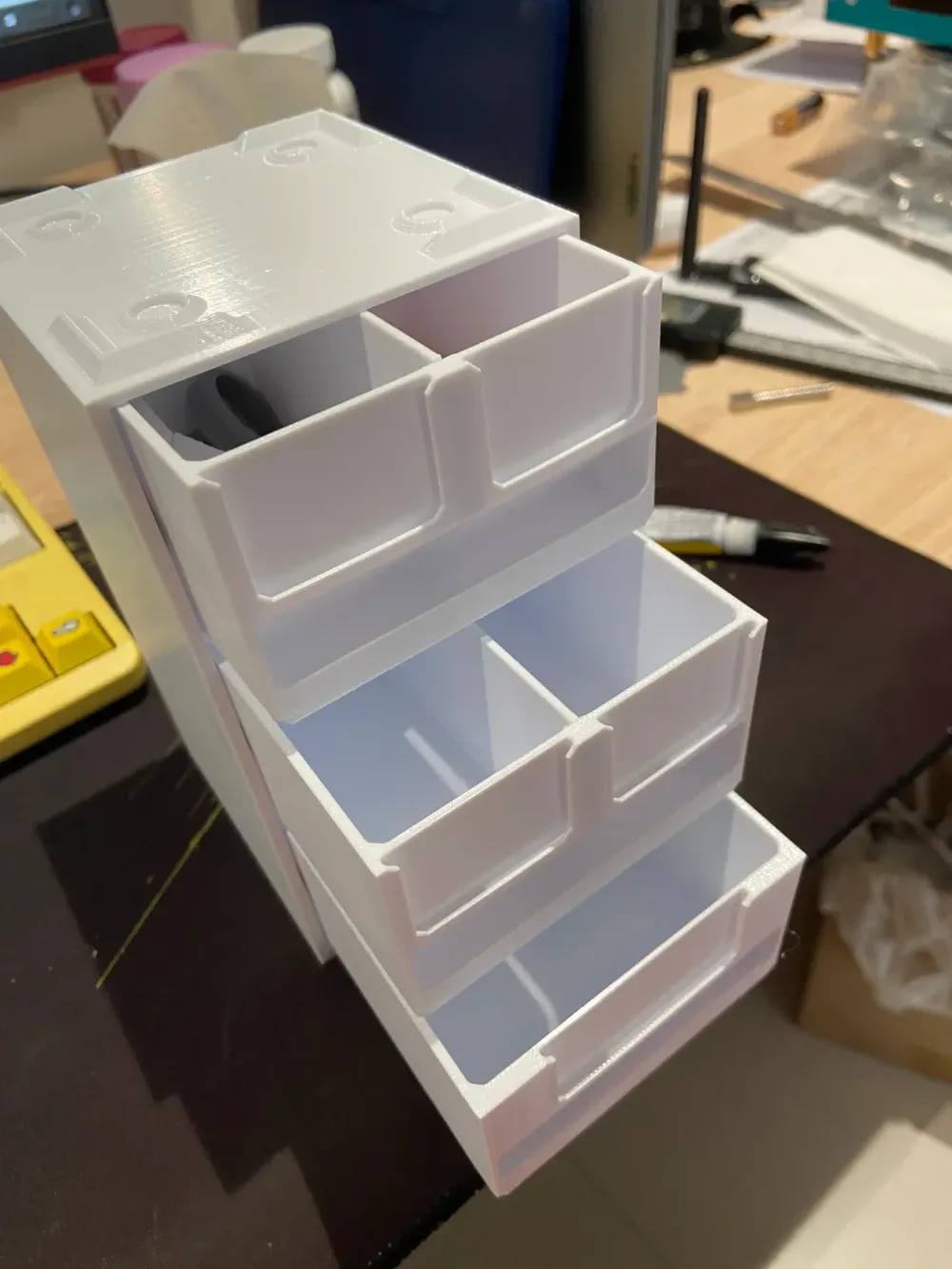

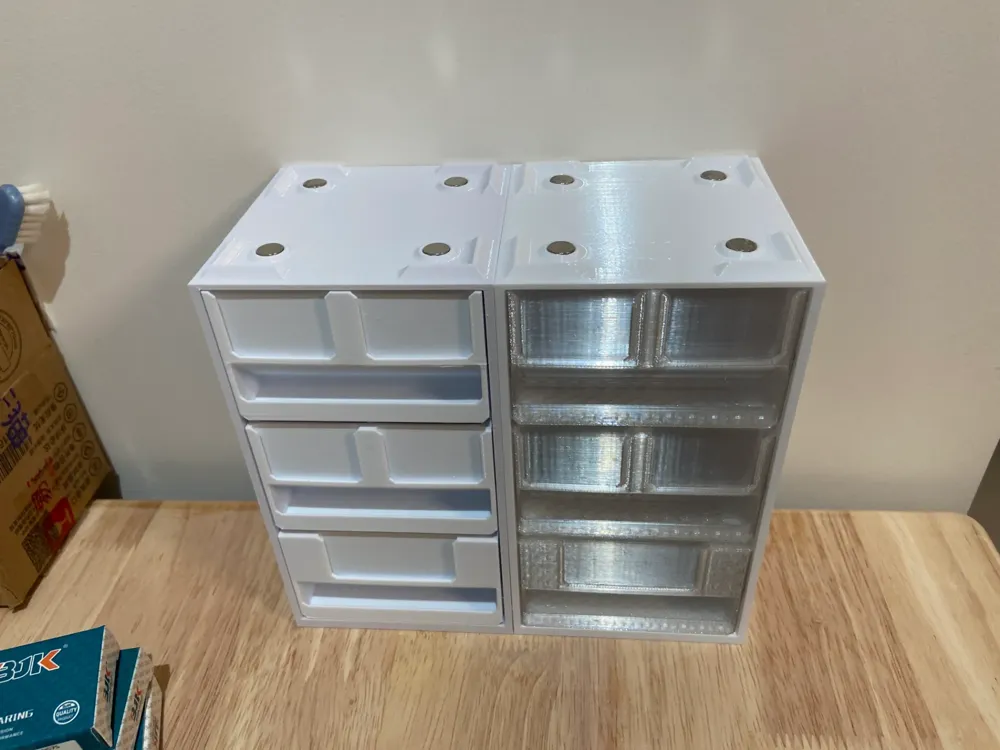

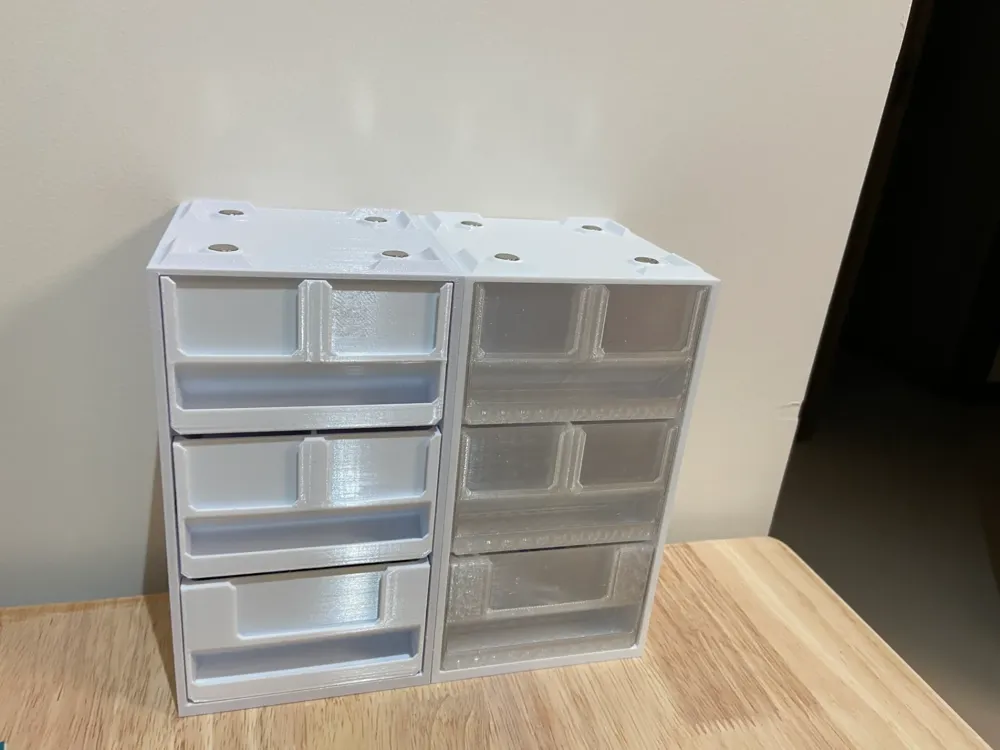

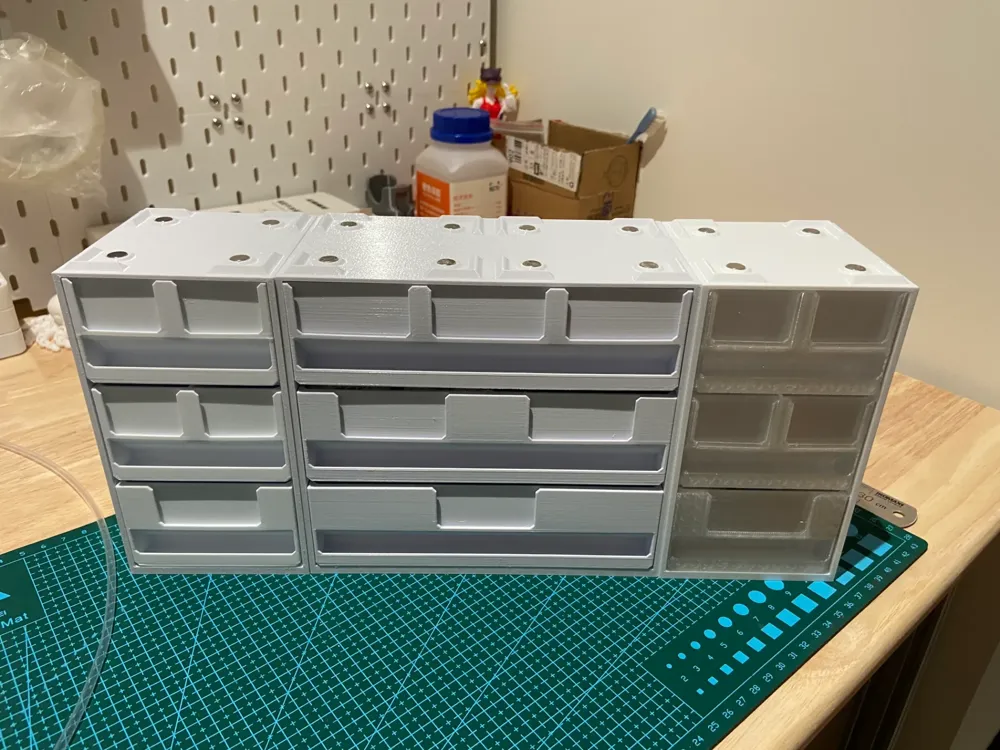

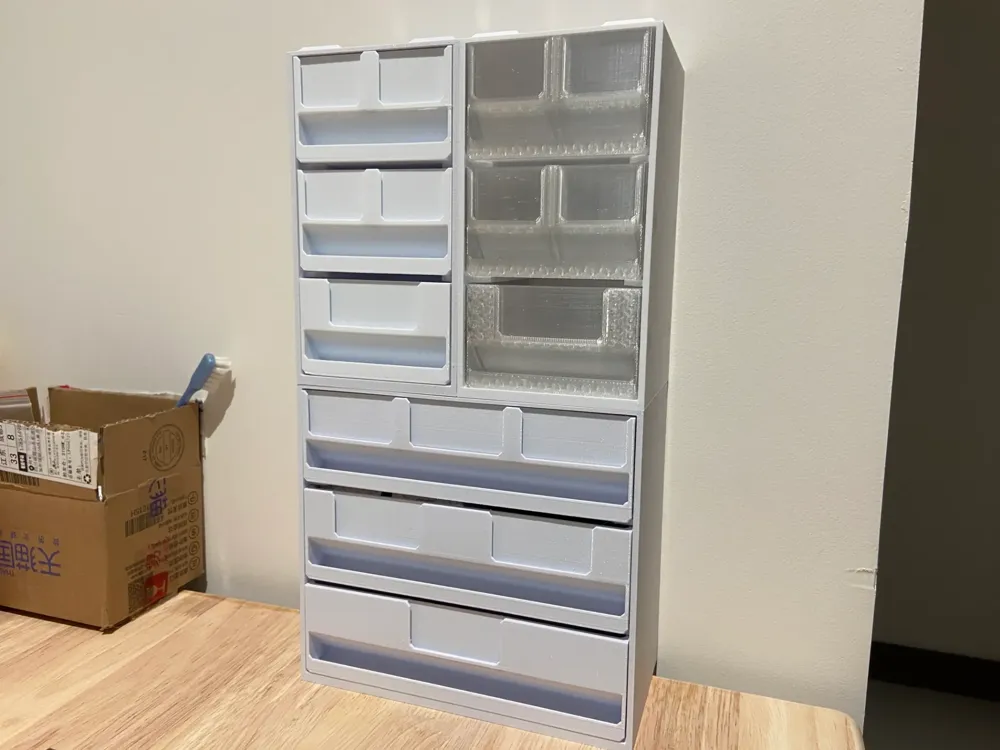

• The storage box uses a magnetic way to locate the position of the drawer, and has a certain torque feedback, the drawer feels in place, the drawer slides extremely smoothly; as long as your placement is sufficient, through the up and down, left and right embedded magnets and the limit design of up and down can make this prop infinitely expand and assemble, meet your any number of storage needs.

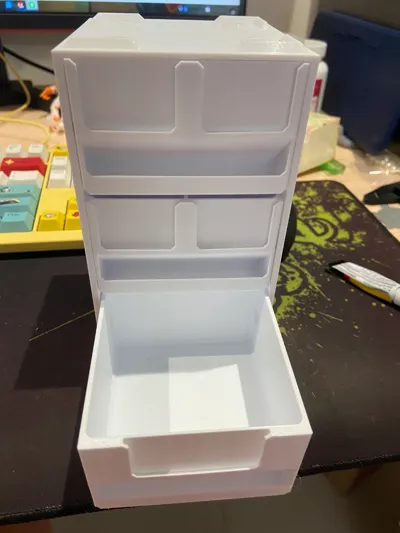

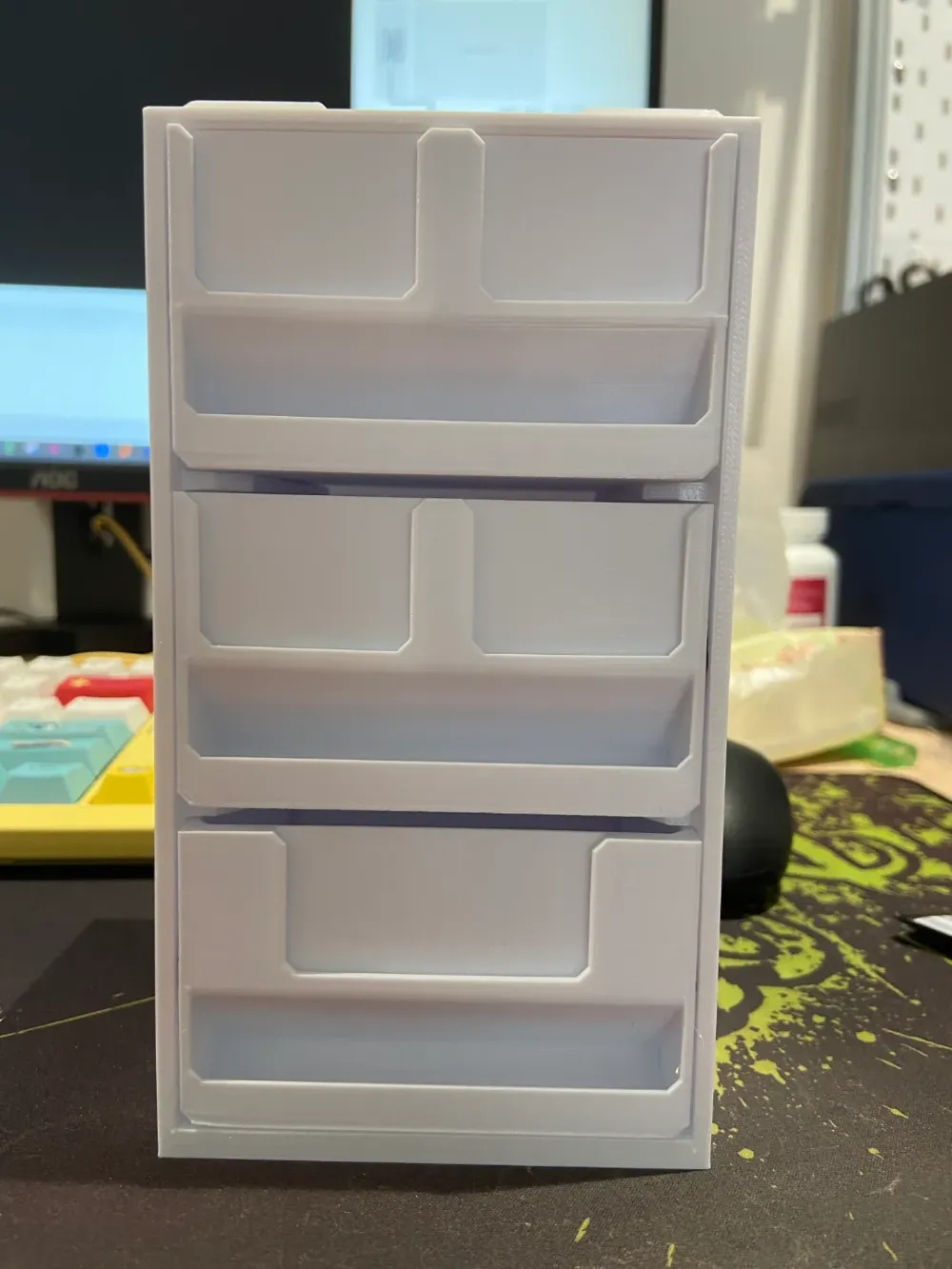

• This is a very interesting work, there are many details in the design, such as: chamfer inside the box, convenient for taking small parts, chamfer and round corner design of the sliding part, convenient for parts to be taken out along the wall while also taking into account the design of the sliding handle, etc.

Precautions:

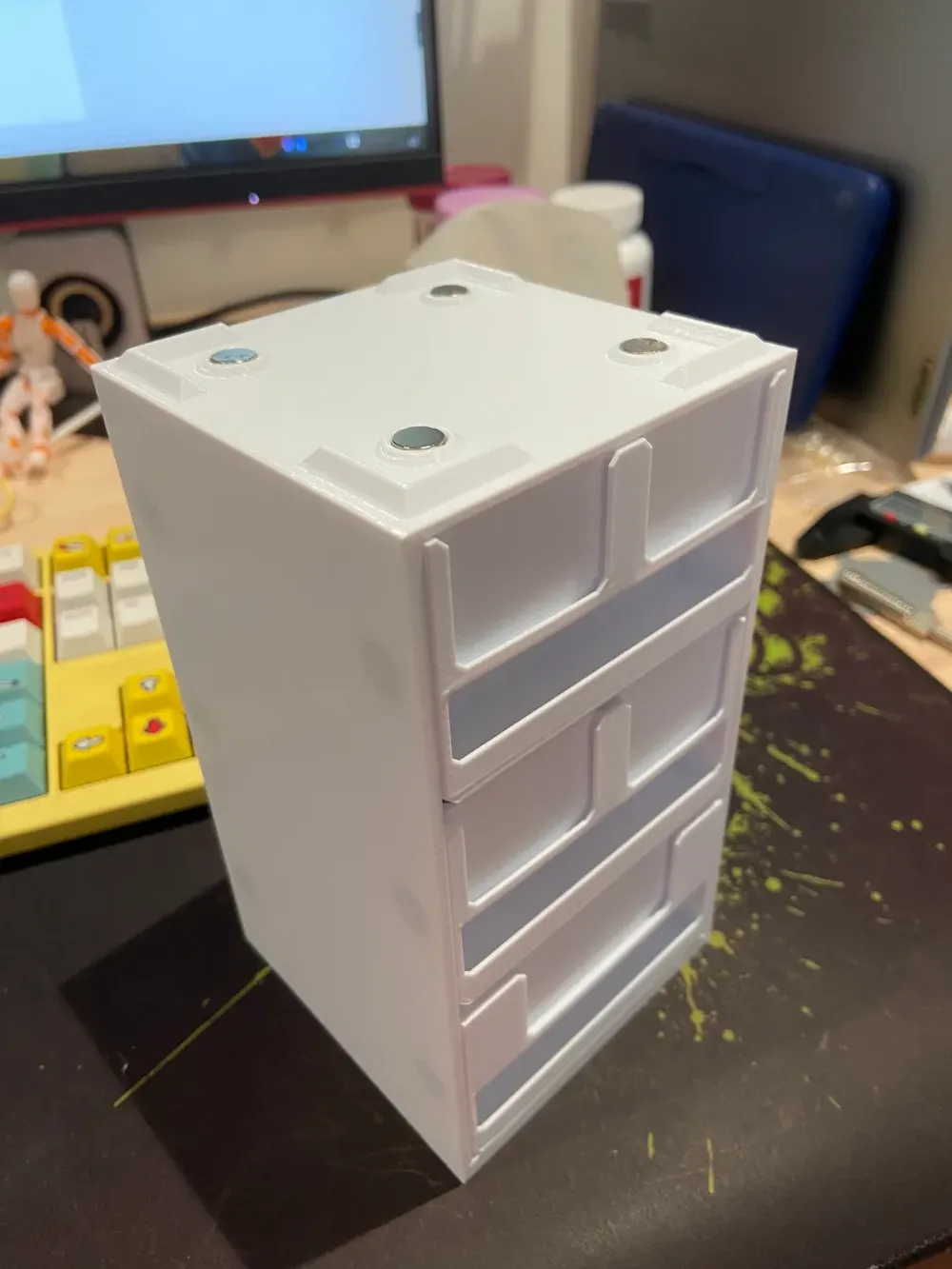

• Installation: When installing magnets, please pay attention to the magnetic pole direction and the magnetic pole direction of the adjacent storage pieces, so that it can be perfect
• Printing: When printing, please pay attention to whether there are any large deformation warping, if there is a large deformation warping may affect the smooth sliding of the drawer, you can appropriately apply glue before printing

Other accessories: (Magnets and glue are optional)

• 502 glue/bottle (other glues are also ok)
• Mini:
• Diameter 10mm*thickness 2mm magnet/12 pieces (actual size: 9.5*1.6; because the magnet label specifications and actual specifications have errors)
• Diameter 8mm*thickness 2mm magnet/14 pieces (actual size: 8*1.5; because the magnet label specifications and actual specifications have errors)
• Standard:
• Diameter 10mm*thickness 2mm magnet/12 pieces (actual size: 9.5*1.6; because the magnet label specifications and actual specifications have errors)
• Diameter 8mm*thickness 2mm magnet/22 pieces (actual size: 8*1.5; because the magnet label specifications and actual specifications have errors)
• Large:
• Diameter 10mm*thickness 2mm magnet/12 pieces (actual size: 9.5*1.6; because the magnet label specifications and actual specifications have errors)
• Diameter 8mm*thickness 2mm magnet/38 pieces (actual size: 8*1.5; because the magnet label specifications and actual specifications have errors)

Drawer nameplate: (Please design the content of the nameplate by yourself, or contact me for help)

• Mini has two nameplate specifications; standard and large please use specification two

• Specification one: for drawers with partitions



• Specification two: for drawers without partitions
