Filament Dry Box V2 Inomata-K Dry Food Stocker
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
3.8 h
3 plates
Remixed nuts and bolt for better PTFE grip
31 min
1 plate
Open in Bambu Studio
Boost
371
781
78
105
997
659
Released
Bill of Materials
List other parts
- Bearings 608ZZ x 2:
Description

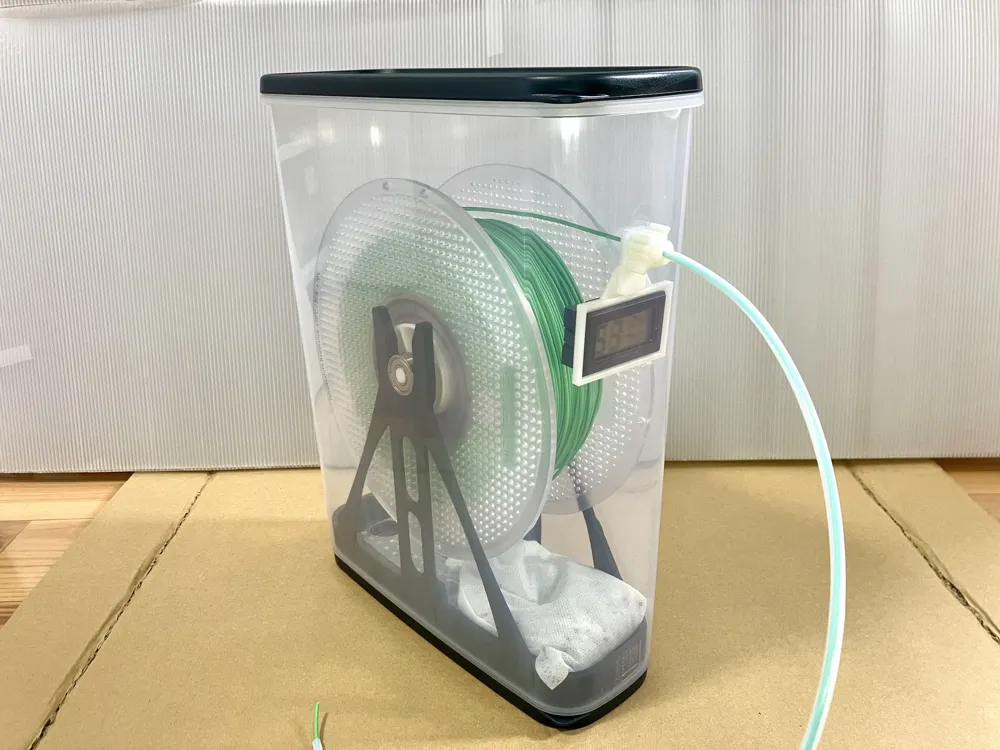

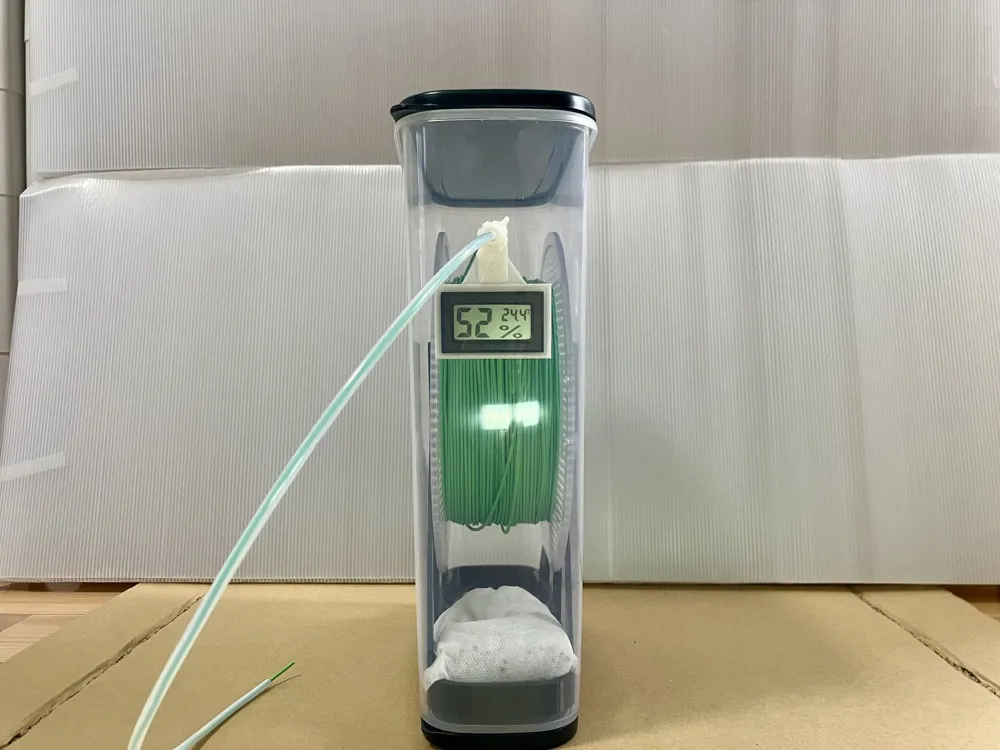

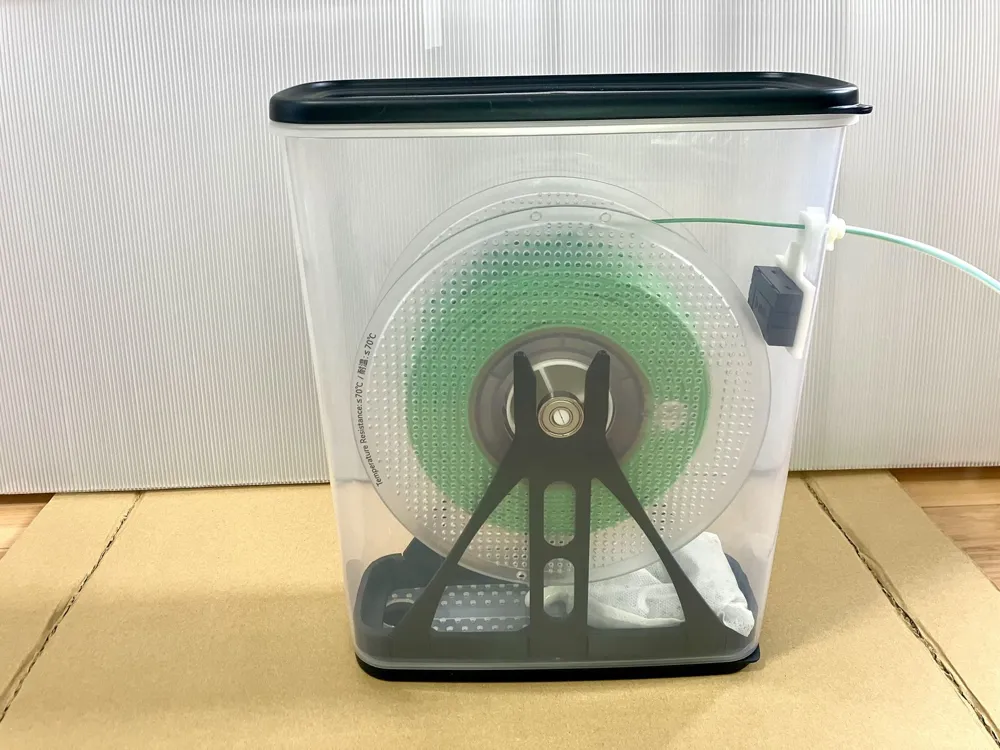

This is a dry box using Inomata-K 6.0L Dry Food Stocker.
The previous version was difficult to assemble, so we made some improvements.
Features
- No screws

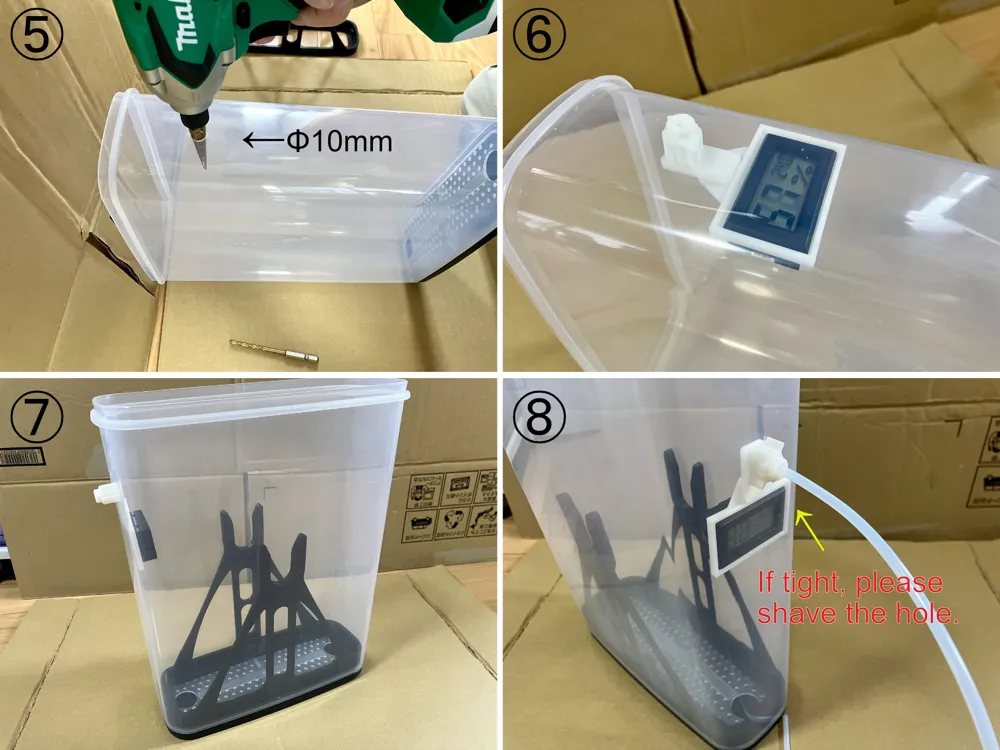

- Only one hole drilled

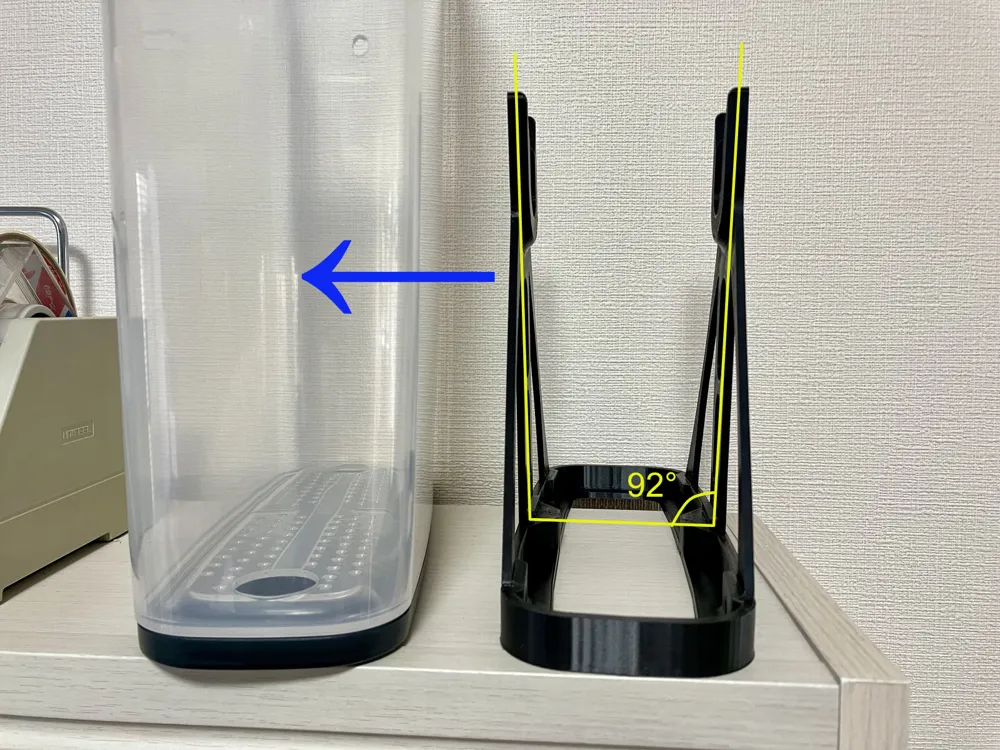

- Shape fits the case wall
- Suspends filament spool from the center, so even paper spools do not jam easily
Required Parts
- Inomata-K 6.0L Dry Food Stocker
- Bearings 608ZZ x2
Creation Procedure

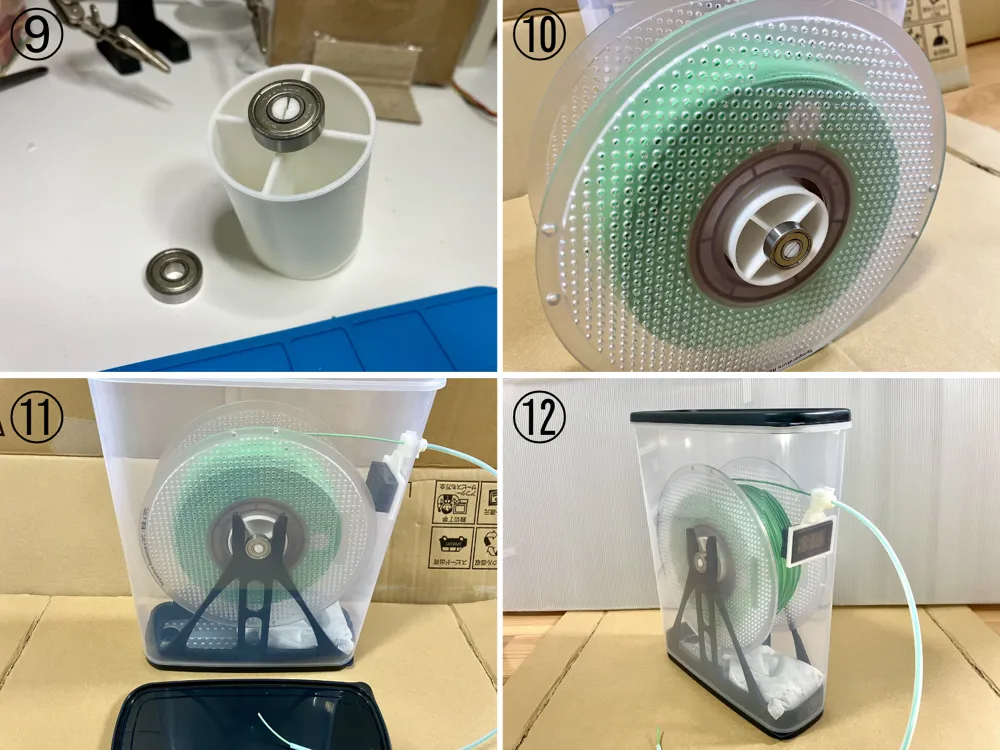

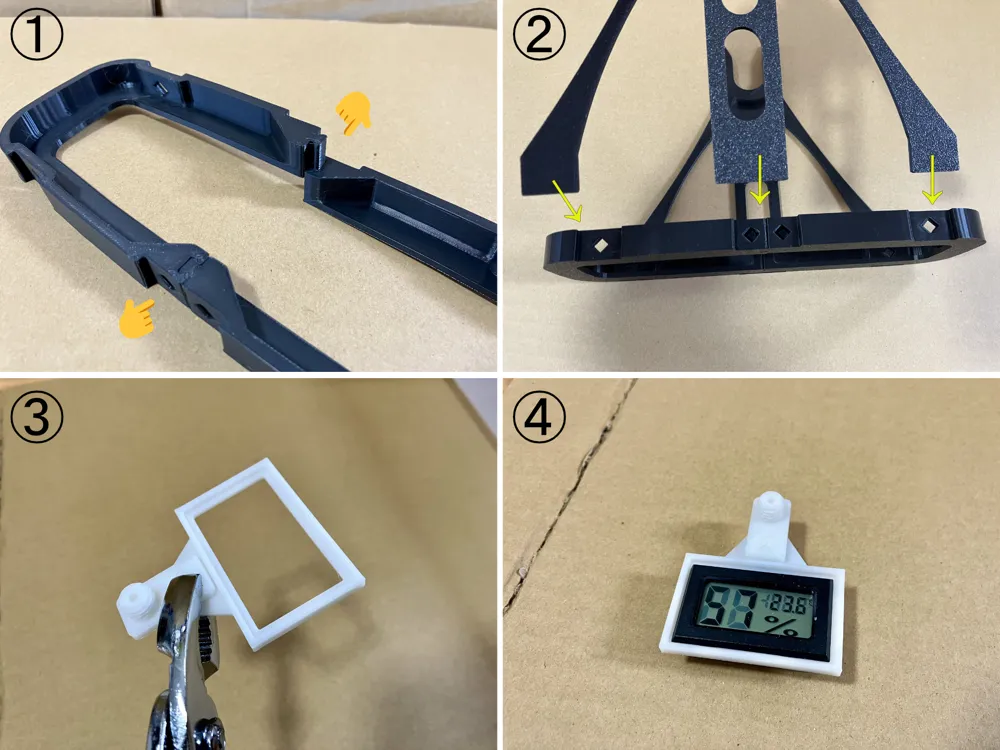

See the image (howtomake-*.png) for details.

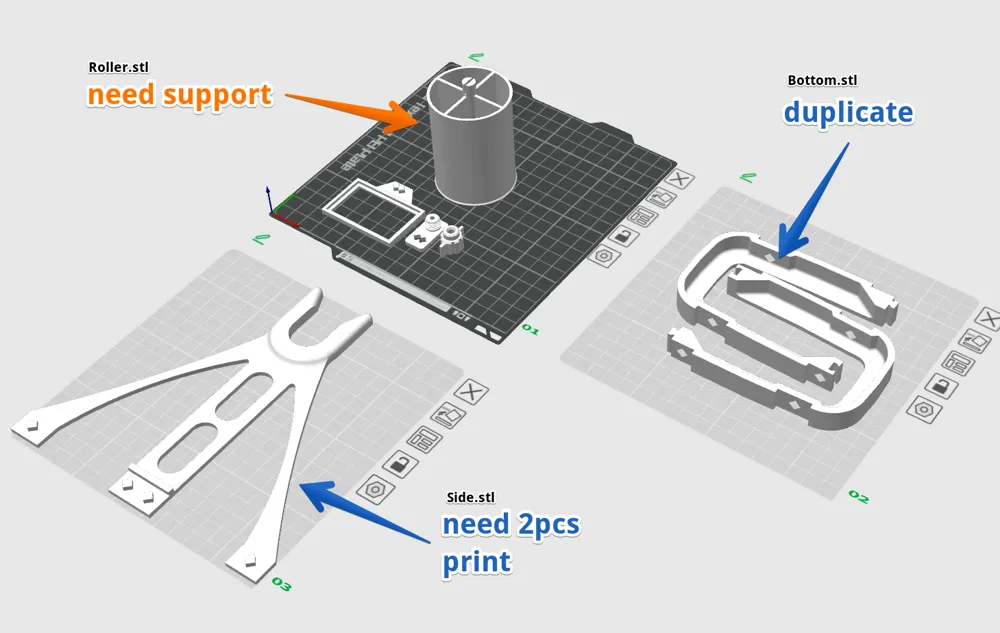

You need to print two copies of "Bottom.stl" and "Side.stl".
License
This user content is licensed under a
Creative Commons Attribution-Share Alike
