Base Arc Reactor MK1 Hidden Cable

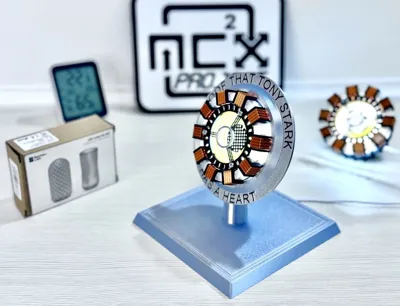

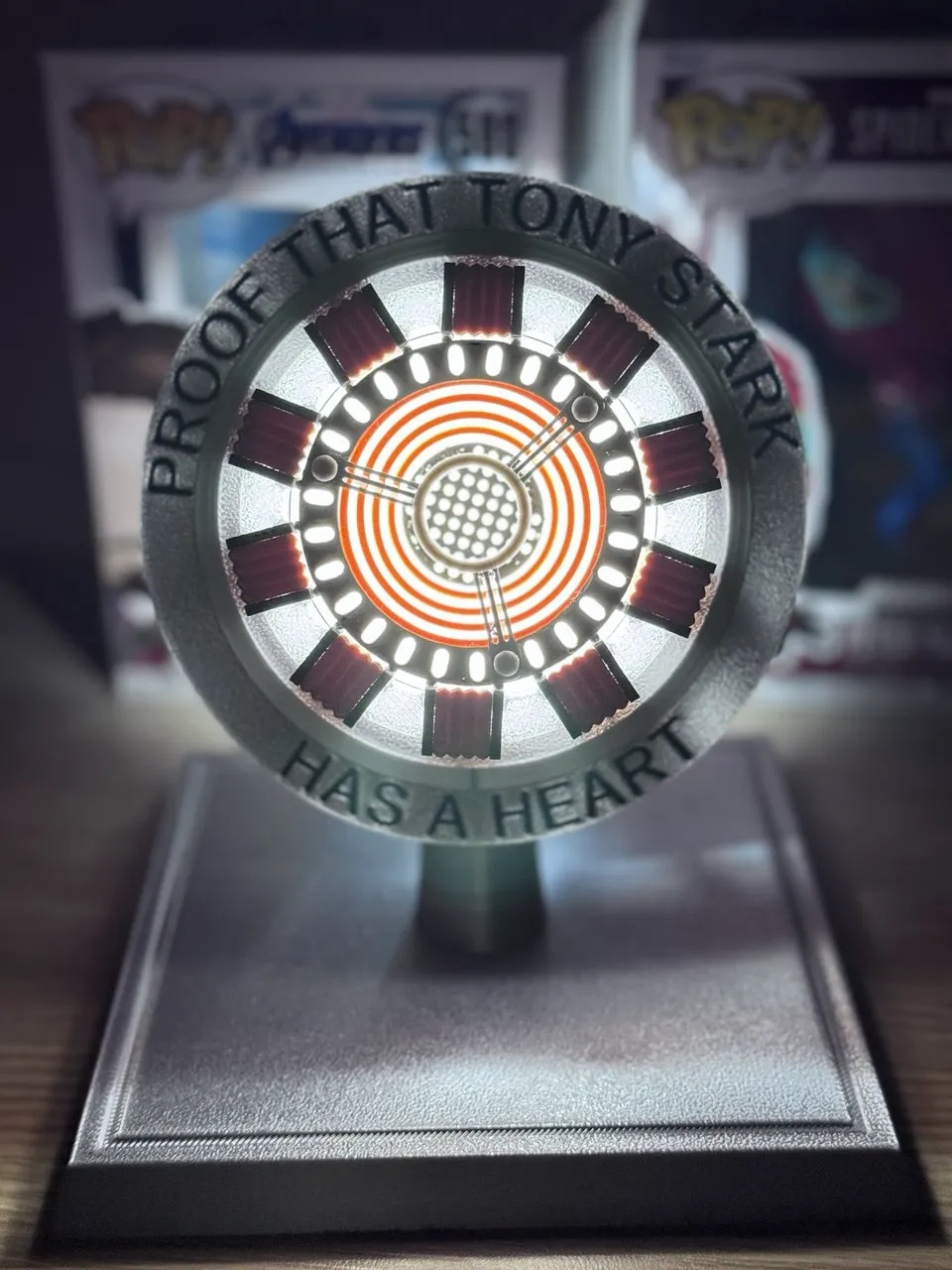

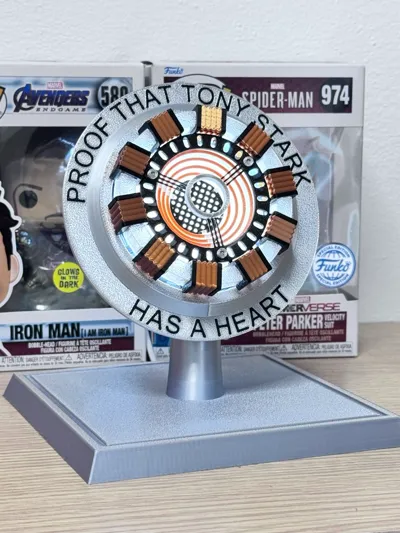

V2 ARK MK1 REACTOR by Tony StarkThis is the Iron Man heart for LED Lamp kit - HK001.

This component requires the Lamp Kit

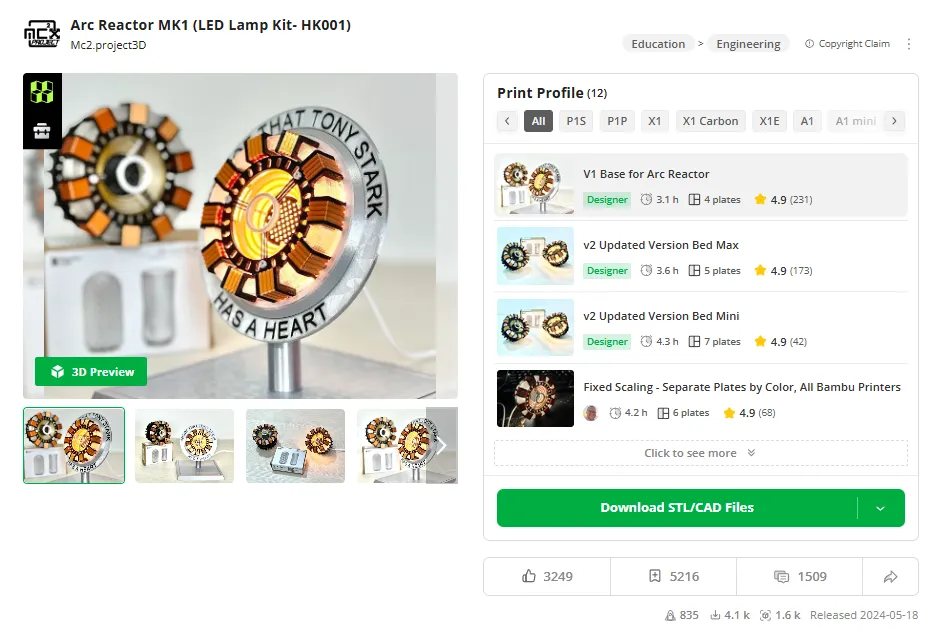

Download the reactor heart from here: From this link you can download the heart of iron man

https://makerworld.com/en/models/467861#profileId-386697

PRINTING MATERIAL:

https://shareasale.com/r.cfm?b=2282157&u=4303511&m=138211&urllink=eu%2Estore%2Ebambulab%2Ecom%2Fcollections%2Fbambu%2Dlab%2D3d%2Dprinter%2Dfilament%2Fproducts%2Fpla%2Dsilk%3Fvariant%3D46636020564316&afftrack=

Listening to the numerous requests I decided to create the V2 (the base with hidden cable)

DESIGN AND PRINTING:
I designed these components to make printing as simple as possible, download the 3mf.

-NO SUPPORTS

-DEFINITION 0.2mm

-4 WALLS

-GRID FILLING 15%

-NOZZLE 0.4mm

-PLA SILK

NOTE:
To have an excellent surface finish as you can see from the .3mf I created a 0.4mm modifier to create only one wall for the first two layers in the aesthetic parts (download the .3mf)

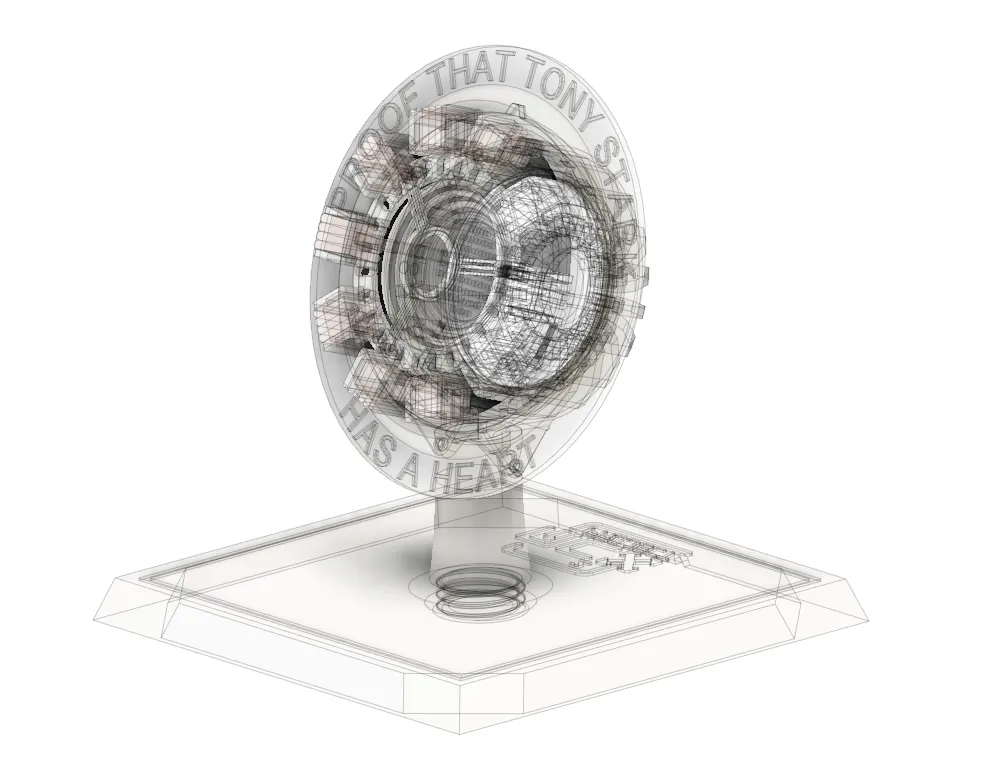

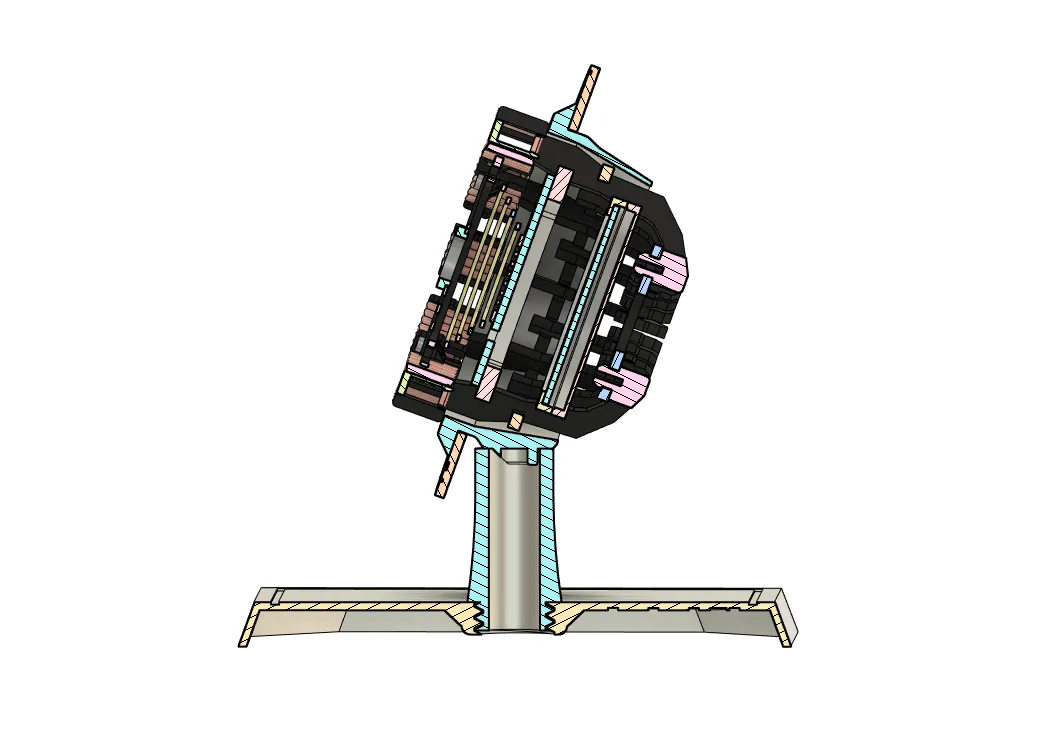

DESIGNED WITH FUSION 360:

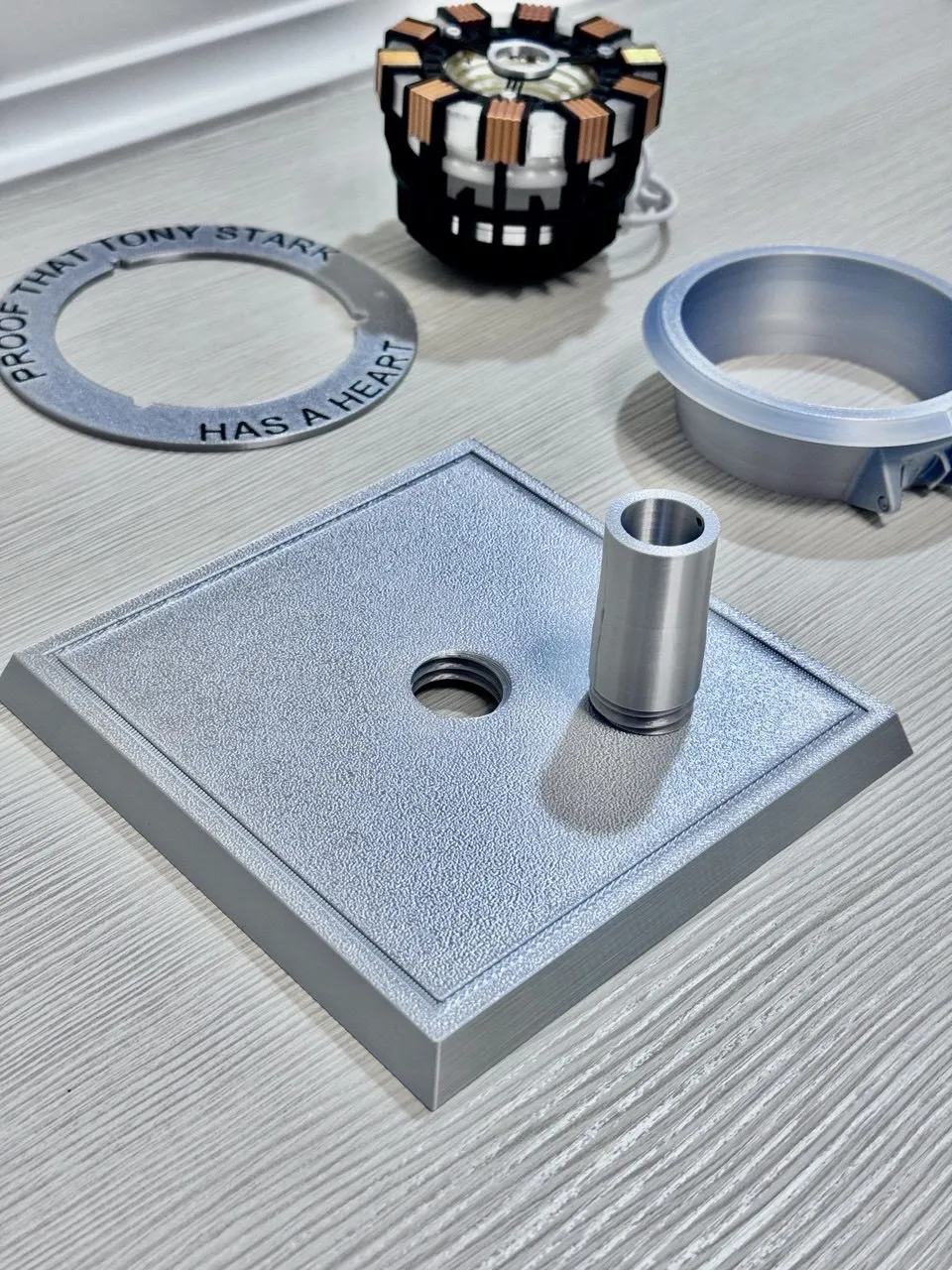

PRINTED PARTSPRINTED PARTS:

-BASE V2 (.STL)

-TUBO BASE (.STL)

-RIDUZIONE (.STL)

-DISCO CON SCRITTA (.3MF)

• DISCO SCRITTA VUOTO (.STL)
• SCRITTE (.STL)

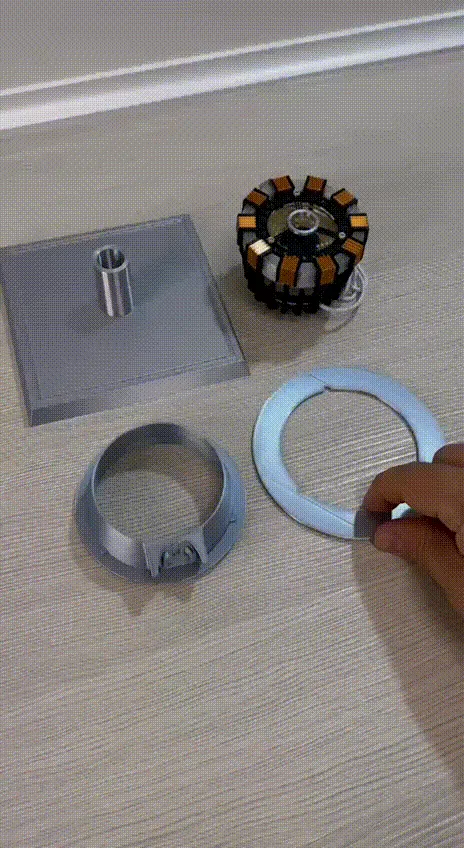

ASSEMBLY STEP TO STEP:

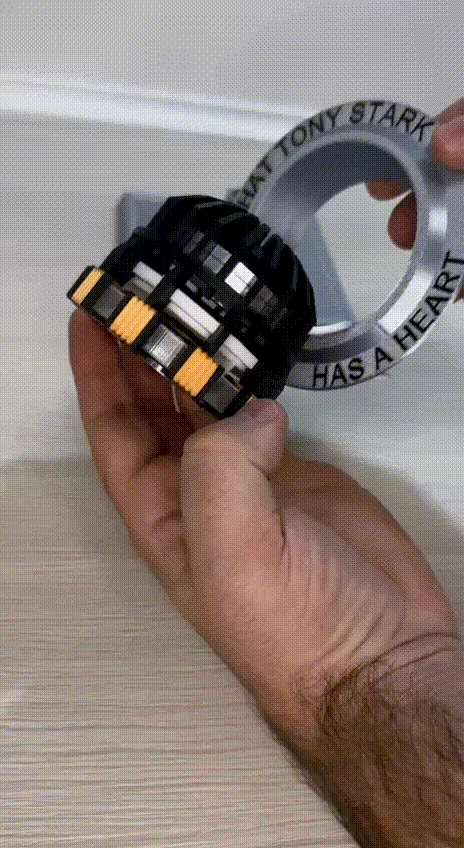

STEP 1

-BASE V2

-TUBO BASE

STEP 2

-RIDUZIONE

-DISCO CON SCRITTA

STEP 3

-REATTORE ARC

-ASSEMBLY STEP 2

STEP 4

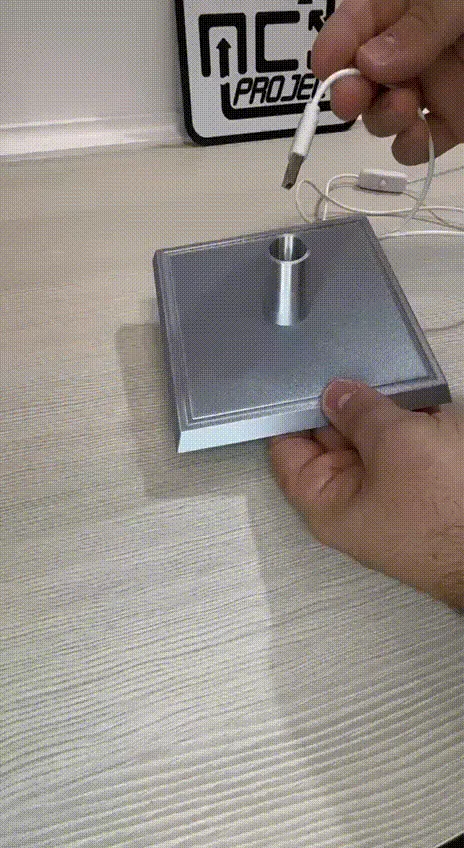

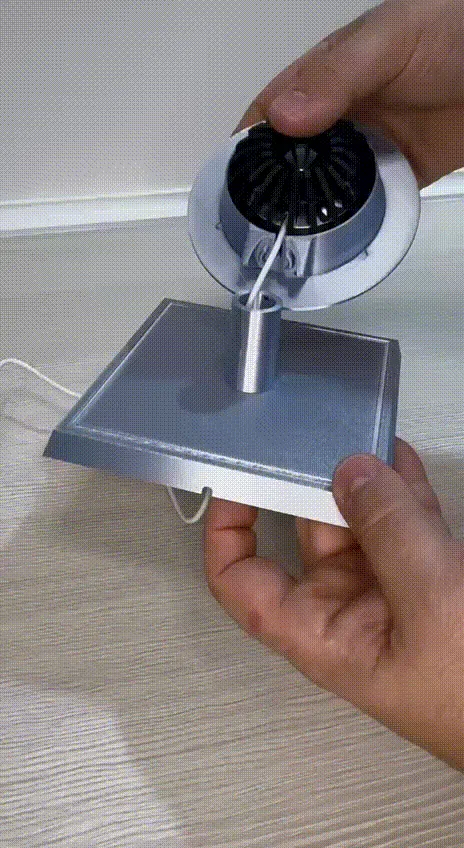

-CABLE ROUTING

LAST STEP

If you want to put up with my work and help me design more:

https://www.patreon.com/c/Mc2_project3D

This project gave me a lot of satisfaction.

Available for any questions.

Good Print from MC2 PROJECT 3D
