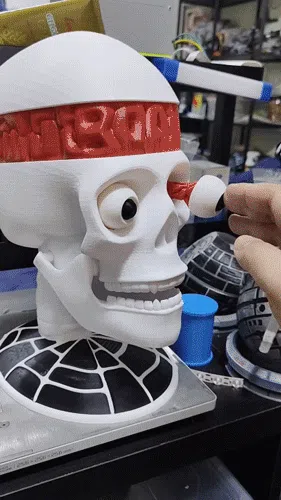

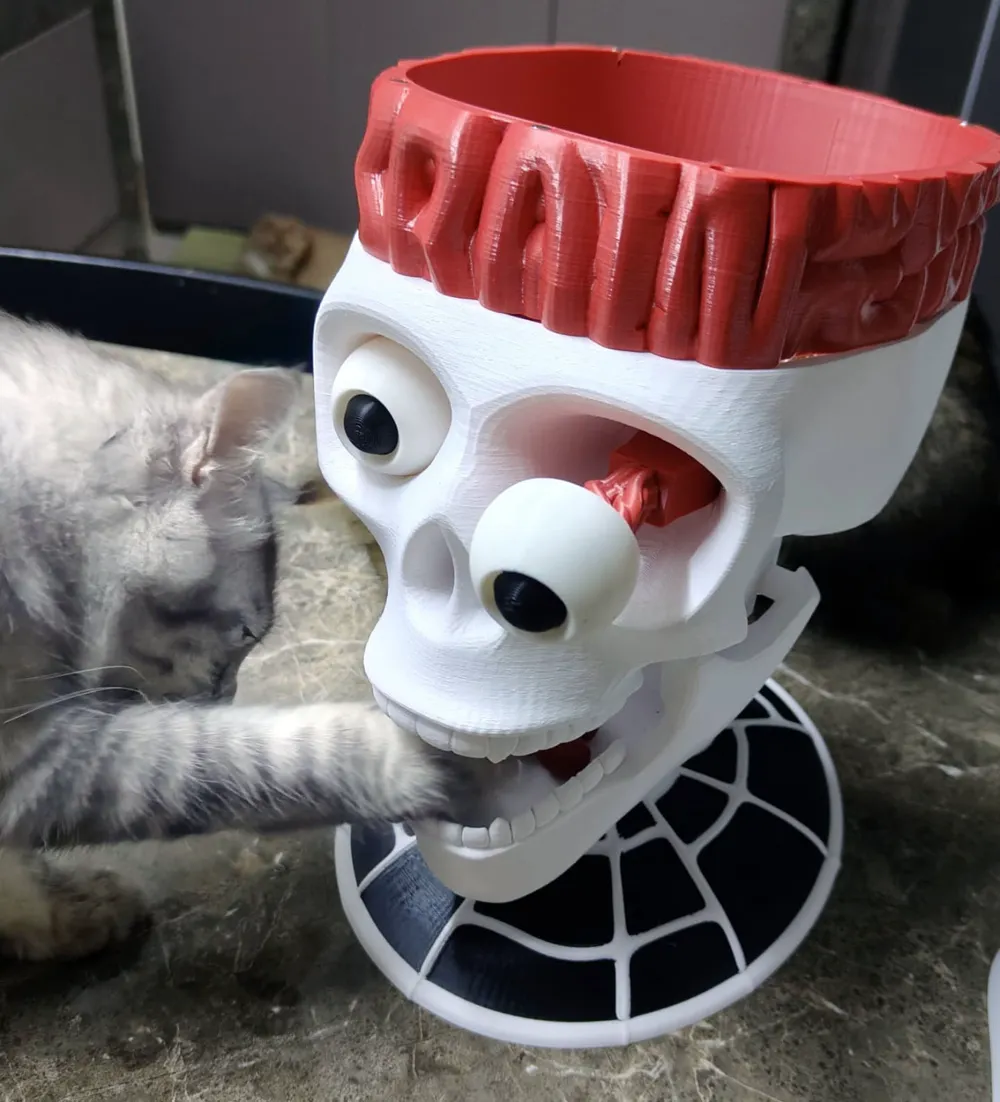

This is my entry to the holloween contest.. i present to you the skull candy dispenser..

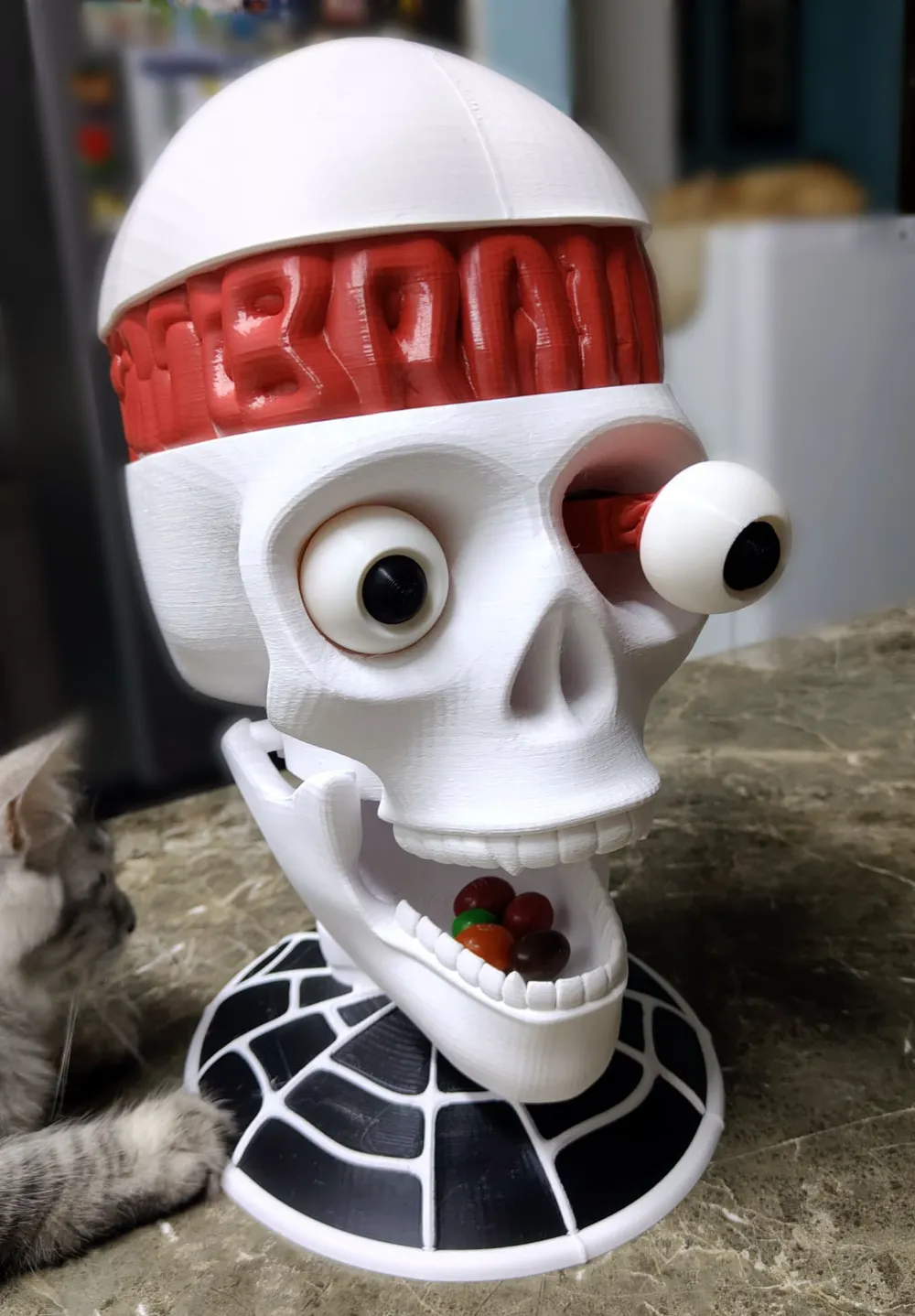

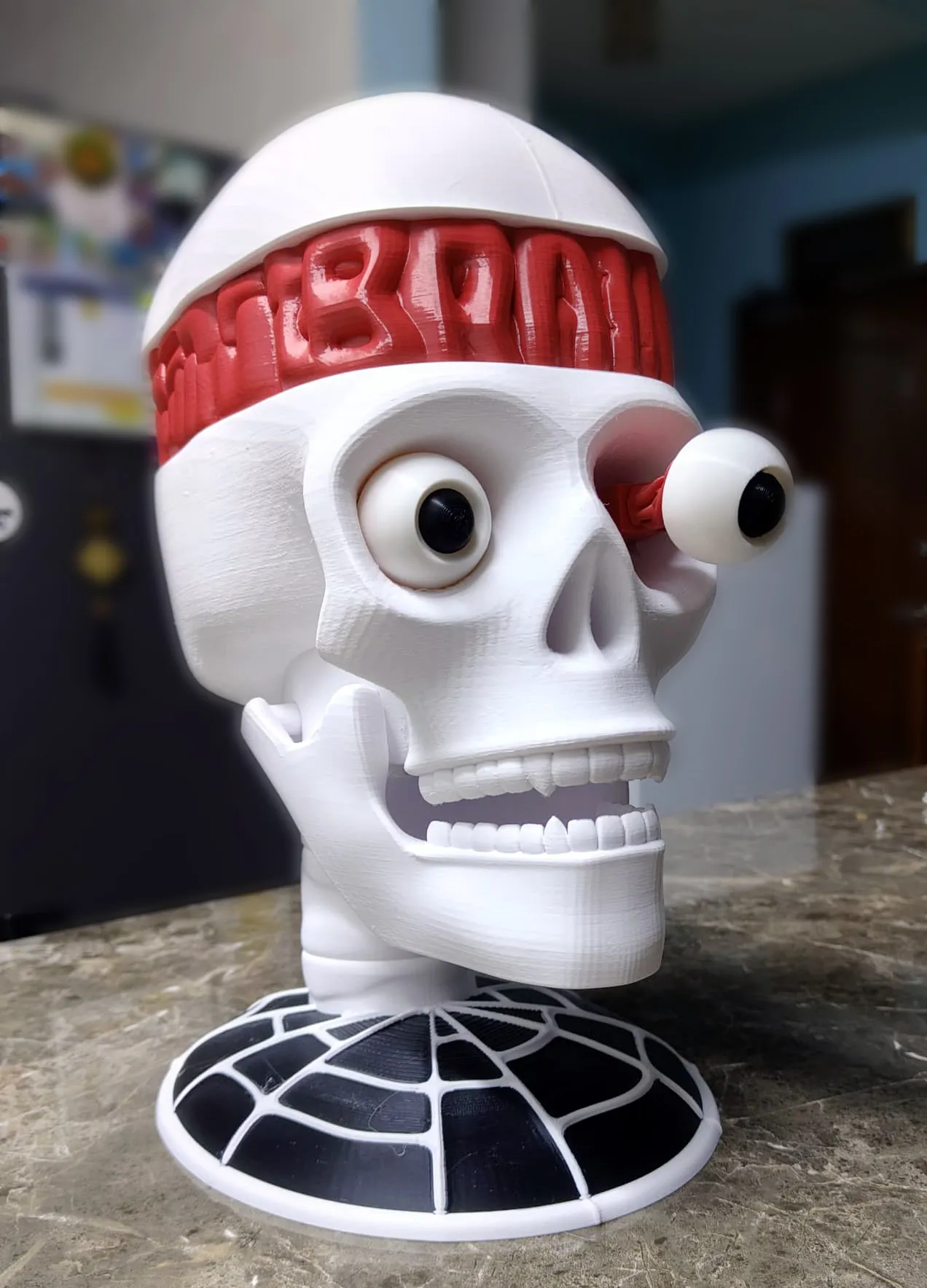

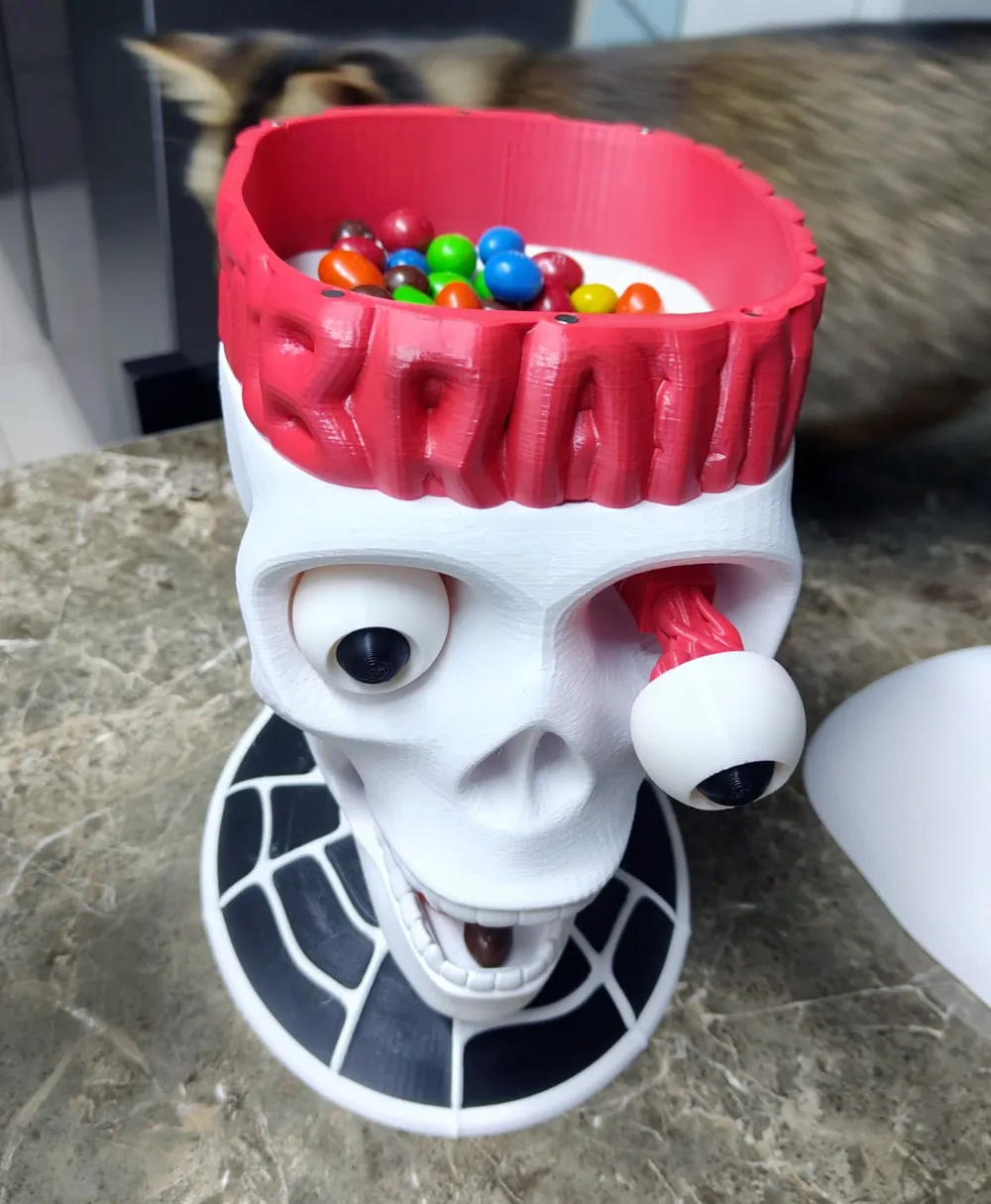

I made it full life size skull so you can fit as much candy inside the skull.. since it is actual size skull.. i design it to look slightly cartoony..
You'll need a 12mm x 70mm compression spring to use as a pusher for the candy.. and D5x3mm round magnet to hold the skull cap.. you can get them on bambu store..

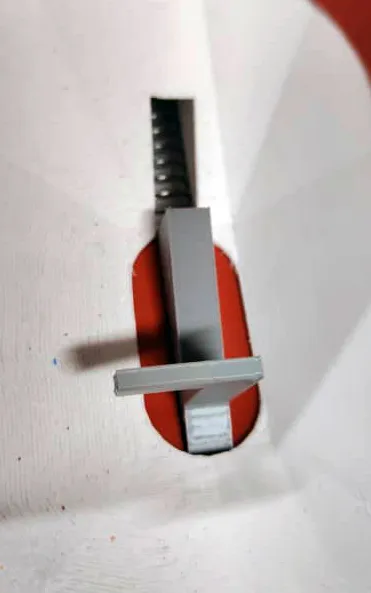

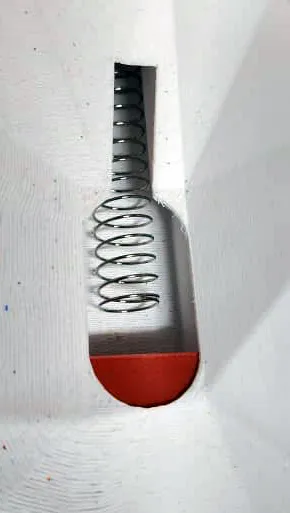

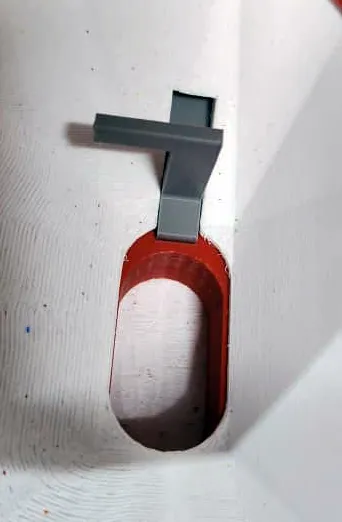

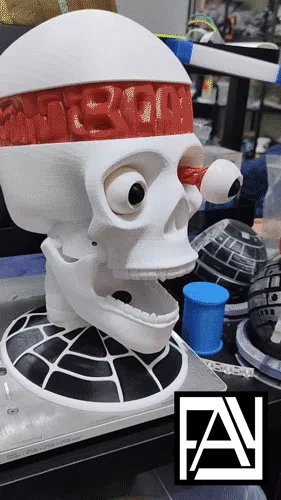

The assembly is straight forword.. insert the spring into the eye socket.. and insert the candy pusher after that.. use the sweeper peg to lock the pusher from exiting the eye socket..
 |  |
 |  |
 |  |
all the other parts should easily assemble.. the jaw have 2 magnets on each side to hold the jaw close.. cause you dont want the candy to jump out of his mouth..
I have tried adding skittles.. jelly beans.. M&M peanut and crispy.. and it works fine.. dont put normal M&M as it will easily break inside when pushed..
I made my candy dispenser using all PETG HF for durability cause pushing the eye will definitely worn out after time.. using white, black and red.. If you want to use the bambu filament.. please use my affiliate link to buy them..
- PETG HF black - https://shrsl.com/4oox0
- PETG HF white - https://shrsl.com/4oox5
- PETG HF red- https://shrsl.com/4op84
i hope you guys have fun 3d printing the skull candy dispenser..
