ams lite self-sealing bag dry seal enclosure tube

Use a self-sealing bag to seal and dry the amslite. Use a pc4-M6 through-hole air connector to lead out the PTFE tube.

Please choose the appropriate size for the self-sealing bag.

pc4-M6 through-hole connector * 4

20mm inner diameter silicone gasket * 2 for flange tube seal at the cable lead-out position

12mm inner diameter silicone gasket * 8 for PTFE tube lead-out seal

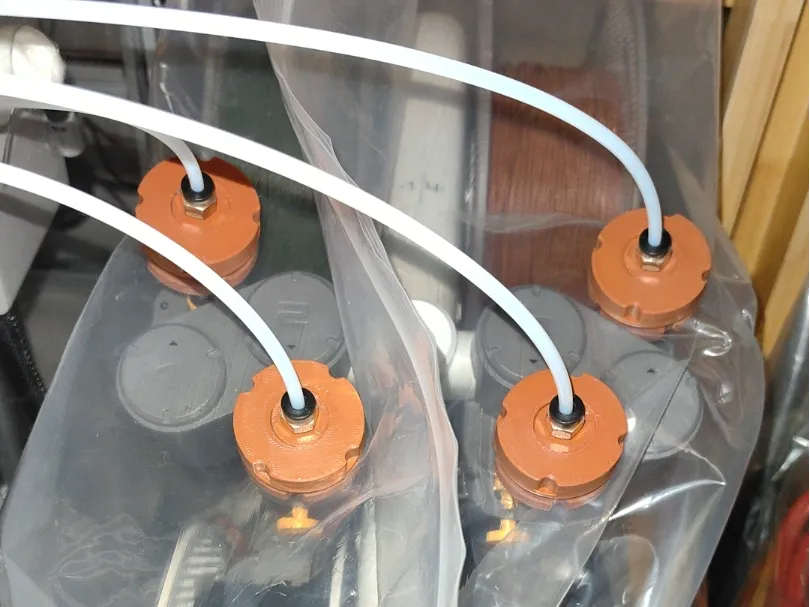

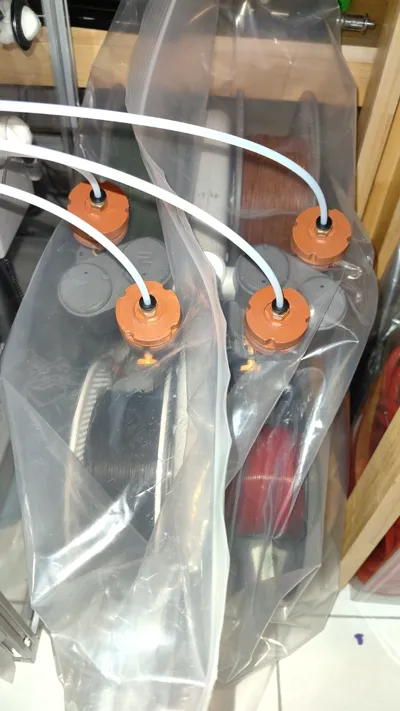

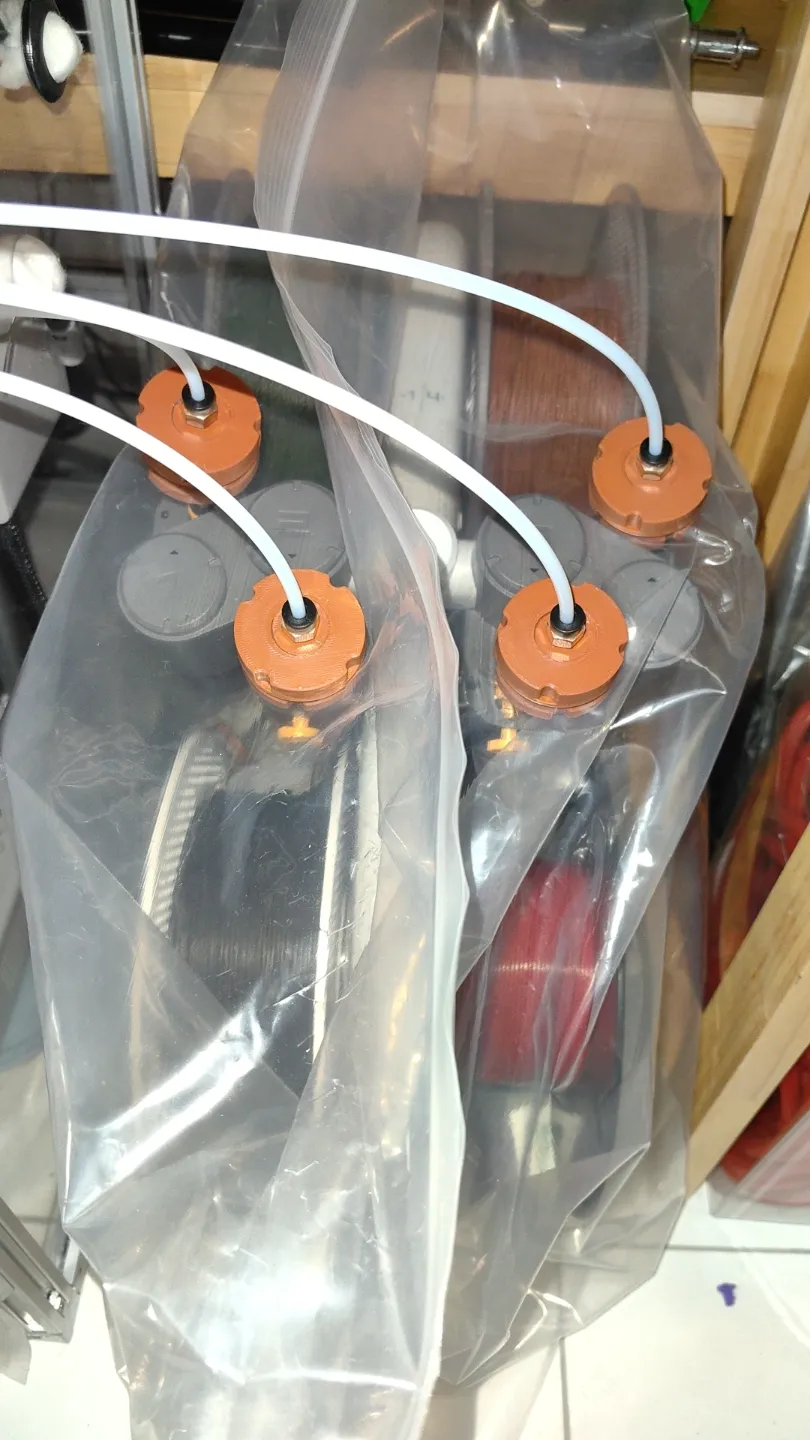

During assembly, first determine the corresponding ams opening position on the self-sealing bag. Then make an opening at the corresponding position, the diameter is recommended to be slightly smaller than the outer diameter of the flange tube thread.

The same operation method is used for the cable position. If the cable position is too tight, please grind it appropriately.

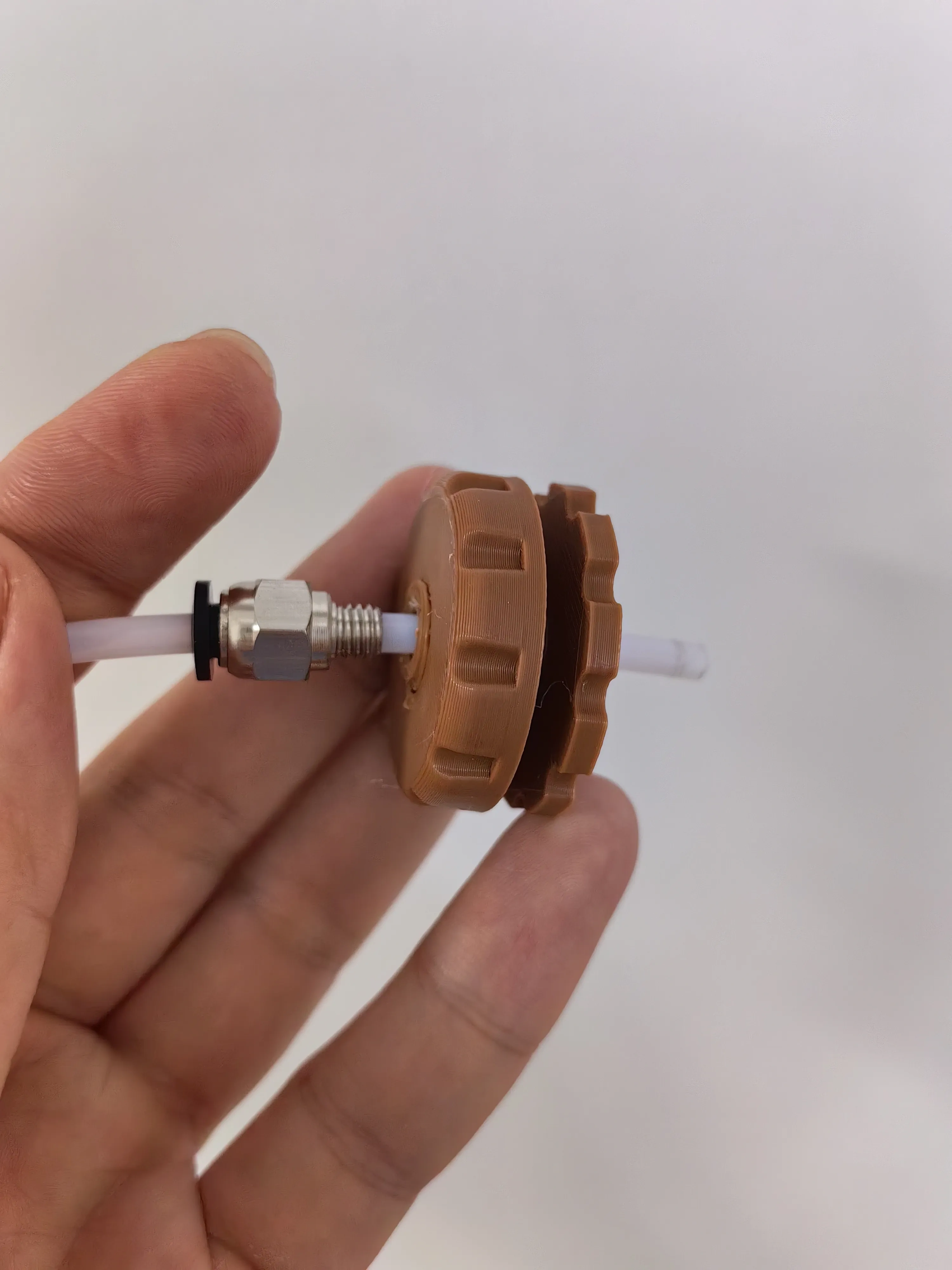

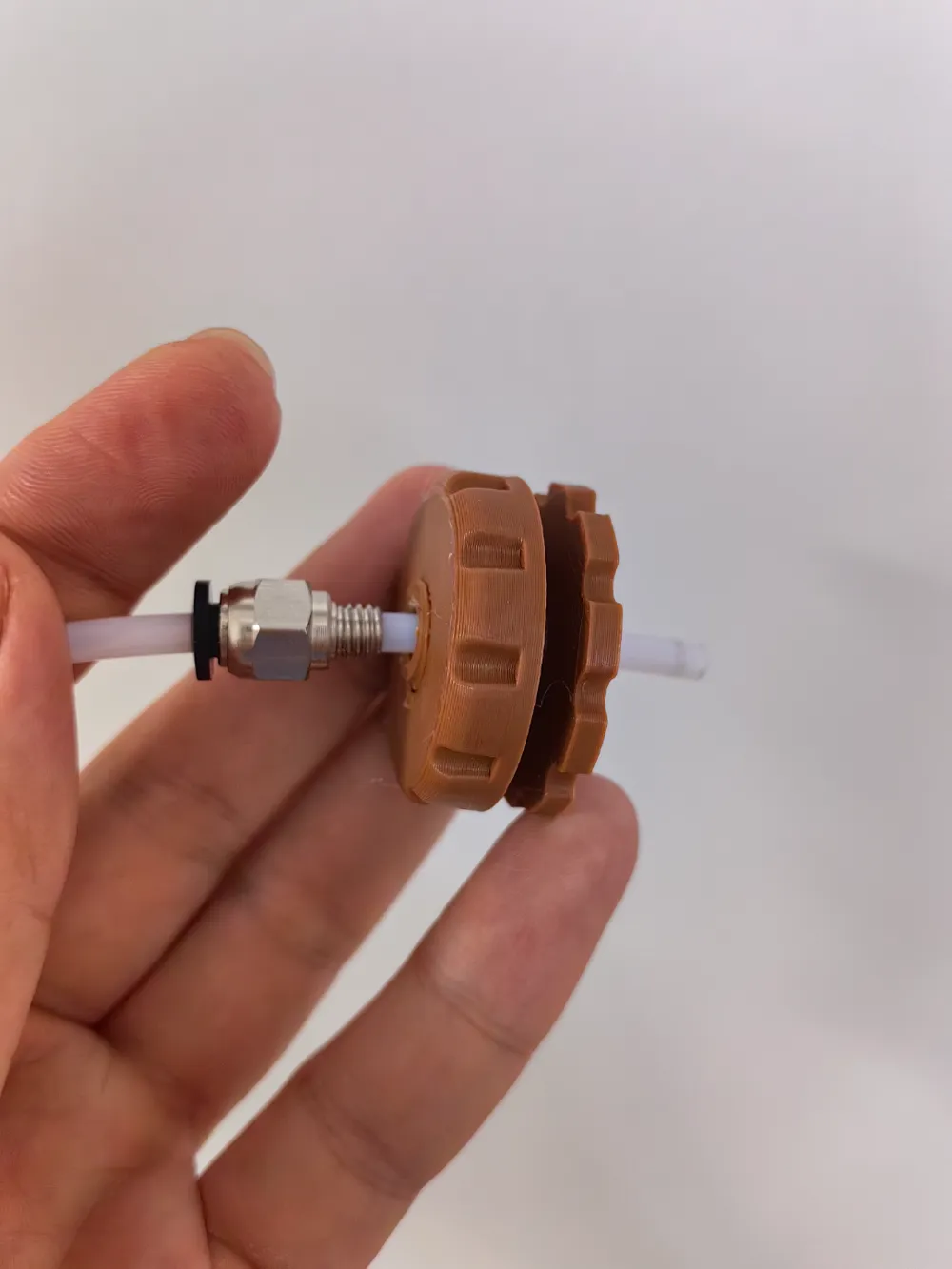

During installation, please first pass the PTFE tube through the connector, and after the flange tube is tightened, finally engage the connector with the internal thread of the flange.

The advantage is that it is inexpensive, but replacing the filament spool may require opening the sealed bag for operation, which is somewhat inconvenient.
