Schacht Bobbin for Matchless, Sidekick, Ladybug

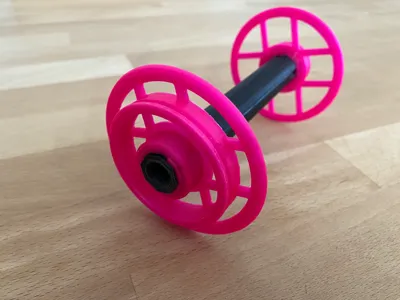

This is a bobbin for Schacht spinningwheels.

It fits on the Matchless, Sidekick and Ladybug.

The tube is printed upright.
For a better adhesion to the print bed, the bottom is almost closed except for a small hole. This is only a layer of 0.2 mm.
Of course, this must be removed afterwards. For even better adhesion to the build plate you could also usa a brim.
And probably the holes for the shaft also need to be drilled a little bit (8 mm) to fit the flyer.

Everything can be printed without support.

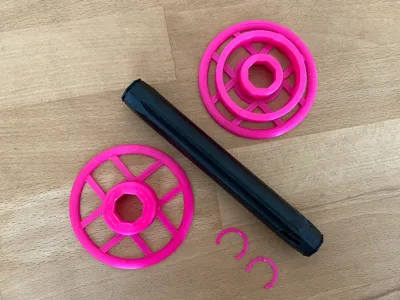

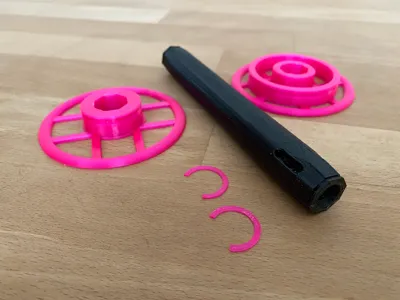

For 1 bobbin you have to print:

1 tube

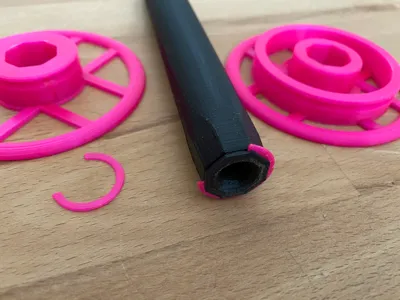

2 clips

both discs.

Every kind of filament is possible.

But for the tube I recomend PETG or better.
