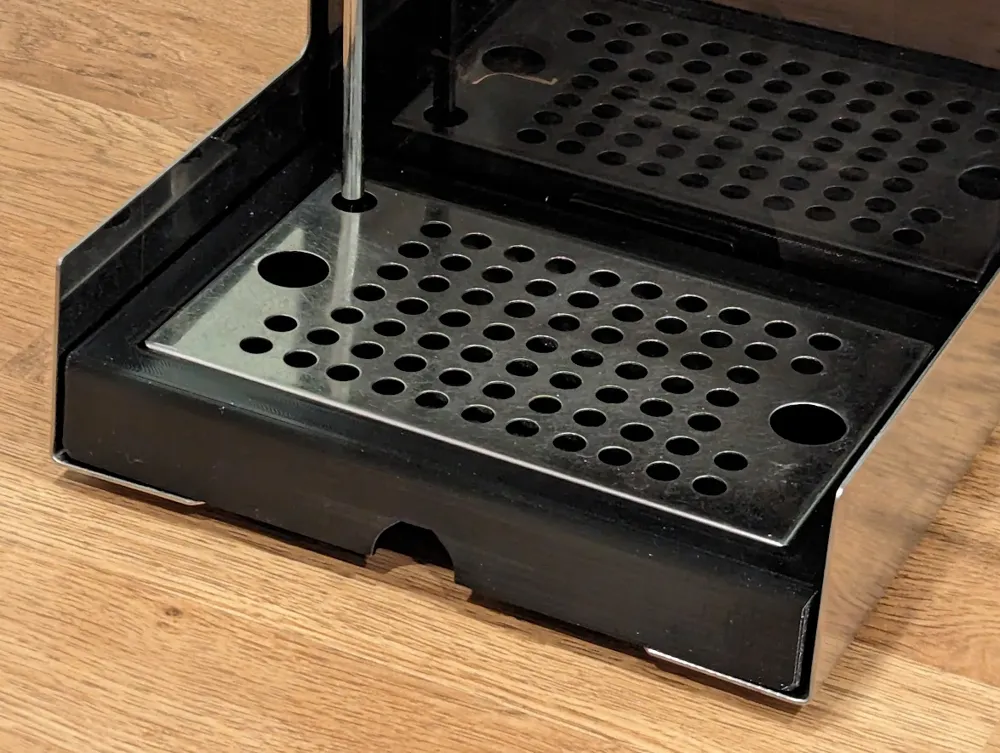

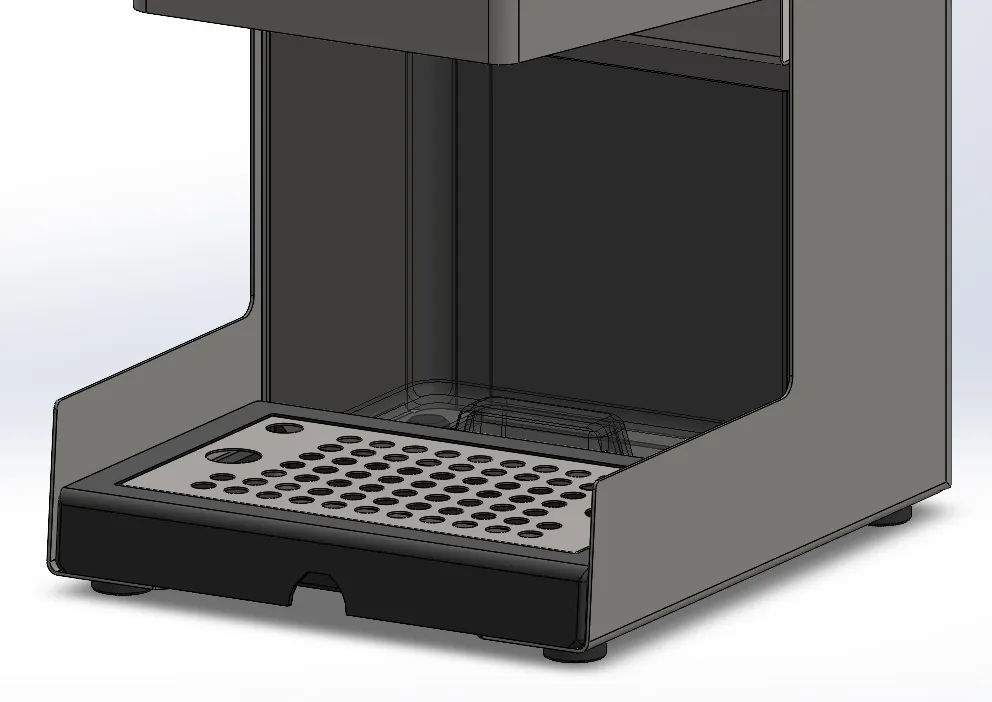

Low Profile Drip Tray Gaggia Classic Pro Eco Evo

While many of my Gaggia-related models are specifically designed for the Gaggiuino project, this one is not. People requested a standalone version of my low-profile scales drip tray from the Gaggia Classic | Pro Scales, so here it is!

Compatibility: Works with all Gaggia Classic and Gaggia Classic Pro / Eco / Evo models. It is untested with the EU 2015-2018 Gaggia Classic V2 (the one with no solenoid valve), but should work. I don't have access to one so please let me know if you try it so I can update!

Features:

• Reliable print (consistent walls, connected pathing for first layer, optimized overhangs, only one bridge)
• waterproof without needing an epoxy coat (assuming the print doesn't have major issues)
• dishwasher safe (tested multiple times with no effects noted)

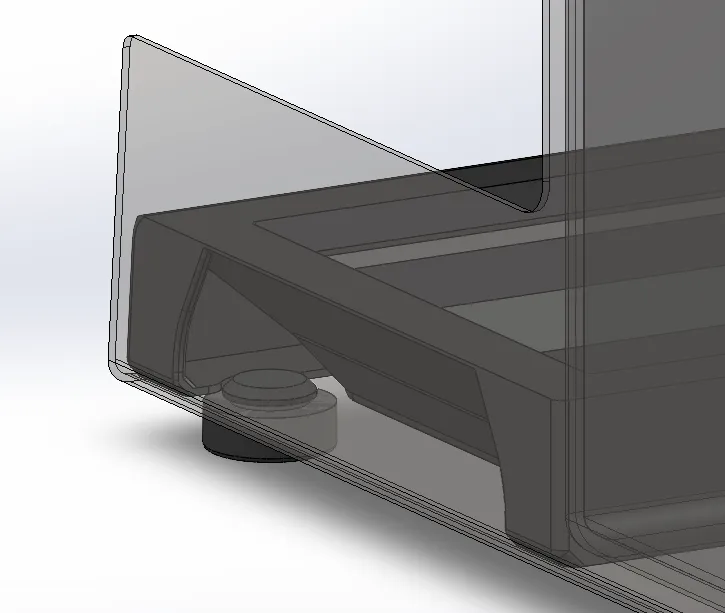

• position stop on the topside of the rubber feet to avoid rattling against the water tank


Print settings:

• PETG
• 0.4 mm nozzle / line width
• 4 top and bottom layers
• 3 wall lines
• supports aren't needed, though a support at the pull handle bridge can help if you get sagging

Other Parts:

A longer vent tube is ideal for low-profile trays. Tube specs:
Stainless Steel, 6 mm OD, 5 mm ID, cut to length (154-158 mm is good for most Gaggia Classic machines with this tray)

Example Tube: https://www.aliexpress.com/item/3256803263390232.html
Example Tube Cutter: https://www.aliexpress.com/item/3256803055259414.html

Changelog:

• 2025-01-31 - Separated into versions with handle cutout and versions without
