Handle for Makita PJ7000 plate joiner

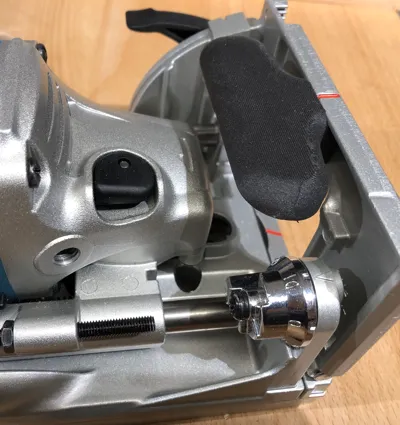

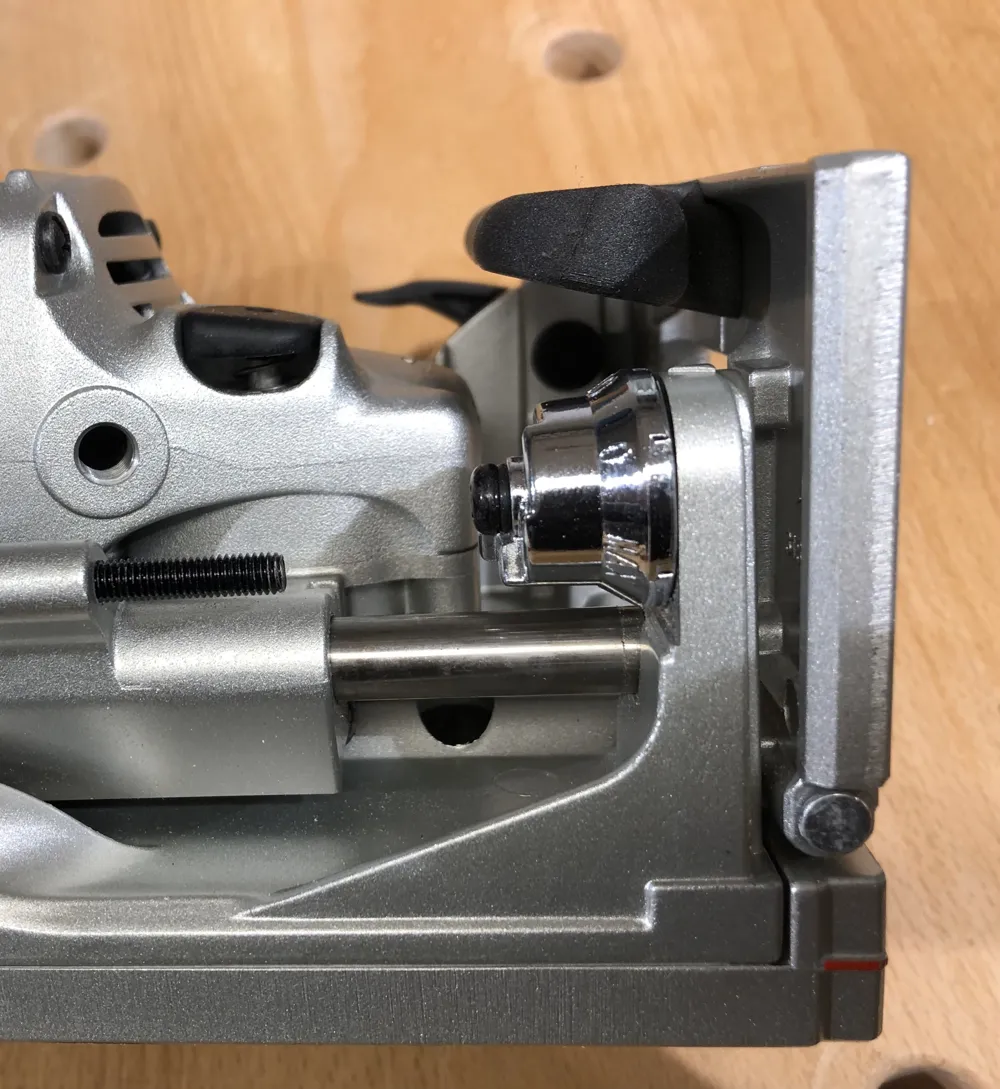

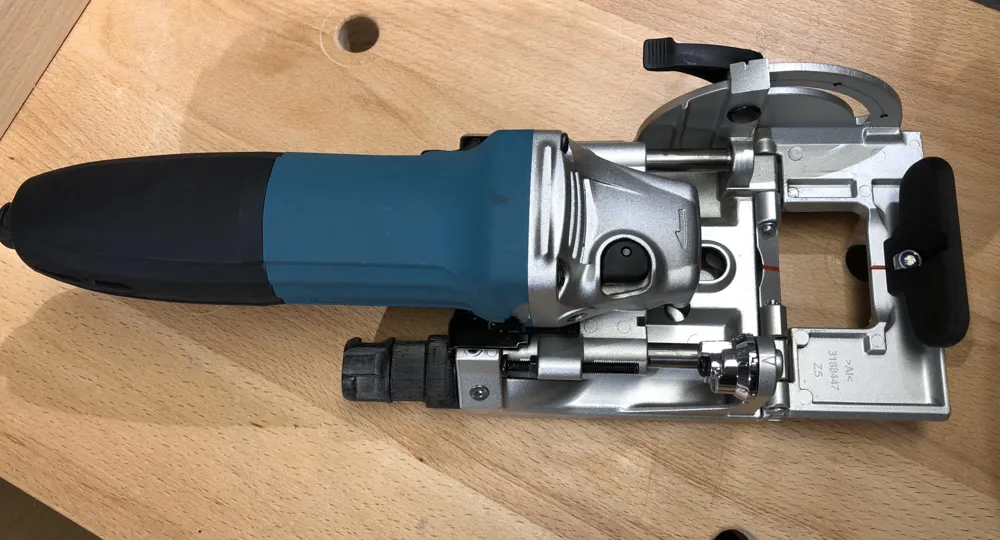

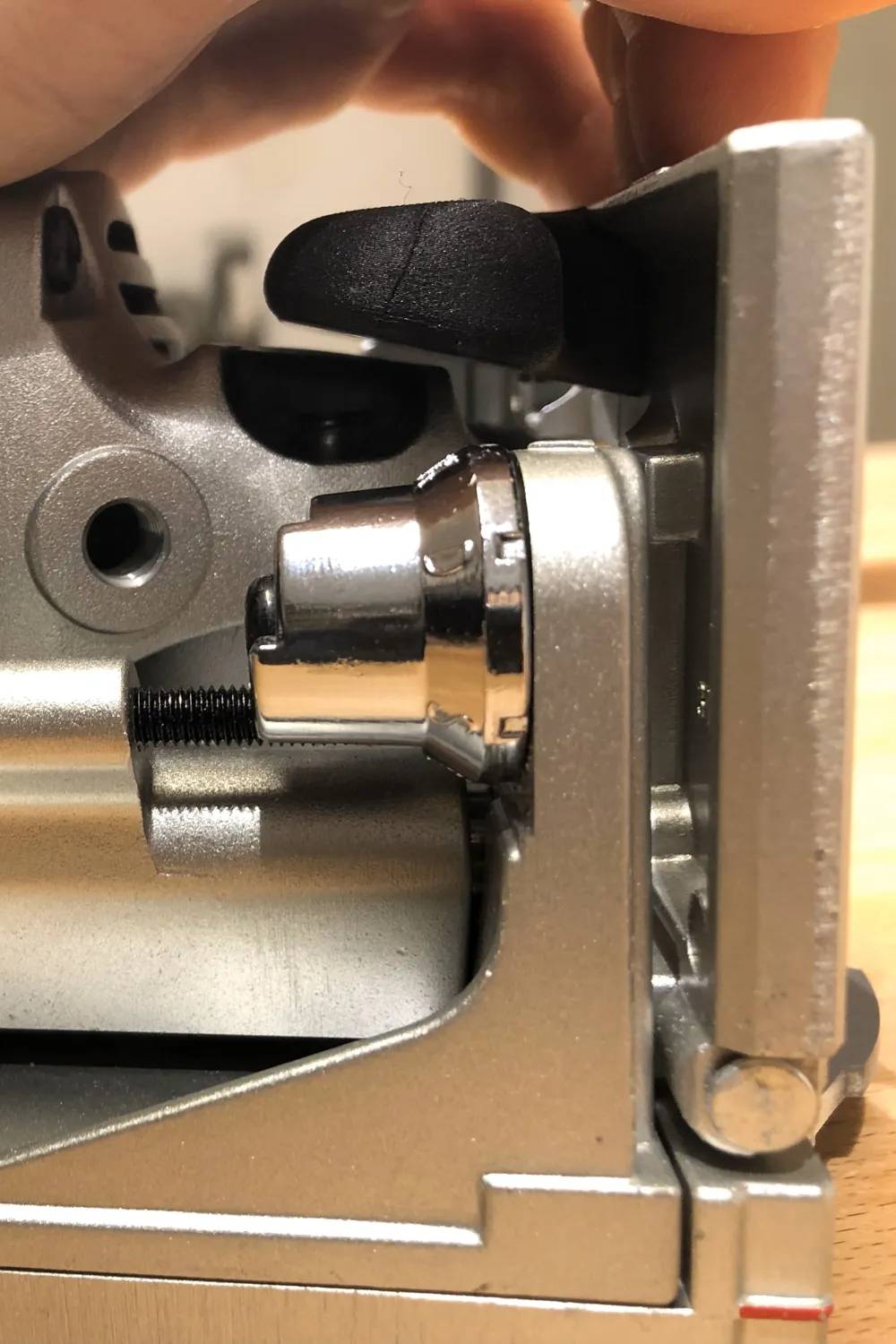

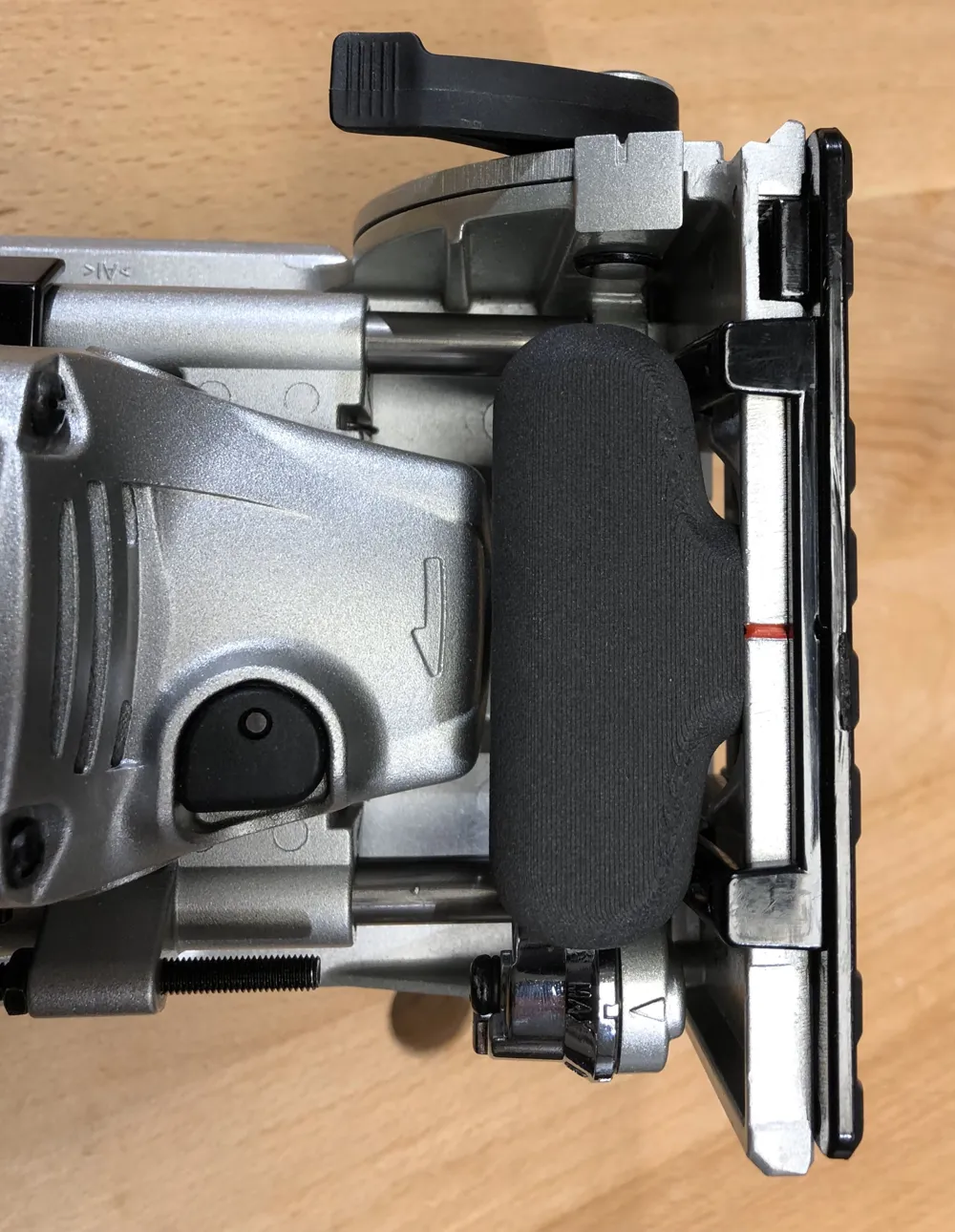

Handle for the Makita PJ7000 plate joiner which makes it more comfortable to use for me.

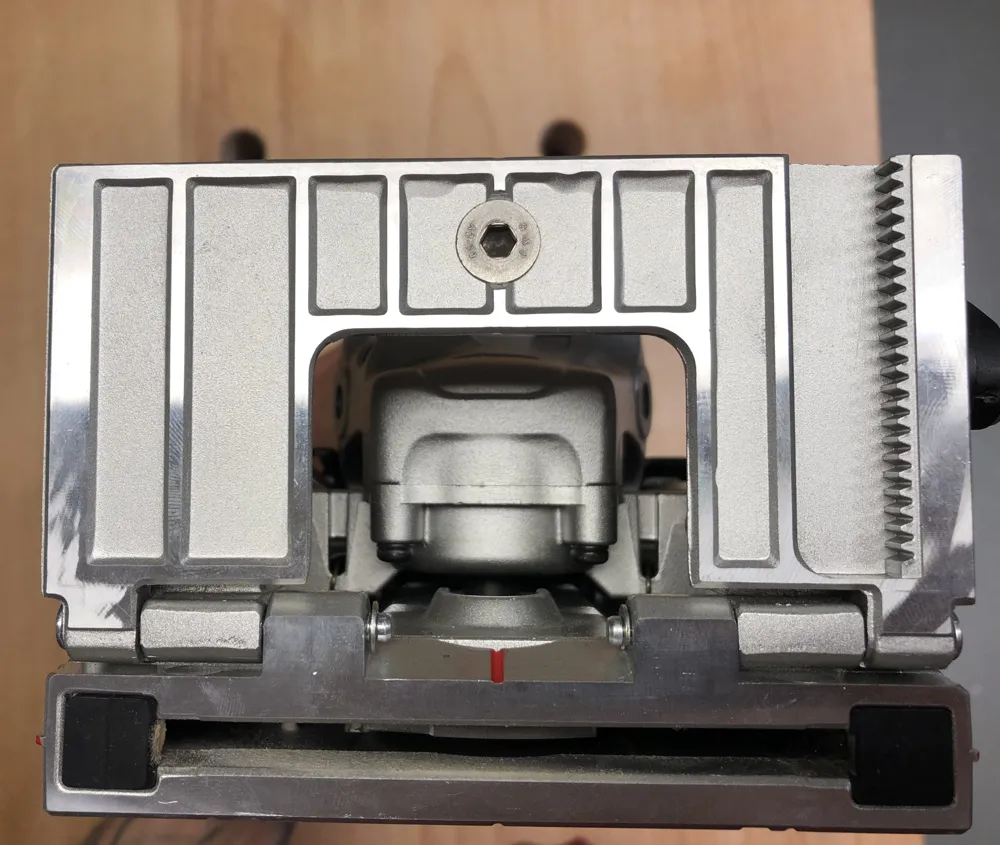

The handle is mounted with a M6x15 countersunk screw and a M6 locknut.

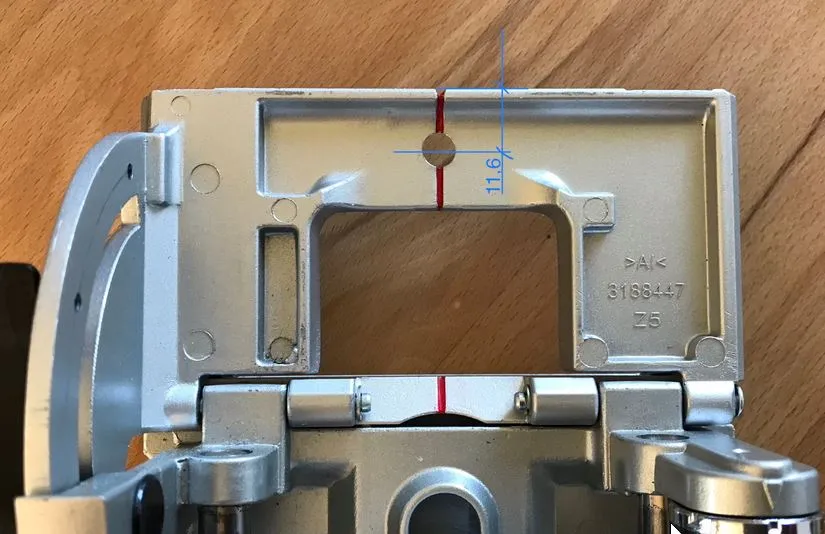

For mounting a hole with countersunk is needed, for the position see photo.

Filament: extrudr greentec pro (PETG, Nylon etc. should also be fine)

Print settings:

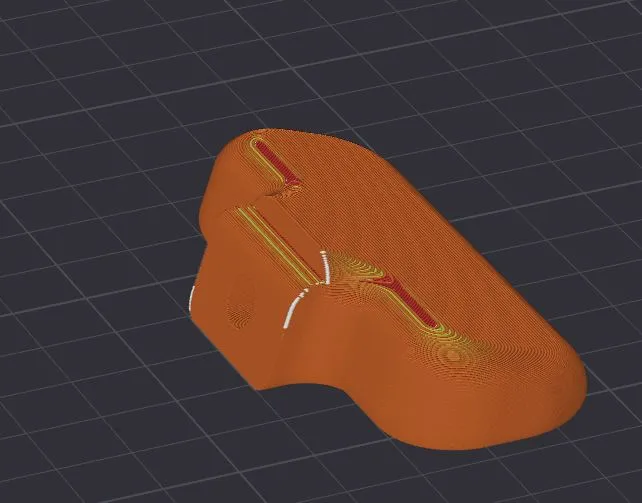

• orientation: see picture
• layer height: 0.16
• wall loops: 4
• Top/bottom layers: 6
• infill: 30% gyroid
• support: no

________________________________________________________________________________________________________________

Update 17.11.2023

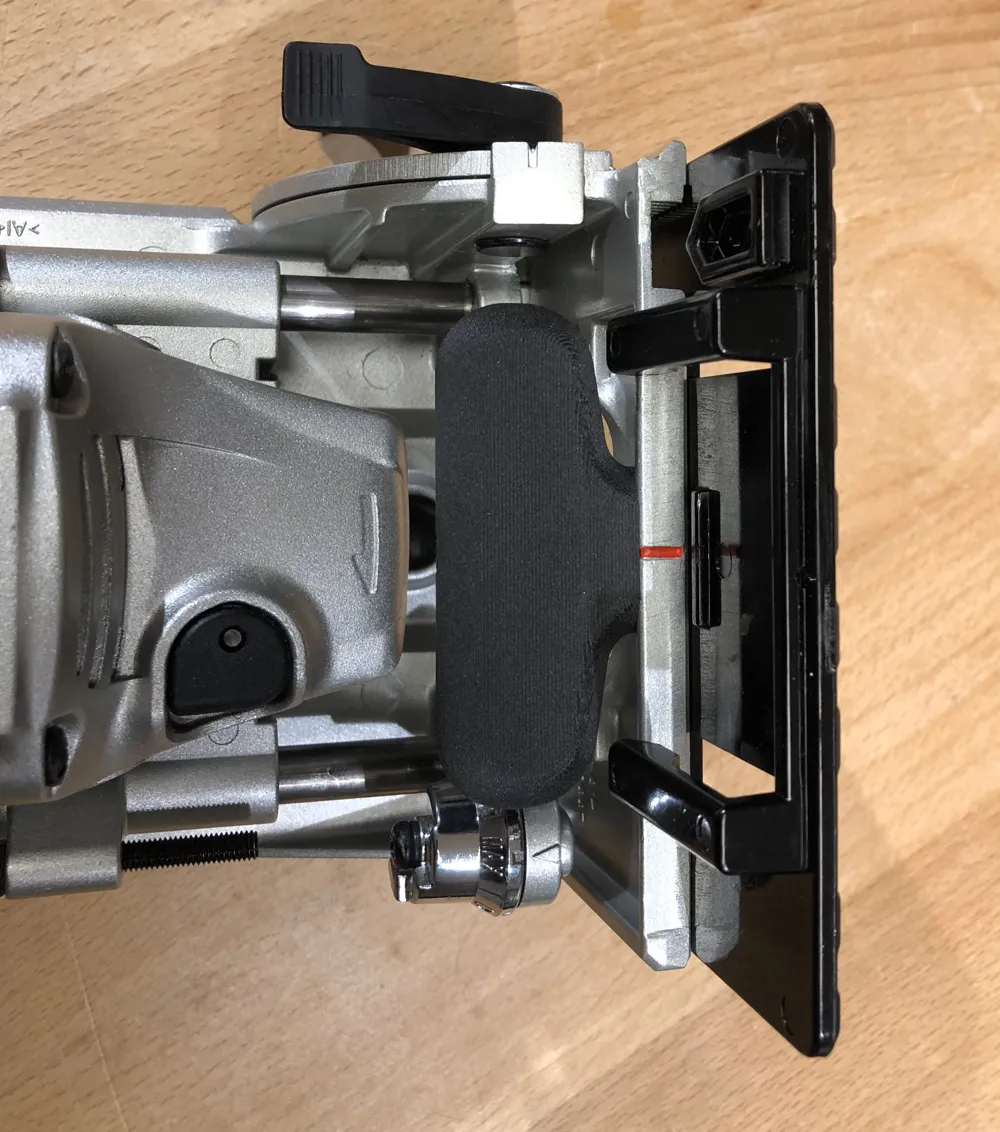

Adjusted the handle(Griff_PJ7000 v16) that the 4mm plate can be installed.

Filament: PA6-GF30(not necessary, had to test this filament anyway)

Print settings: see above
