Manta58 (V1) Split Keyboard Case - For Lily58 PCBs
Print Profile(1)
Bill of Materials
- Lily58 PCBs, assembled x 2:
- Lily58 switch plates x 2:
- 8mm M2 standoffs x 10:
- M2 screws x 20: 28 if using OLED covers
- Adhesive rubber bumpers x 8: For case bottoms
- 0.375" x 0.06" disc magnets x 12: Optional, used for tenting legs; 12-18 depending on whether one or both sets of legs are used
- SKUF Silicone Rubber Keyboard Feet x 2: Optional, used for tenting legs; 2-4 depending on whether one or both sets of legs are used
- Lily58 OLED covers x 2: Optional; available from various vendors, or files can be downloaded from Lily58 GitHub repository
- 10mm M2 standoffs x 4: Optional, if using OLED covers
Description
Boost Me (for free)
Want to see more unique 3D-printable keyboard case designs from us? Give us a boost! 🚀
Thanks for your support!

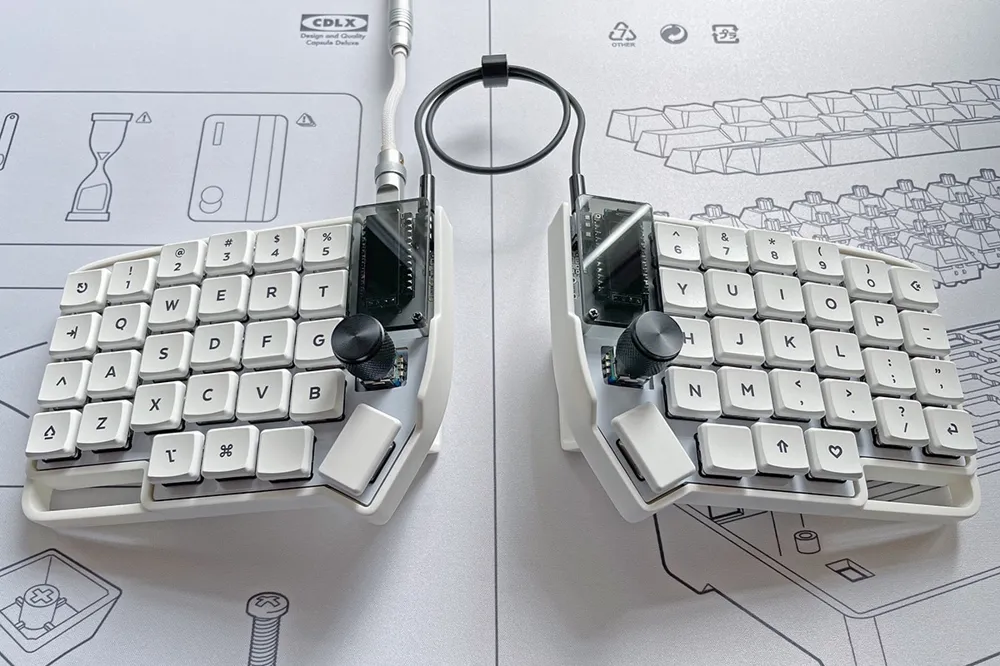

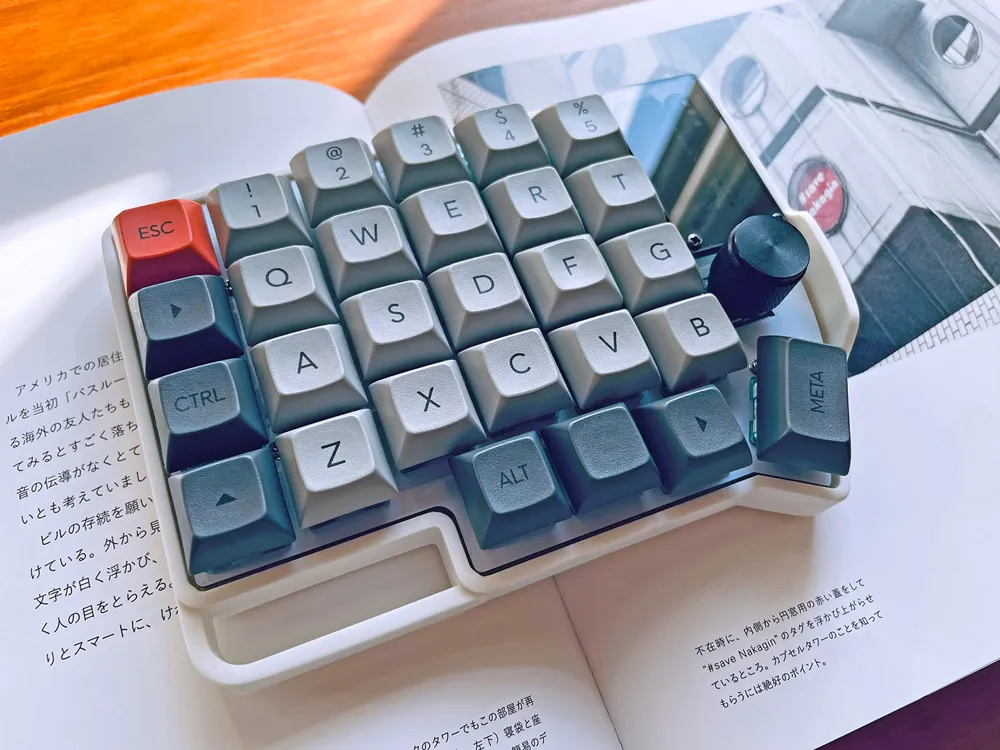

The Manta58 is a unique 3D-printable case design for the Lily58 split keyboard. Designed for compatibility with standard Lily58 case hardware, it’s an easy way to elevate the look and feel of your favorite ergo keyboard. With its unique open-loop design and asymmetrical case walls, the Manta58 is a Lily58 case unlike any other.
Our original Manta58 design includes both high-profile and low-profile variants and supports all PCBs that use the standard Lily58 mounting points and component layout. Tenting legs are offered in two different heights, so you can choose the angle that works best for you.
If you're coming from a standard Lily58 sandwich case build, you should have most of the parts that you need to build Manta58. Some additional parts may be needed for certain features (i.e. magnets for the tenting legs). For more details on materials, plus instructions on building, check out the build guide on our website.
https://capsuledeluxe.com/manta58/build-guide/
Let us know what you'd like to see in future iterations of the Manta58, and feel free to share your finished builds with us! We love to see them! 😸 Happy typing!
