Pixelstick Lamp

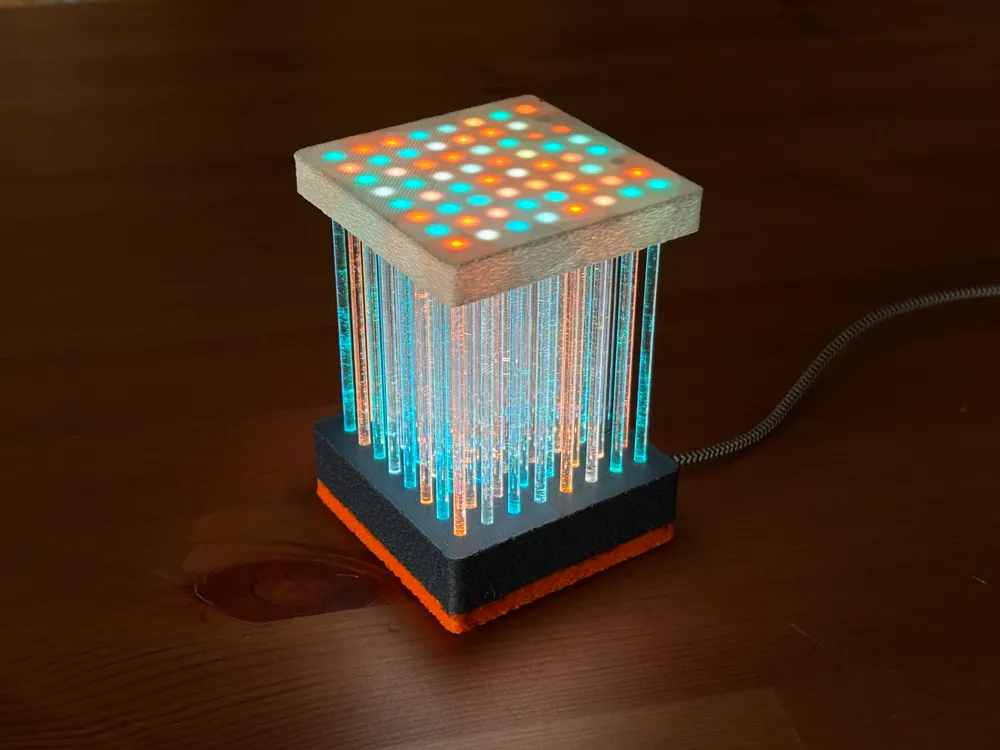

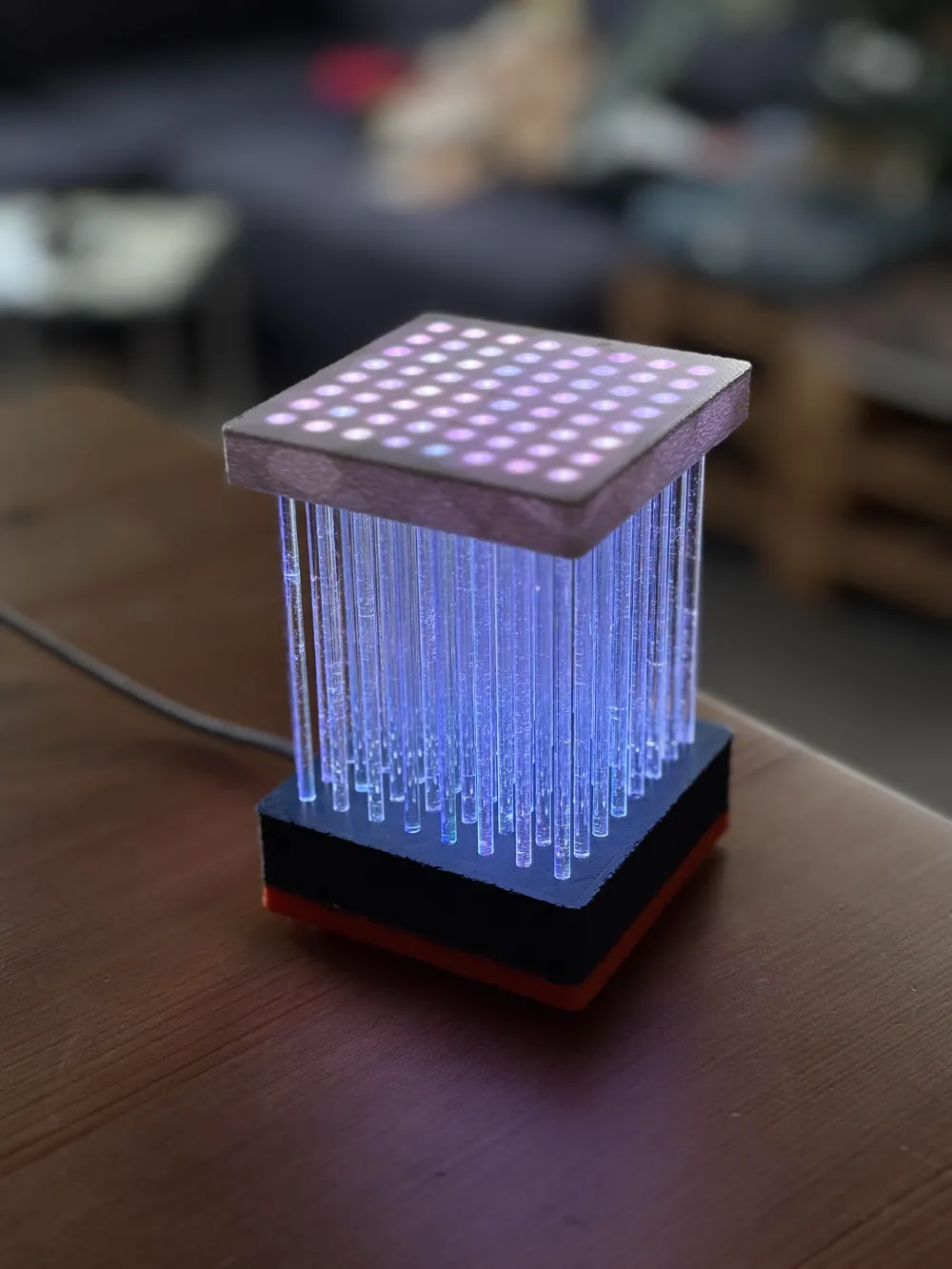

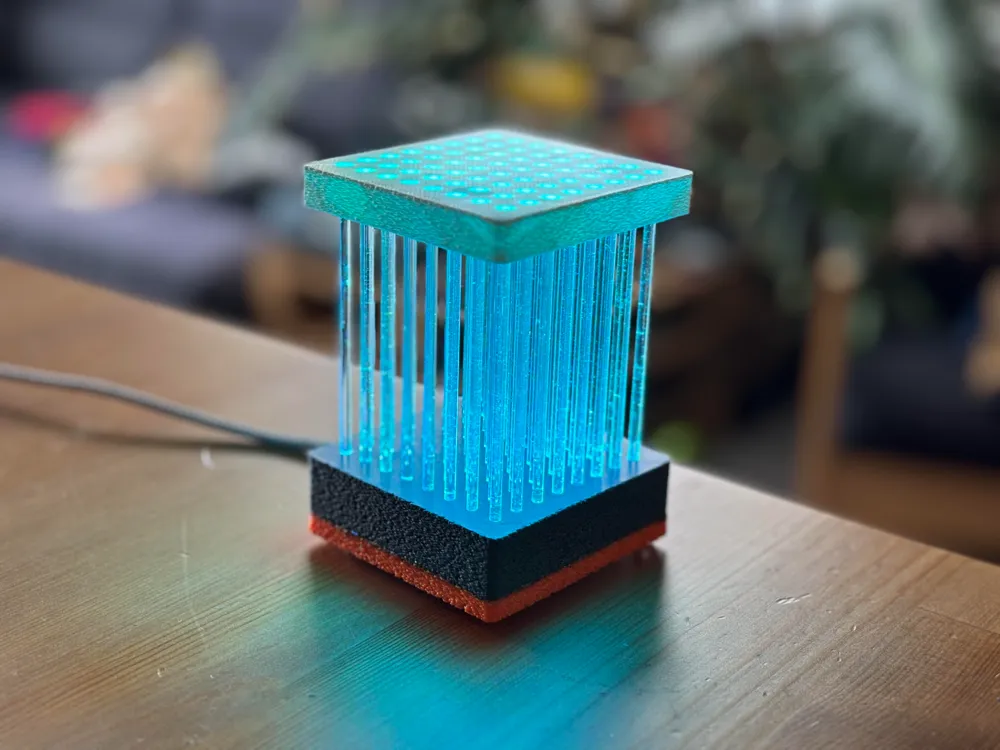

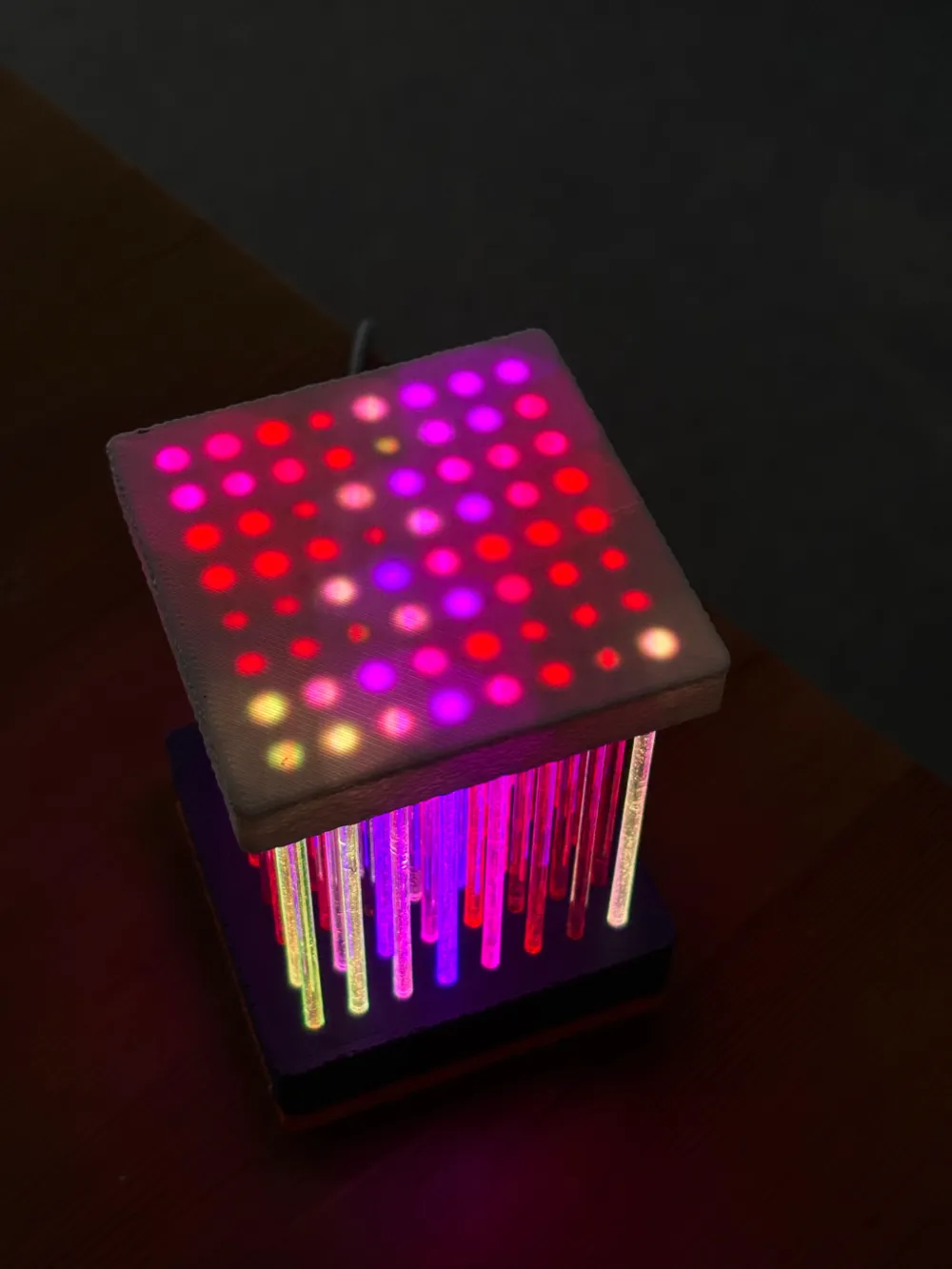

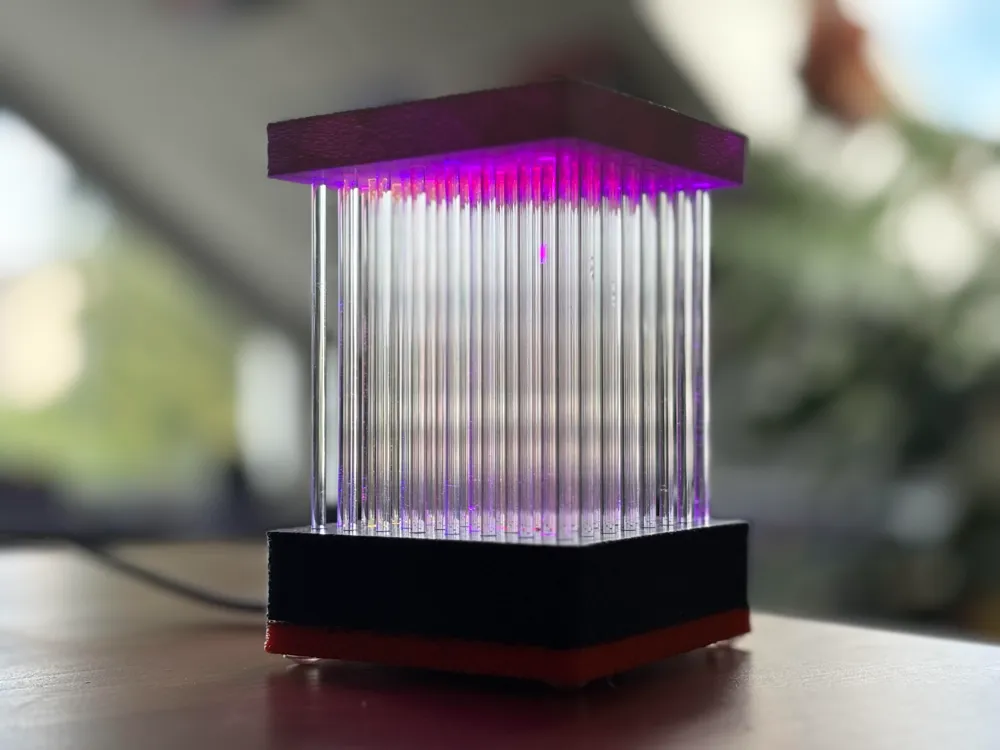

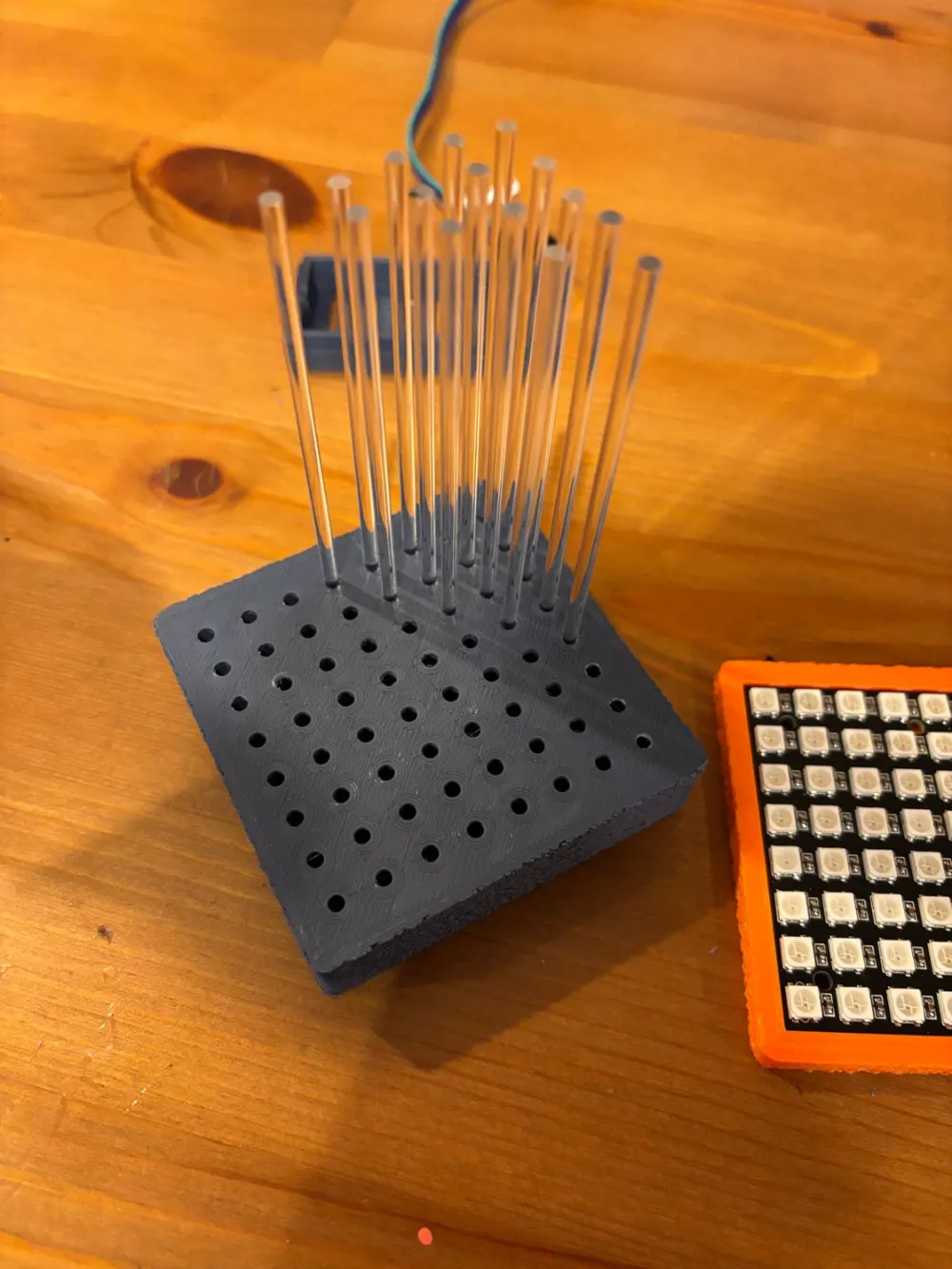

I designed this smart, (almost) solder-free lamp as a mood light. You can change colors, patterns and animations right from your phone without any coding needed. You can install the WLED-Software zo your ESP-32 right from your browser. You'll also need an 8*8 LED Matrix and some 3mm Acrylsticks which are cheaply sold as DIY-Lollipop holder. This project should be powered with at least 3A at 5V. I designed the base pice with a bit of tolerance, because the LED-Chips have a lot of manufacturing differences. You only need to solder the power and signal lines to the LED-Chip, I left enough space in the basepart to allow for sloppy soldering.

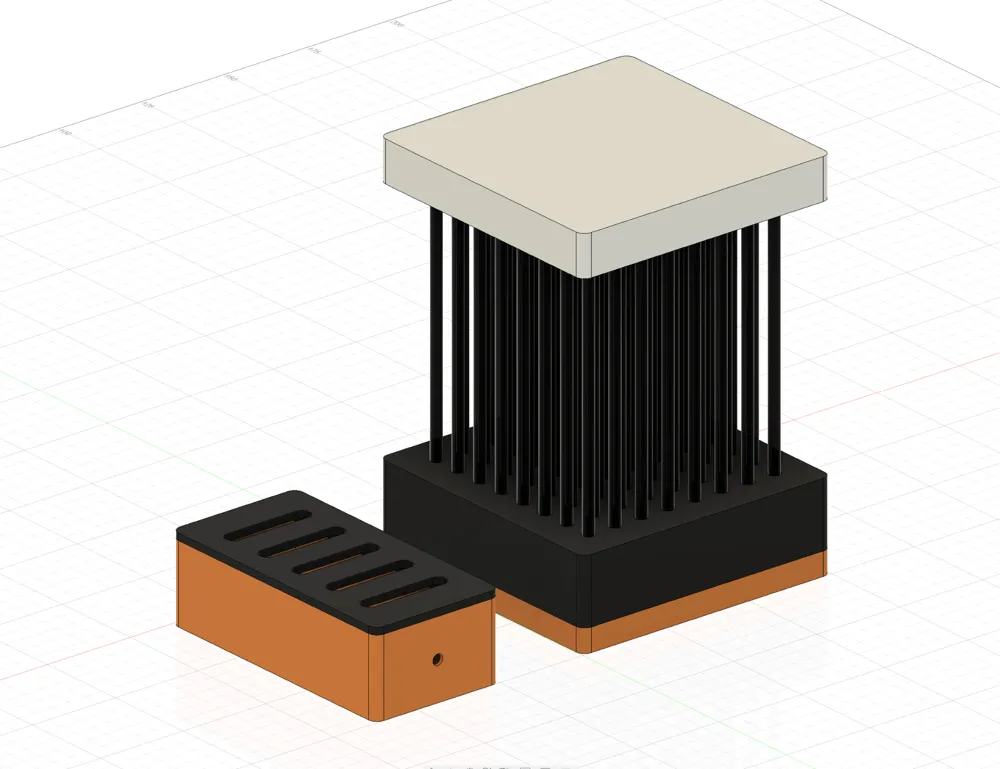

Print this with fuzzy skin at .3mm for hiding Layerlines and a better fade between the two base parts. The two baseparts can be glued or screwed together if you heat-press some theads into the upper-bottom part. Hit me up if you have any further questions or need the CAD-Files.

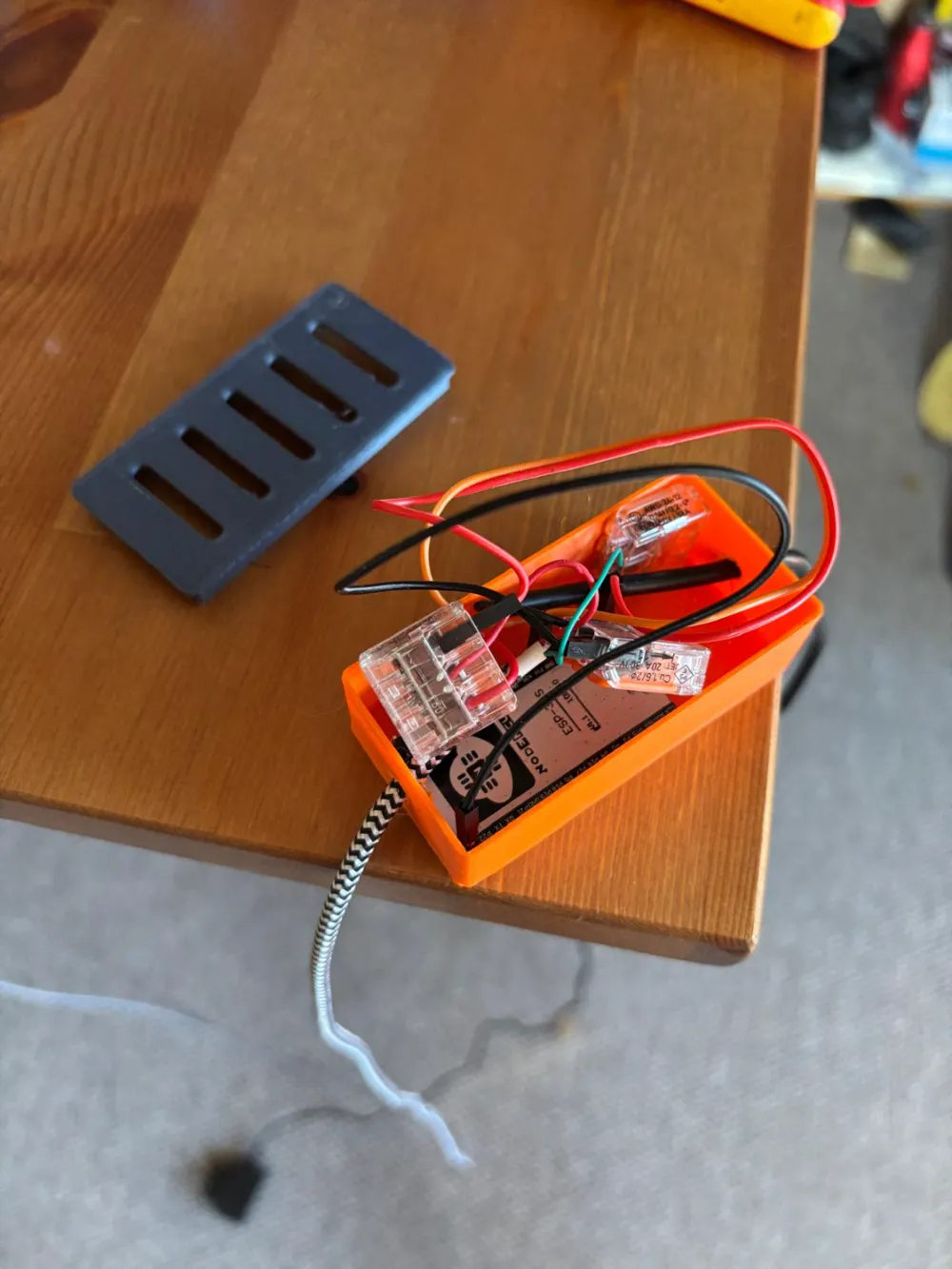

The junction-box is as rudimentary as it gets, because I'm really bad at soldering and really good at using WAGO-Clamps (feel free to solder it anyways!)

:)

List of parts with non-affiliate links - feel free to get the parts at your dealer of choice

• LED-Matrix - https://amzn.eu/i6Zml78
• ESP-32 - https://amzn.eu/d/2InyNQD
• Acry-Sticks - https://amzn.eu/d/avsSCUT
• Power Supply - https://amzn.eu/d/fsBZxj5
• Jumper-Cables - https://amzn.eu/d/e6HqFFf
• Wago-Clamps - https://amzn.eu/d/ci2PkJV
• M3 Heat-Threats - https://amzn.eu/d/f0g3LuA
• M3 Screws
