Camera structure mechanism model

如各位所见，这是一个展示照相机结构的模型，这个模型不只是一个摆件，而是可以用来拍摄的。后期会加入感光材料来使其实现摄影功能，希望你能喜欢。

As you can see, this is a model showing the structure of a camera. This model is not just a decoration, but can be used for shooting. Later, photosensitive materials will be added to make it capable of photography. I hope you like it.

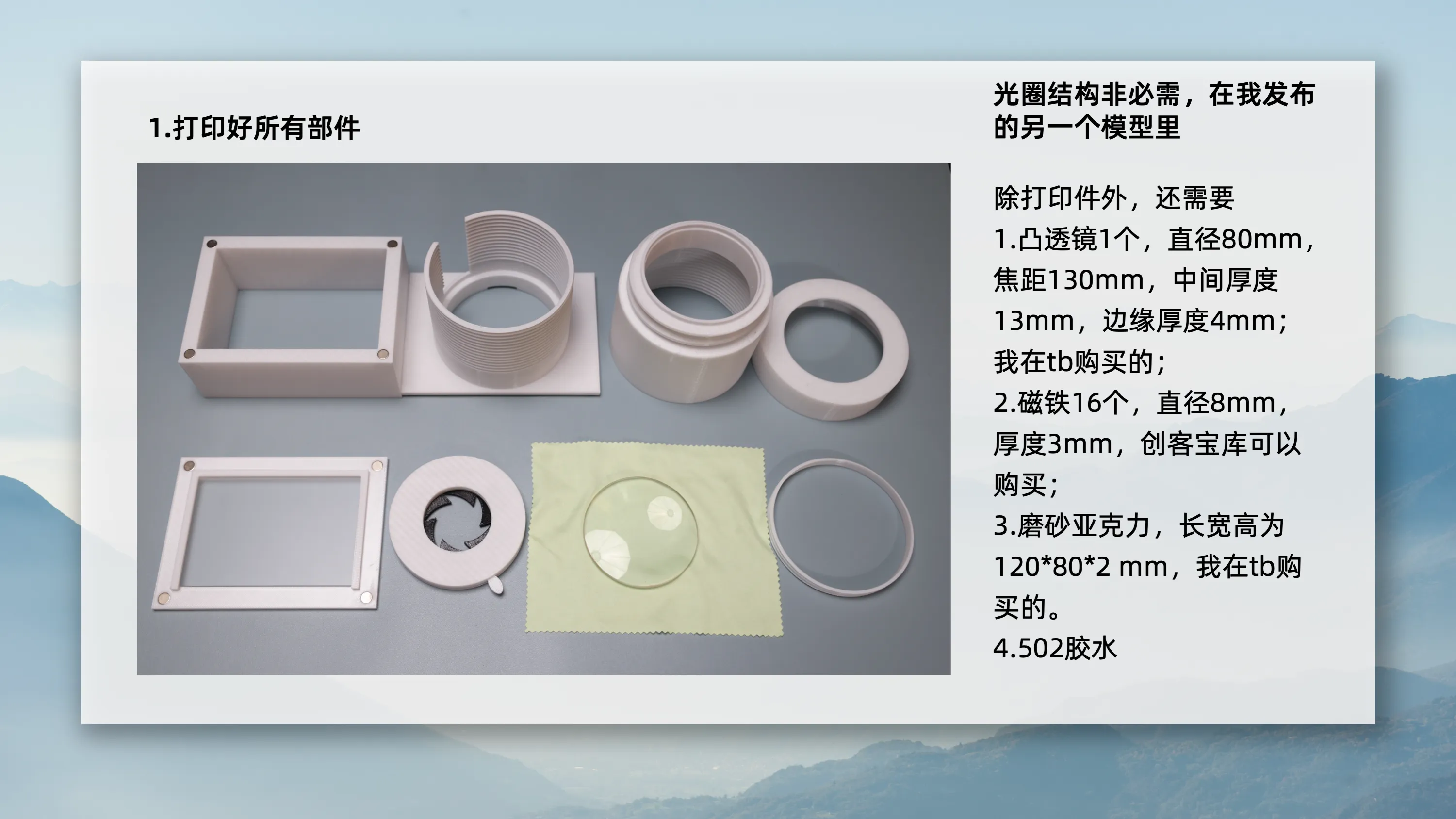

In addition to the printed parts, you also need

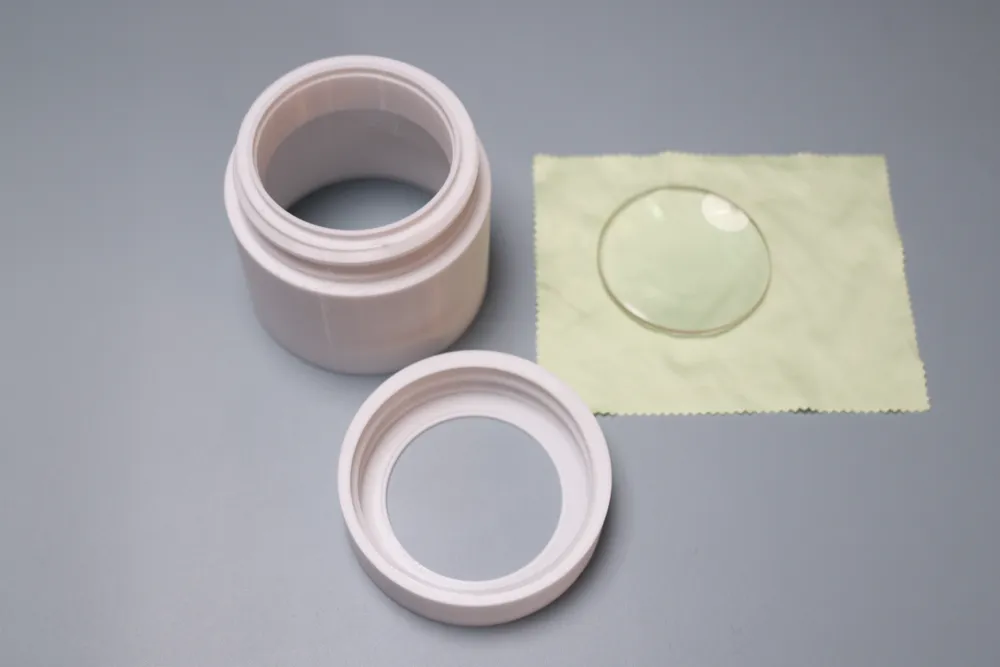

1. 1 convex lens, diameter 80mm, focal length 130mm, middle thickness 13mm, edge thickness 4mm; I bought it on tb;

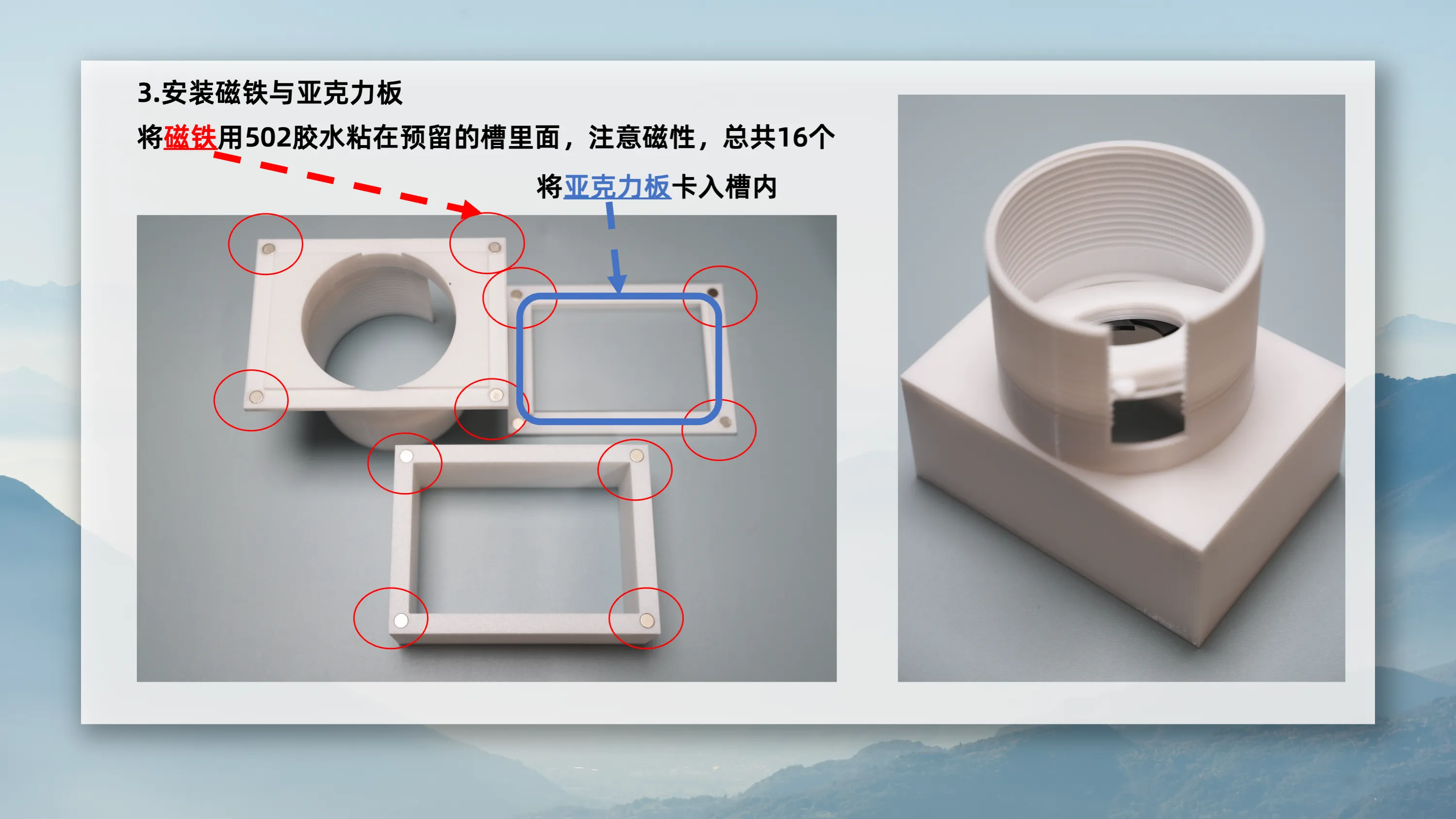

2. 16 magnets, diameter 8mm, thickness 3mm, can be purchased from Maker Treasure House;
3. Frosted acrylic, length, width and height 120*80*2 mm, I bought it on tb.
4. 502 glue

光圈模型在这里↓，Aperture Model Click this link↓

https://makerworld.com/zh/models/670871#profileId-598583

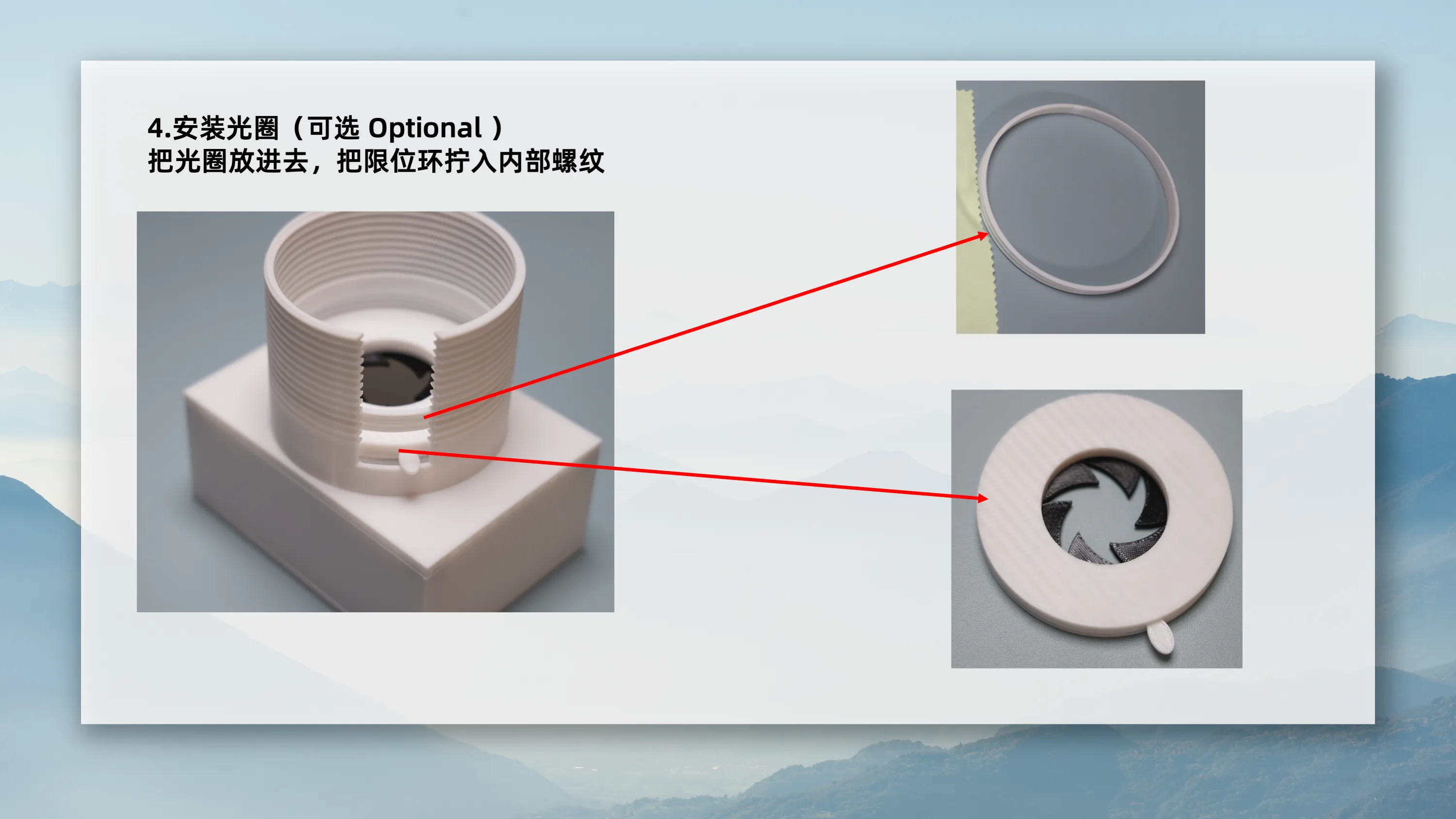

Installation tutorial, only in Chinese, but I think you can understand the schematic diagram

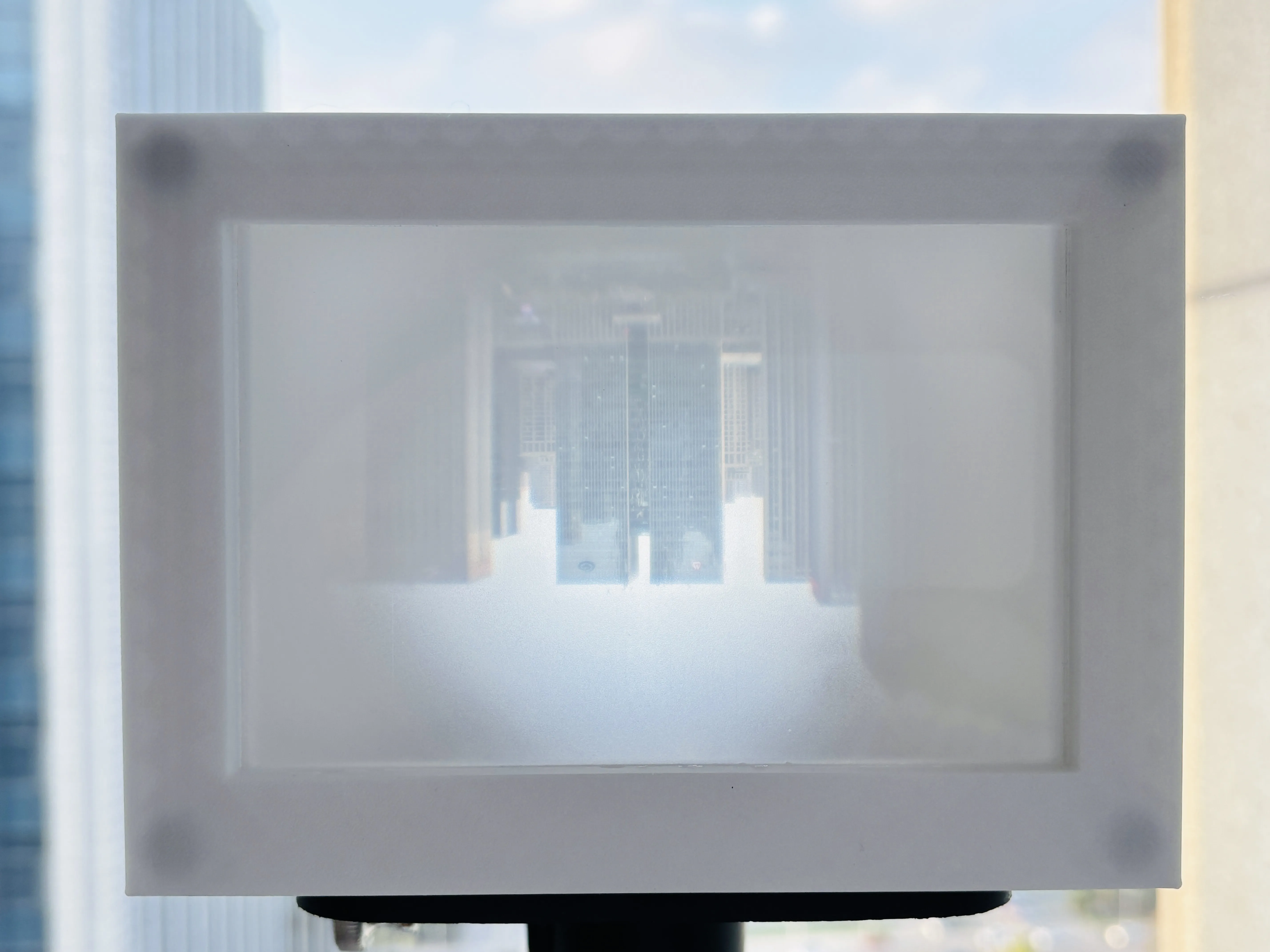

Then you can shoot.
