bambu poop box 拓竹 磁吸竹屎盒子（带限位扶手）
Print Profile(1)
Description

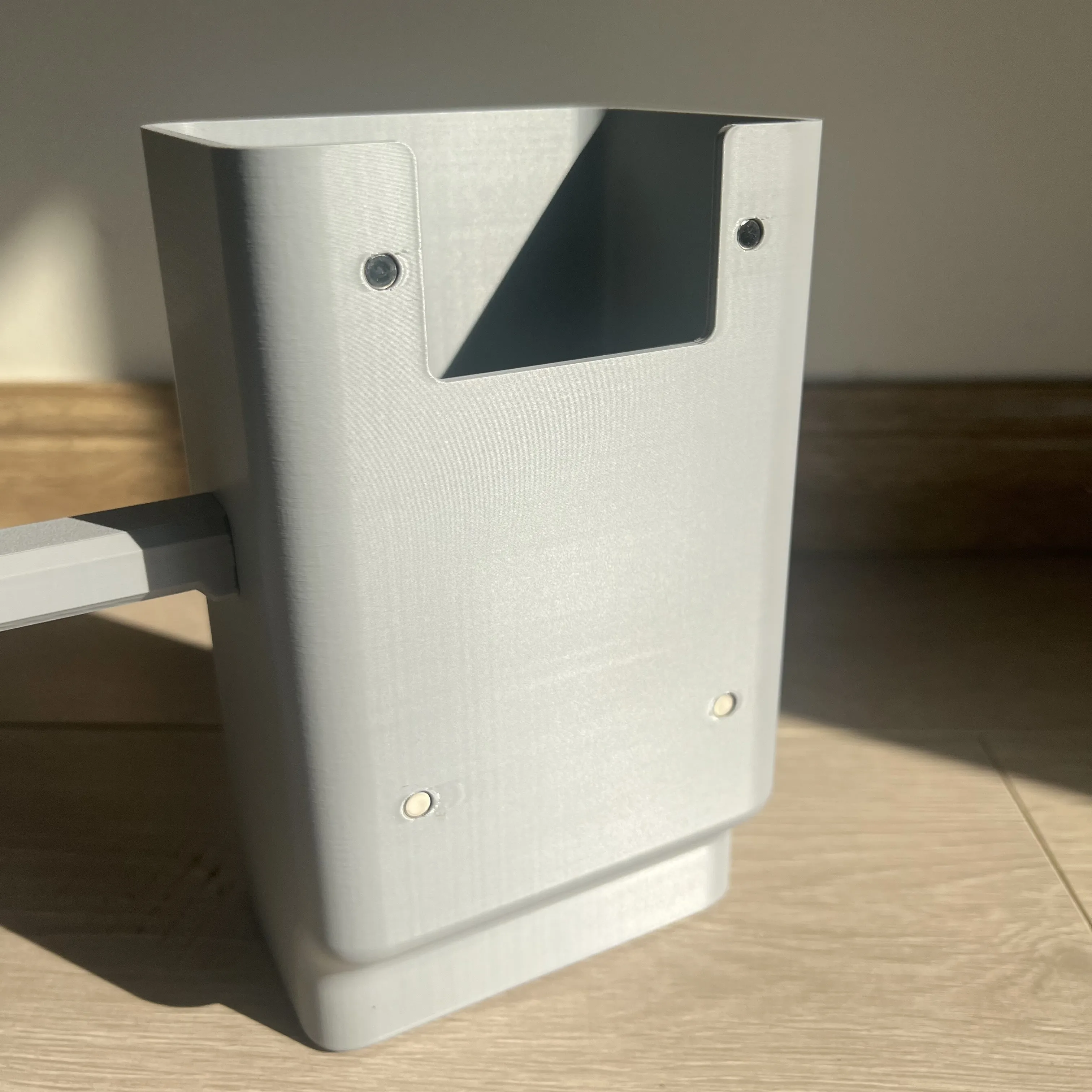

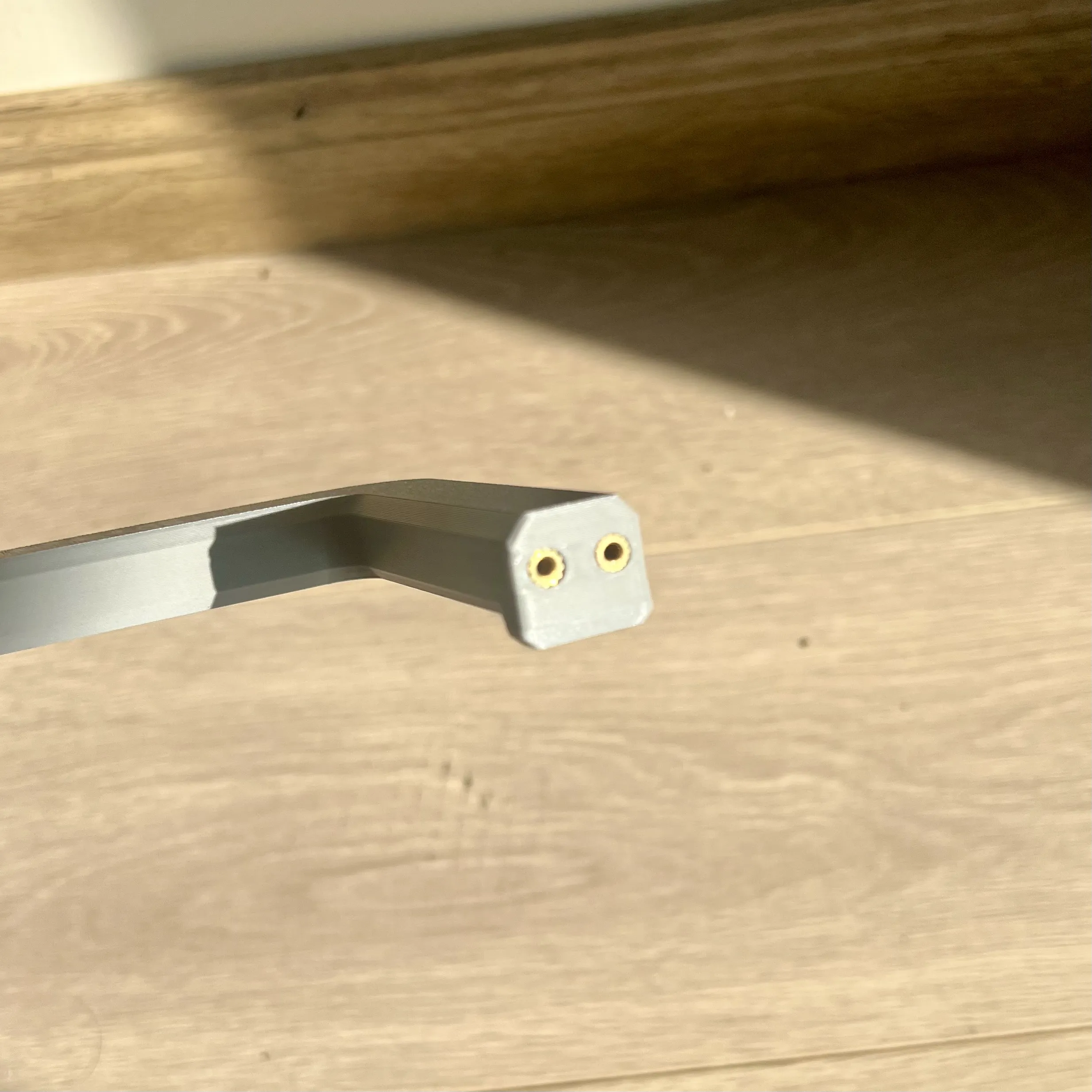

This poop box incorporates a built-in stop arm; after installation, simply align the arm against the machine's left panel to perfectly position it over the waste chute—supremely convenientImportant Note: If you elevate the machine, ensure you raise the poop box accordingly; otherwise, functionality may be compromised. The model's assembly utilizes hot-melt nuts, requiring a soldering station. If you lack one, we strongly advise employing the threaded screw installation version linked below, eliminating the need for a soldering station:
https://makerworld.com/en/models/71749
Recommended Print Settings
3 bottom layers, 3 top layers, 2 walls, 20% cubic infill
Required Accessories:
1. Four 6mm diameter, 3mm thick circular magnets
2. Two M3 x 4 x 5 hot-melt nuts
3. Two M3 x 8 countersunk screws

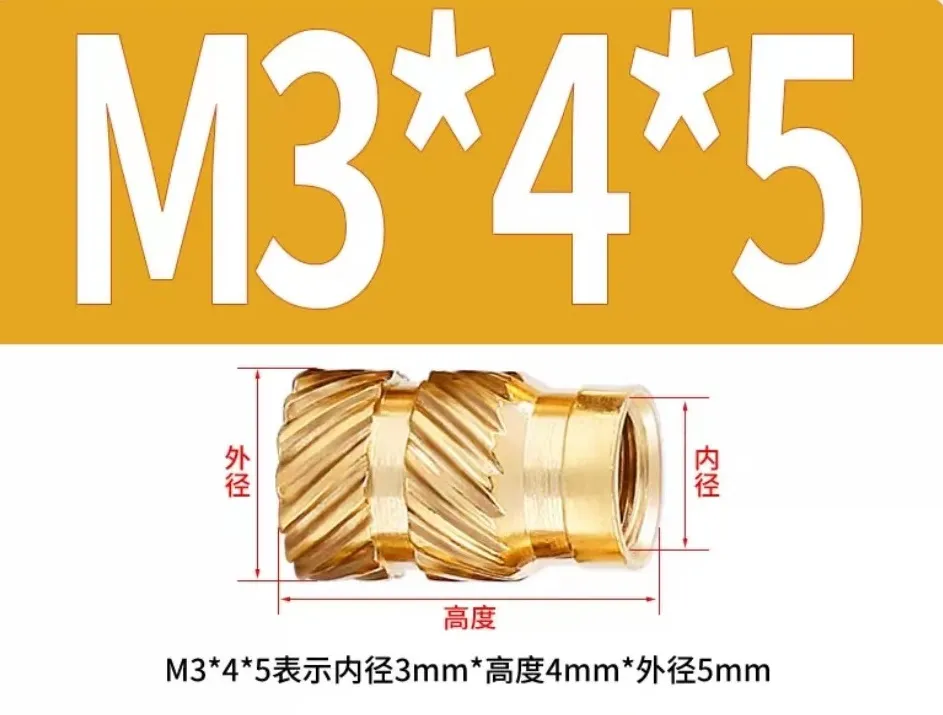

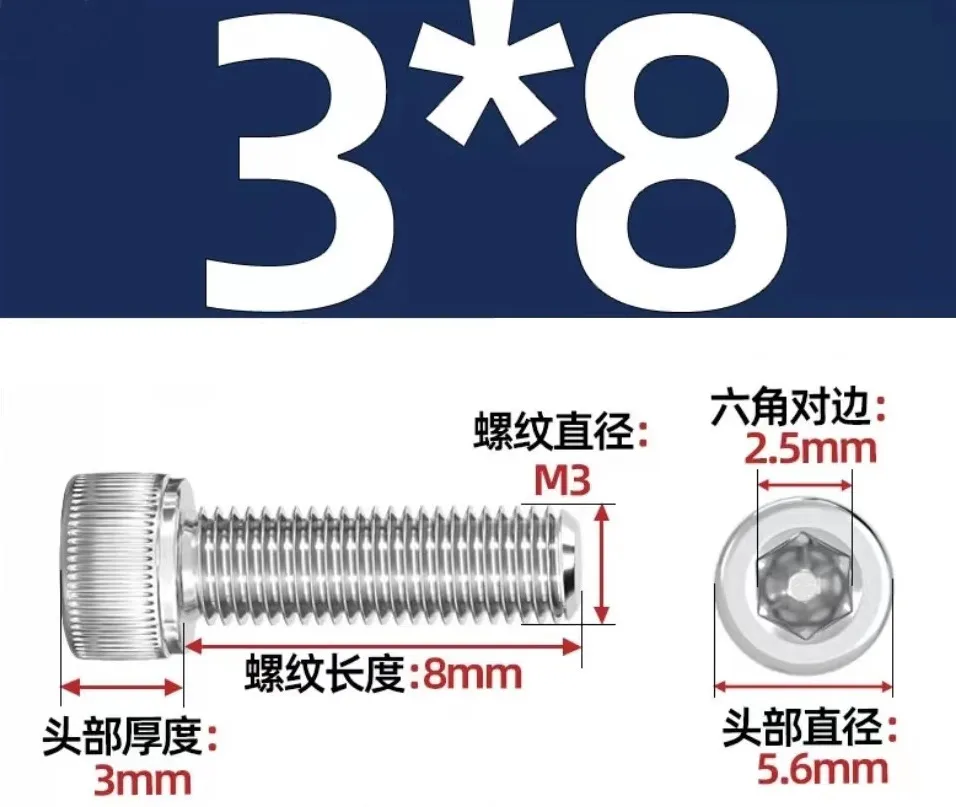

Refer to the images below for precise hot-melt nut and screw specifications:

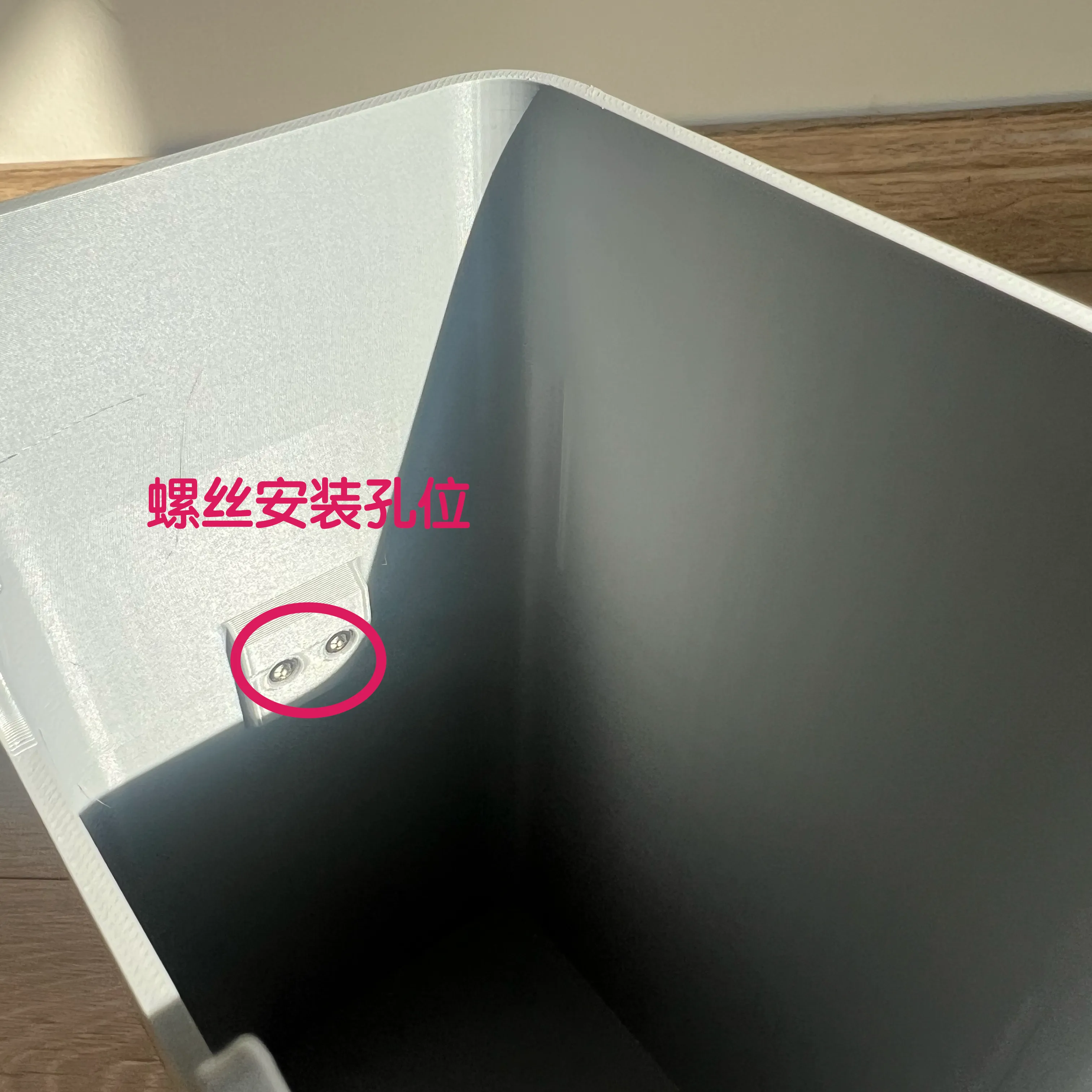

Mounting hole locations:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

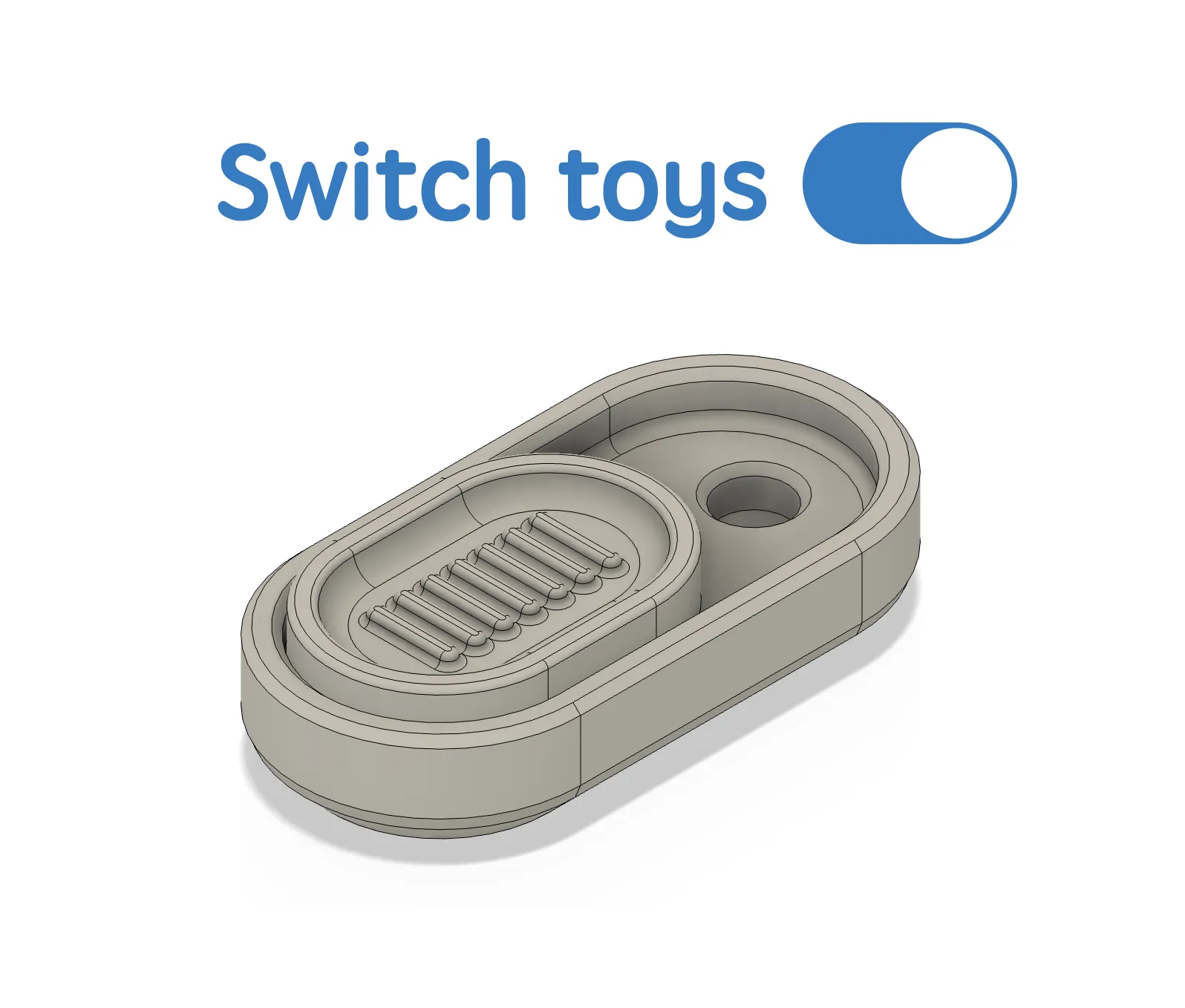

If you have extra magnets, consider printing a fidget toy I designed. Click the image below to access details:
