V3.0 RFID Holder Sunlu Spools with pocket gen. 2

German

New Version 3.0 AMS Lite Compatible

For the new Sunlu spools!!!

Version 3.0: Several users reported the chips falling out, so I've added lateral retaining points and a recess for easier chip removal with a knife

Instructions:

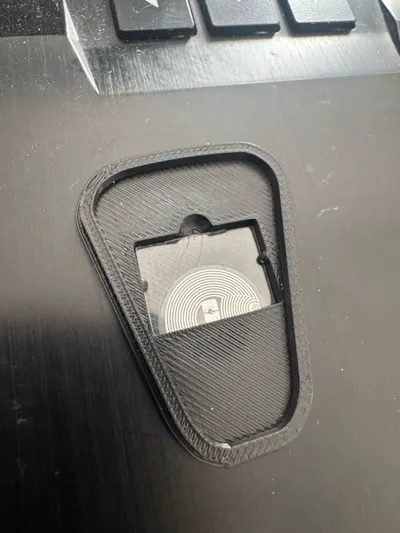

Sever the RFID chips from the original Bambu spools at the bottom and insert them into the pre-formed pocket

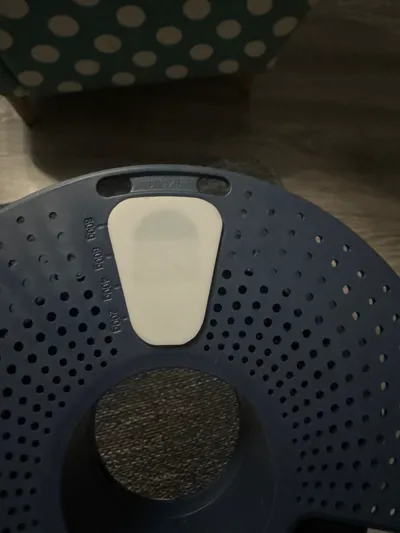

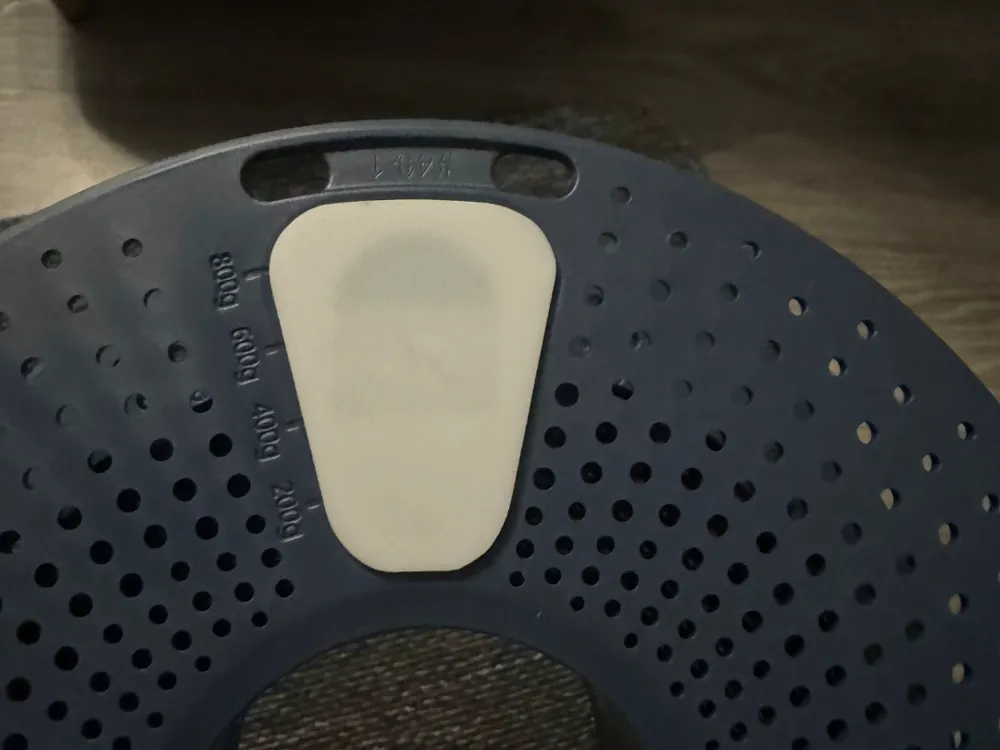

Then position the holder such that the wider side (outer spool edge) is first inserted into the cutout, then press firmly at the narrower end

The holder will snap into place and secure

For custom labeling in Bambu Studio

Many users continue employing RFID chips from original Bambu filaments and successfully print with Sunlu filament using these profiles, prompting me to design these Sunlu spool mounts

These adapters allow you to insert the RFID chips into the pre-formed pocket and easily attach them to Sunlu spools; the AMS will then recognize Sunlu spools as Bambu spools I personally print all my Sunlu filaments with Bambu profiles and am exceptionally pleased

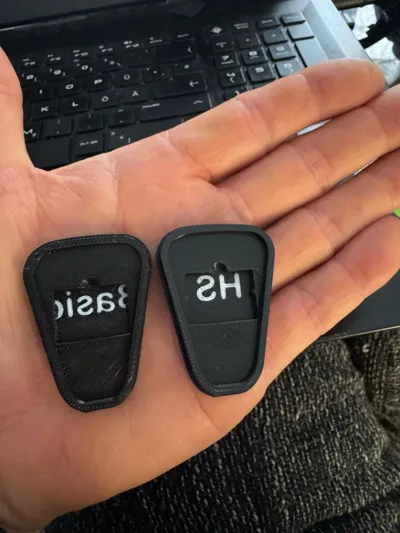

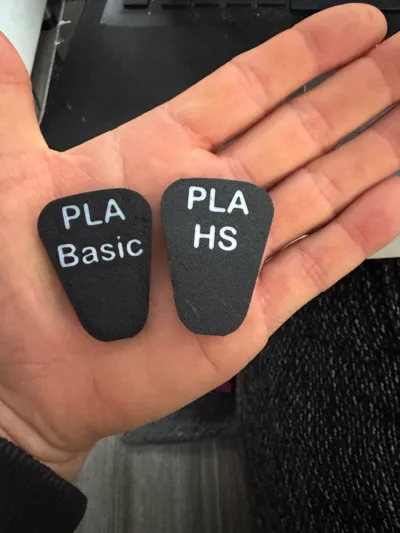

As I don't possess every color, a different color is shown in the image Please note the headline; it is definitive

New version 3.0 AMS Lite Compatible

V3.0 Since some users reported that the chips fall out, I have incorporated side retaining points and a recess to facilitate chip removal with a knife

For the new Sunlu spools!!!

Instructions:

Cut off the RFID chips from the original Bambu spools at the lower end and insert them into the pre-fabricated pocket

Then position the holder so that the wider side (outer spool edge) is first inserted into the cutout, then at the bottom of the

press firmly once and the holder will snap into place and hold


For self-labeling within Bambu Studio

Since some users continue using RFID chips from original Bambu filament spools and print Sunlu filament with these profiles—a method that functions remarkably well—I have designed attachments for Sunlu spools


These adapters allow insertion of the RFID chips into the pre-fabricated pocket, enabling simple attachment to Sunlu spools, thus allowing the AMS to recognize Sunlu spools as Bambu spools I personally print all my Sunlu filaments using Bambu profiles, and the results are exceptionally satisfactory


Due to the lack of all colors, a different color is shown in the image Please focus on the headline—it is the definitive description
