Chuck Soft Jaw
IP Report
Print Profile(1)
0.2mm layer, 3 walls
Designer
24 min
1 plate
Open in Bambu Studio
Boost
44
93
3
3
73
44
Released
Description

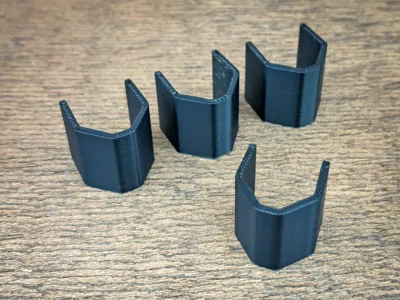

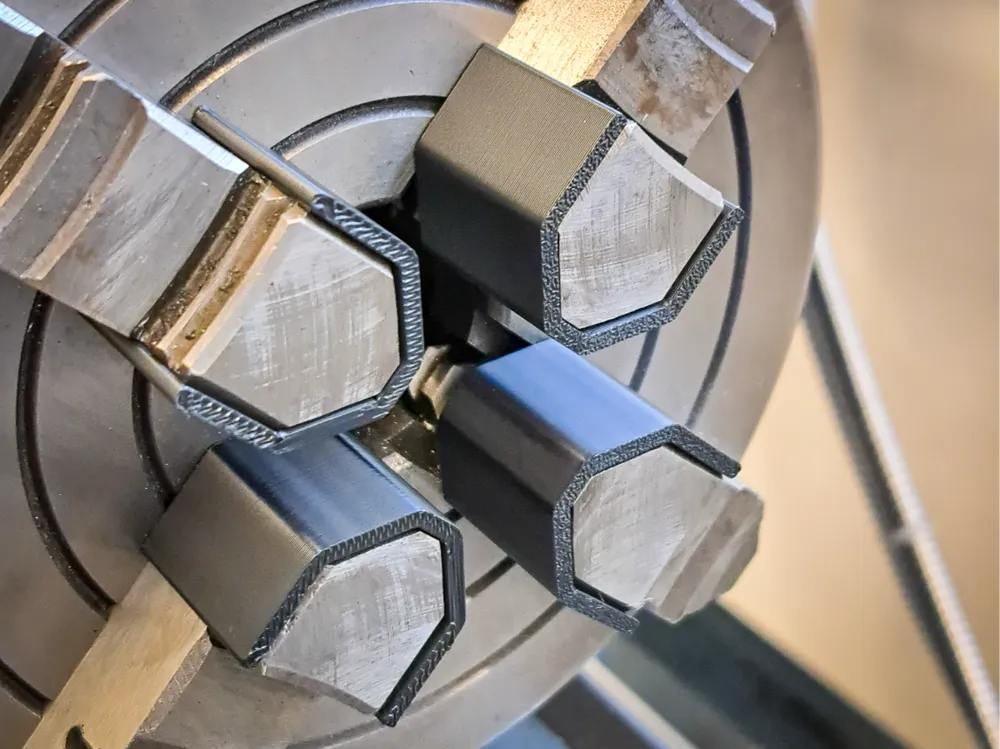

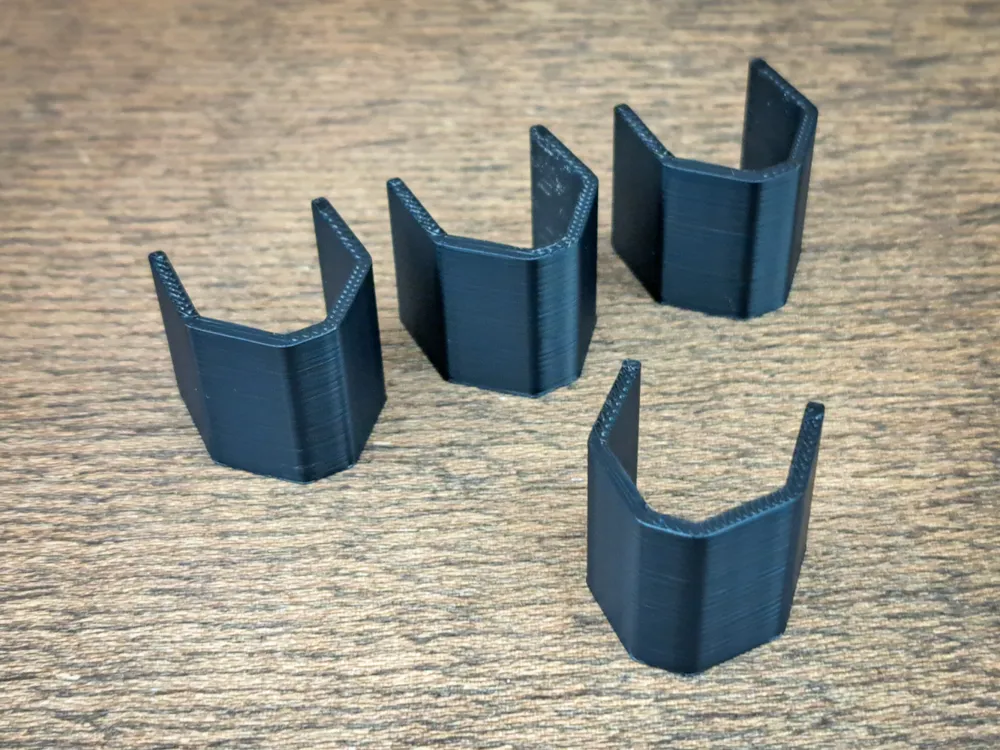

Chuck soft jaw designed for HBM 4 jaw independent chuck with 18mm wide jaws. Will likely fit other chucks with this size of jaws.
Designed with a 4 degree included angle taper so they cling to jaws.
See drawing for profile dimensions, length is 22mm.
