Lenovo Dock Under Desk / Wall Mount (no screws)

Summary

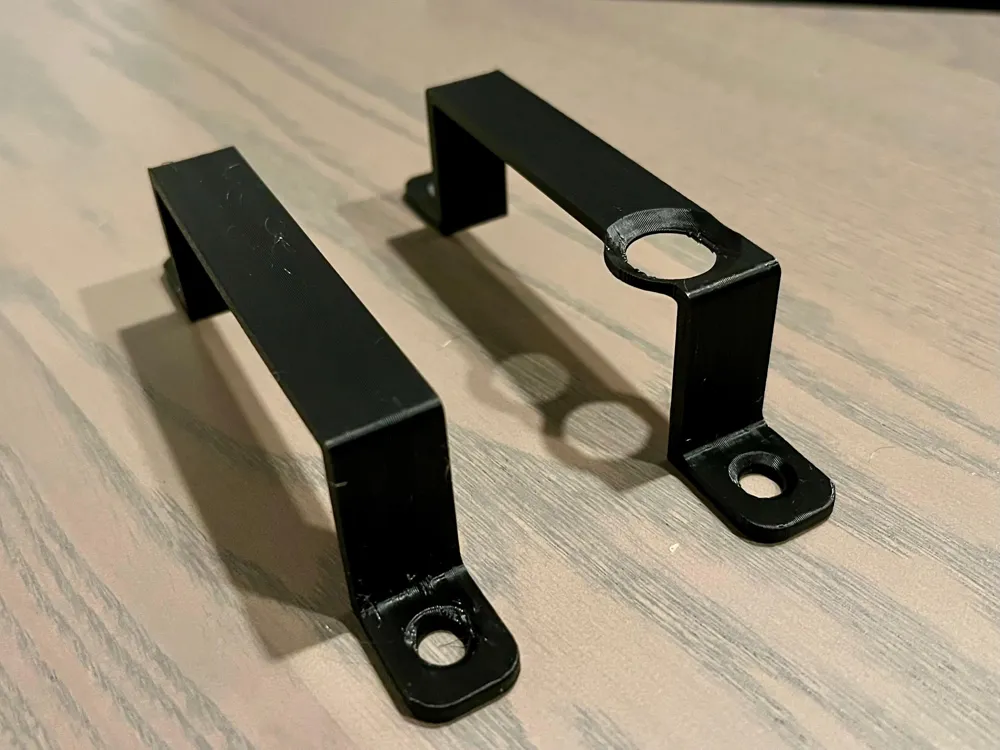

Hide your Lenovo dock under your desk or mount it on a wall with these universal Lenovo Dock holders.

Compatibility - Does it fit my Dock?
Sure, please choose the correct height:

30mm height
ThinkPad Hybrid USB-C with USB-A Dock (40AF)
ThinkPad Thunderbolt 3 Dock (40AC)
ThinkPad Thunderbolt 3 Dock Gen 2 (40AN)
ThinkPad Thunderbolt 3 Workstation Dock (40AN)
ThinkPad Thunderbolt 4 WorkStation Dock (40B0)
ThinkPad Universal Thunderbolt 4 Dock (40B0)
ThinkPad Universal Thunderbolt 4 Smart Dock (40B1)

31mm height
ThinkPad Universal USB-C Dock (40AY)
Thunderbolt 3 Essential Dock (40AV)
ThinkPad USB-C Dock Gen 2 (40AS)
ThinkPad Universal USB-C Smart Dock (40B2)

33mm height
ThinkPad USB-C Dock (40A9)

If you are not sure which dock you have, check the model number on the bottom of the dock - the first 4 digits indicate the series (e.g. 40AY)

If your Dock got a power button, please make sure to print both parts.
If your Dock got no power button or you don't want to use it, print the holder without holes twice.

The width is 80mm. Perhaps also suitable for other docks.

Print
10 perimeters (to archieve maximum strengh)
0% Infill (not required due to maximized outer walls)
No supports needed

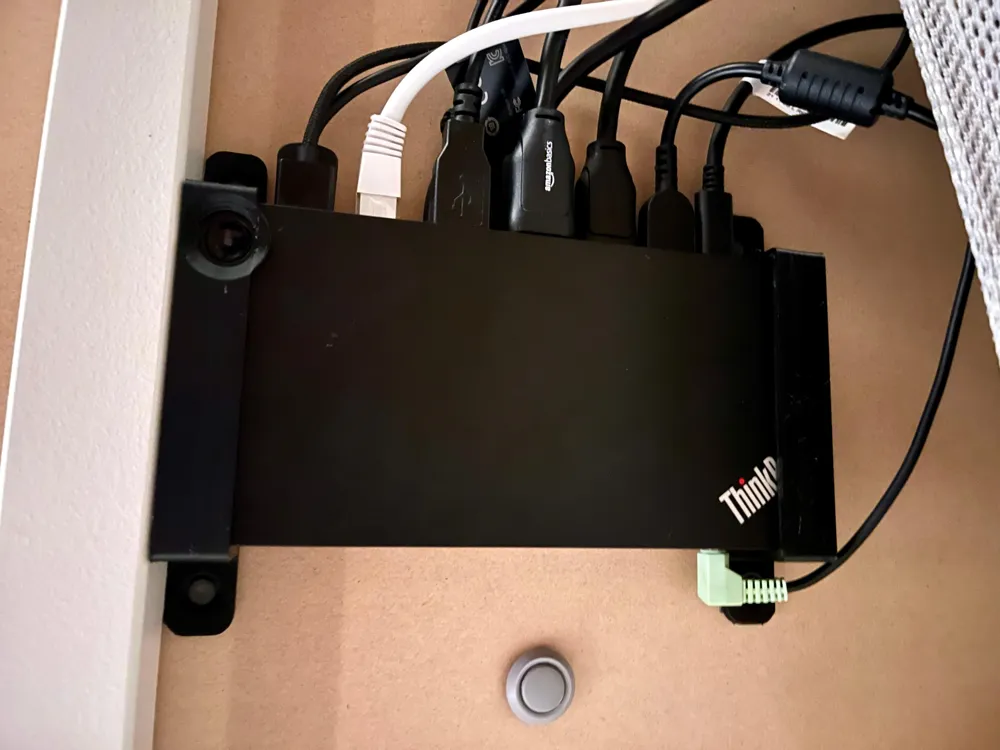

Installation
You can use the holes for screwing on.
Alternatively, you can attach the holder with double-sided adhesive tape (e.g. 3M). For me, it holds very well and is very firm.

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

• not required parts removed
• rounded some corners
• material thickness increased
• larger contact surface for gluing or screwing increased
• larger hole for screw and chamfer created
