Reolink Security Camera Corner Mounting Bracket

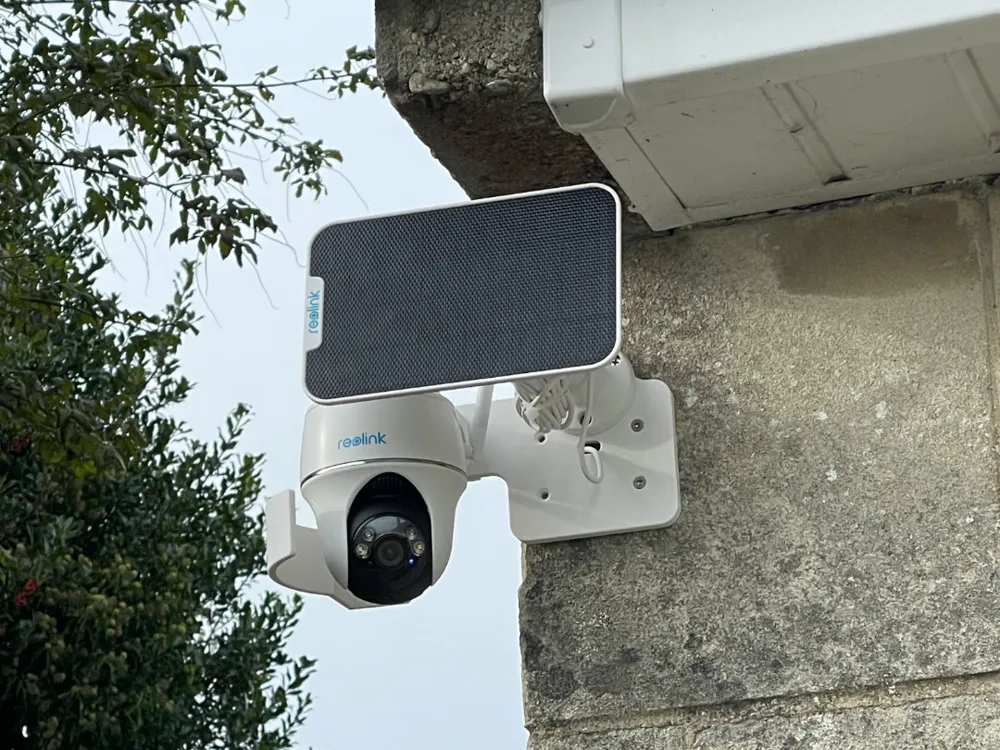

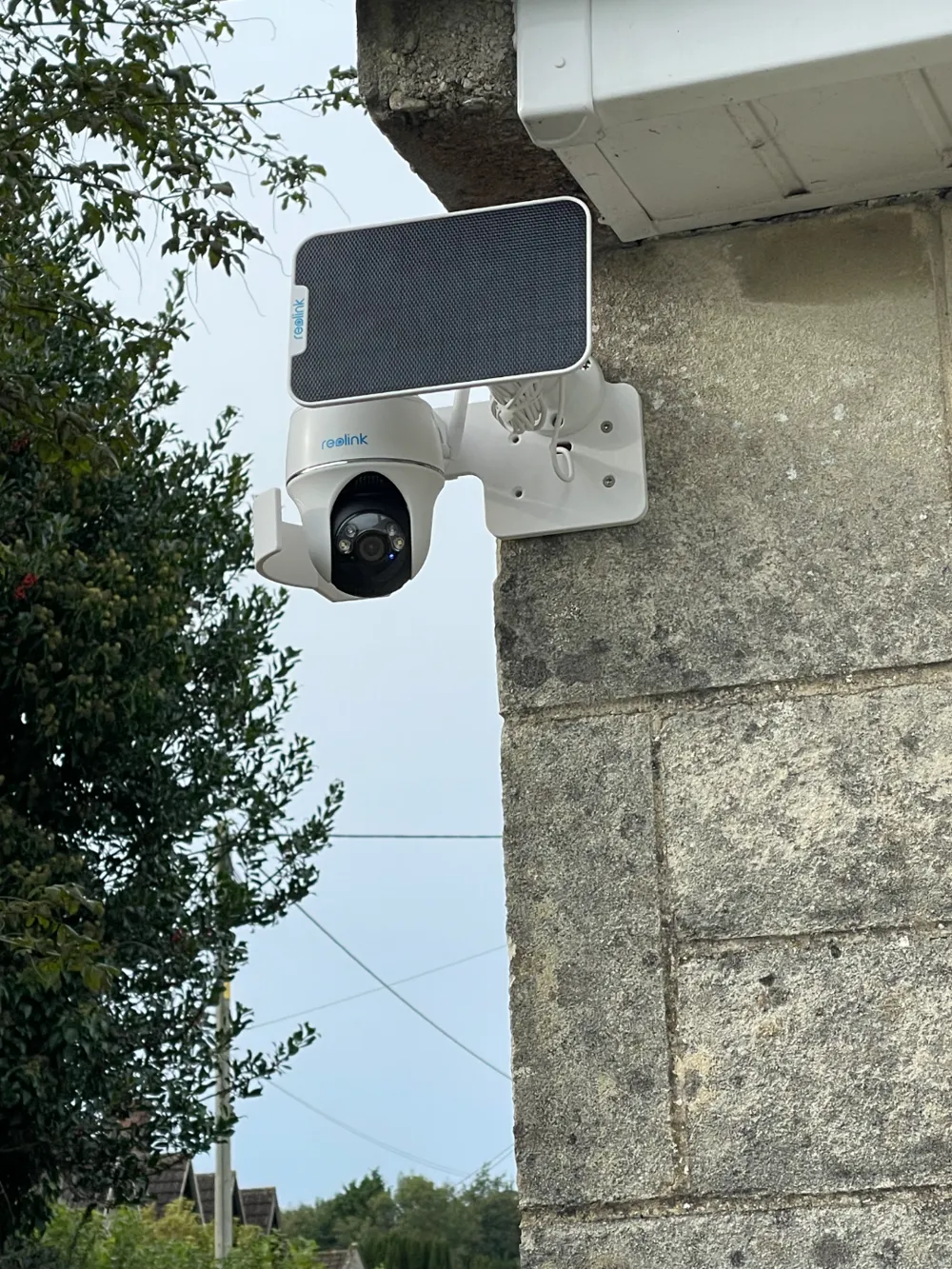

I needed a corner standoff bracket for my Reolink 5MP Solar Security Camera Outdoor (Reolink Argus PT + Reolink Solar Panel), so that it had line of sight along two walls, and also around a drain pipe.

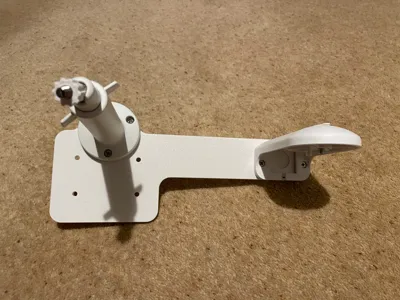

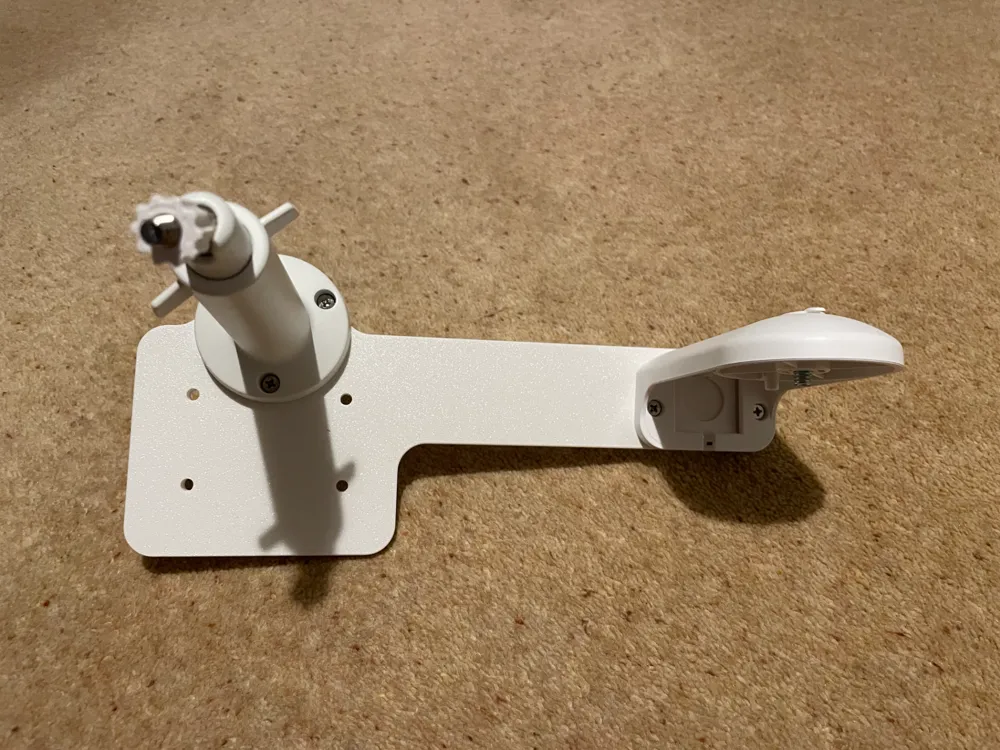

This bracket also allows for the camera mount and the solar panel mount to be preinstalled on the bracket using M4 bolts and nuts, and the bracket to be secured to the wall.

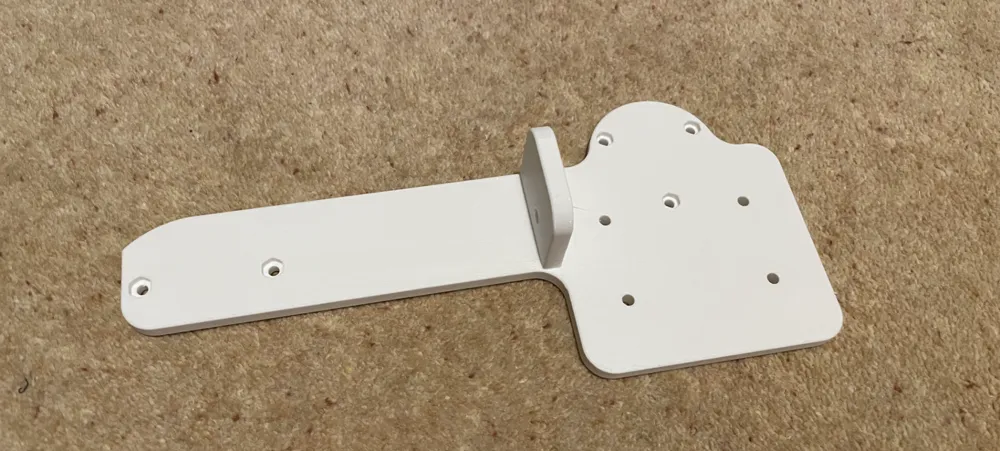

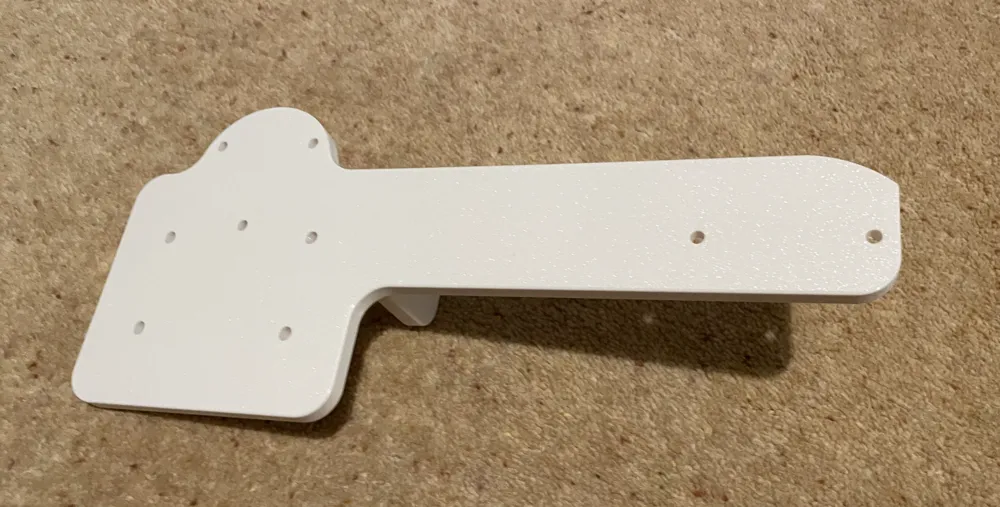

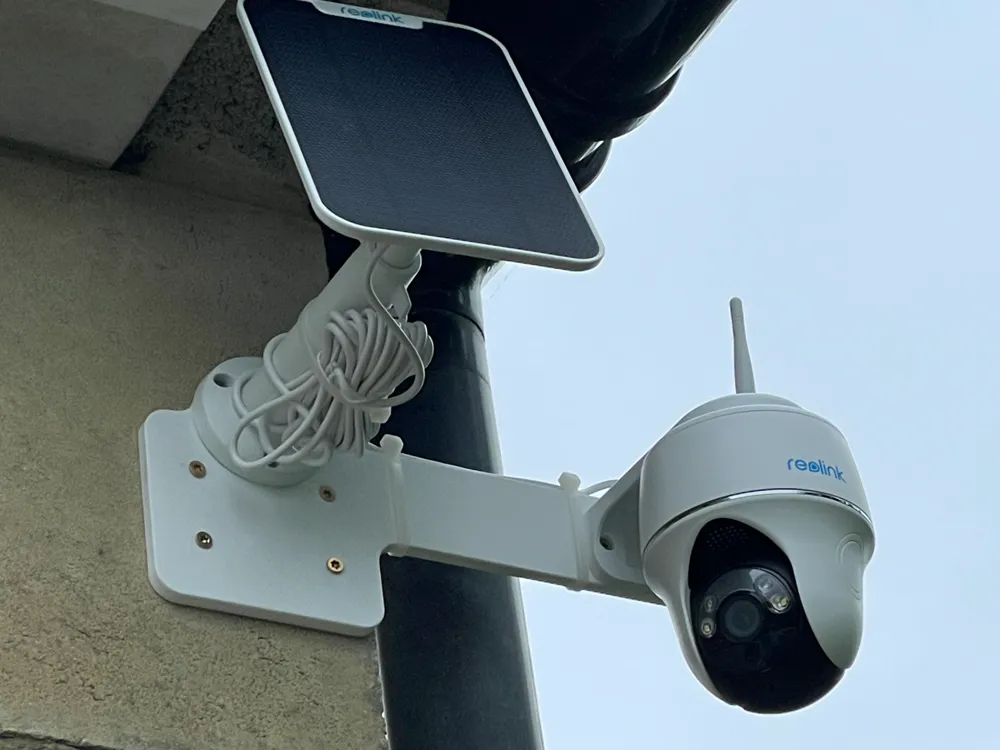

I've created four newer versions, all with cable channels on the rear of the bracket, Left Handed and Right Handed long and short brackets. The long bracket is useful when you have a drain pipe on one of the walls that you need to get past.

I have also fixed the size of the recesses for the nuts so that they are a consistent size on the rear of the brackets.

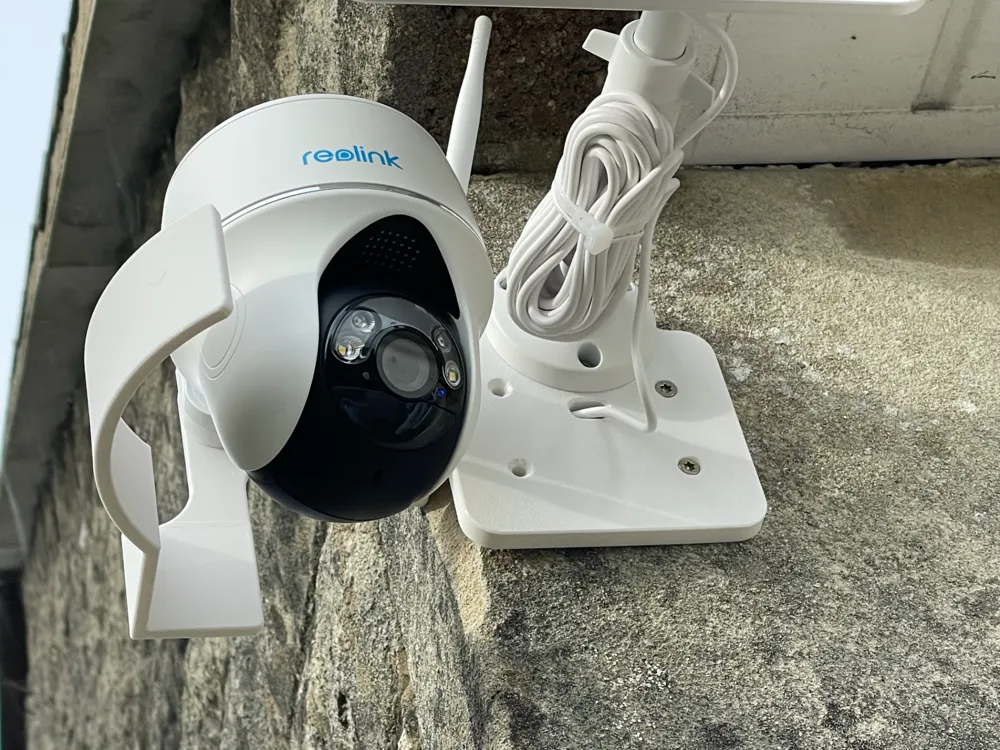

The privacy screen bolts onto the bracket using the bolts that secure the camera bracket to the corner bracket and is height adjustable.

As these are outdoor brackets, I've used the following:

• PETG (white to match the camera fittings)
• Layer height 0.2mm
• 4 wall loops with a 30% infill
• Supports are only needed for the Privacy Shields - No supports necessary for the brackets
• No brim

Additional hardware

• 5x M4 10mm bolts and nuts to secure the camera and solar panel mount to the bracket
• 5x Fixings to secure the bracket to your wall
