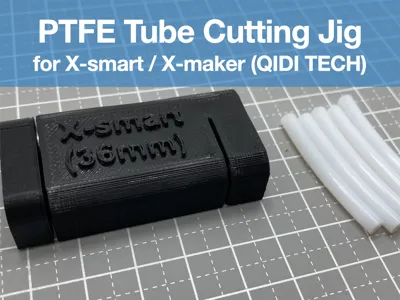

PTFE Tube Cutting Jig for 3D printer nozzle
IP Report
Print Profile(2)
xMaker PLA 0.16mm layer, 3 walls, 10% infill
41 min
1 plate
xSmart PLA 0.16mm layer, 2 walls, 15% infill
38 min
1 plate
Open in Bambu Studio
Boost
2
2
1
0
8
5
Released
Description

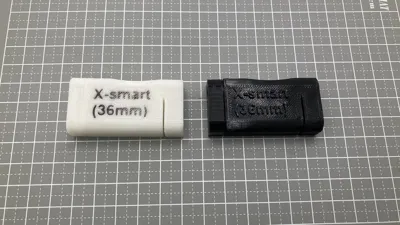

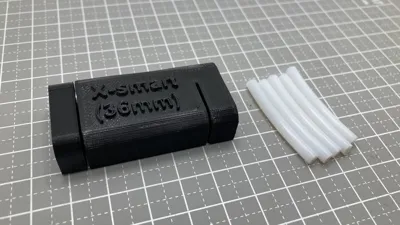

Length of the cut tube
- 36mm : X-smart (QIDI TECHNOLOGY)
- 45mm : X-maker / i-mate s (QIDI TECHNOLOGY)
Size of PTFE tube
- Outer diameter: 4 mm
- Inner diameter: 2 mm
Materials Needed
References
- Genuine QIDI TECH nozzle: AliExpress.
- Mechnism: Twitter (ID: @satsuki_eng).
Thing Files
You can download files in three different formats.
- .stl
- .step
- .f3d (Autodesk Fusion360)
Print Settings
- Printer: X-Smart (QIDI TECH)
- Rafts: No
- Supports: No
- Layer Height: 0.2 mm
- Infill: 20 %
- Filament: RepRapper PLA Black
Note
- Software: QIDI-Print v5.6.4
- YouTube:
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
