Hinged Cover for Dupont Connector

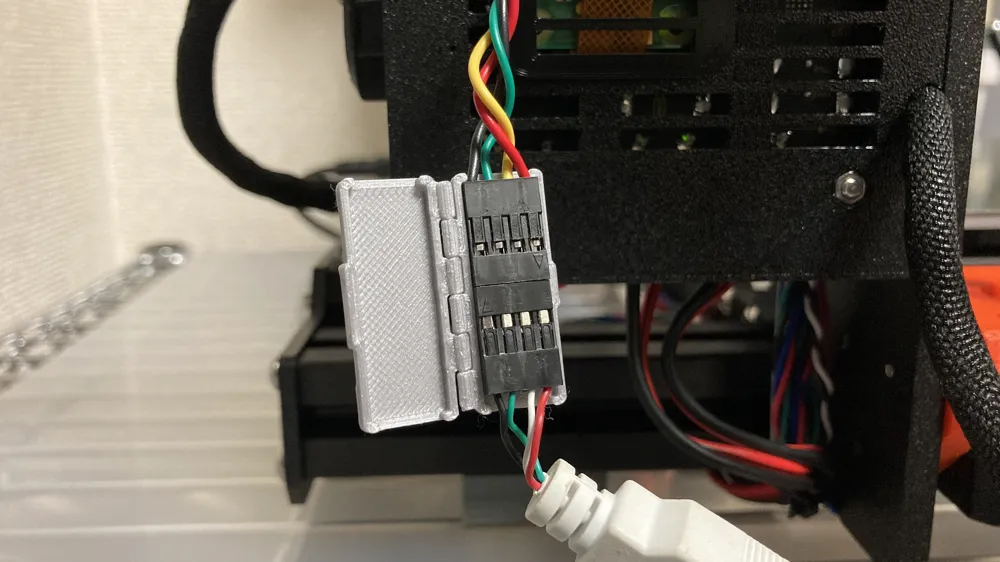

This is a hinged cover for interconnecting Dupont connectors (4-pin). It helps prevent the connector from coming off. You can open and close this cover by the hinge, and locking the cover in the opposite part.

Note

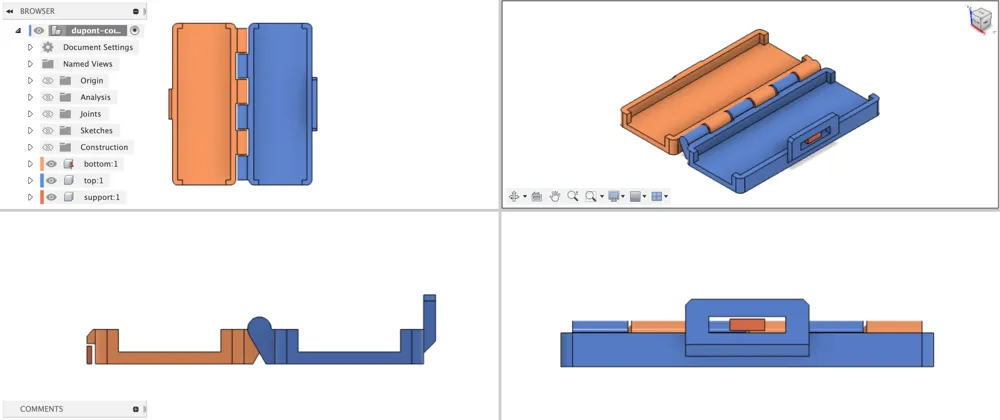

• You can print this cover without setting support, because it includes temporary supports. After printing, please see the screenshot of Fusion360 and remove the both parts.
• Depending on the filament or print setting, the locking part may be fragile due to weak layer adhesion. Please be careful not to bend the part too much or open and close it too many times.

Print settings (example)

• Rafts: No
• Supports: No
• Layer height: 0.2 mm
• Infill: 10 % grid
• Temperature (nozzle / bed): 215℃ / 60℃
• Extrusion width: 0.38mm
• Printer: Prusa i3 MK3S+
• Filament: Prusament PLA Galaxy Silver
• Slicer: PrusaSlicer 2.4.2

Thing Files

You can download files in different formats. G-code files were generated by PrusaSlicer. All other files were output with Fusion360.

• gcode
• 3mf
• stl
• step
