Description

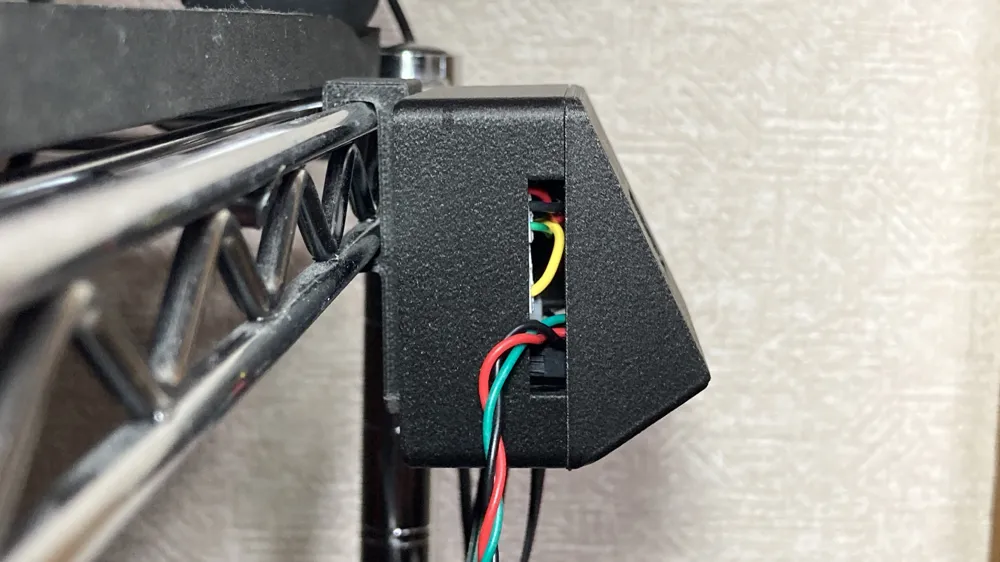

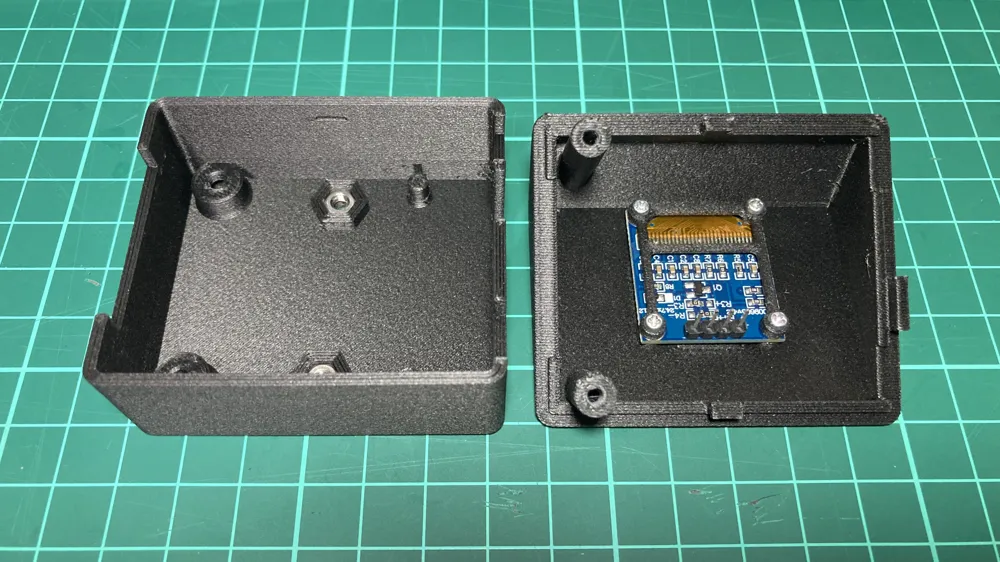

I designed a mount for 3DChameleon Mk4 Pro. The cables come out from the side of the case. You can attach the case and 3DChameleon unit to a metal rack with the hooks.
Note: the hook design is based on the frame of the metal rack in my house (Width 24 mm, Thickness 5 mm).

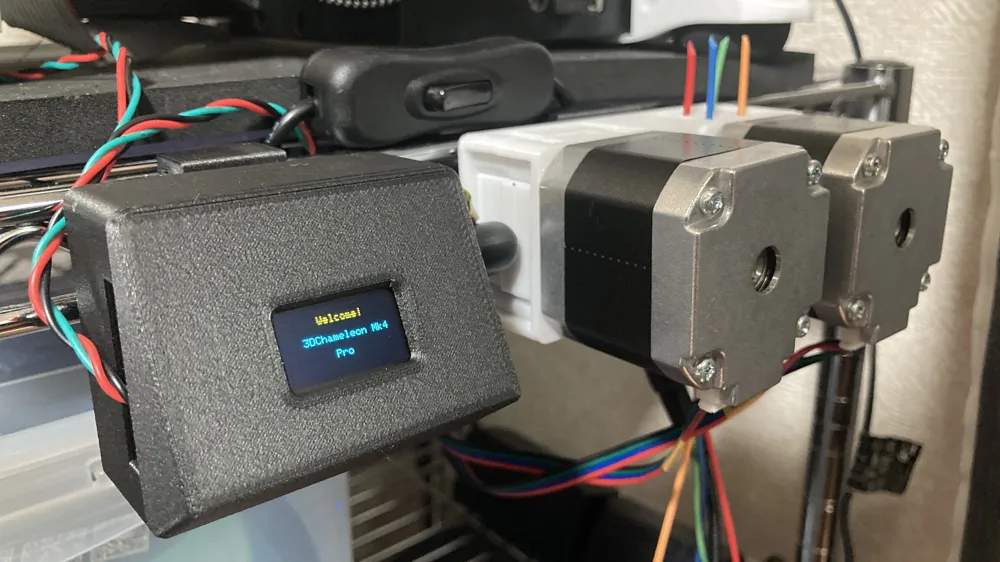

Demonstration for powering OLED display, changing 4 filaments in YouTube:

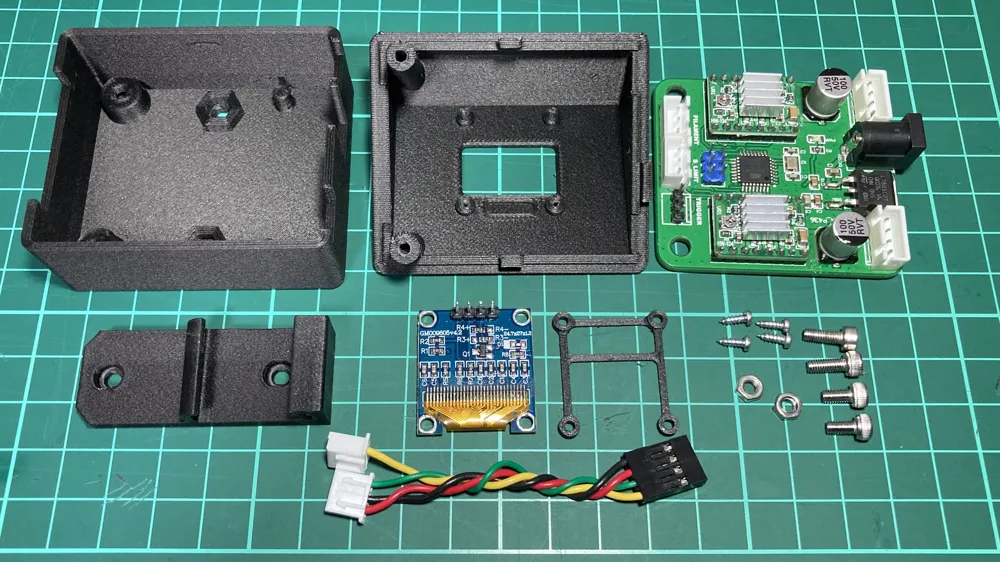

Fasteners

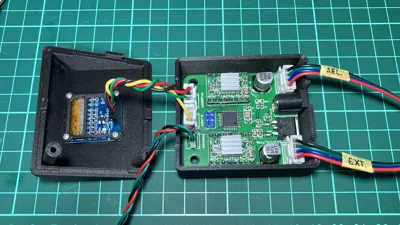

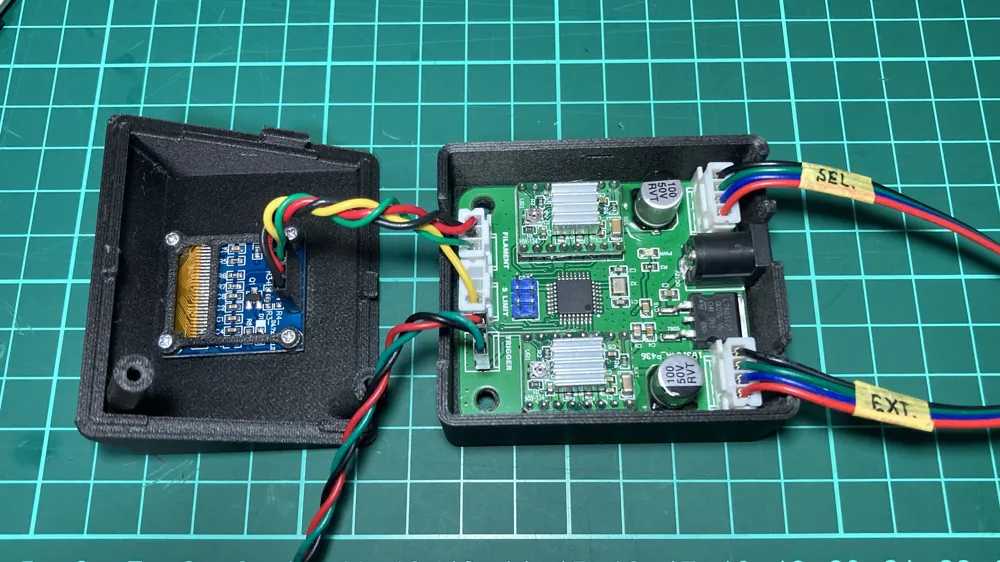

- Case
- M3 screw 6mm - 2pcs
- M3 tapping screw 6mm - 4pcs

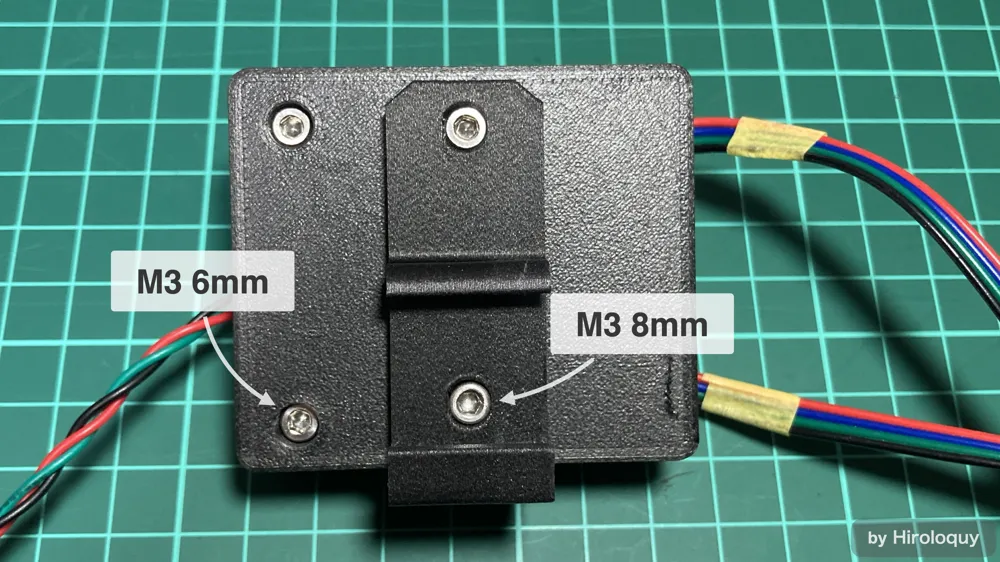

- Hook for case
- M3 screw 8mm - 2pcs
- M3 hex nut - 2pcs

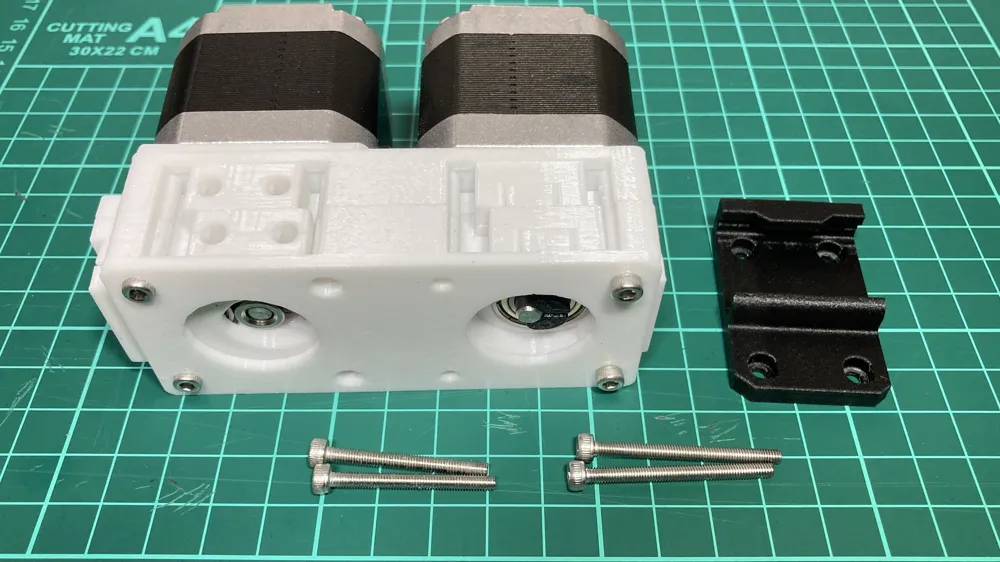

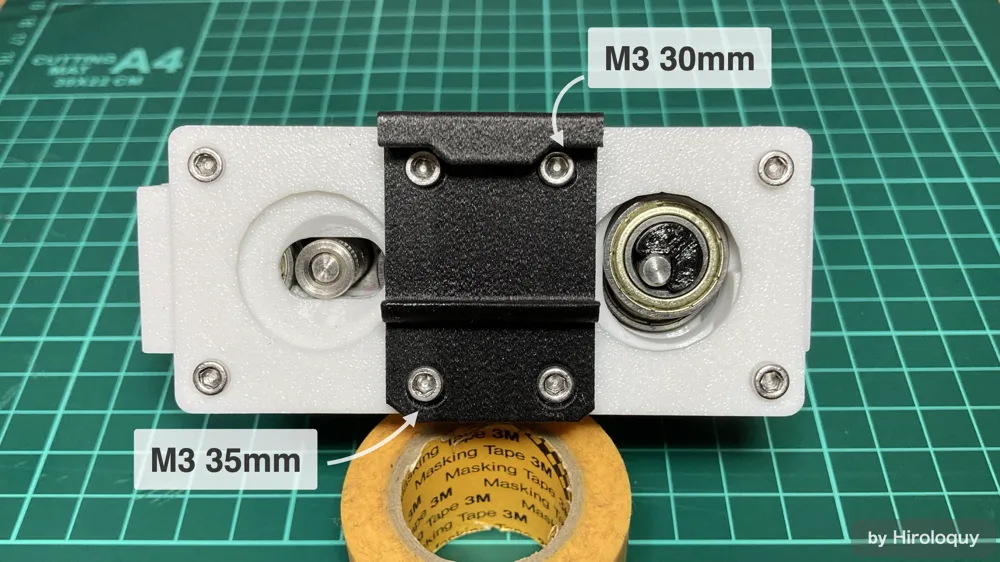

- Hook for unit
- M3 screw 30mm - 2pcs
- M3 screw 35mm - 2pcs
Print settings
- Slicer: PrusaSlicer 2.7.4
- Based preset: 0.20mm STRUCTURAL
- Layer height: 0.20 mm
- Infill: 15 % gyroid
- Temperature: nozzle 230℃ / bed 65℃
- Supports: No
3D printer & filaments
- Printer: Prusa MINI+
- Nozzle: 0.4 mm (Trianglelab x Phaetus, Tungsten Carbide Nozzle for V6)
- Sheet: Textured (Prusa)
- Filament: PLA K6CF（Kexcelled）
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
