Description

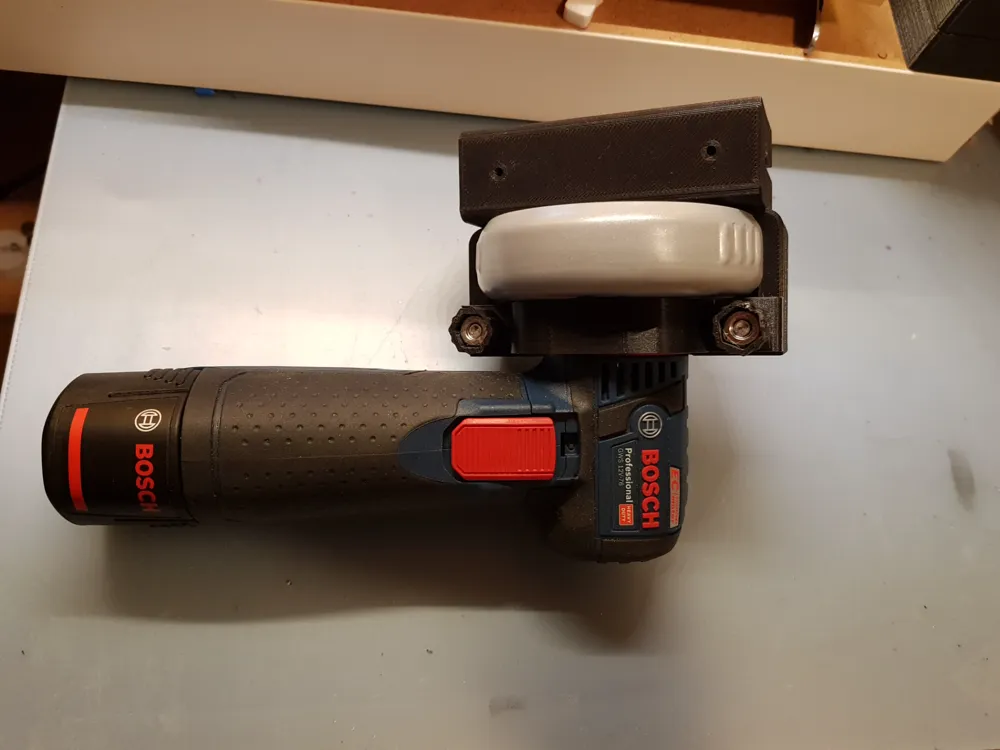

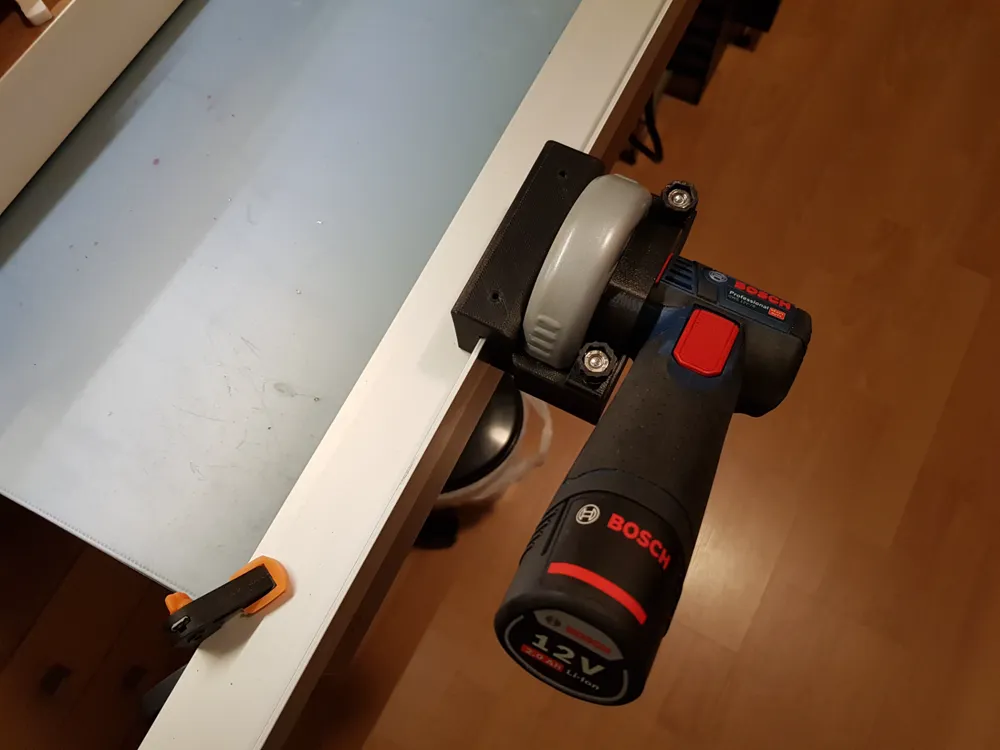

The design is for a 50x30x3mm aluminium profile http://tinyurl.com/yxt6qqyp
Remix of @micmac2a https://www.thingiverse.com/thing:2626959

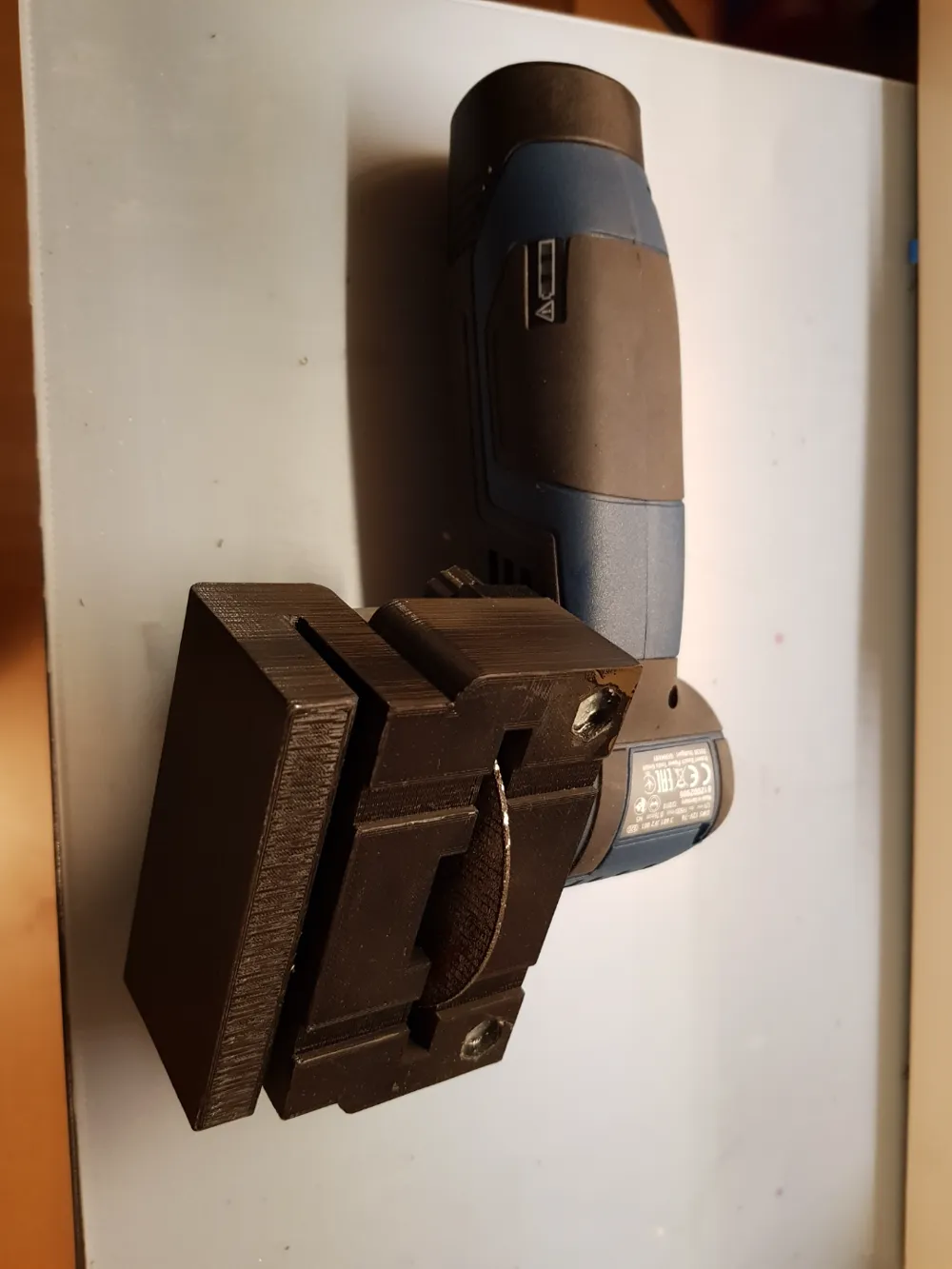

The sliding part is wider and longer, for rigidity and a couple ot fillets are also new.
Thera are two holes on the upper side on the sliding area. Im planning to use the as a dept limiter with the help of a two bolts and maybe a plastic slider under them.
You need 2 M6x40 Bolts and 2 M6 Hex Nuts.
The Fusion360 files are also here.
