Boilie Roller 25mm (RollBall)
IP Report
Print Profile(2)
0.24mm layer, 2 walls, 15% infill
22.3 h
3 plates
PETG profile 0.2mm layer, 5 walls, 15% infill
29.3 h
3 plates
Open in Bambu Studio
Boost
64
137
19
5
229
34
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- Ball bearing 6208 (id40 od80) x 2:
- Threaded shaft M8x300 x 1:
- Nut M8 x 2:
Description

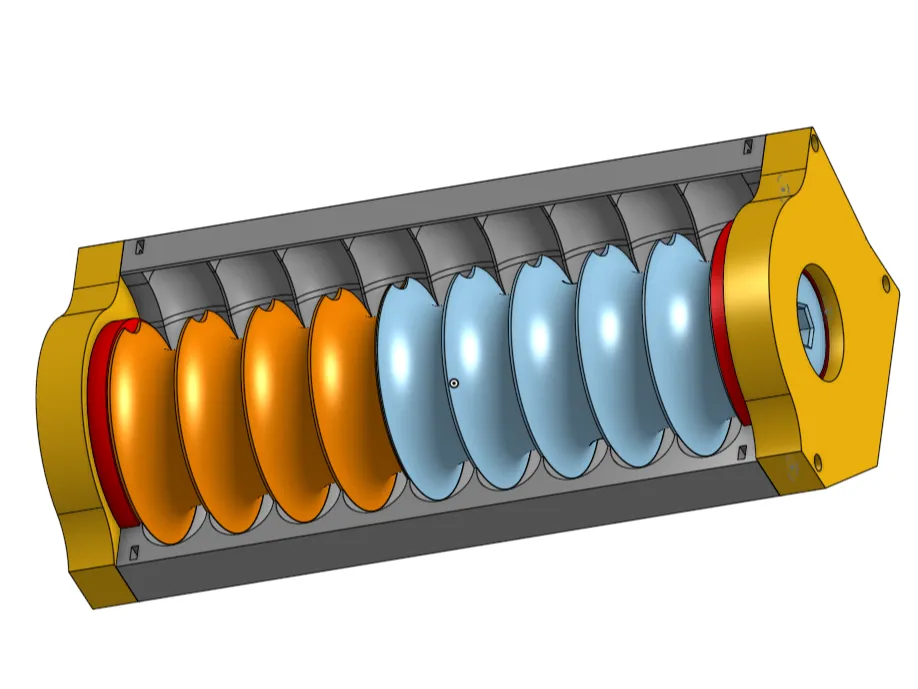

This is boilie roller for Ø25mm balls.
This is the small version - i working hard on bigger one.
You need two ball-bearings (outside diameter 80mm / inner dia. 40mm / Width 18mm) //for example: SKF 6208 or anything cheeper
2x M8 nut, 6x M3 nut, 6x M3x18 DIN 912 screw, 1x threaded rod M8x~300mm
cylinder is from two parts for printer fit (Prusa MK3S+)
for better assembly print 4x pin Ø10 (in print files)
For drive you can simple use cordless drill. :)
