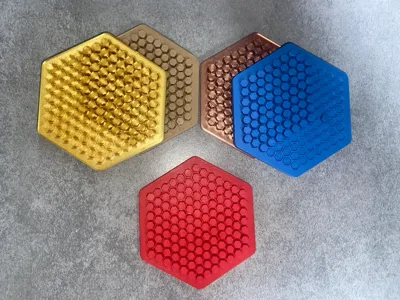

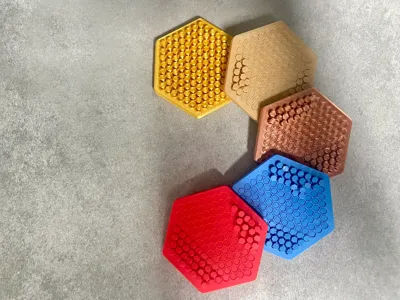

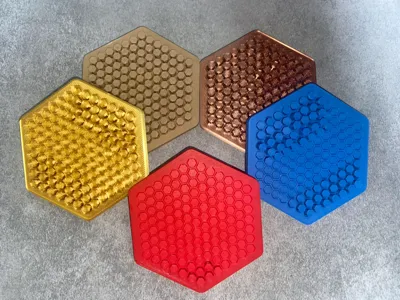

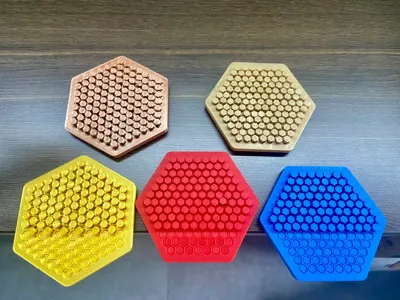

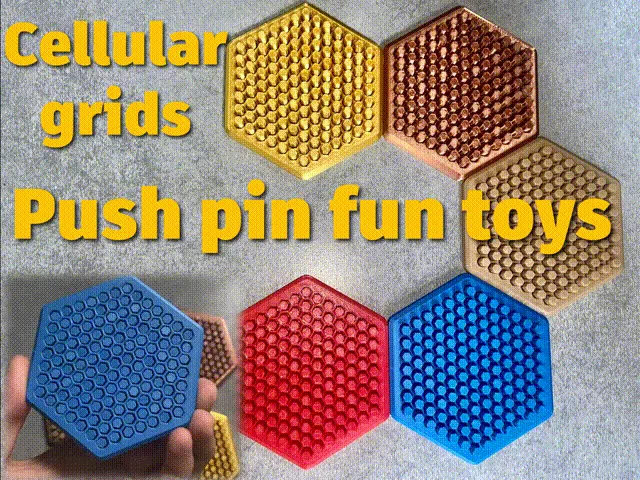

Honeycomb Grid Push-pin Fidget Toy

Honeycomb Grid Push Pin Fidget Toy

• One-time printing, no supports required, perfect for street stalls, an excellent fidget toy
• Initial configuration size: Hexagon width 82mm, main board height 7.8mm, push pin height 12.8mm

• Note: Do not scale down (some thin-walled structures will disappear), if you need to scale up, adjust the hole compensation to accommodate scaling tolerances

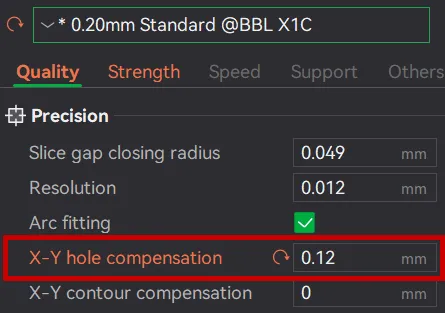

• Initial setting: Hole compensation is 0.12 (not recommended to scale up further)
• The tested filaments includeBambu PLA Matte, Bambu PLA Basic, R3D PETG, JAYO PLA+ Silk, LB Rambo PLA Silk
• After printing, do not forcefully remove it from the heated bed, which may damage the push pin, you can twist the panel in multiple directions, which will make it easier to take off

⭐⭐⭐All the above filaments have been calibrated for flow rate and dried. Before printing, ensure that the panel is clean and free of adhesion problems, and that the nozzle is not clogged or there is filament accumulation.⭐⭐⭐

⭐⭐⭐The test results after adjusting the check results are all fine, make sure to check the above content before printing.⭐⭐⭐

⭐⭐⭐If you have other printing problems, please refer to the printing tips below, and feel free to discuss and feedback in the comments.⭐⭐⭐

3D Printing Tips and Preparation Precautions

(Most of the models released by creators have been tested and can adapt to all models, many times printing problems need to check if your printer and filaments are normal, this is a skill that needs to be learned in 3D printing, if you have any questions, you can also actively discuss in the comments, this is also the meaning of building such a community)

Some precautions are explained below, more questions can be asked to customer service or you can check Bamboo Wiki, you can learn a lot therePrint quality and solutions | Bambu Lab Wiki

• Make sure the printing plate is clean, it is recommended to clean the printing plate regularly! The grease residue on your hands after touching the printing panel will greatly reduce the adhesion of the printing, and at the same time, the previous printing debris and tiny residues of printed parts will also affect the printing quality of the first layer, thereby reducing the yield.
• Pay attention to drying filaments, this will greatly affect your printing quality and printing experience! Filaments left for a long time will inevitably become damp, if stringing occurs, it is recommended to ask the manufacturer for drying parameters to dry filaments, at the same time most manufacturers' filaments are not dried when they are shipped from the factory, so our newly unsealed filaments are still slightly damp, and it is also recommended to dry them before use.
• It is recommended to print with new filaments for the first time calibrate filament flow rate immediately and modify the calibration coefficient, which will greatly affect your printing quality and is a necessary process to allow new filaments to adapt to your printer.
• If you encounter problems such as suddenly poor printing quality and low yield, check if the nozzle is clogged, you can also try to recalibrate the printer.
• Print at the recommended printing speed in the model instructions. Overhang quality is directly related to printing speed, the right speed (too fast or too slow is not good) allows the material to cool and shape during deposition.
• Set the heated bed and nozzle temperatures reasonably according to different materials. Too high or too low temperatures will result in warping, layer distortion, or adhesion problems, thus affecting the printing quality and success rate.
