DJI Action Bag Clip
Print Profile(2)
Description

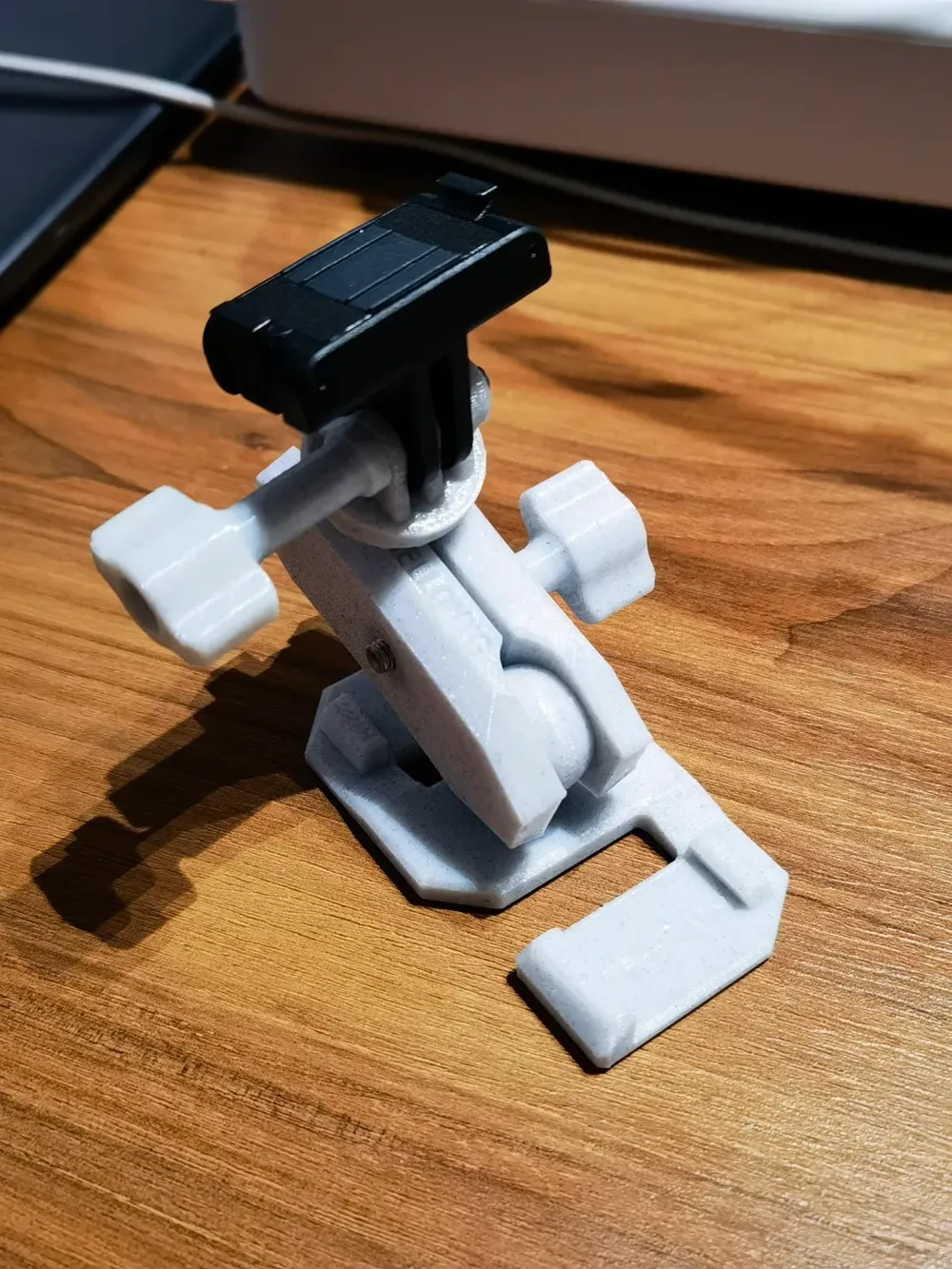

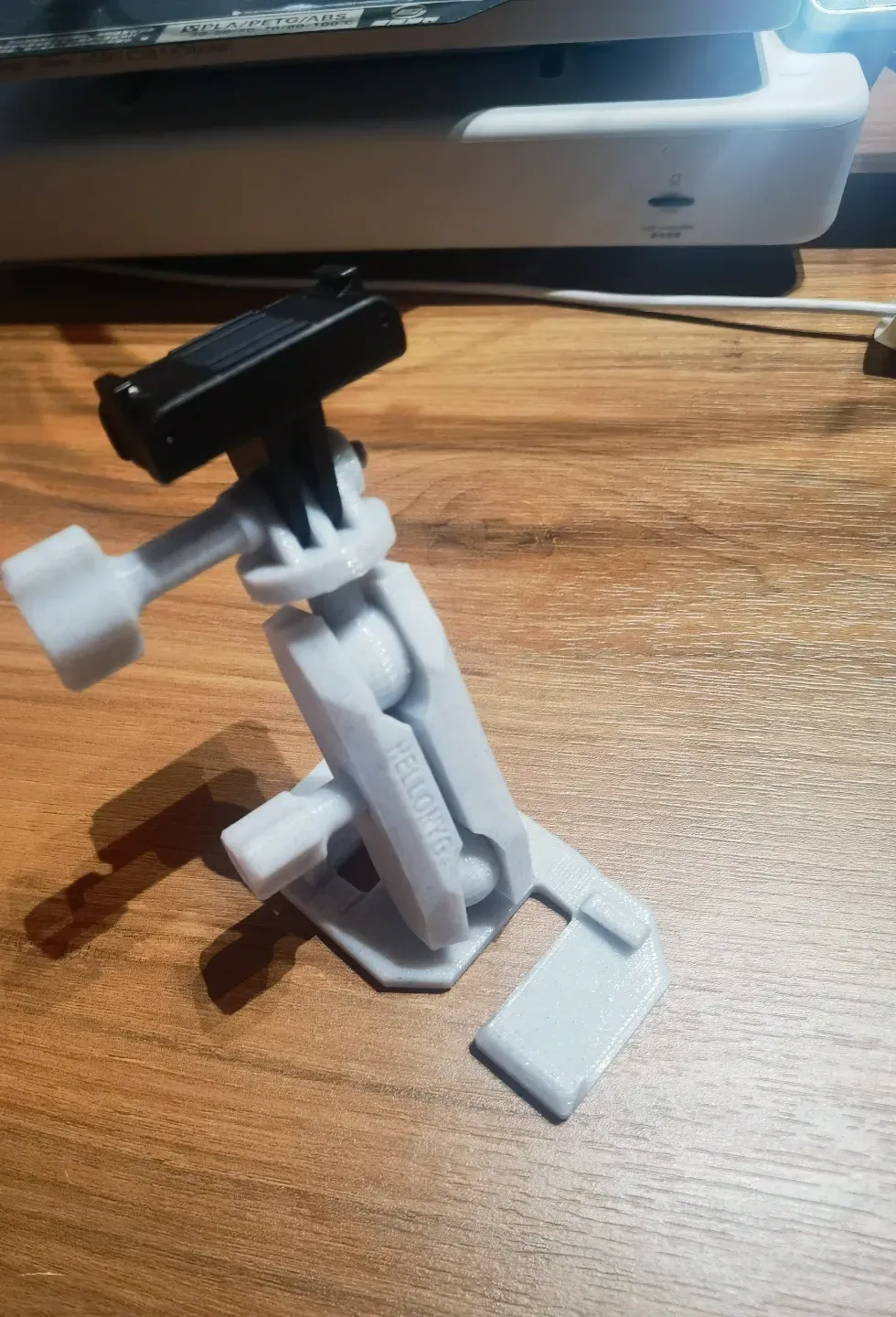

Online ones are too expensive, so I printed my own. I added a pause layer to the settings, and need to embed nuts (if they work properly). If you are not sure, please open it from your computer and manually confirm. The supports are very easy to remove with the default parameters.
To prevent thread stripping, I used a press fit for the screw holes and hammered them in with something underneath. The spherical head and middle part of the clip have been filled with solid infill, while the rest is 40% spiral infill. I used PETG for printing, and the pea clamp will deform slightly when tightened.
Screws and nuts: One set of M5*35 hex head screws and nuts (around 80 cents per 10 sets on Taobao, with free shipping for first purchase).
One set of M5*45 hex head screws and nuts (around 1 yuan per 10 sets on Taobao, with free shipping for first purchase).
