Some parts required a fine quality print (legs), and the other parts were printed with the strength setting. I found that out once I had broken the crank shaft!&nbsp;Strength - 0.2mm, 6 walls, 25% infillFine - 0.12mm, 2 walls, 15% infill

Strength (0.2mm) and fine (0.12mm) used for differing parts

Easy Strandbeest

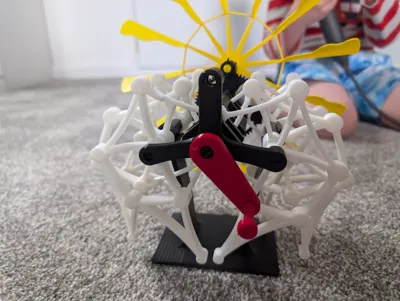

This is the printing profile for LoboCNC&#39;s Easy Strandbeest.&nbsp;I used a sharp blade to free the joints. Do not try and crack them loose; you will bend/break the connecting arms!&nbsp;However, I have also made a captive handle for the model to be used on the other side from the fan. Tolerance was set at 0.2 mm and it pushed on perfectly. Let me know if it does not work for you on the model, and I will upload one with looser tolerance.

Easy Strandbeest by LoboCNC
