Parametric Bearing Storage

Parametric Bearing Storage 🛞

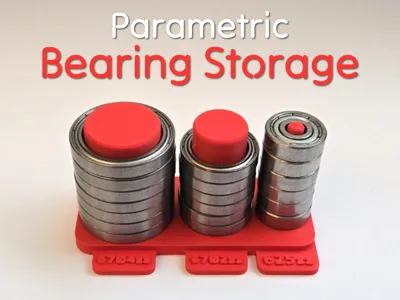

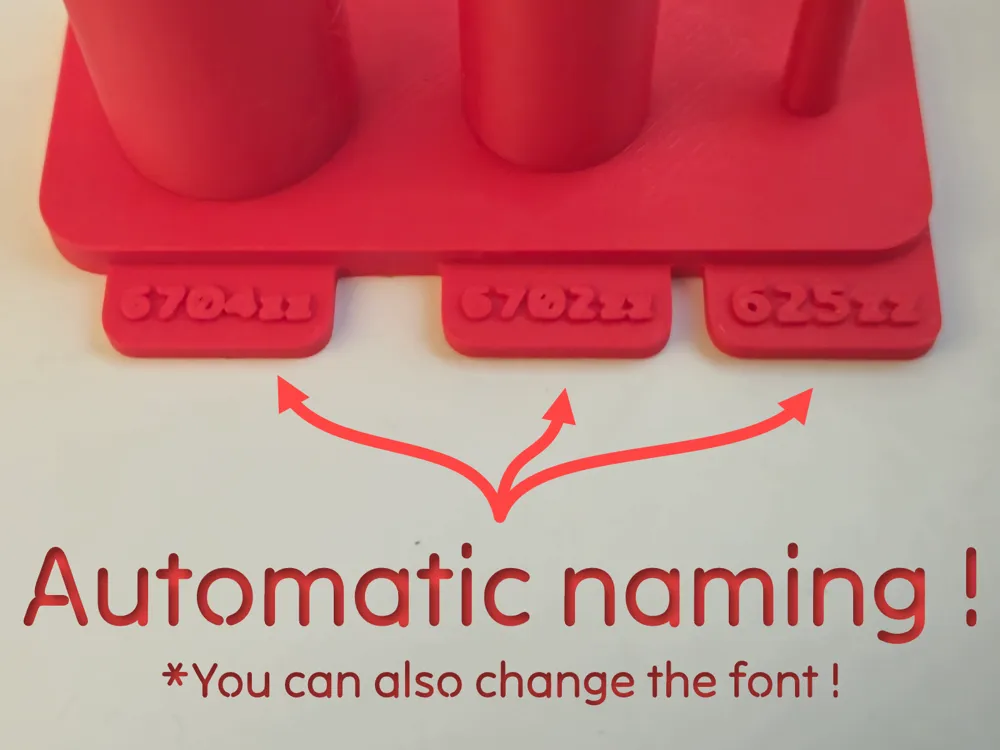

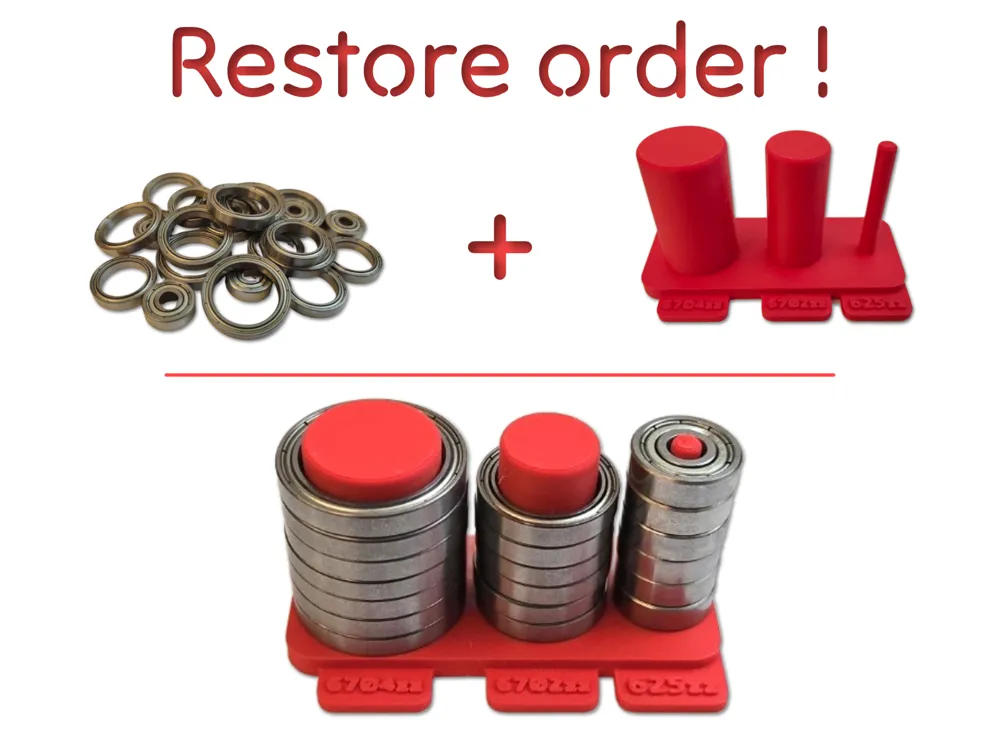

This model generates a personalized storage solution based on a sequence of standard bearings. Each slot is custom-sized to fit your listed bearings in the correct order. You can adjust the height of the cylinders to suit your needs, and each slot features a label displaying the bearing type for easy identification. You can also customize the font used for the labels to match your style.

Here is the list of available bearing types:

• 6700zz: [10, 15, 4]
• 6000zz: [10, 26, 8]
• 6200zz: [10, 30, 9]
• 6001zz: [12, 28, 8]
• 6201zz: [12, 32, 10]
• 6702zz: [15, 21, 4]
• 6002zz: [15, 32, 9]
• 6202zz: [15, 35, 11]
• 6203zz: [17, 40, 12]
• 6704zz: [20, 27, 4]
• 6004zz: [20, 42, 12]
• MR52zz: [2, 5, 2.5]
• MR63zz: [3, 6, 2.5]
• 603zz: [3, 9, 5]
• 623zz: [3, 10, 4]
• MR74zz: [4, 7, 2.5]
• MR84zz: [4, 8, 3]
• 604zz: [4, 12, 4]
• 624zz: [4, 13, 5]
• MR85zz: [5, 8, 2.5]
• MR105zz: [5, 10, 4]
• MR605zz: [5, 14, 5]
• 625zz: [5, 16, 5]
• MR106zz: [6, 10, 3]
• MR126zz: [6, 12, 4]
• 606zz: [6, 17, 6]
• 626zz: [6, 19, 6]
• R188zz: [6.35, 12.71, 4.76]
• 687zz: [7, 14, 5]
• 607zz: [7, 19, 6]
• 627zz: [7, 22, 7]
• MR128: [8, 12, 3.5]
• 688zz: [8, 16, 5]
• 608zz: [8, 22, 7]
• 628zz: [8, 24, 8]
• 609zz: [9, 24, 7]

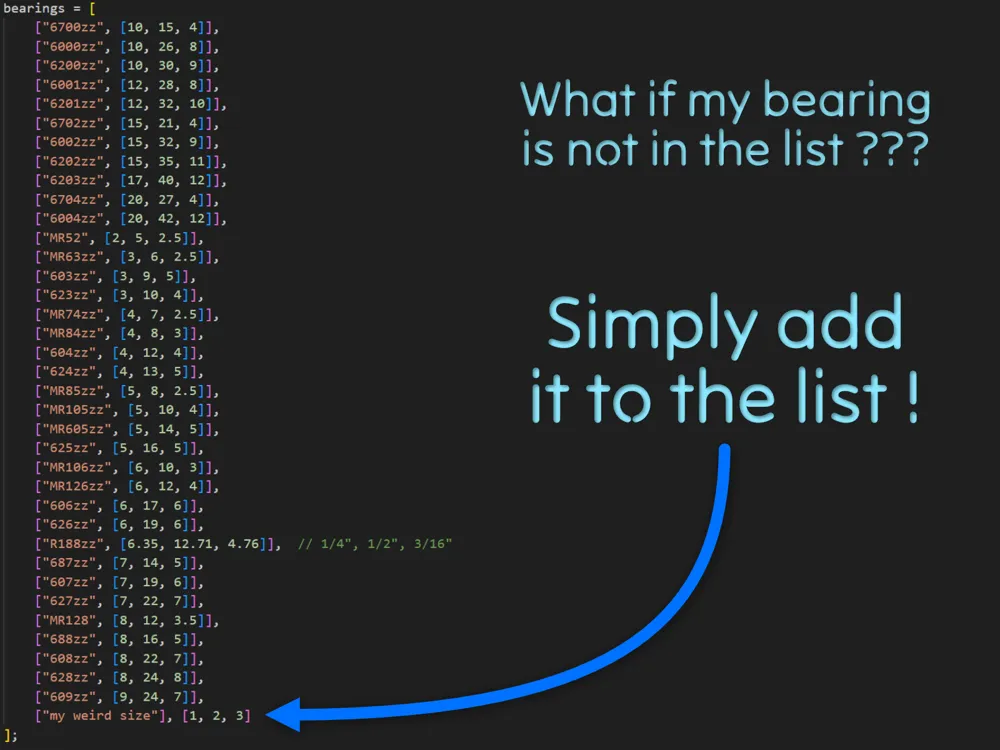

You can add a new bearing type to the list directly from the code !

If you think your format should be added to the official file, comment or contact me 🙂

Feel free to reach out if you have any questions or suggestions for improvement. I’m always open to feedback and eager to enhance the design. Enjoy your making journey! 🛠️💬

If you really like what I do, you can also buy me a beer🍺! Happy printing!
