The heating season is starting and it's time to let the air out of the radiators.

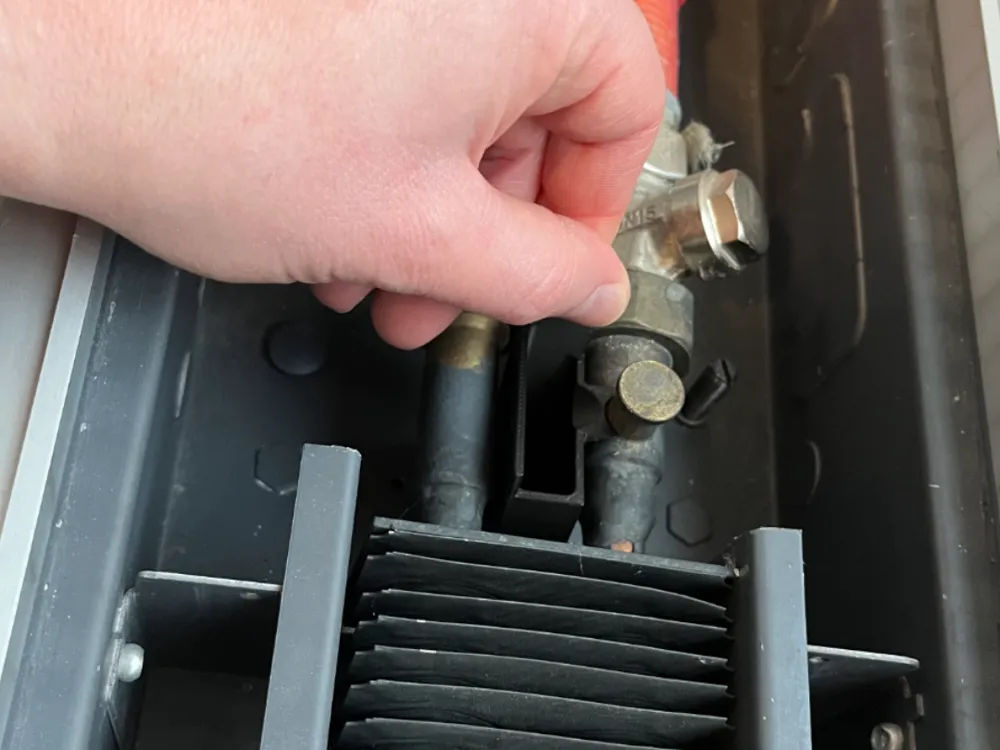

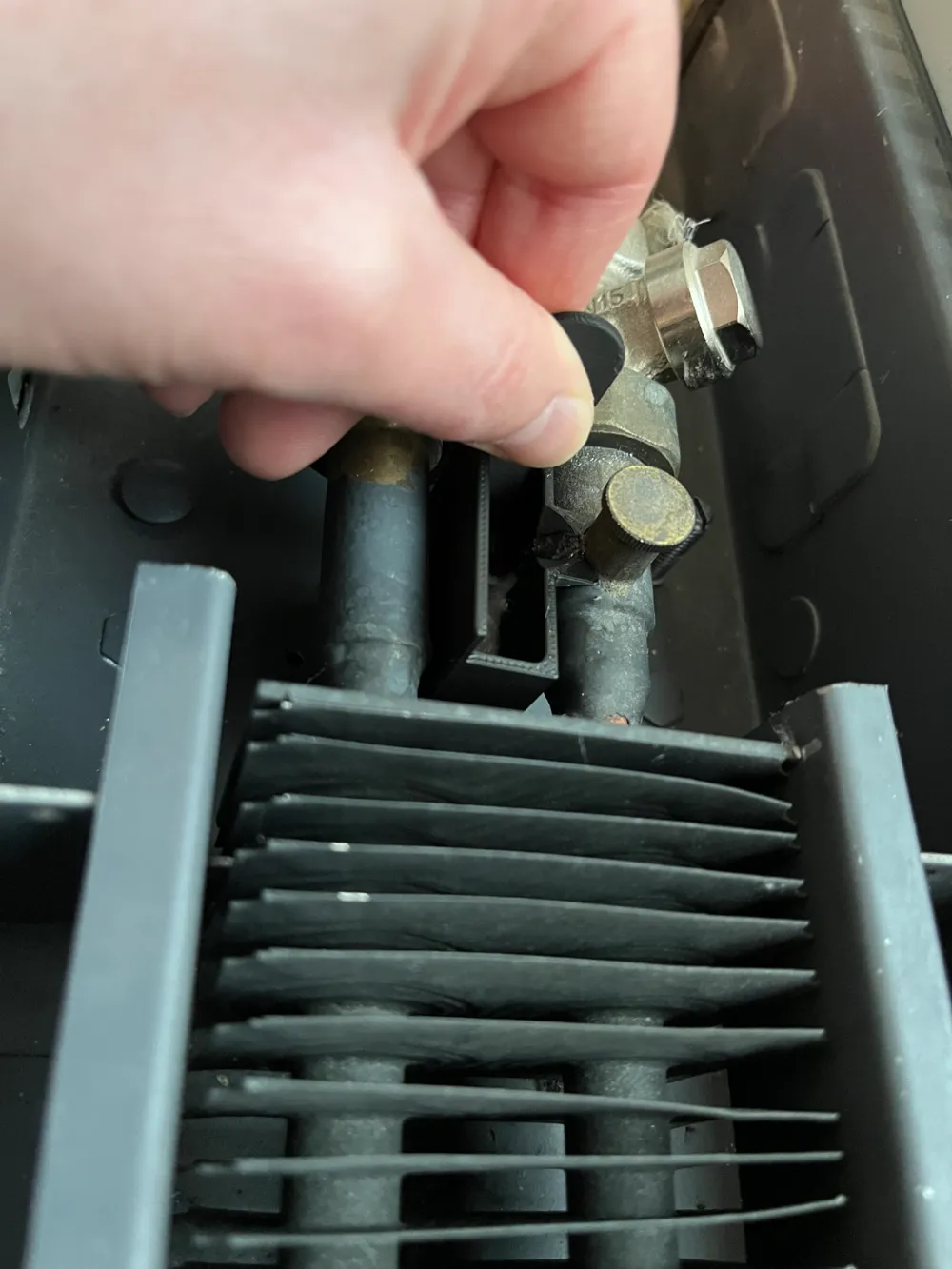

The small container is intended for underfloor convectors or floor duct heating. It is challenging to reach the water with a cup or other container in these applications.

The container does not hold a large volume of heating water, but it aids in venting the heater.

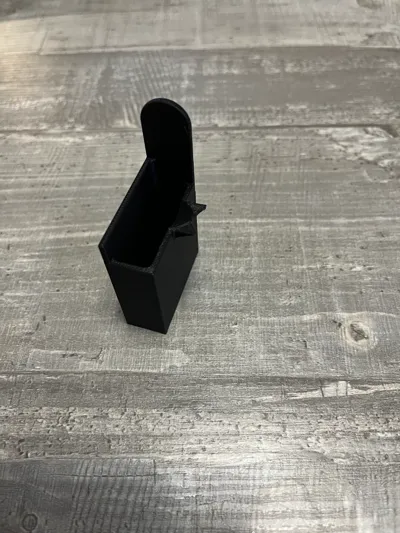

The container also features a handle and a small bridge to span the distance.

External dimensions:
LxWxH
40mm x 16mm x 40mm (overall height with handle 70mm)

Internal dimensions:
LxWxH
36mm x 12mm x 37mm

Container content:
approx. 14ml

------------------------------------------------------------------------------------------------------------------------------------------------
