Never Spaghetti - Single-Port Magnetic Filament Inlet
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 50% infill
Designer
2.8 h
3 plates
Open in Bambu Studio
Boost
4
3
0
0
7
2
Released
Description
Content has been automatically translated.

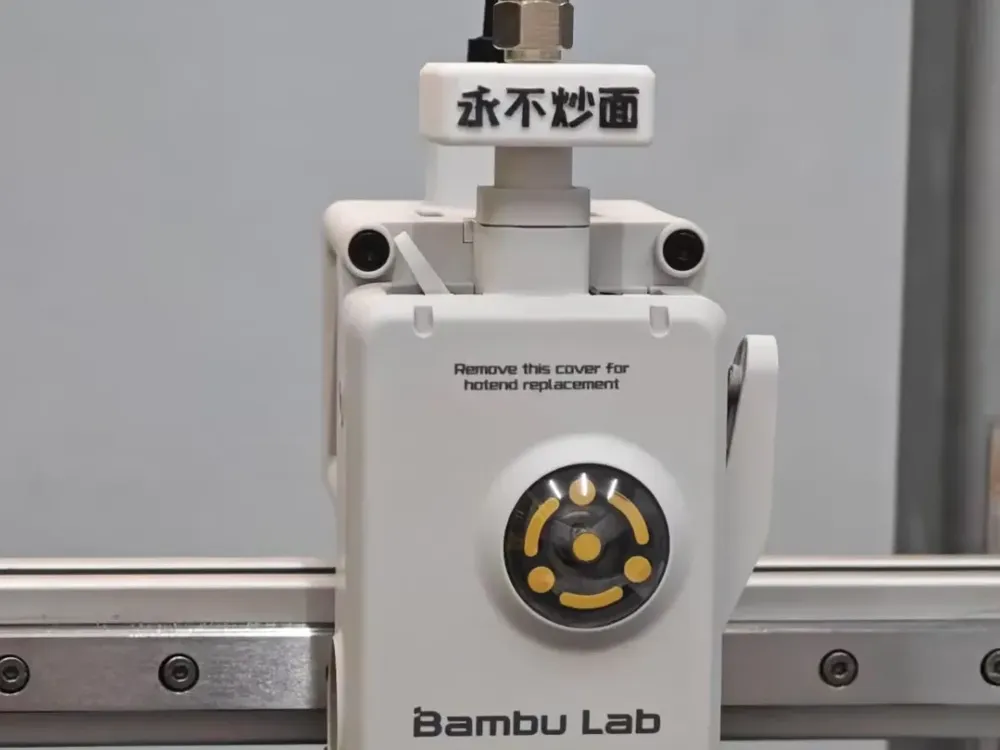

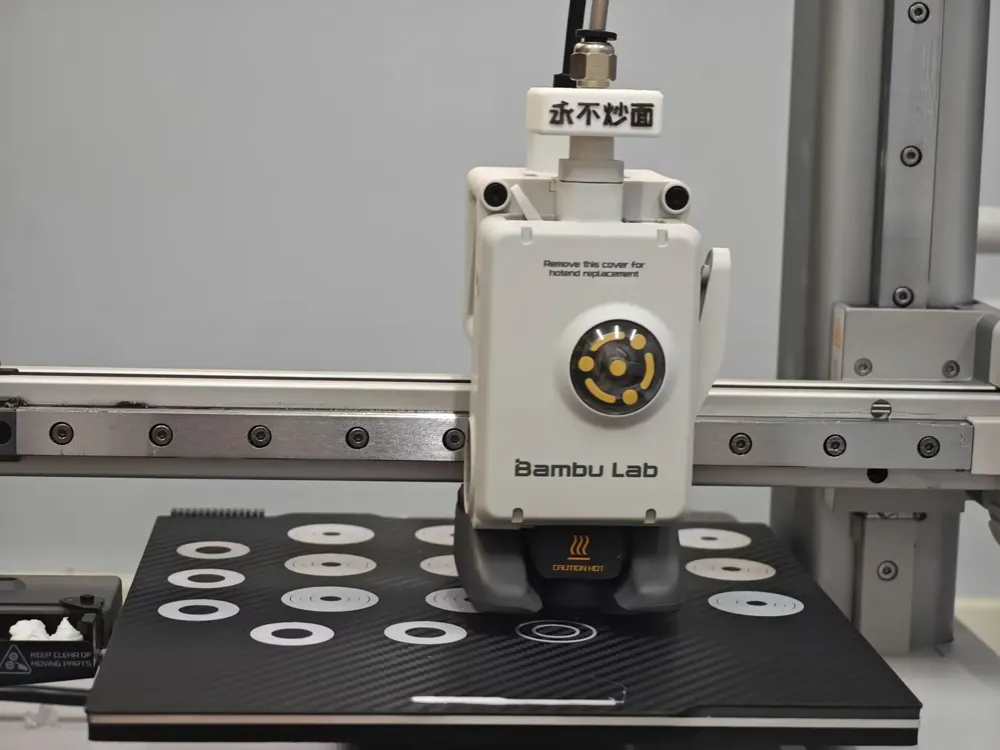

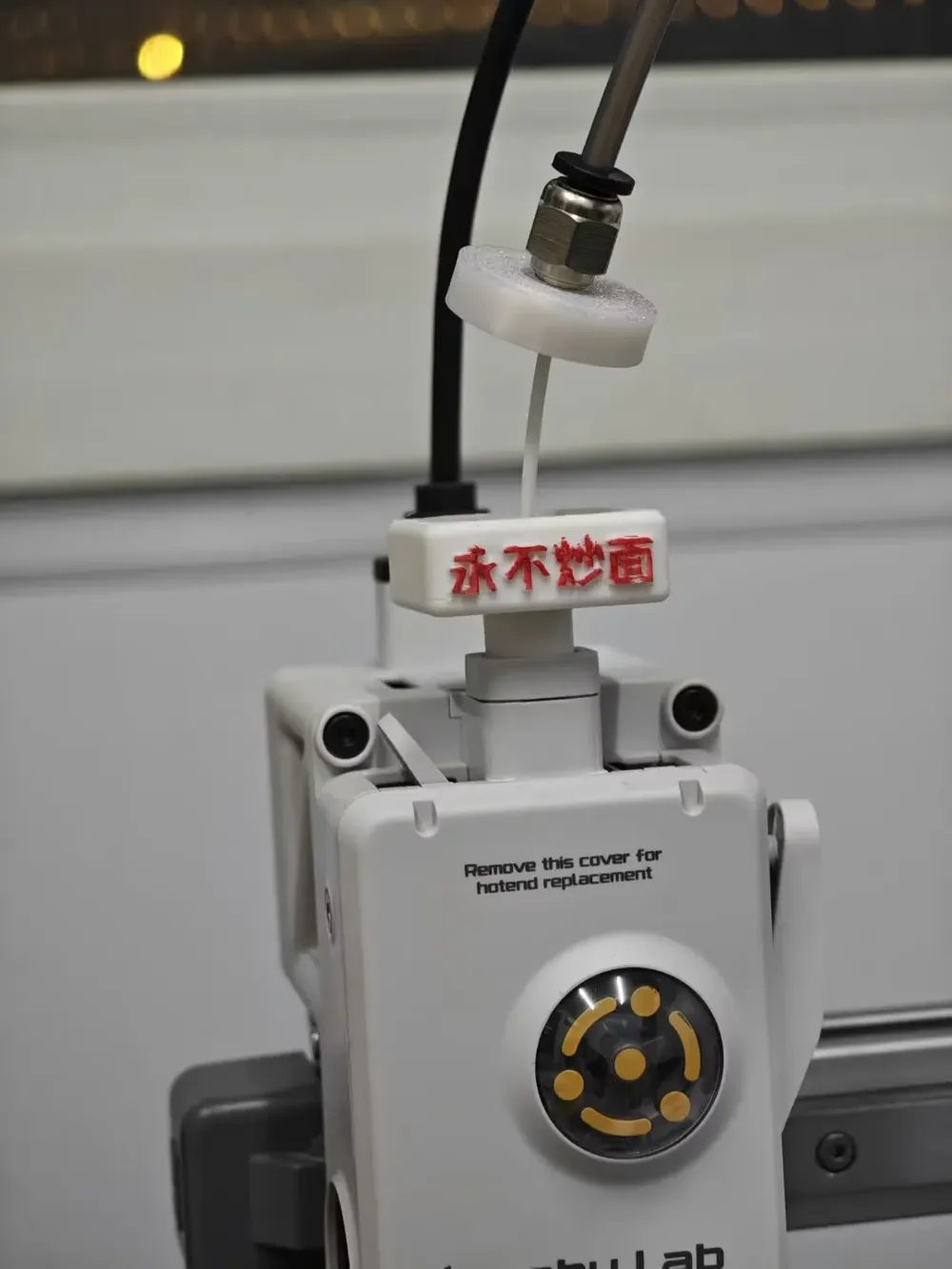

Replace the original five-way connector with a single-way feed port, suitable for Bambu A1/A1 mini versions without AMS.

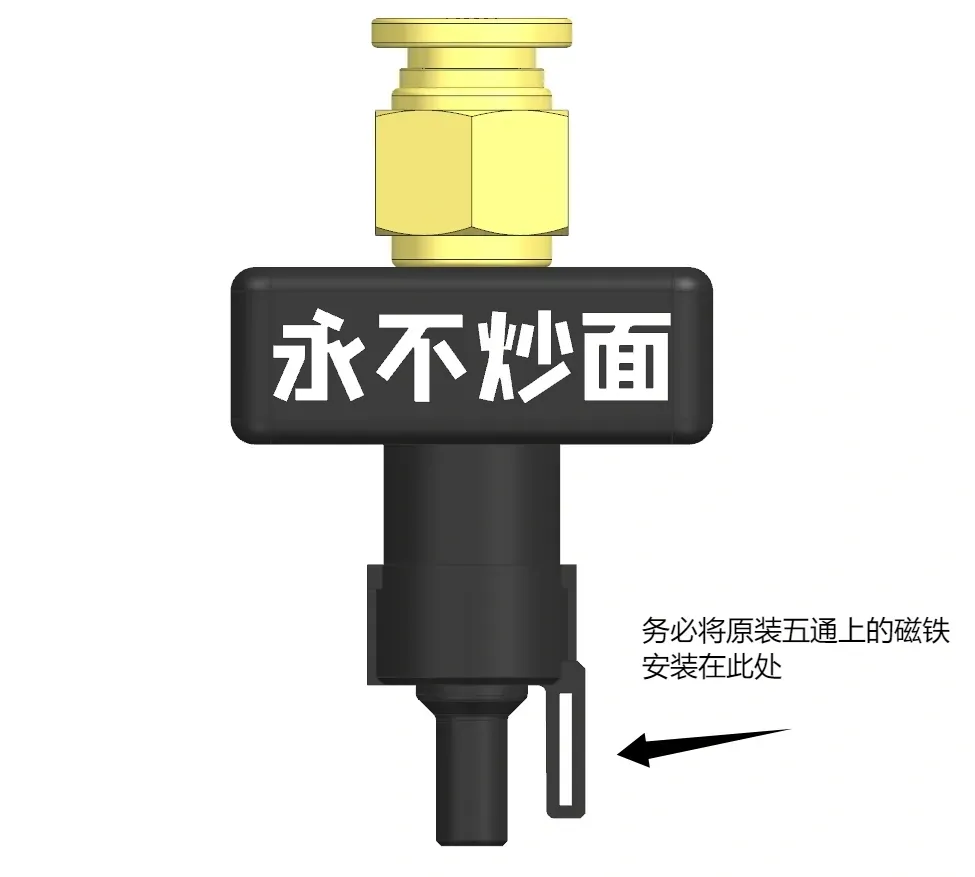

Please be sure to replace the original magnet on the five-way connector onto the printed part!!! This serves as a filament detection system and is crucial!!!

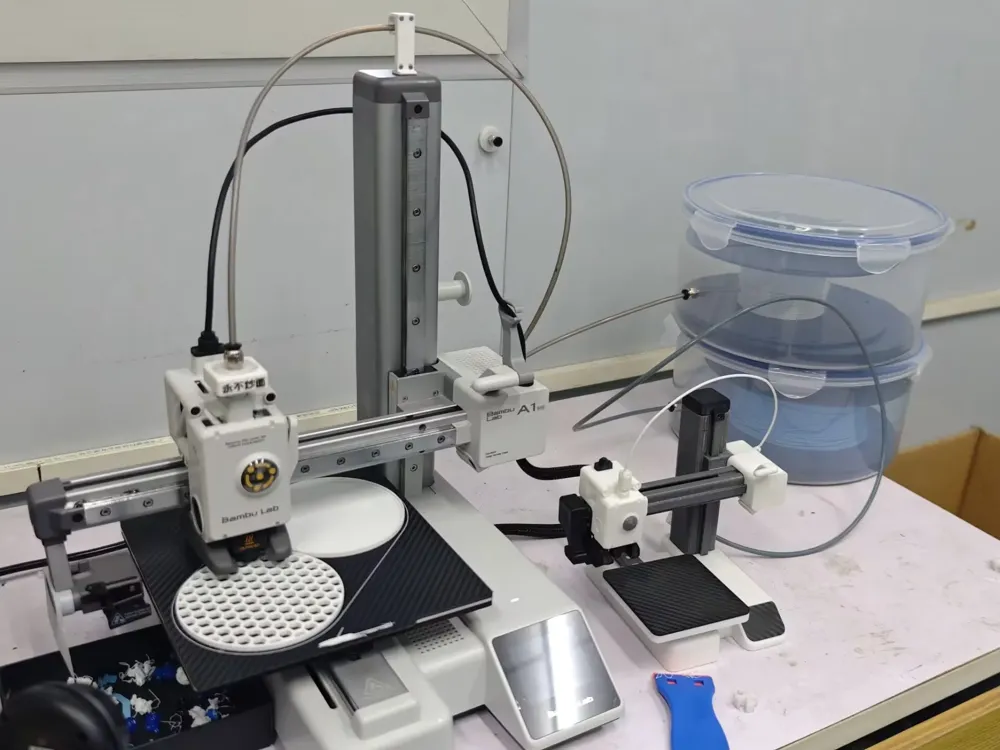

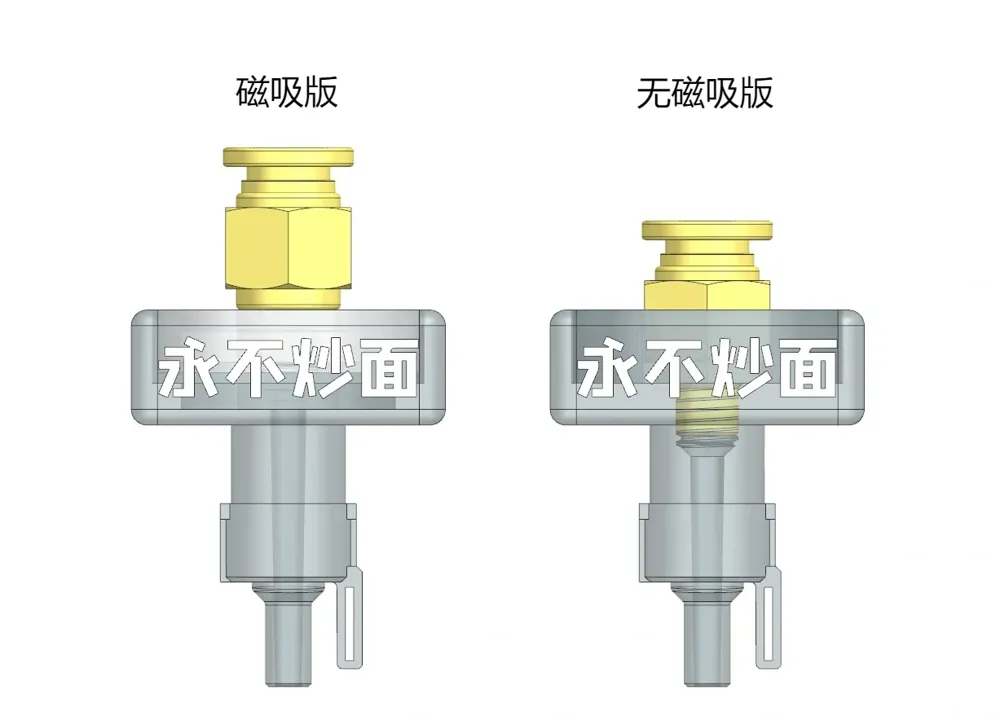

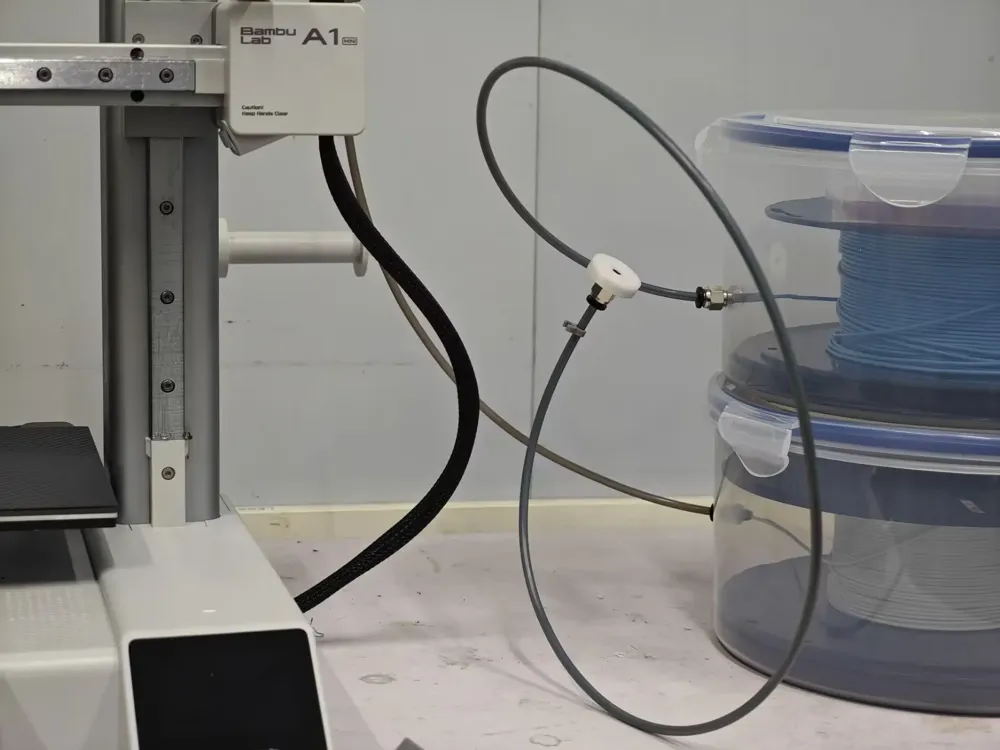

The magnetic version can be paired with a single-plate drying box to enable quick filament changes, eliminating the need to open the manual spool holder.
The magnet has an outer diameter of 20mm, an inner diameter of 10mm, and a thickness of 3mm. The pneumatic head has a PC4-M6 through hole.
