Description

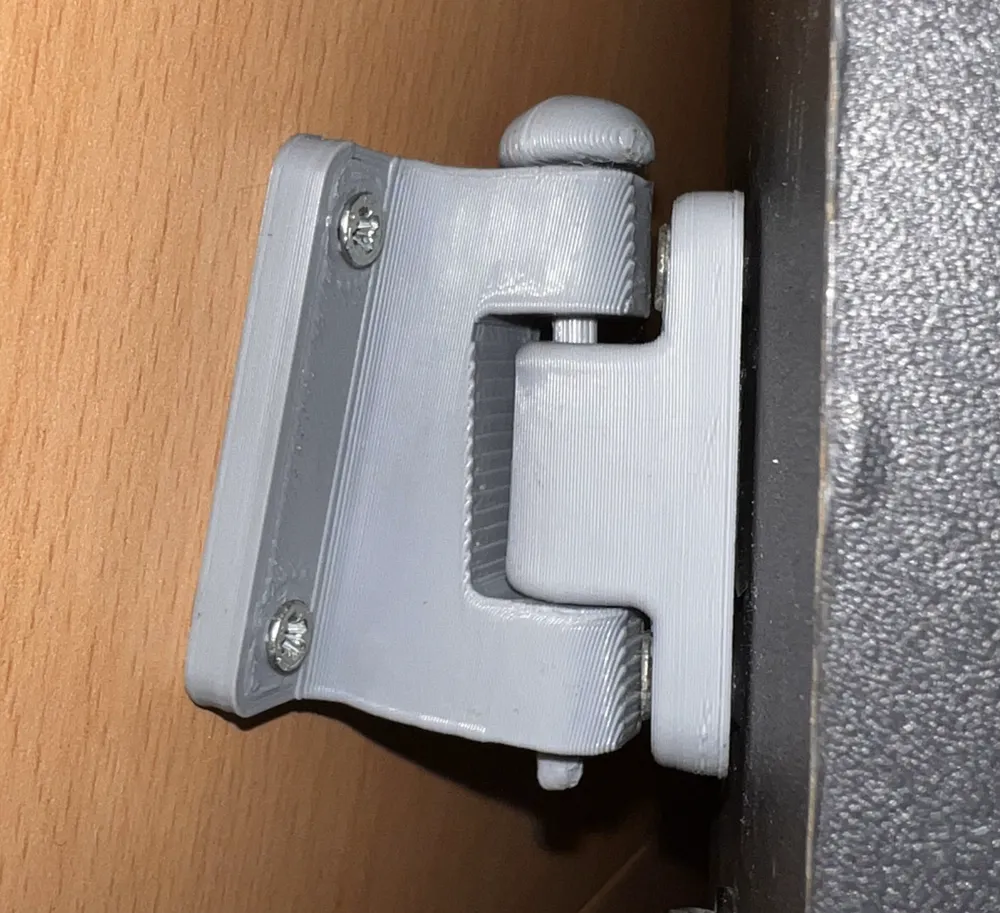

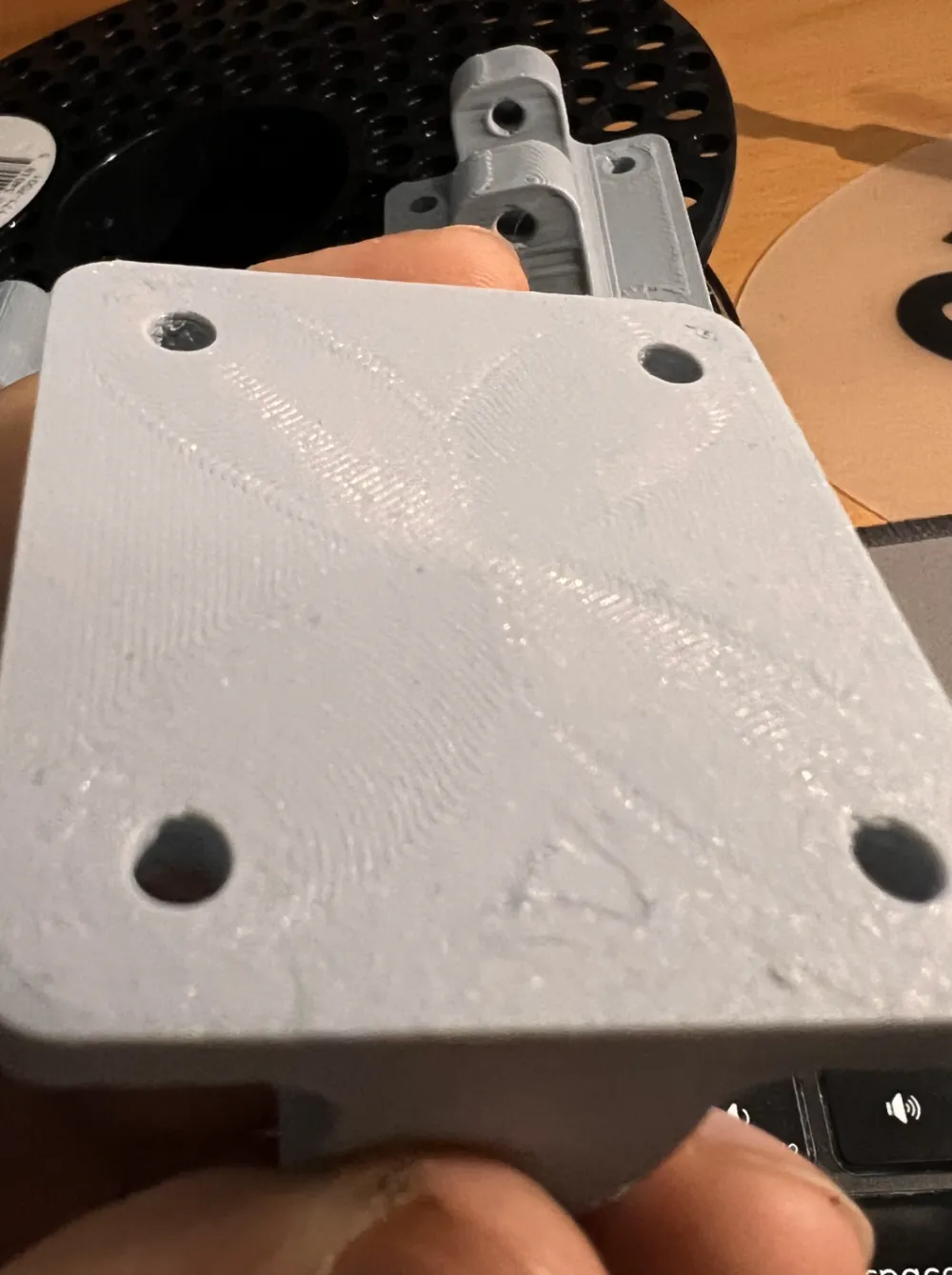

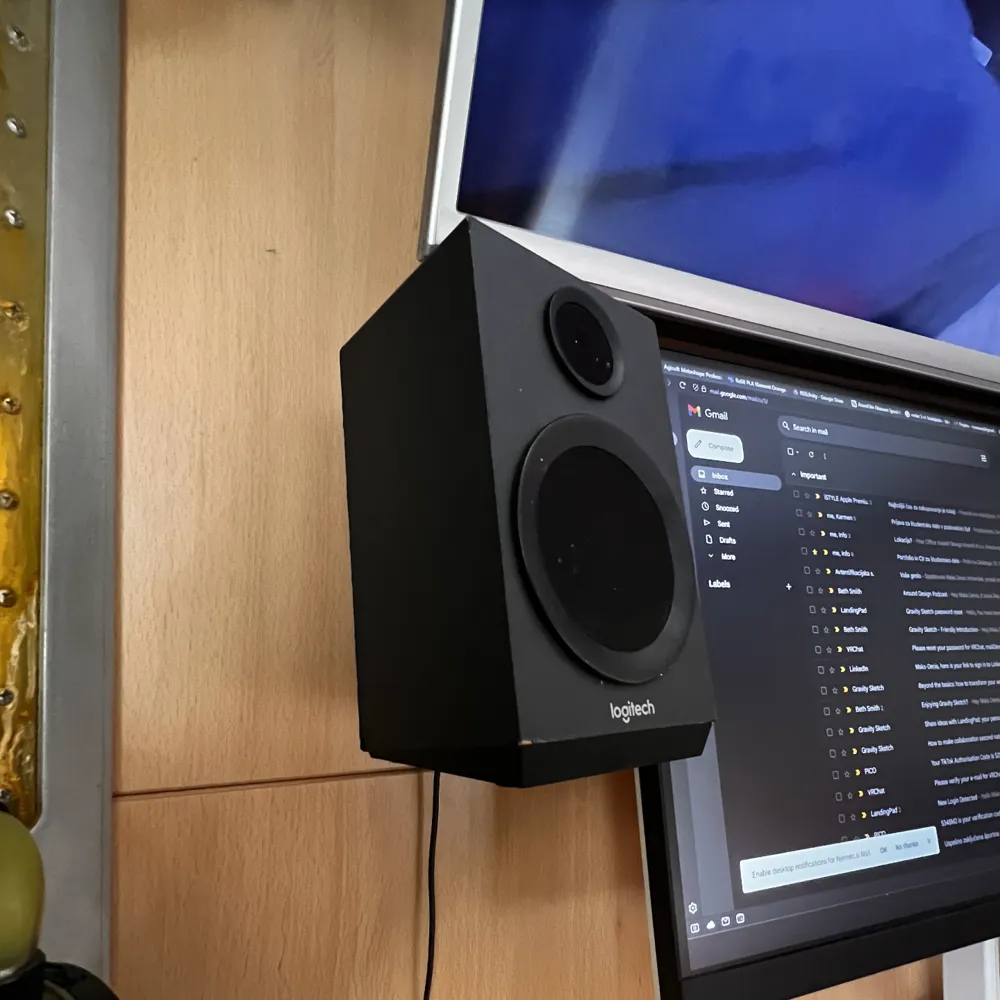

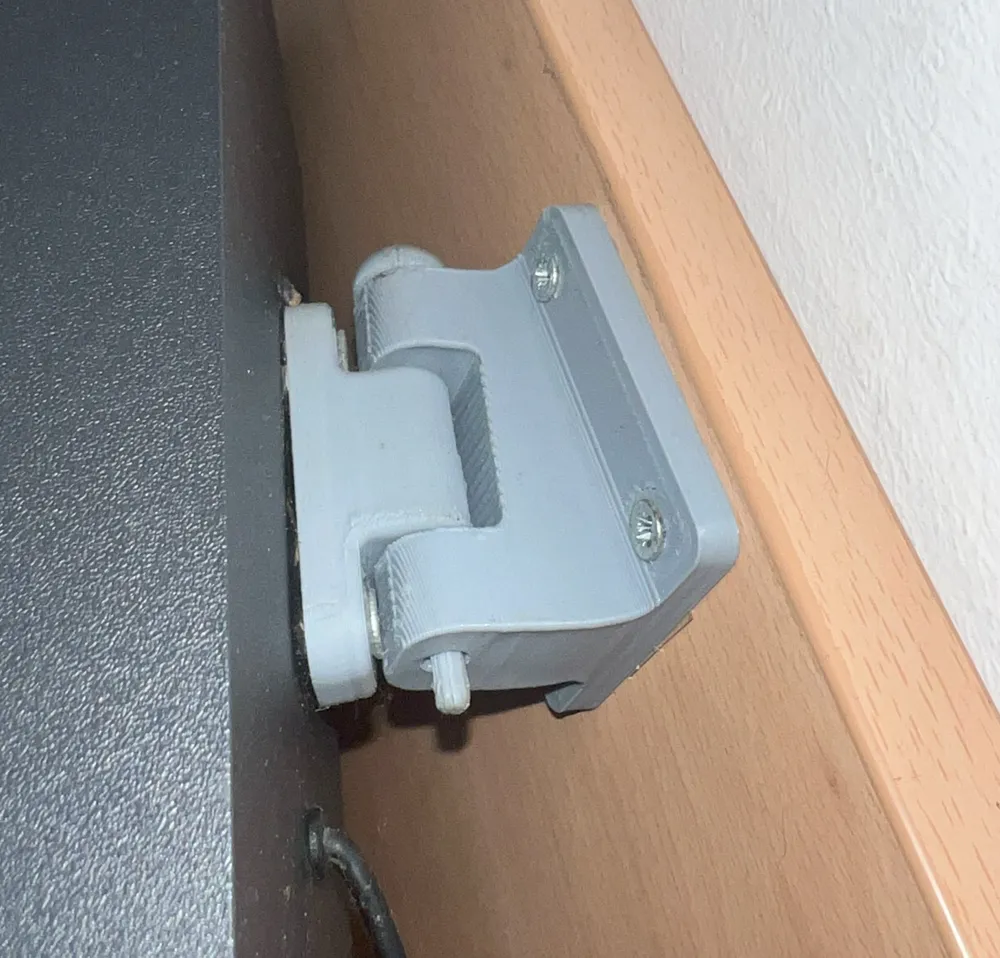

I wanted to make a wall mount for my speakers to cable manage everything so I decided to model and print these hinge style wall mounts. They are angled so the speakers face my head and rotate to fine tune their locations. I screwed the mount in the speaker and wall but strong duble sided tape could be used too. To reduce vibrations a layer of foam could be added between the print and wall to reduce the rattle if noticed. The pin is printed in two halfs so it is easier to print and install when putting the mount together.
Printed in PLA
0.2 layer hight
3 wall count ( could be lower but I printed it so that I am on the safe side)
10% infill (gyroid)
