Bill of Materials
- DIN 9021 washer 5.3 x 15 x 2:
- Ruthex Thread insert M3 x 3:
Description

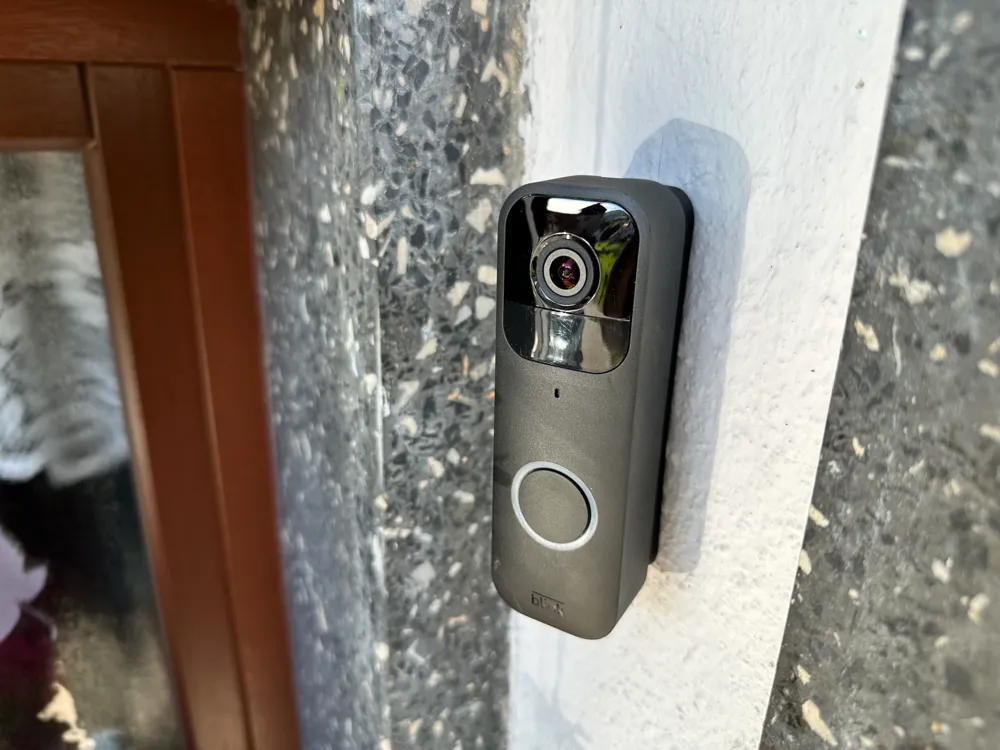

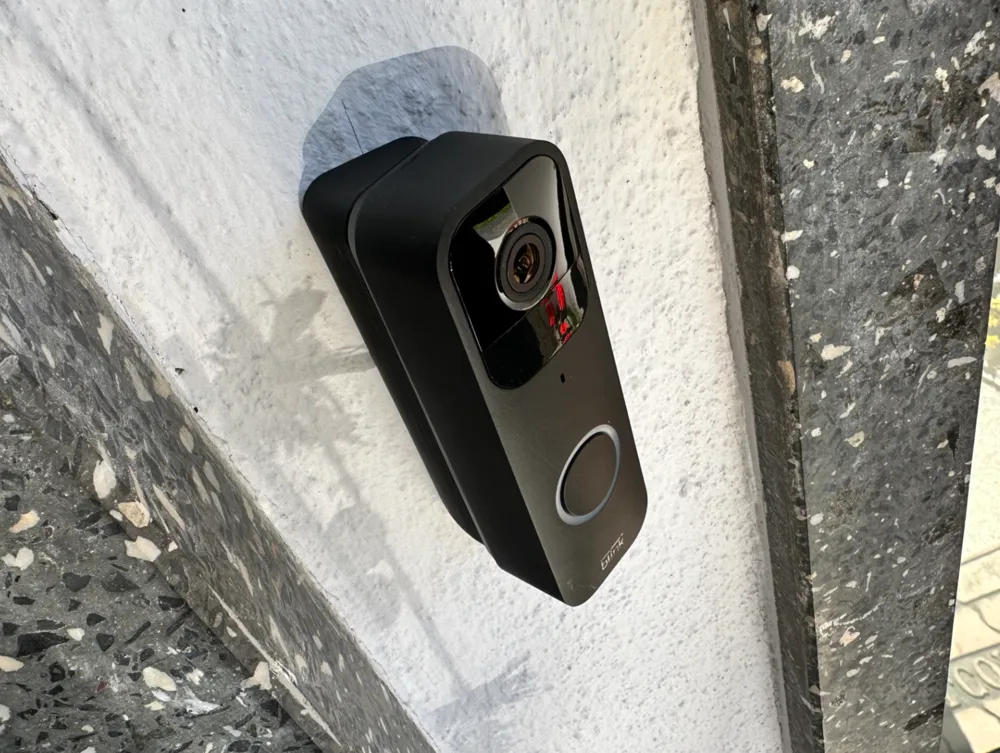

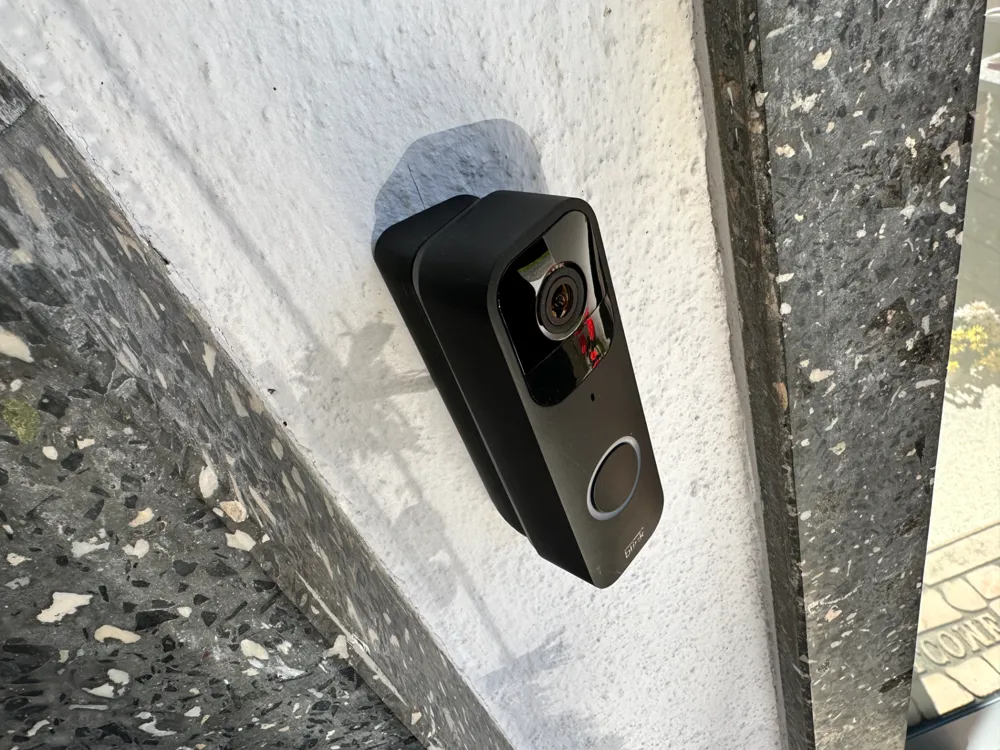

Simple holder for mounting the Blink video doorbell on a wall at a 30° angle.

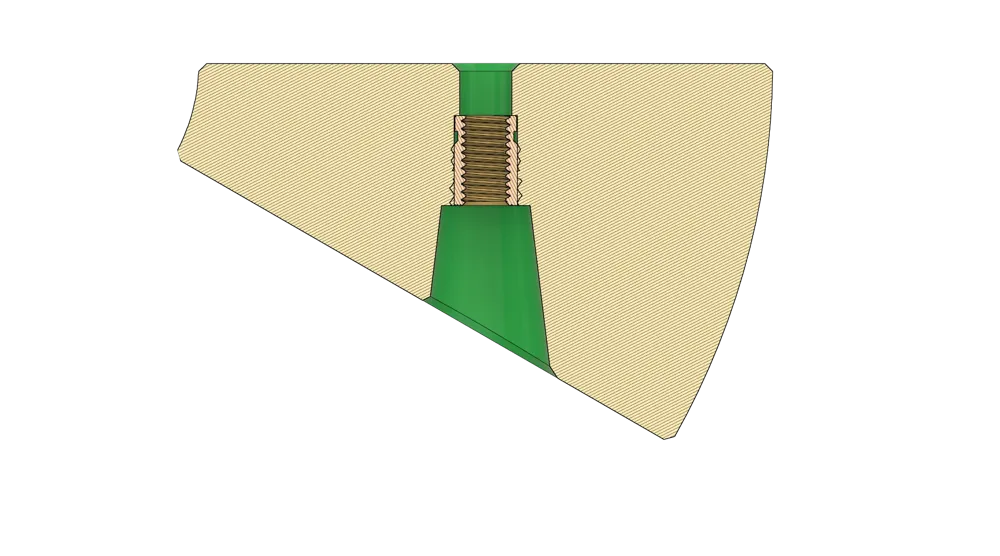

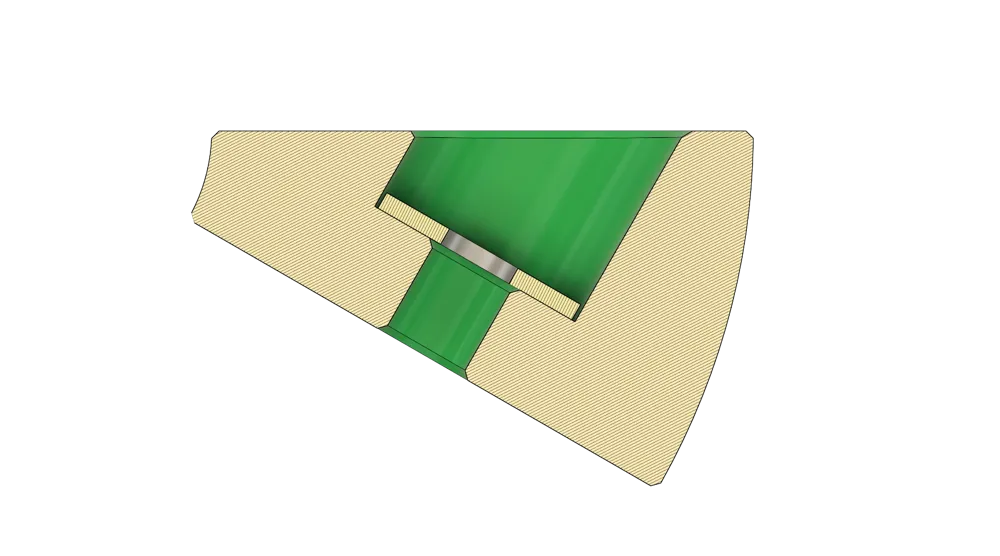

The Blink mounting frame is screwed to the holder with 3 M3x16 screws; 3 M3 melt-in nuts (e.g. Ruthex) must be inserted into the back of the printed holder for this purpose. Two screws with a maximum thread diameter of 5 mm are used for mounting on the wall. To avoid the screw head pushing into the holder, a DIN 9021 washer size 5.3 can also be added, see sectional drawing.
To ensure that the holder can resist the influences of the weather, I recommend choosing at least PETG or better ASA as the material.
The holder is available in a left and right-hand version. Note the arrow on the rear (wall side) pointing at the top.
