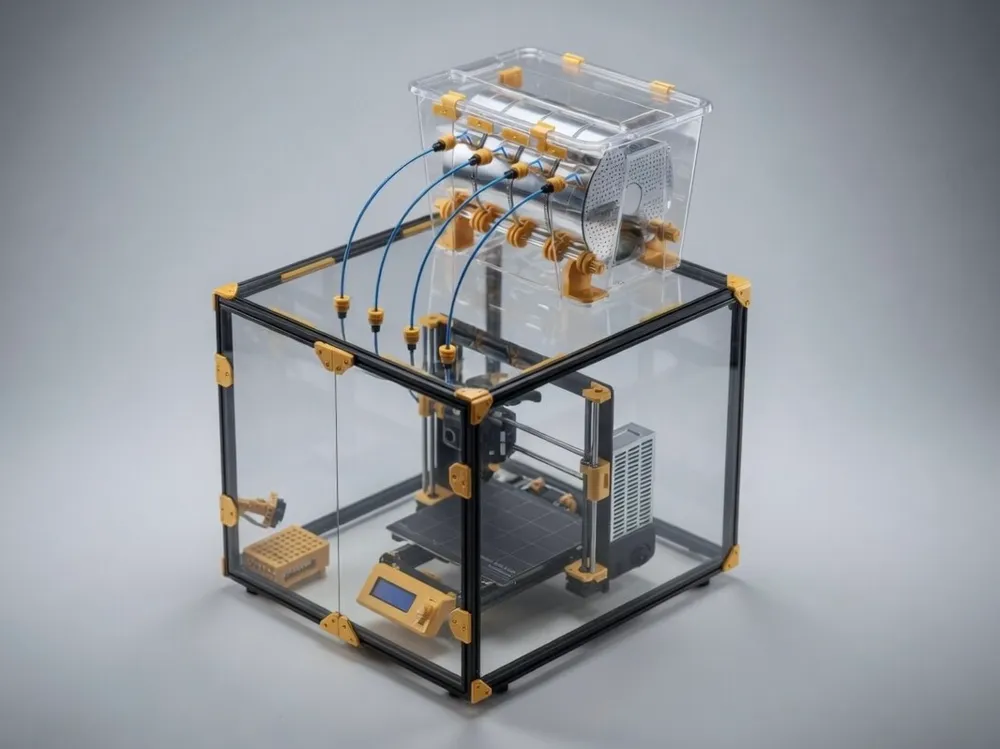

Inspired by the Voron 2.4 enclosure I made my own for the Prusa i3 MK3S+.
Exterior Dimensions are 614 x 556 x 518mm.
The Case is sealed from all sides but air can still flow in from below to vent the electronics. The whole enclosure sits on rubber feet (from High-End Audio Speaker). Additionally a Raspberry Pi 4 enclosure can be mounted inside and the HQ Camera attached to the aluminum extrusion.
Printed Parts required:
- 16x Corner Piece
- 4x Hinges
- 2x Left Latch
- 2x Right Latch
- 2x Latch Base
- 6x LED Strip Angles
- 4x Rubber Feet Mounts
Sourced Parts required:
- 8x Aluminium Extrusion 2020 - 500mm
- 4x Aluminium Extrusion 2020 - 560mm
- 44x Flat Head Screws M5x8
- 8x Nuts M5
- 8x Washer M5
- 36x T-Slot Nuts M5
- 6x Hex Screws M3x6
- 6x T-Slot Nuts M3
- 4x Round Magnets 7-8x1mm
- 2x Acryl Panel - 573 x 473 x 3mm
- 1x Acryl Panel - 573 x 513 x 3mm
- 1x Acryl Panel - 513 x 473 x 3mm
- 2x Acryl Panel - 472 x 255.5 x 3mm
Compatible with following extensions:
