IKEA Skadis - Hooks
Print Profile(1)
Description
Update:

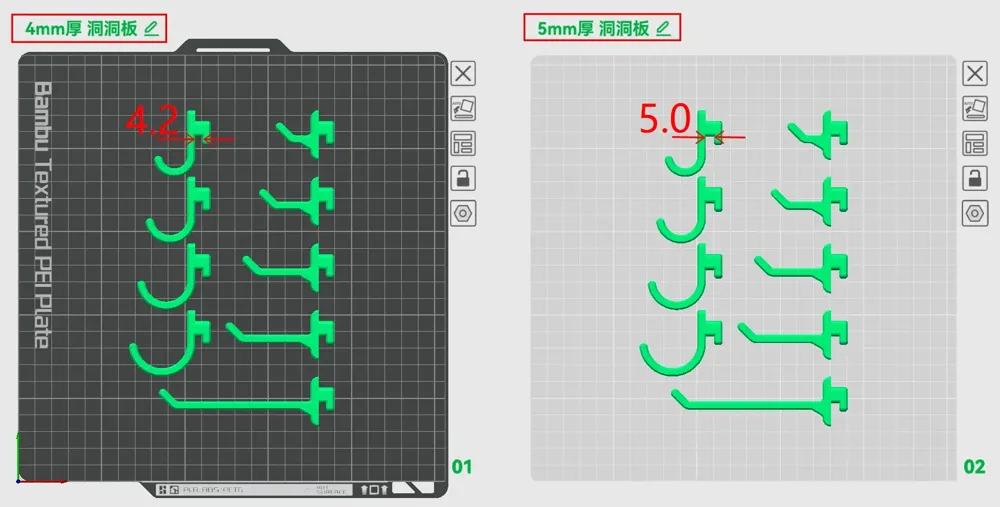

A new plate of hook has been added, suitable for 5mm thick pegboard.
————————————————

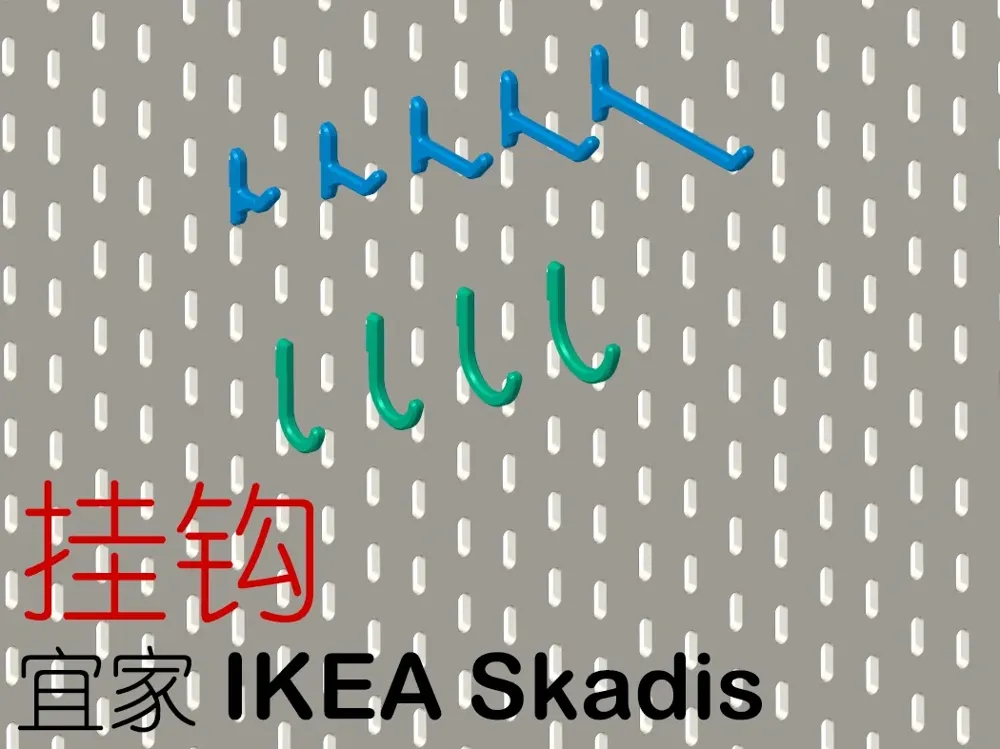

Hooks compatible with 5x15mm waist-shaped pegboards:

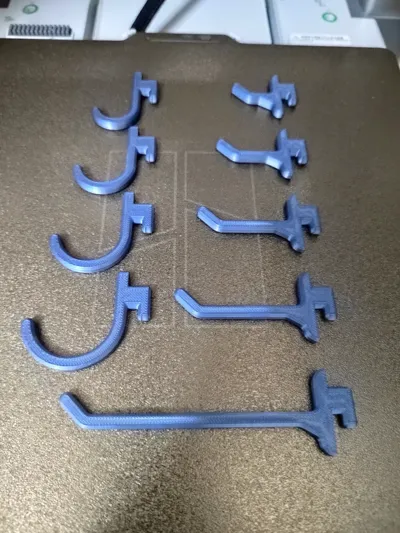

There are two types of hooks in the plate: round and linear.

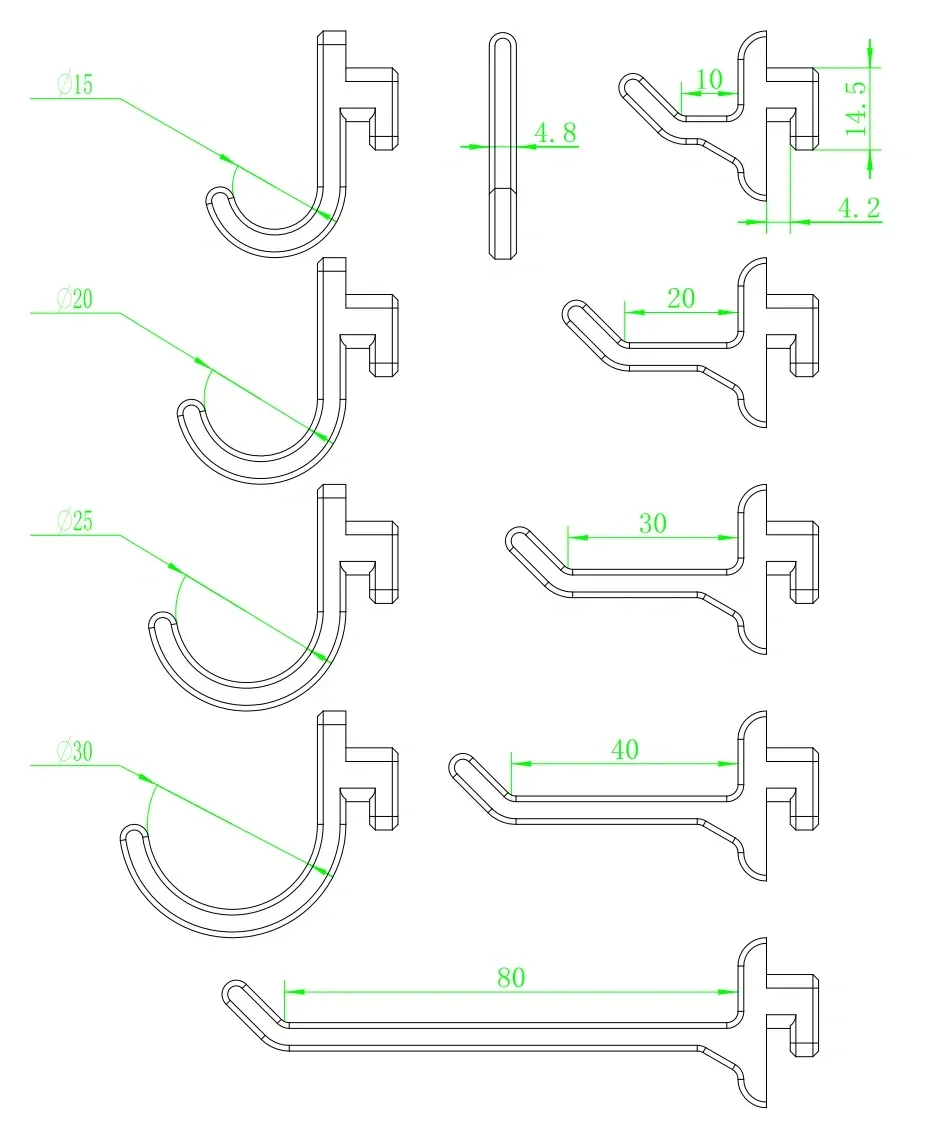

Round hole diameters are available in four sizes: 15, 20, 25, and 30.
Linear lengths are available in five sizes: 10, 20, 30, 40, and 80.
The slot width is 4.2mm.
The thickness of the pegboard may vary significantly. It is recommended that you first print a hook according to the configuration file and test it. Adjust the <XY outline size compensation> based on the actual assembly.
The default material is PLA, and the print configuration is <0.20mm Strength> with 6 walls.
If you want to hang heavier objects, it is recommended to print with materials with relatively higher strength, such as PETG.
If you need other sizes, please feel free to contact me.
————Click here for other accessories《Pegboard Accessories》to download and print————
Boost Me (for free)
If you find this model useful, please support me by giving me a boost!
