Meet PFEIFER, a tiny but very very powerful pebble-shaped whistle.

It takes only 10g to print and is available in 2 sizes, Regular and Mini, and a variety of tones:

• Regular in mid-tone 2.5KHz
• Regular in high-pitch 4KHz
• Regular in dual tone (2.5KHz + 3.5KHz)
• Mini in high-pitch 4KHz
• Mini in mid-tone 2.5KHz

Our cute rescue dog responds surpisingly well to the 4KHz.

Don't mind the print quality on the pictures.
I live in Taiwan (but I'm French.. long story..) and raining season just kicked.
It's so humid it's almost impossible to get my prints right.

Anyway...
Happy printing!

V2 UPDATE:
The keyhole on V1 versions was a bit too small, so was enlarged on V2.

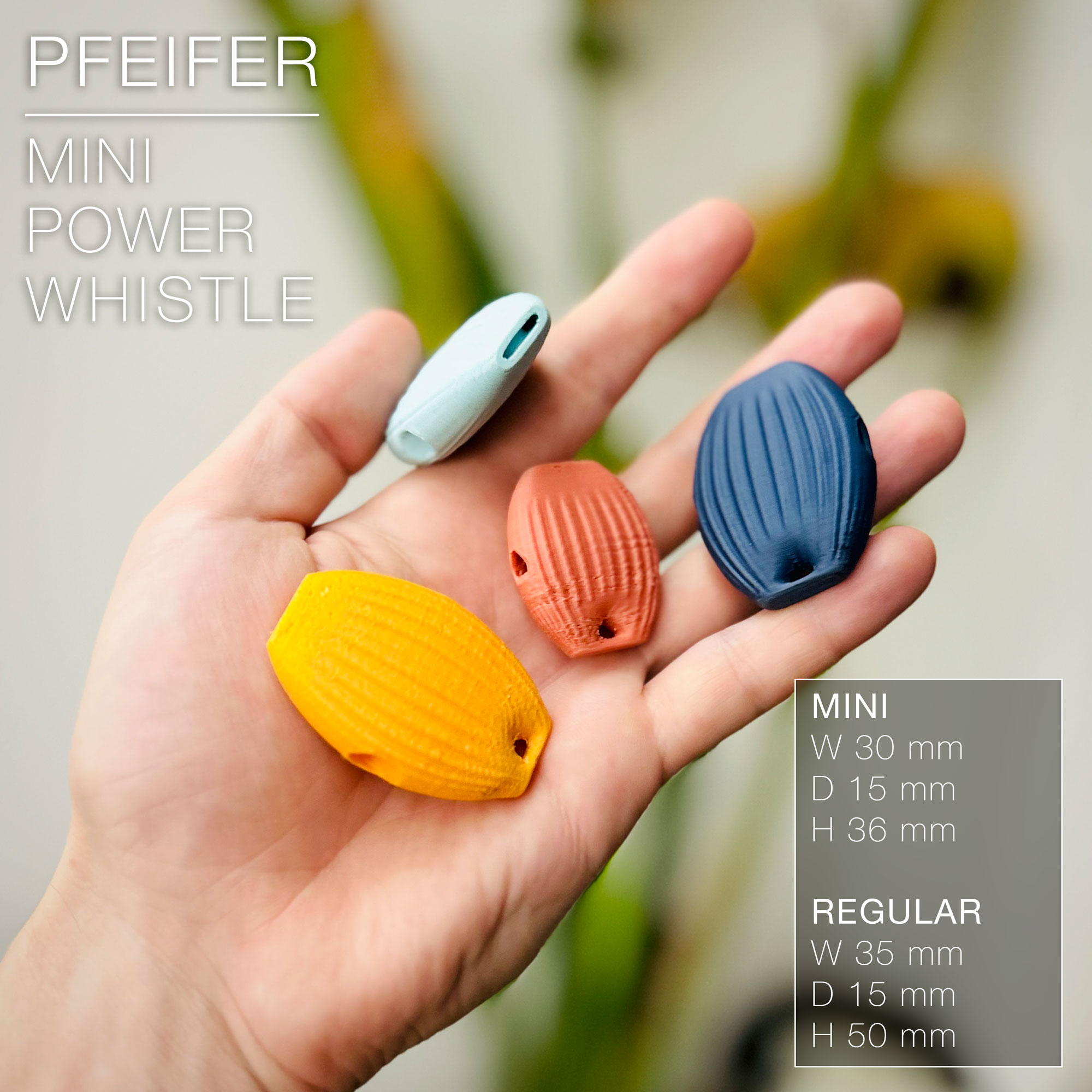

DIMENSIONS (Regular) | W 35 mm x D 15 mm x H 50 mm

DIMENSIONS (Small) | W 30 mm x D 15 mm x H 36 mm

PRINTING | 30min

All STL files are already oriented properly.

Infill: 20%
Wall line count: 2
Resolution: 0.2~0.3mm/layer or less (the bases in the pictures were printed in 0.2mm/layer)
Build adhesion type: Brim 4mm
Supports: None
