Description
I. Introduction

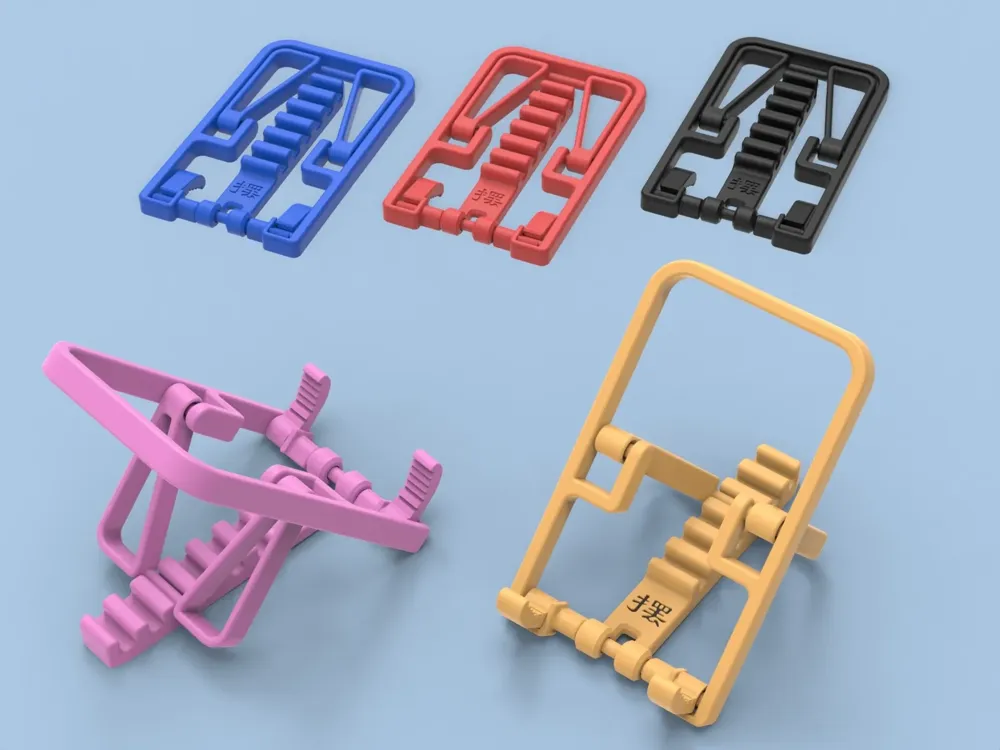

The main body of this stand is designed with one-piece printing molding, and the two support legs can be assembled with DIY color matching.

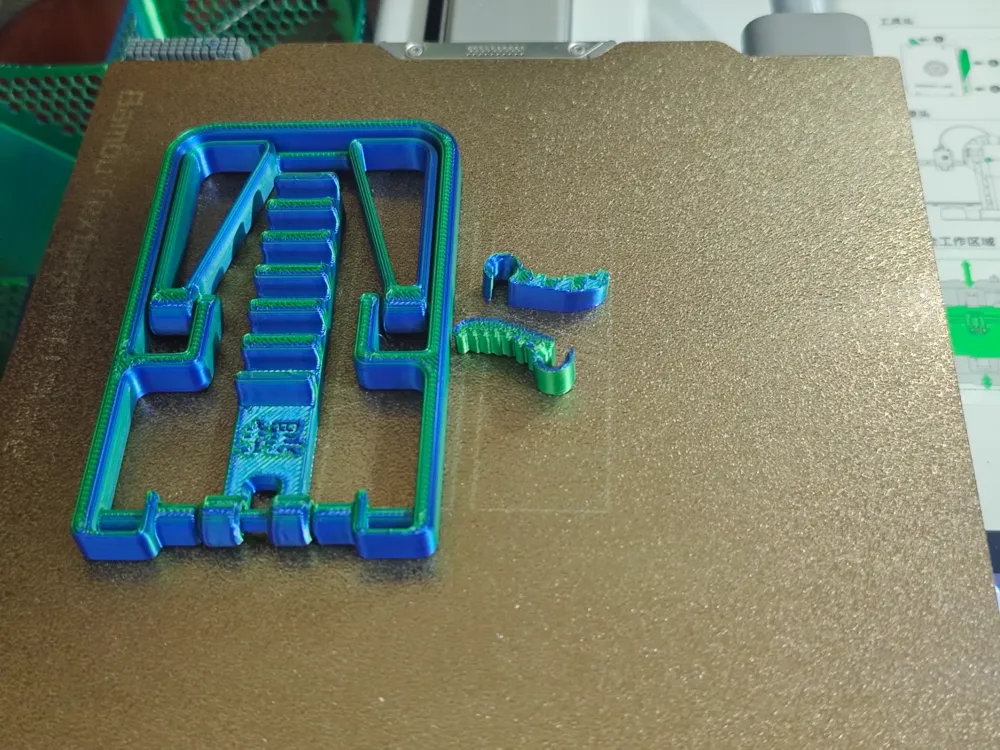

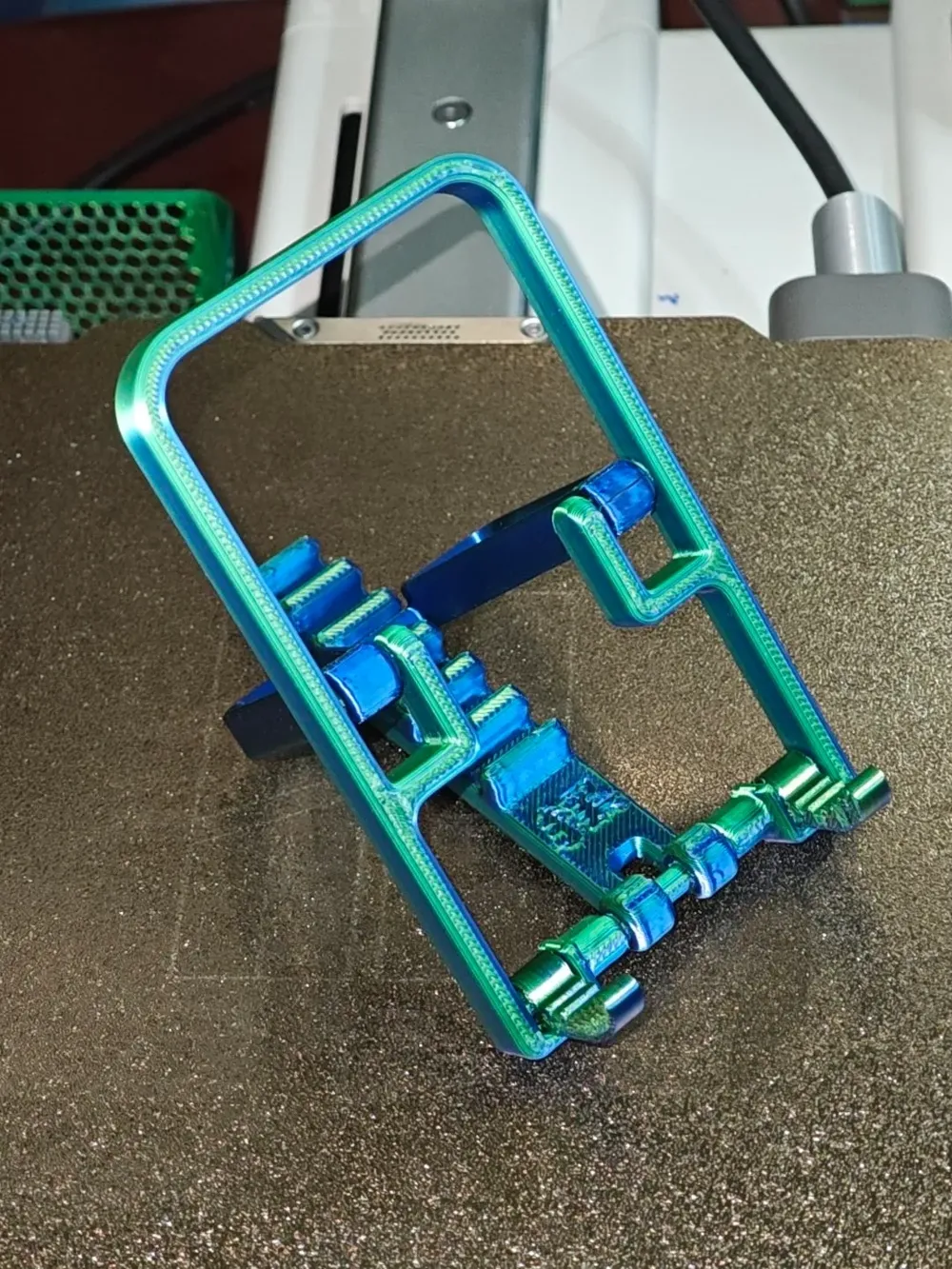

This stand is recommended to be printed with matte PLA filament, not recommended to use silk filament. It is tested to be compatible with most phones and tablets, making it a great gift for friends.
II. How to install the support legs?

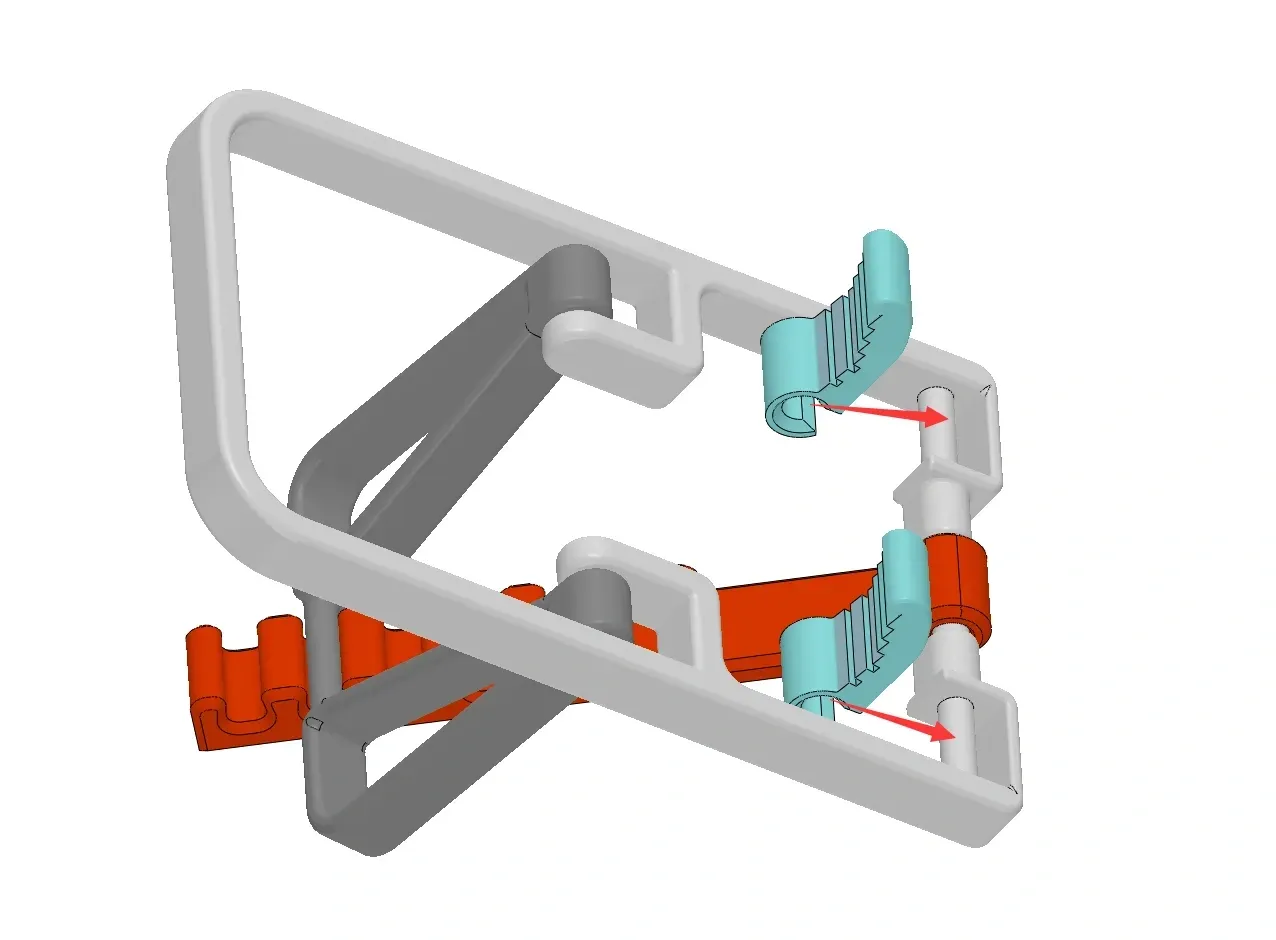

As shown in the figure, align the opening of the support leg with the rotating shaft and press firmly. Please pay attention to the direction of the support leg.
III. Improvement and Iteration Content
The Phone Stand V1 version has received positive reviews from a large number of 3D printing enthusiasts. Some players have made comments and suggestions for improvements to the V1 version. Based on the suggestions and my own ideas, I have made the following improvements:

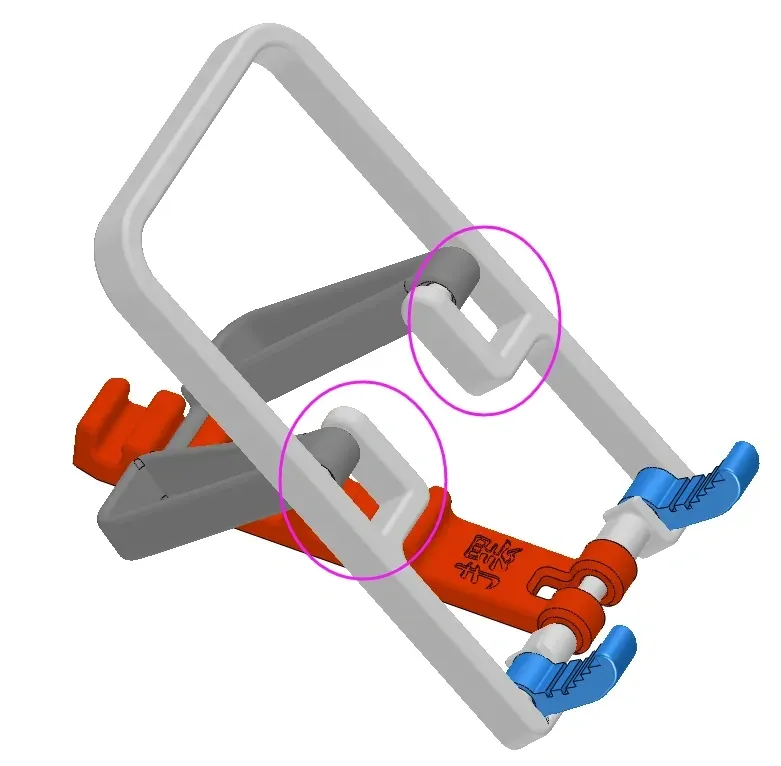

1. Increase the matching length of the angle adjustment hinge to increase structural stability
2. Widening the angle adjustment rod as a whole to increase placement stability
3. Shorten the length of the support legs to improve the aesthetics of the phone placement
4. Increase the swing angle of the support frame and the main body hinge

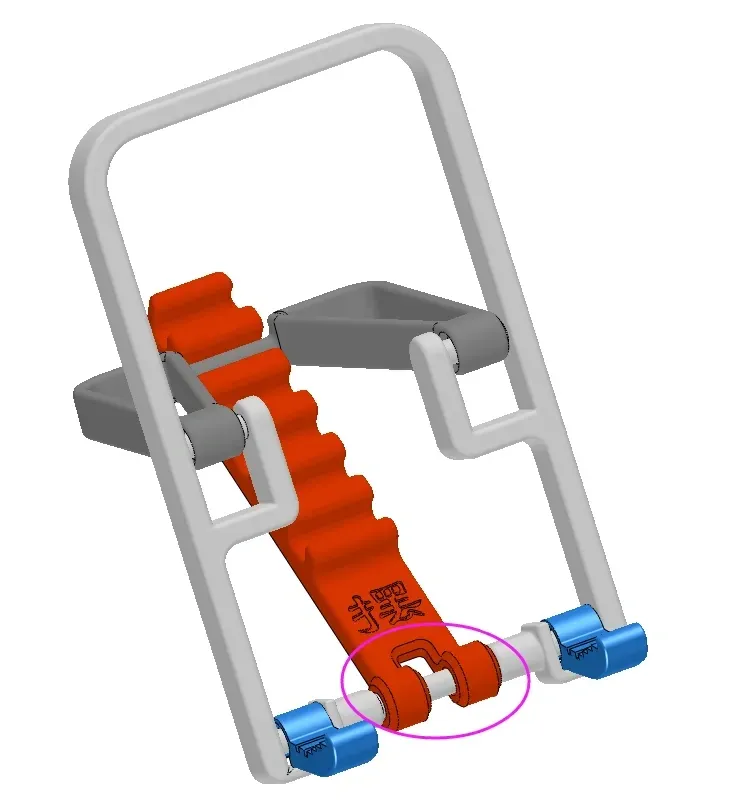

5. Increase the gap between each gear position to facilitate insertion when shifting gears
6. Add a personal logo - "摆", meaning "to place" (you can choose to print the version without words if you don't like it)
Boost Me (for free)
Your support is the driving force behind my development
