Parametric measure tape holder

– – – NEW VERSION AVAILABLE – – –

The existing 3D project is no longer supported. Please use the updated version 2.0, available here.

Features:

• No extra screws or glue needed
• Supports multiple tape widths and lengths - parametric Fusion 360 file available
• Pre-rendered versions for 14 mm, 18mm and 22mm tapes (max length ~150 cm)
• A universal wide slot to fit all metal ends, up to 3.3 mm thick
• Only 15 grams of filament required to print 14 mm version
• No supports needed

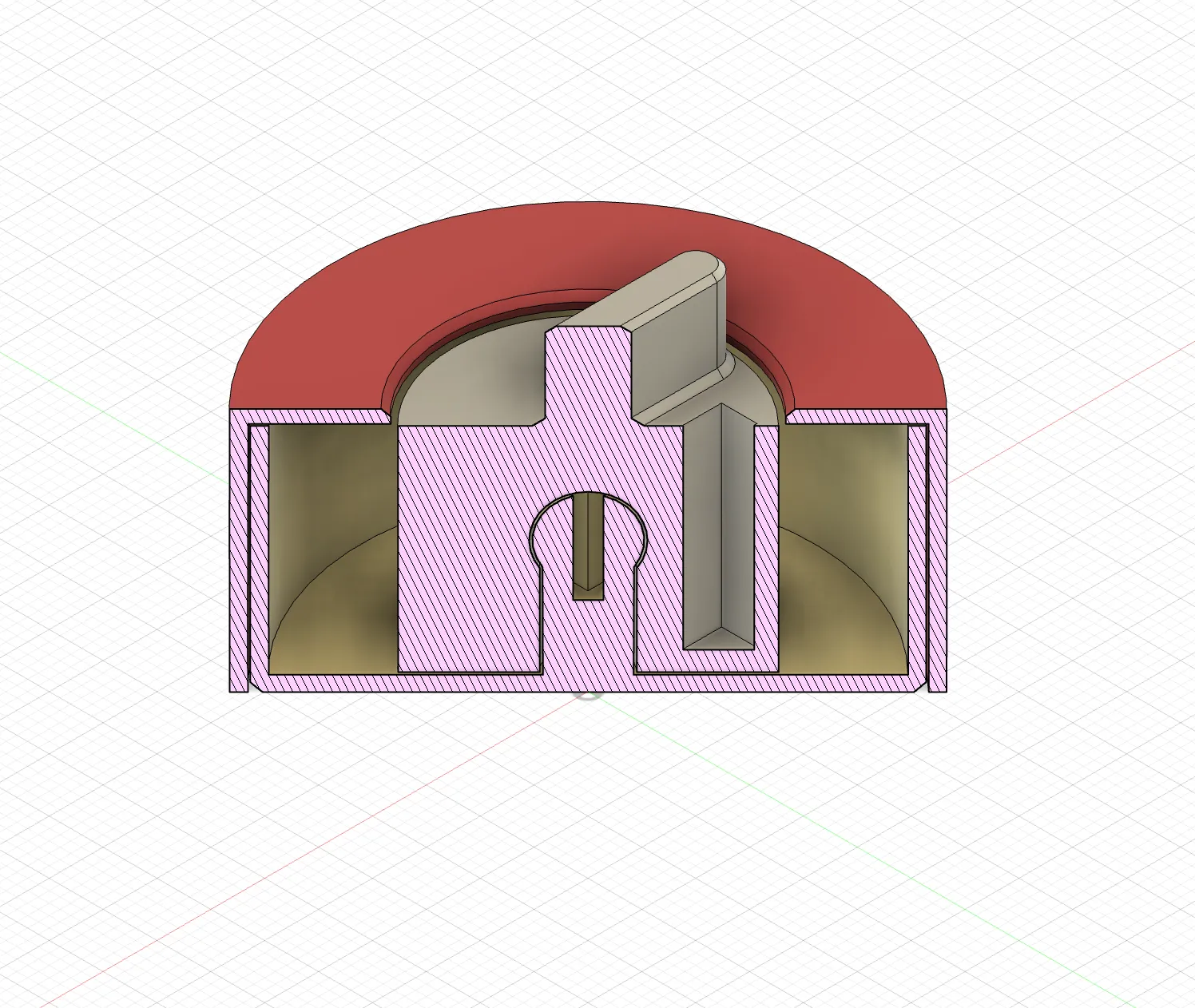

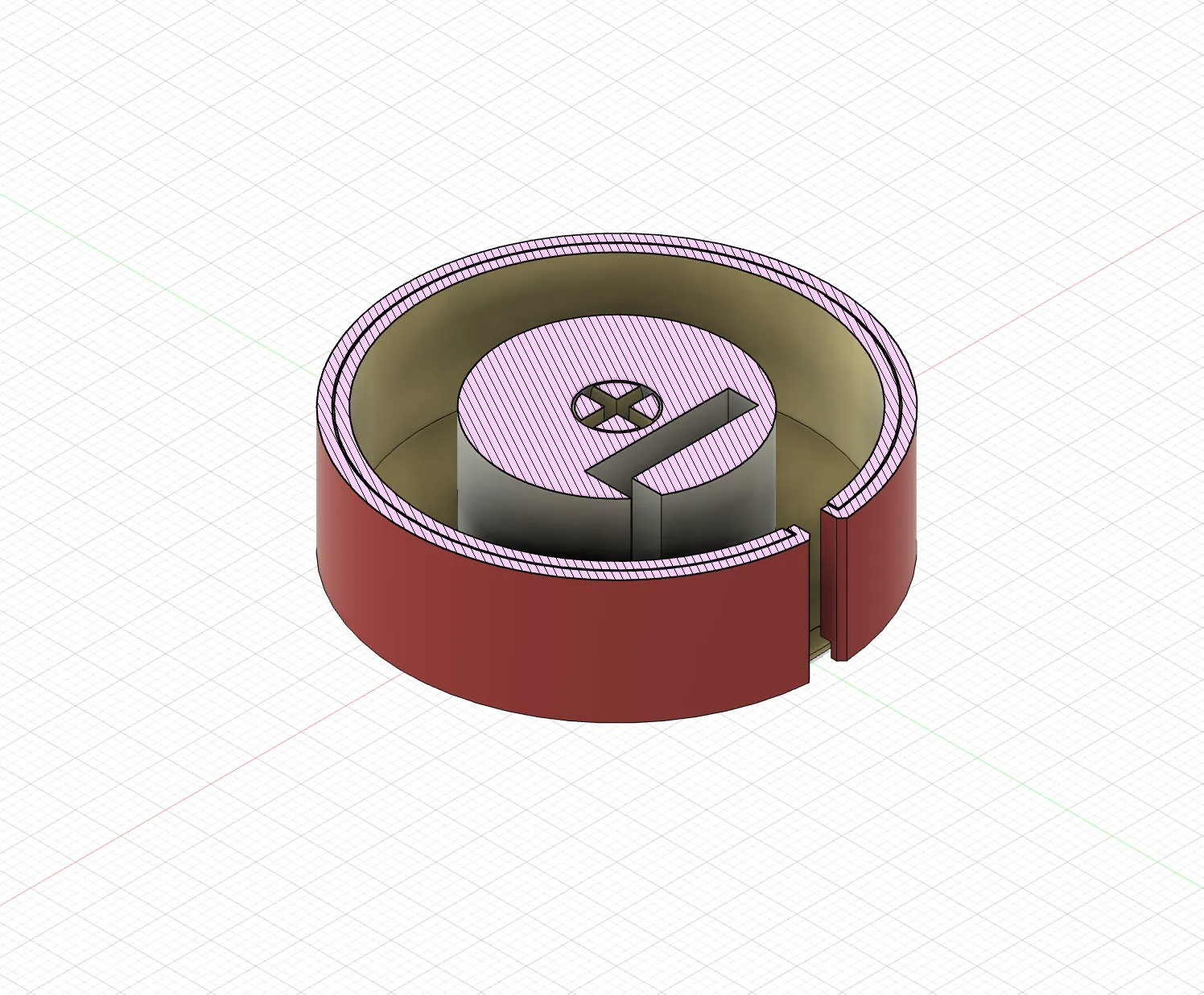

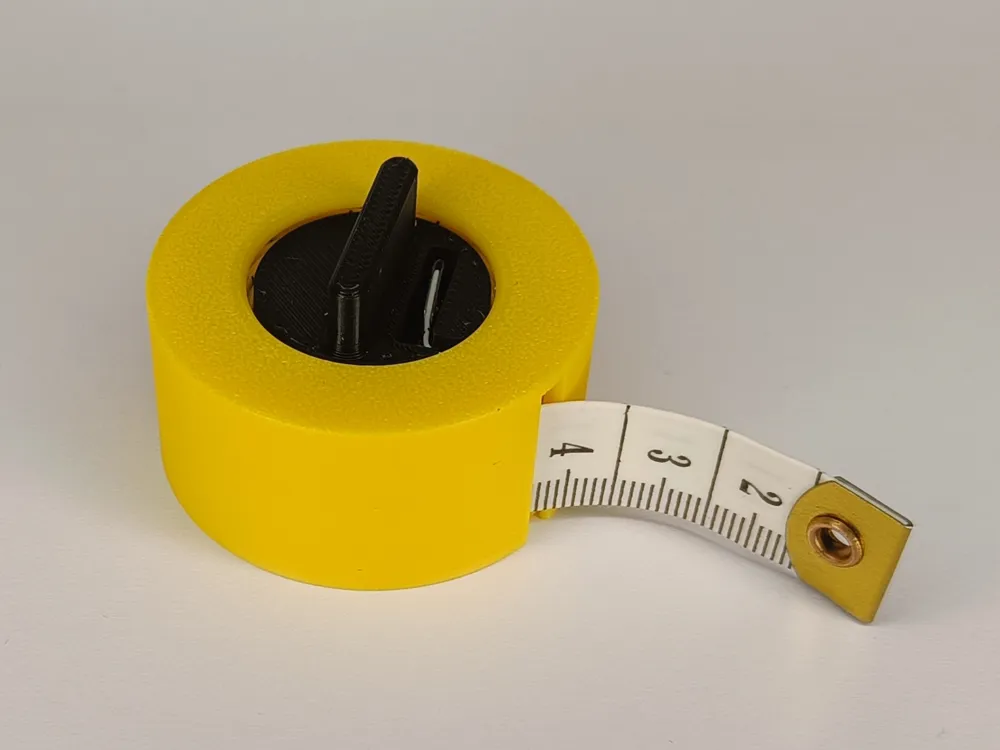

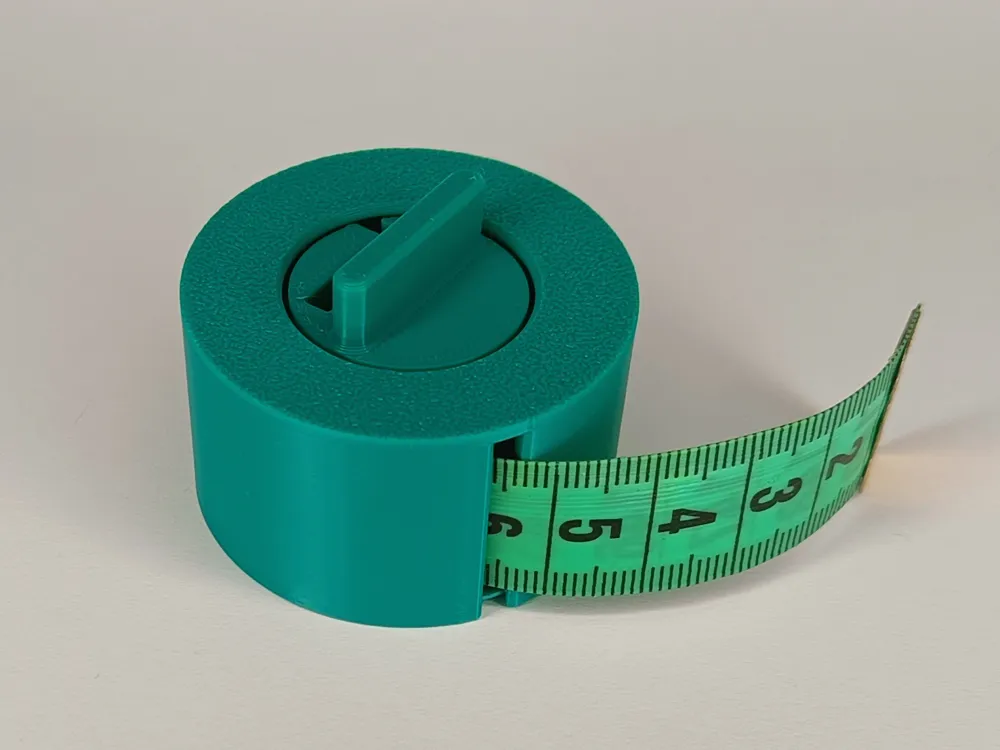

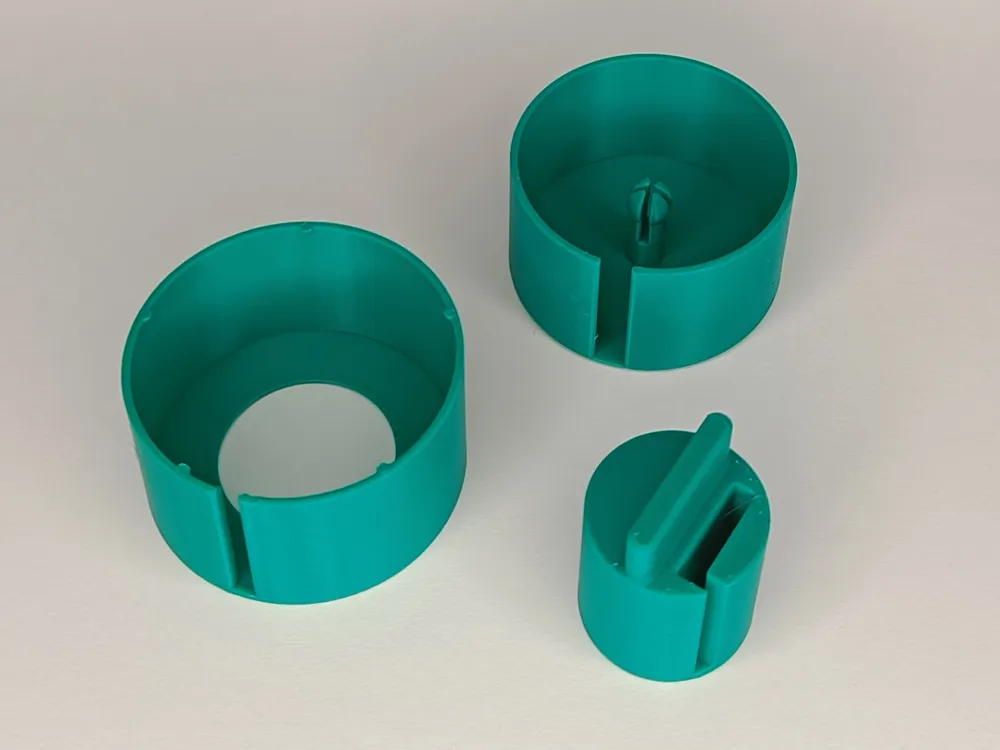

I printed this on my Bambu Lab P1S in less than 35 minutes using a 0.2mm layer height, a 0.4mm nozzle, and 15% grid infill. You’ll need to print three parts: the roller, base, and lid. After printing, insert the roller into the base and load the measuring tape. Finally, place the base with the tape into the lid by gently stretching the walls of the lid. Ensure the locking teeth fit securely under the base to prevent the case from opening.

Changelog:

25.10.2024

Added a second, alternative version of the roller component, which can be loaded from the bottom instead of the top (thanks @Lars_690). Remember to load the tape before placing the roller in the case!
