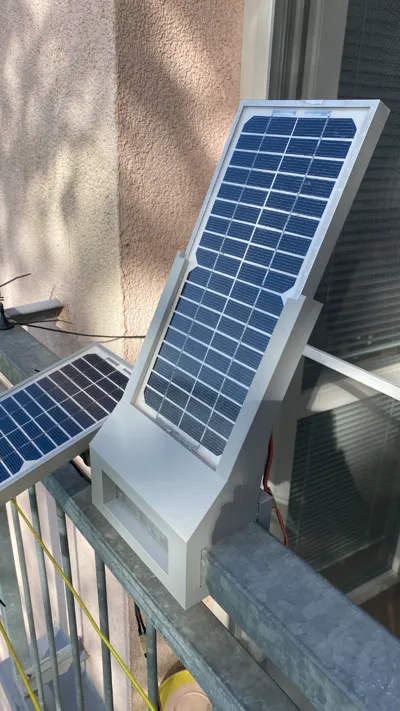

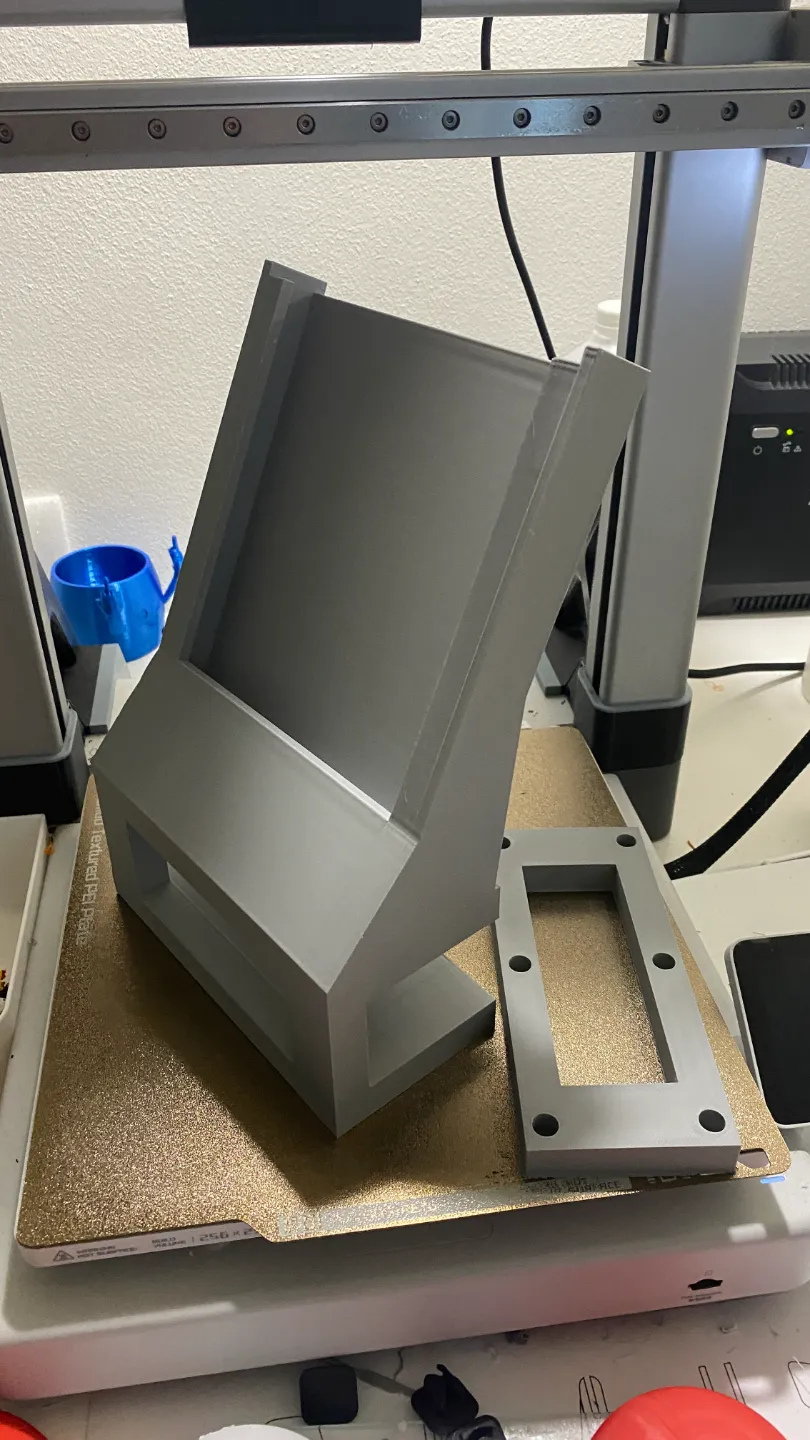

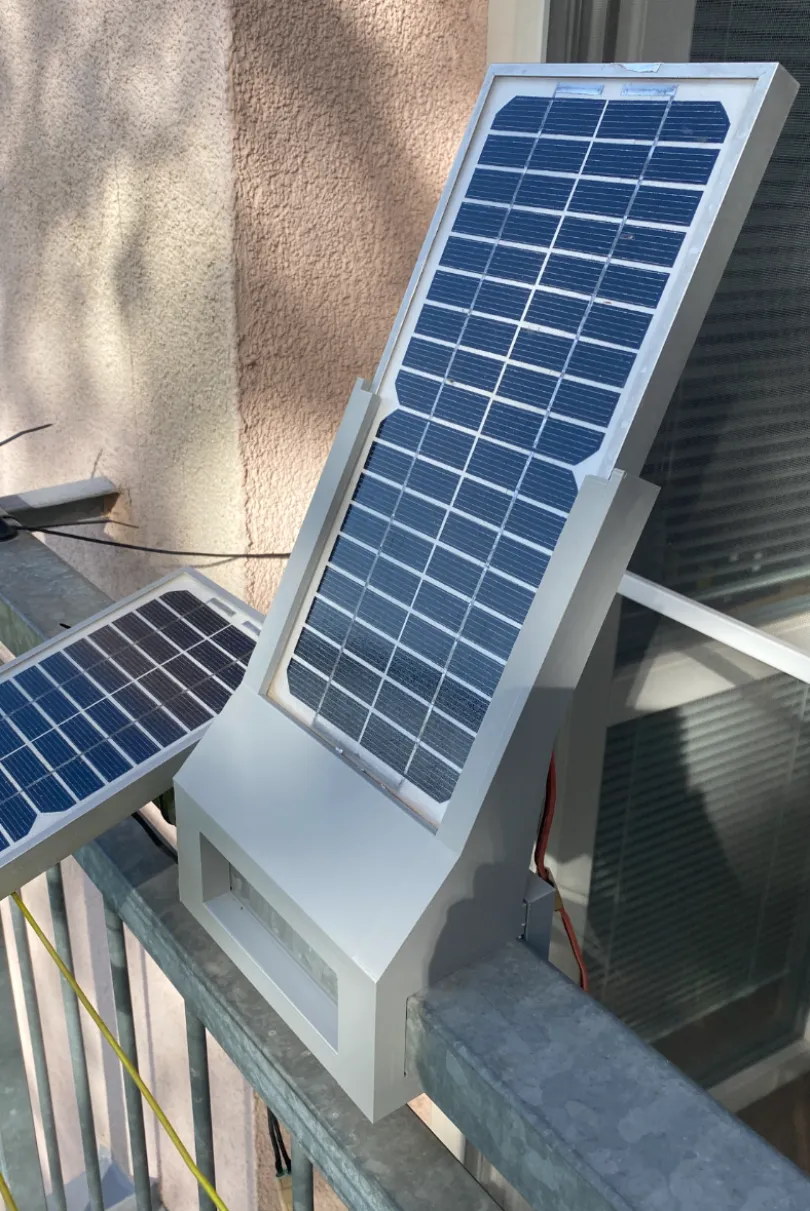

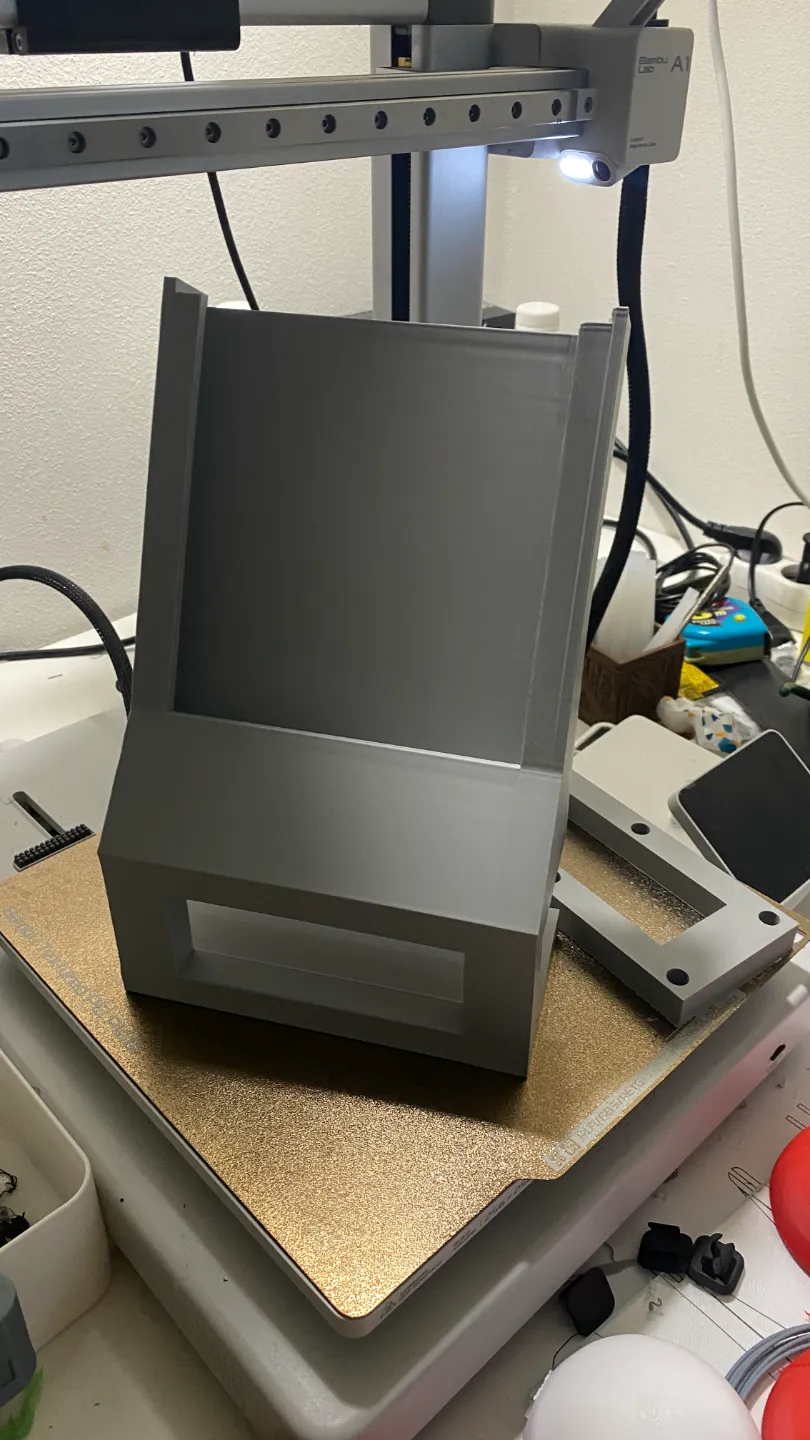

Since winter is coming, I had to change the angle of the solar panels on the balcony again. The winter slope is set to 65 degrees. So I created a simple holder for solar panels that is easily mounted on the balcony.

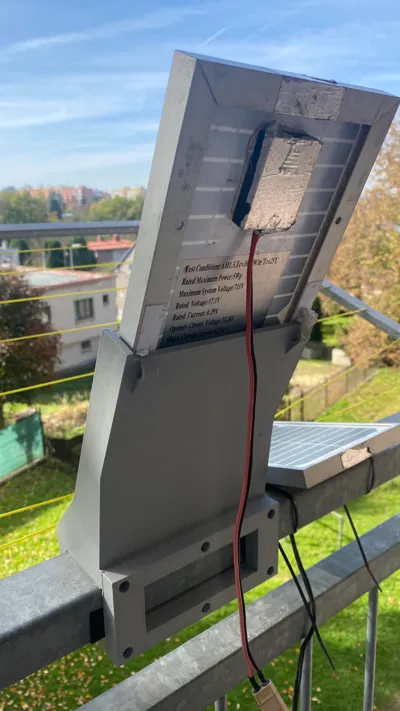

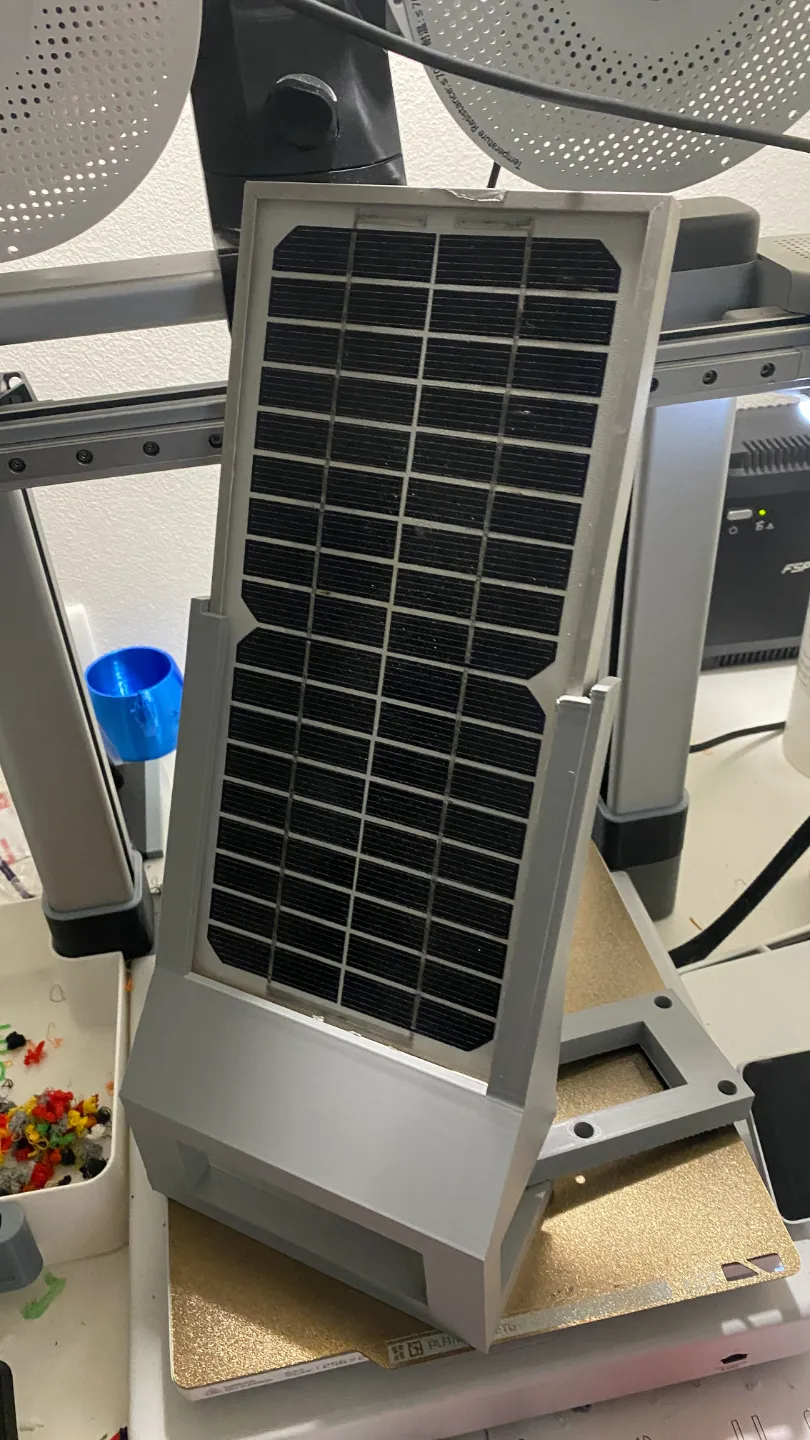

- The solar panels simply slide in and the bracket is mounted on the railing.
- The size of the handrail is 60 mm long and 40 mm high. The TPU rubbers are then used to limit the clearance so that the holder holds firmly.
- The solar panel measures 311 mm high, 152 mm wide and 17 mm deep.
- For assembly, you also need 4-6 M4 nuts for plastic and 4-6 10mm M4 screws.
- There are also two lugs either for the safety of fixing the solar panel (if the structure falls apart due to wind, winter, snow) or for attaching the whole assembly to the railing for safety.
