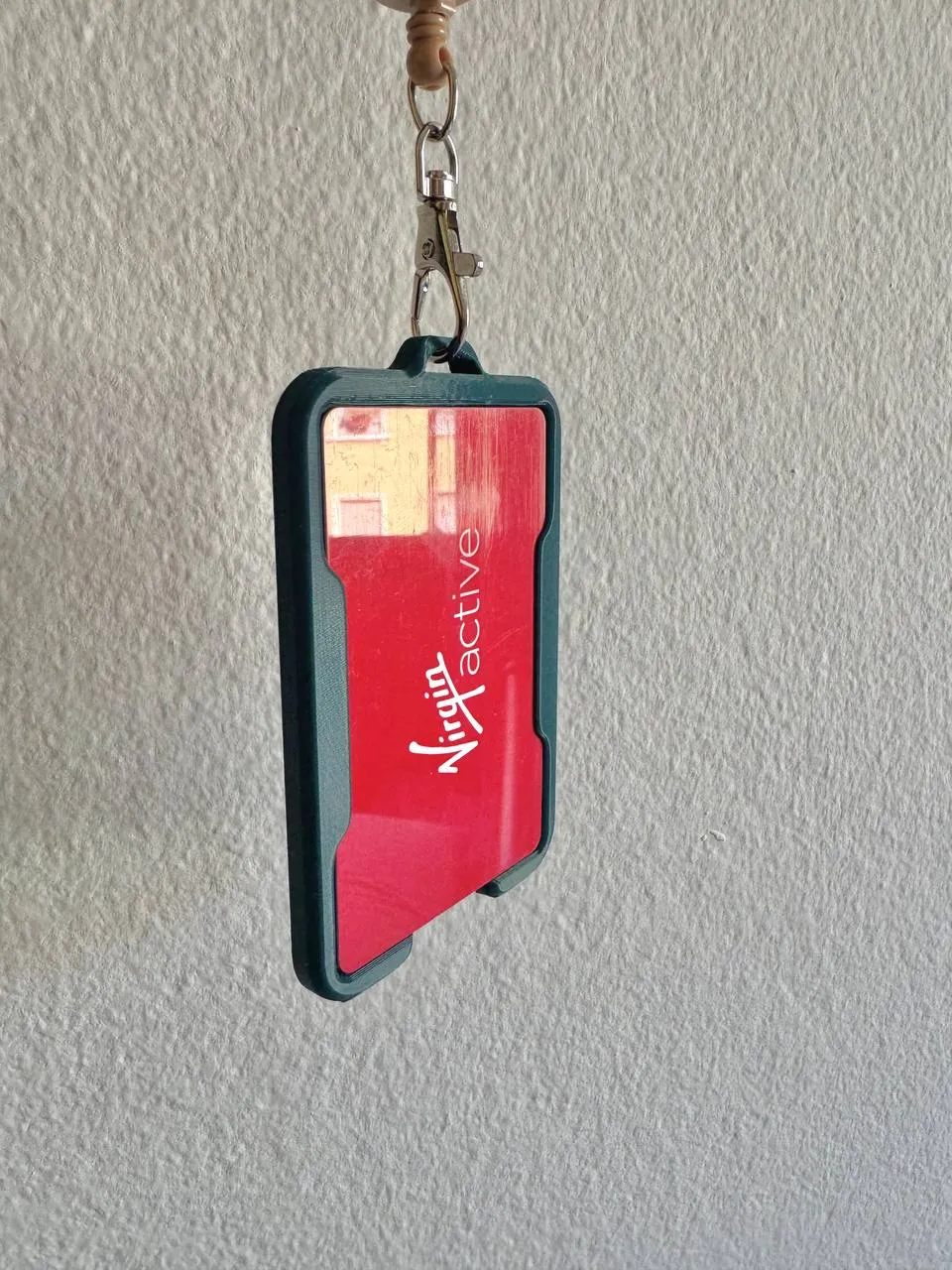

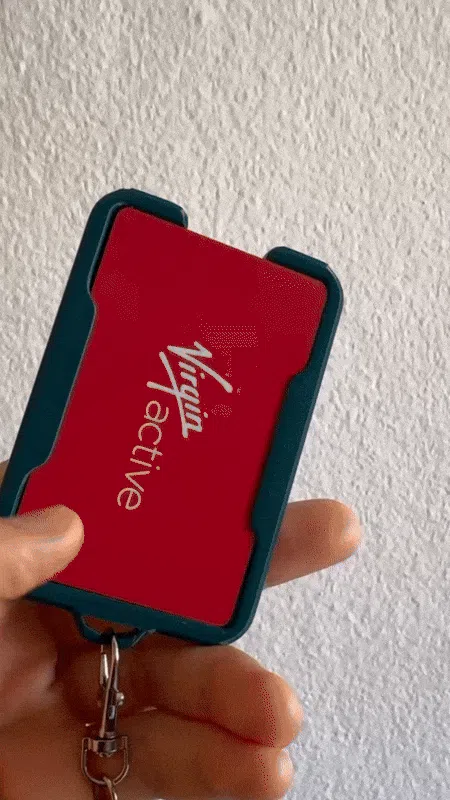

A simple badge/ id card holder with slip-in design.

NEW VERSION!

Use it while traveling, commuting from home to work, or whenever you need it.

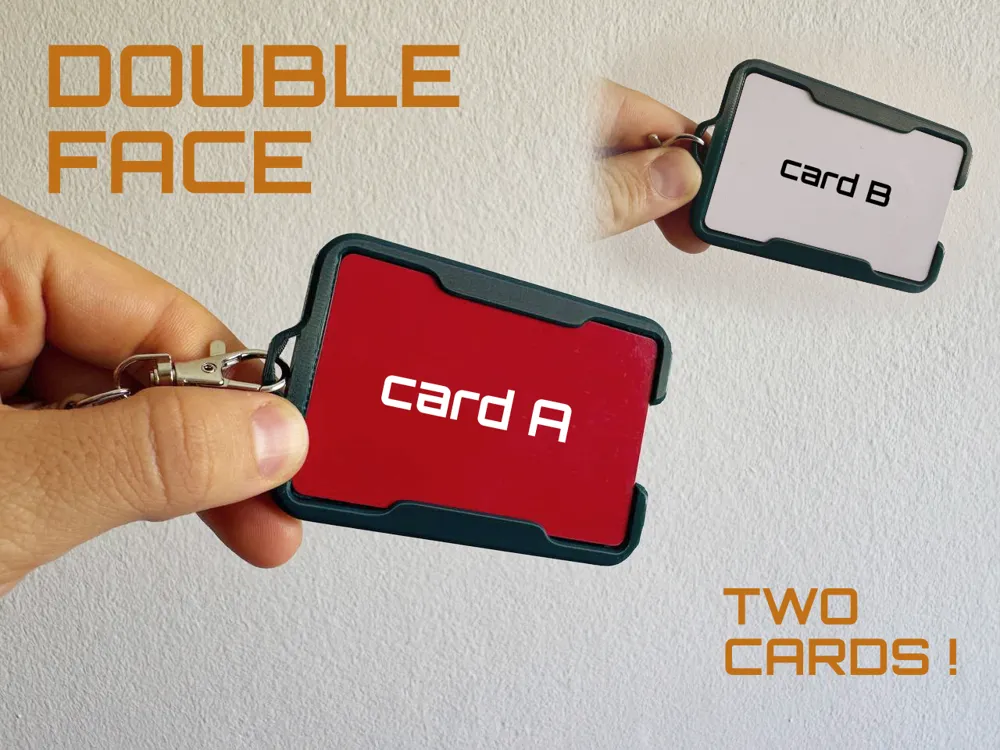

This design allows you to carry up to two card at the same time. For expample, you can put on one side your office badge and on the other side the travel card. One holder for all.

Main Features:

Vertical Print - Optimized to be printed without supports

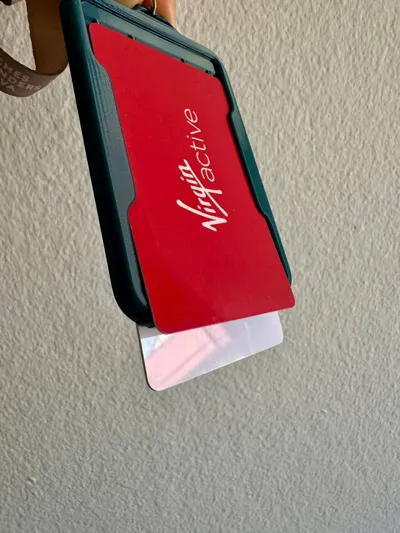

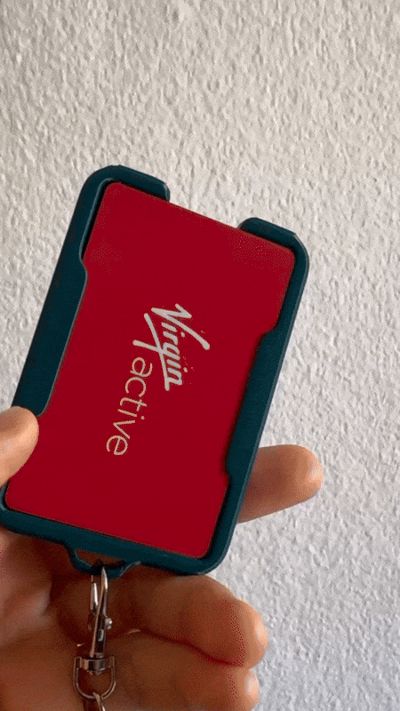

Slip-in design: fast insert and removal of cards
Double face design

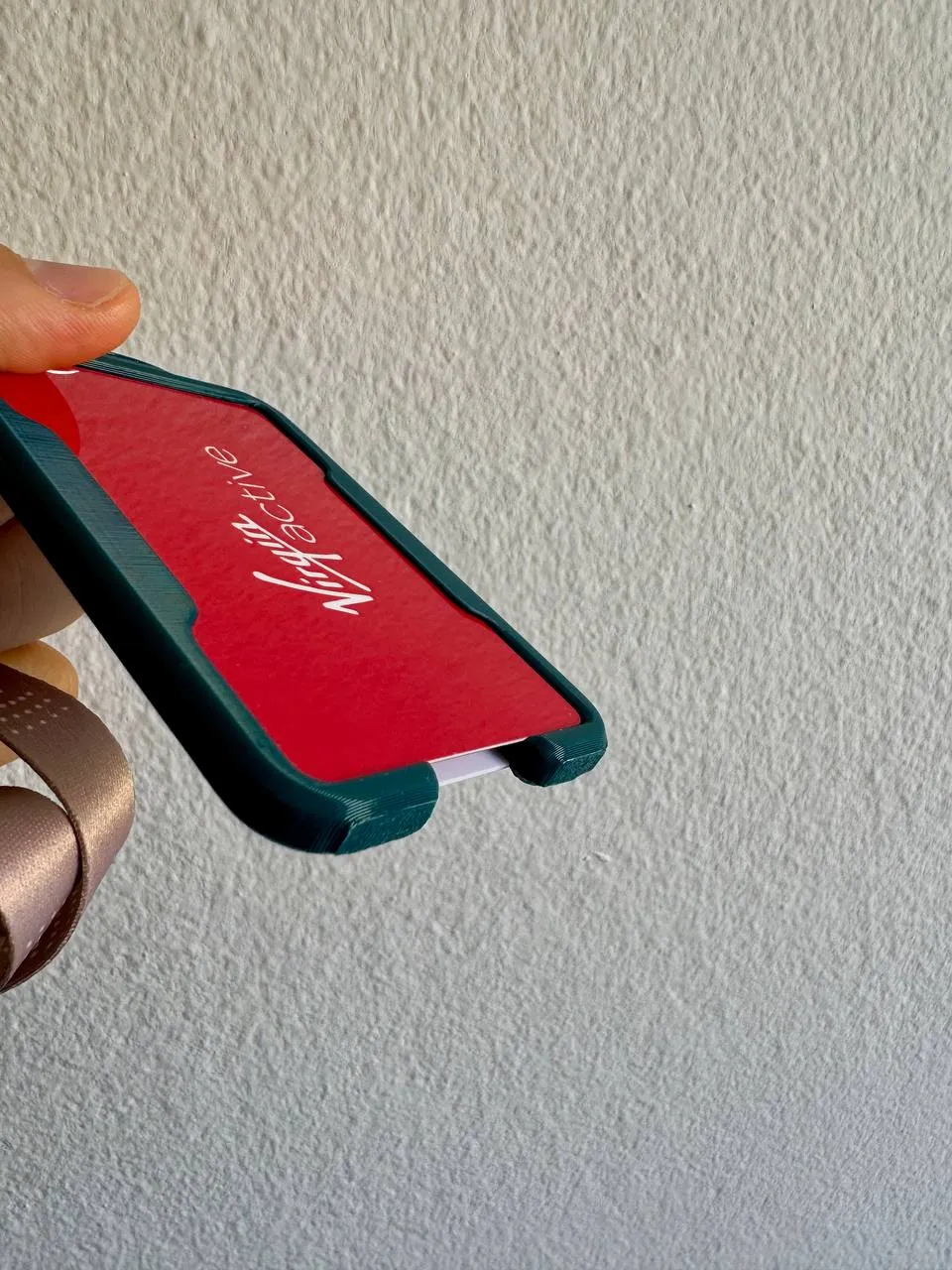

Up to two cards at the same time with easy access
VERTICAL and HORIZONTAL, check print profile section

This print profile uses brim to maximize the adhesion on the bed. The settings are set to make it easy removable. After the removal some subtle white lines could remain at the bottom, you can gently clean them with a sharp blade or some fine abrasive paper.

Check also the other versions:

1 card slot version - SINGLE SIDE - Vertical print
1-2 card slot version - SINGLE SIDE FLAT and FAST PRINT

Since I don't like printing with supports I tried to optimize the design and settings to print it without them. I tried many orientations and versions with supports but I encountered issues with removal or surface quality.

Use the settings provided to ensure the best performances. TESTED ON THE P1S.

Please if you test or optimize this to be printed on the A1 series, please consider sharing the print profile!

Post your print in the comment and show what color have you chose!

Thumbs up if you like the design!

Consider to boost if it deserves :D

Boost Me (for free)

If you like it, boost it!

Boost Me (for free)

Enjoy my models? Please consider following me, leaving a comment, like, and Booooooost! :)

Comment & Rating (969)

@vlad42

Print Profile

VERTICAL_0.2mm layer, 2 walls, 20% infill

Great print! Holds two cards nice and tight, looks very durable as well. I break these things on a weekly basis, so very to have an option to print it out like that!

@user_4277299789

Did you use the original size

Show original

@vlad42

Replying to @user_4277299789 :

Yes, I did, it fit both cards nicely

@barvap

Superb print This is my first vertical print without supports and there were no issues 👍 I printed it using the default profile for my daughter The cards fit well Printed on a Creality Ender 3 V3 KE If I could I would have given it 5 stars ⭐️

The designer has replied

Show original

@Angeloz

Thank you very much for the nice review! indeed the model is designed to be printed without supports so I'm glad everything worked as expected

Show original

@Naviathan

Boosted

Excellent model! My ID carrier I keep on my lanyard for work snapped and I couldn't find a replacement that took two cards locally. Sure, I could have ordered off Amazon, but this is so much better. Solid design and I can print in whatever color I want. I printed it in a translucent blue PETG for a little kick of color and effect. Great design! It printed perfectly on my X1C. Thank you!

The designer has replied

@Angeloz

Hi, thank you! happy that you like it. I use it every day printed in tough PLA but with zero infill and only one wall because it was a fast test print, I was lazy and I didn't print it again sturdier but works surpisingly well anyway.

@aidadator

Print Profile

VERTICAL_0.2mm layer, 2 walls, 20% infill

a lot of stringing present can you make a side for slightly thicker cards

Show original

@aidadator

I think half a millimeter would be good

Show original

@user_1329859848

Mine also came out with these coarse threads

Show original

@ledmelo

This is configuration in your slicer

Show original

@Skypioneer9

Print Profile

VERTICAL_0.2mm layer, 2 walls, 20% infill

very cool worked very well

The profile uploader has replied

@Angeloz

Excellent!

@nadnerb33

Boosted

Print Profile

VERTICAL_0.2mm layer, 2 walls, 20% infill

works great. could be a little tighter as the cards rattle side to side

The profile uploader has replied

@Angeloz

Hi! this is due to the dimensions that slightly change from card to card. there are some that fit tighter, other that altre looser. As well as some are thicker and other thinner

(Edited)

@nadnerb33

Boosted

Replying to @Angeloz :

thanks, makes sense

(Edited)

@killer_prints

Print Profile

VERTICAL_0.2mm layer, 2 walls, 20% infill

printed perfect, thank you.

@Foxart

Boosted

printed in PETG-CF no supports beautiful and fully functional,thanks!

@Bekkenes

Print Profile

VERTICAL_0.2mm layer, 2 walls, 20% infill

printed very well , cards sit nice and snug. i printed in yellow and it's really yellow and nice, sadly pictures didn't show properly due to lighting. recommended for those of use that wear access cards at work

The profile uploader has replied

@Angeloz

Happy to hear that you find it useful! thanks!

@zzul.aiman

Print Profile

VERTICAL_0.2mm layer, 2 walls, 20% infill

Nice design but for some card detector, it might detect card on the other side. But overall, it’s very practical if you want to centralise 2 cards on a same lanyard 👍🏻💯

The profile uploader has replied

@Angeloz

interesting! thanks for sharing this case
