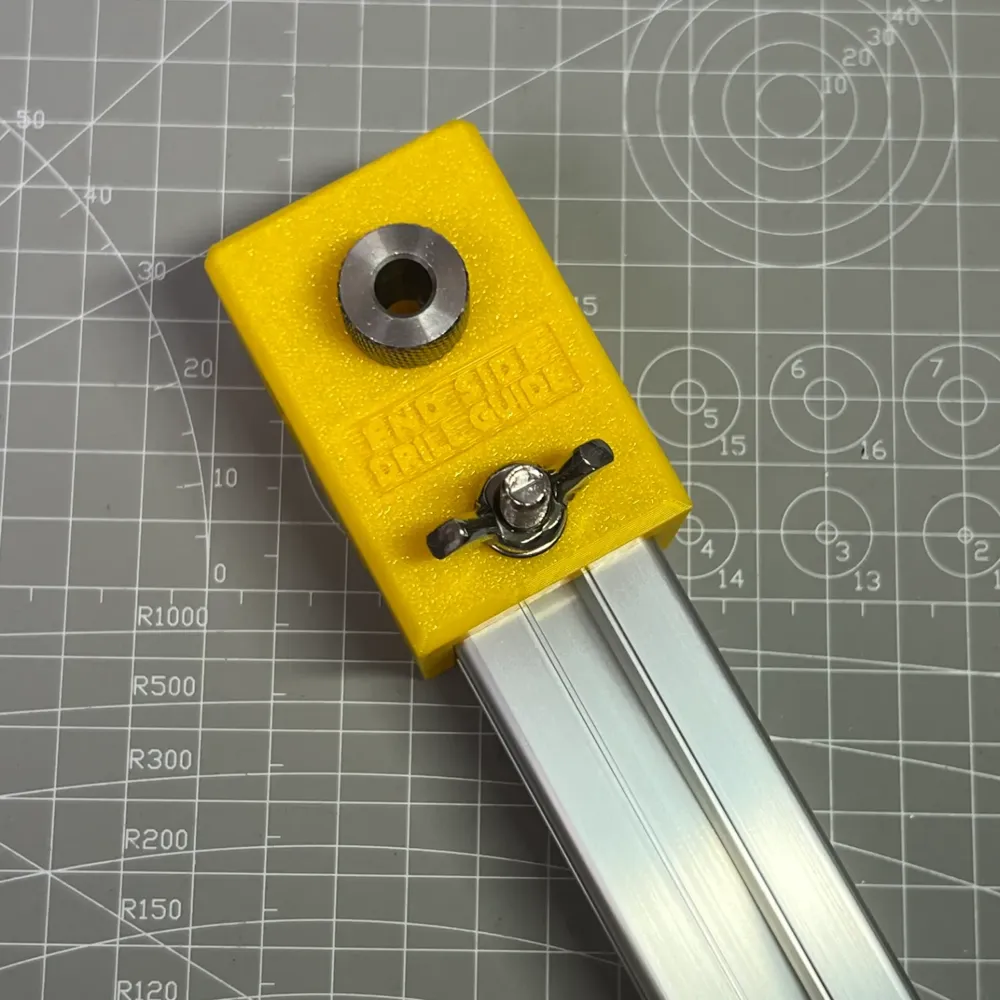

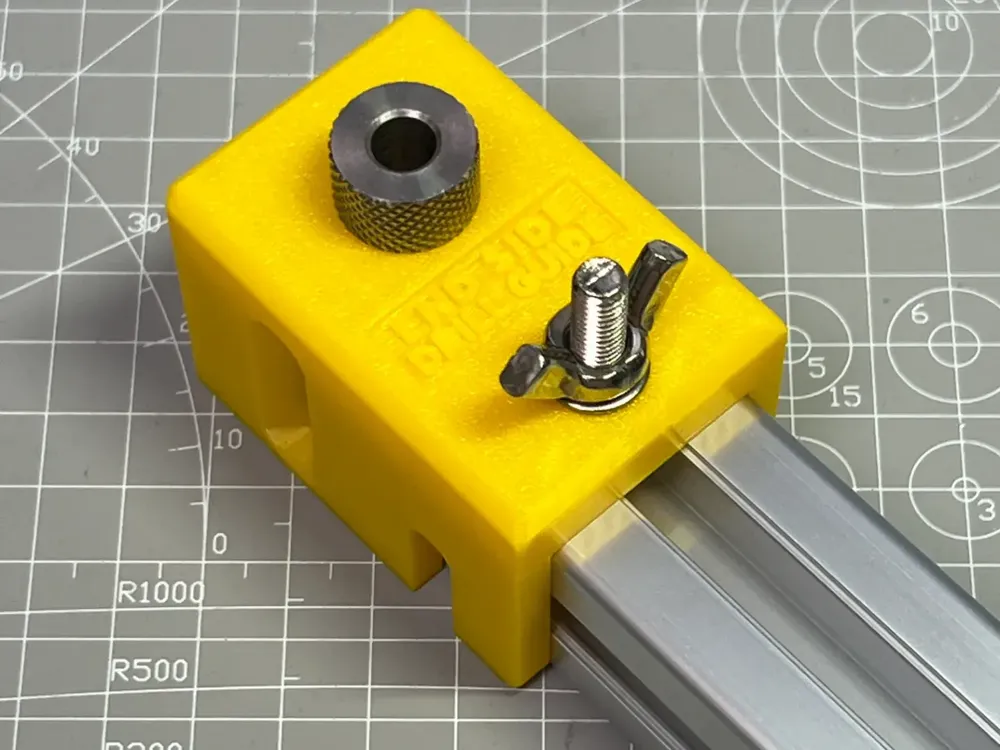

【3030】End Face Side Hole Fixture M14 Knurled Drill Bushing Version
Print Profile(1)
Description
All my works prohibit any unauthorized third-party sales. I have already contacted MakerWorld officials and will reserve the right to legal recourse.
The 3030 end-face drilling tool has also been in design for some time.
Thanks to the increased dimensions, the printing shrinkage error is also reduced.

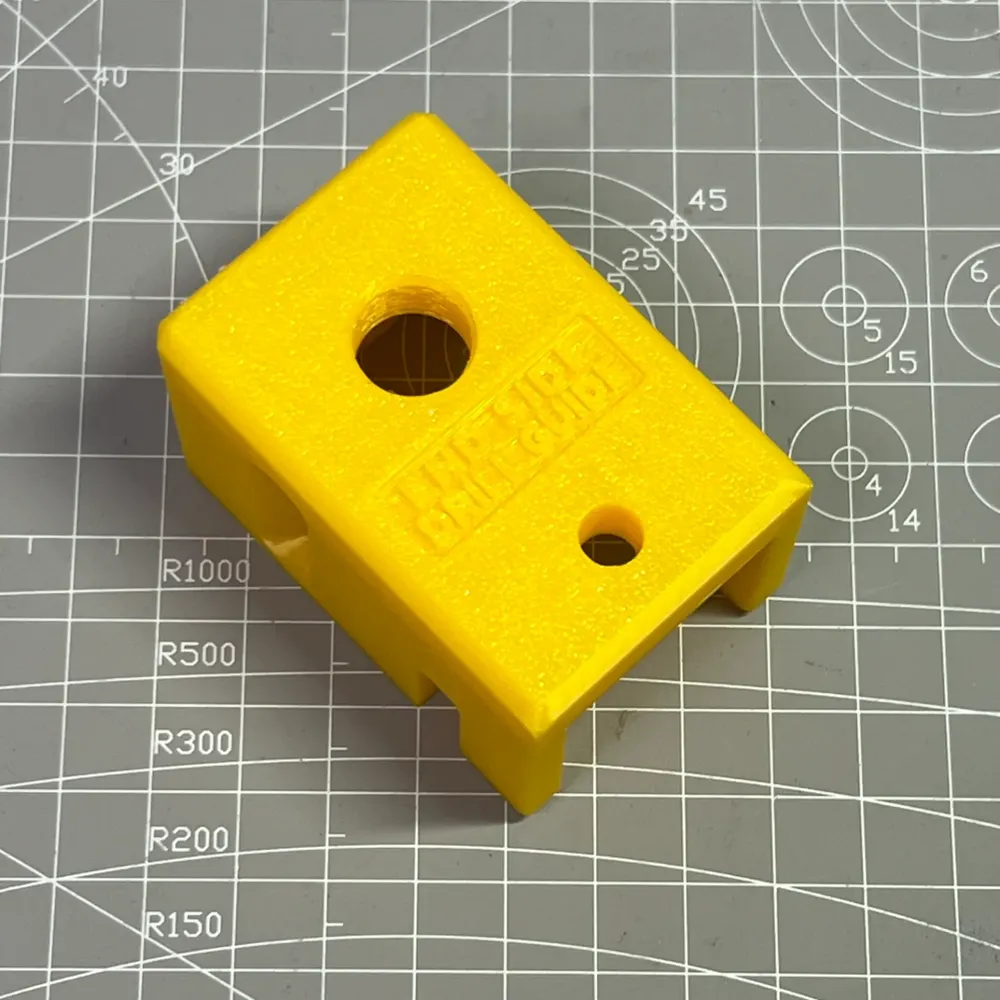

- Provides an observation window for positional verification
- Provides three mounting holes/slots, supporting a more flexible and secure mounting method
- End-face chip removal holes ensure smooth drilling
Parts List:
- Stainless steel knurled drill bushing, thread specification M14x1.5, inner diameter calculated according to the size of the hole you need to drill
- T-bolt, M6 specification, 25mm length
- Wing nut, M6 specification
- M6 washer
Boost Me (for free)
Support me to encourage the release of more 30-series tools
