20L 4-tier drying box bracket
Print Profile(1)
Description

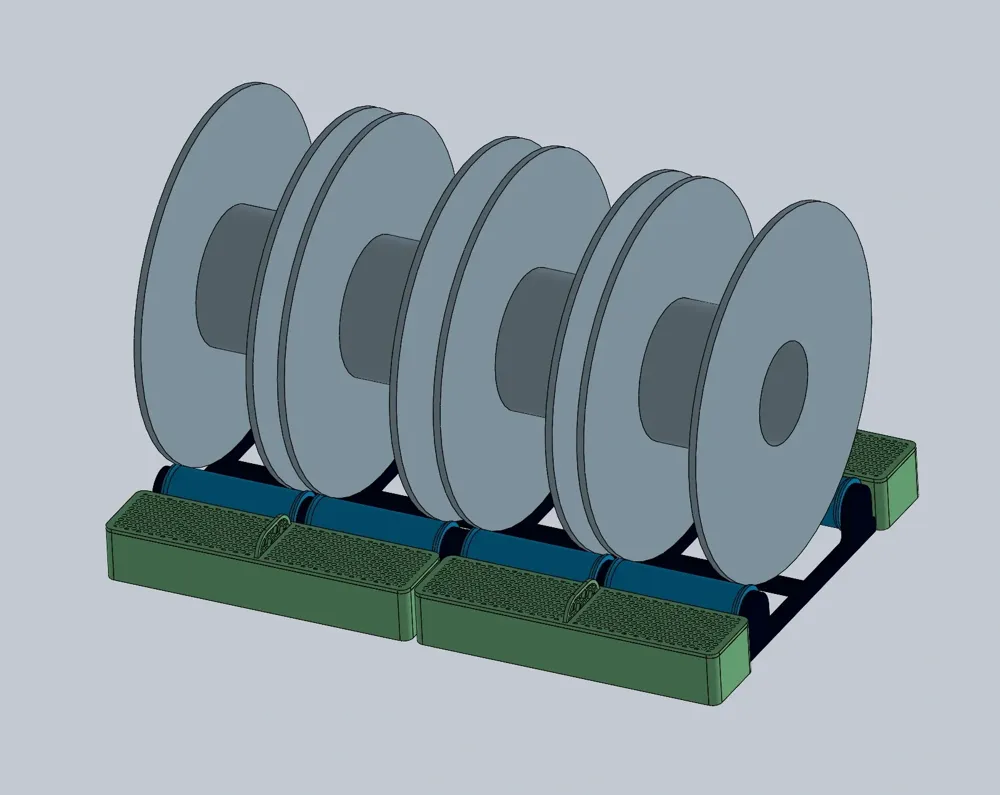

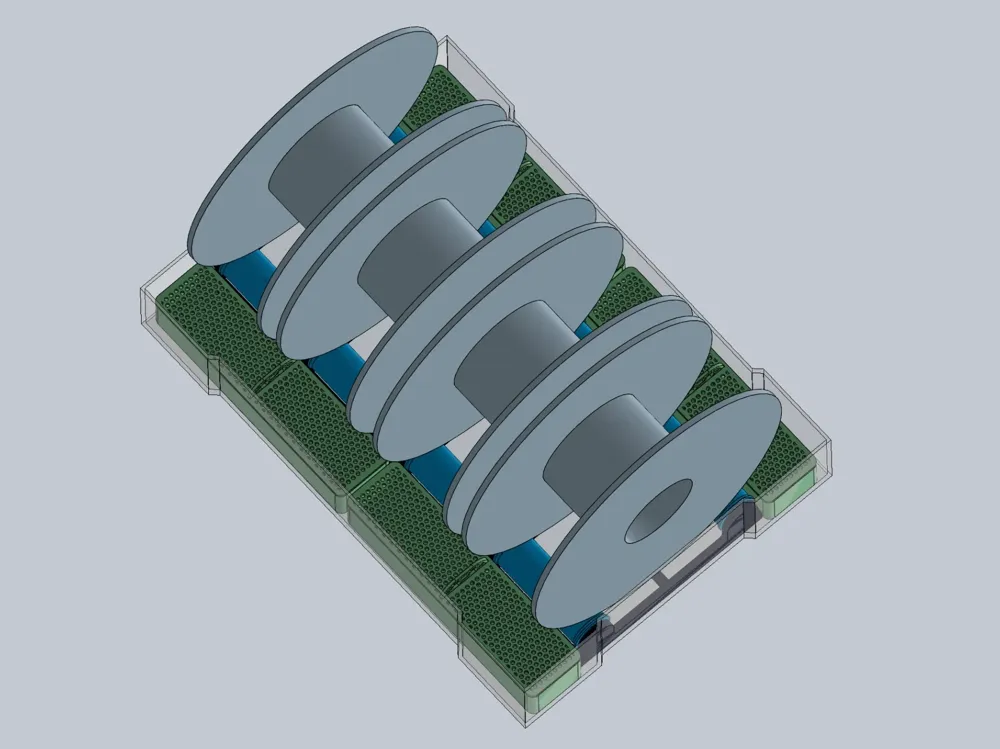

20L four-compartment desiccant box stand, printable for the A1 mini

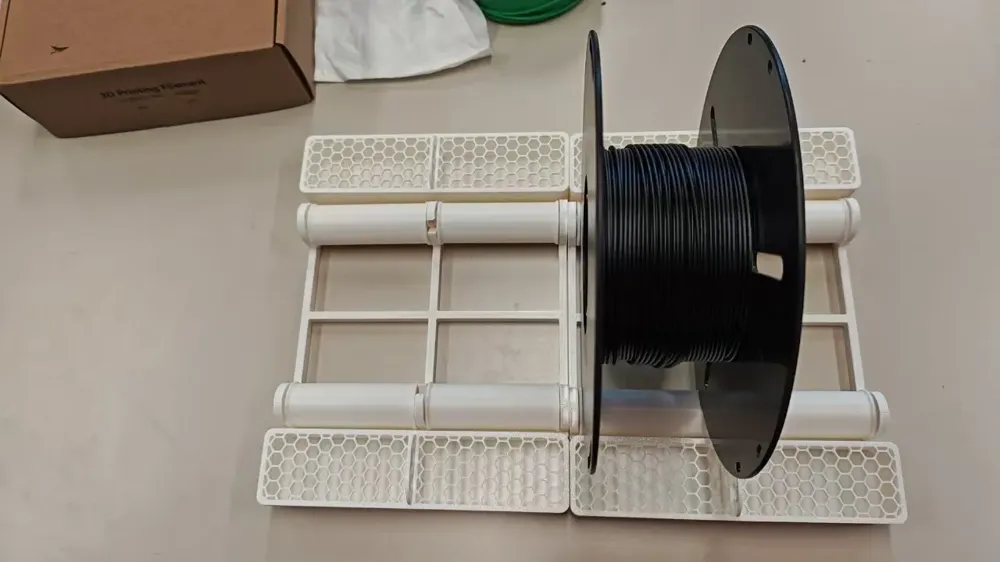

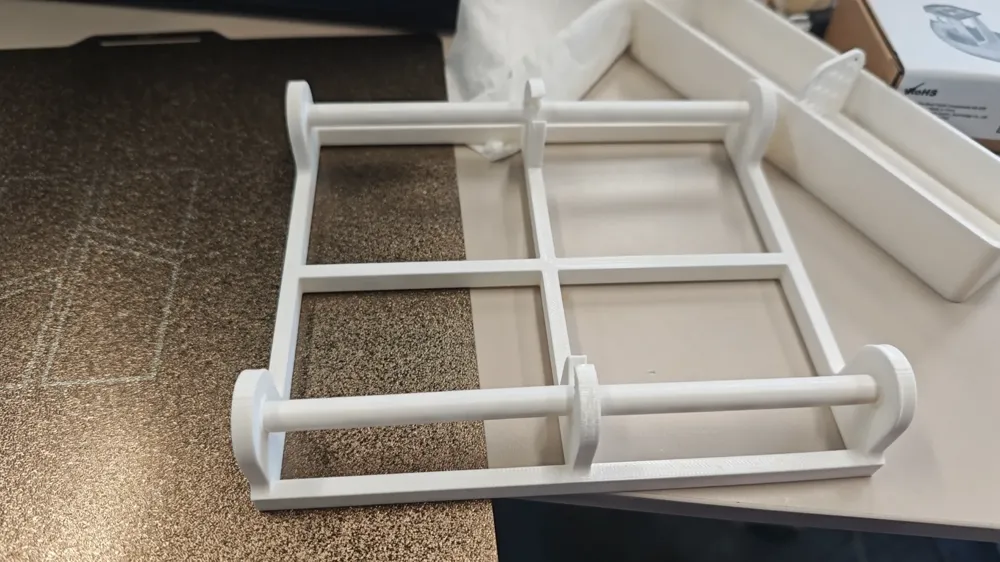

The roller requires minimal supports; other parts require no supports
Press along the centerline to secure the lid when closing
The following accessories are required:
| Name | Quantity | Estimated Total Cost |
|---|---|---|
| 20L enclosure (internal dimensions 35*24*24 cm) | 1 | 29.4 |
| M6 nuts (20 pieces) | 1 | 1.02 |
| 608Z bearings | 16 | 8.8 |
| Pneumatic connector PC4-M6 (straight-through is recommended) | 4 | 3 |
| PTFE tubing (2.5mm inner diameter, 4mm outer diameter) (per meter) | 4 | 3.76 |
| - | - | 45.98 |
2024.12.07 Update: Updated desiccant box lid, changing from hexagonal holes to small round holes to prevent desiccant (I use color-changing silica gel) spillage. Closing the lid may require slightly more pressure

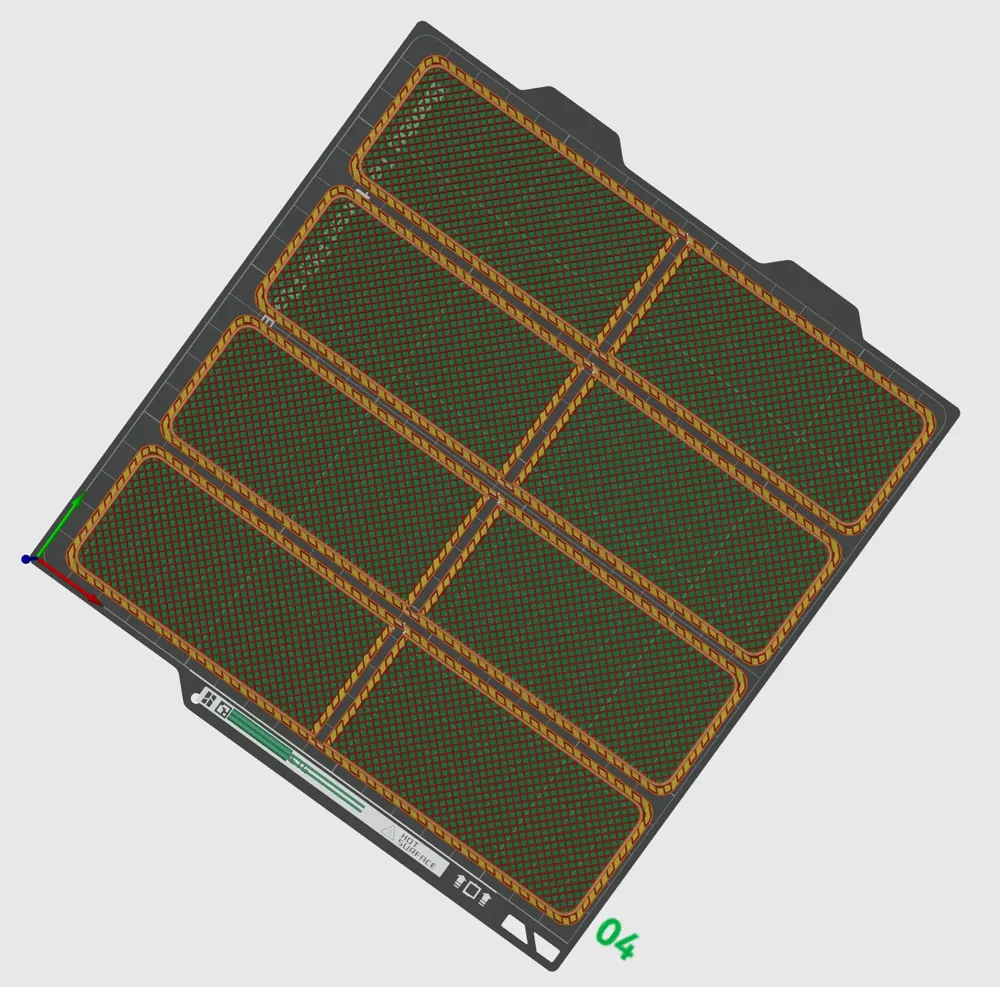

2025.01.08 Update: Updated desiccant box lid using a 0 top shell + 0 bottom shell method to reduce print time. Printing four lids now takes approximately 35 minutes
(Further details to be added…)
