Description
Content has been automatically translated.
2024-10-30 Update:
The distance between the waist-shaped holes of the storage box has been changed from the original 60mm to 40mm, in order to accommodate the staggered pegboard.
——————————————————

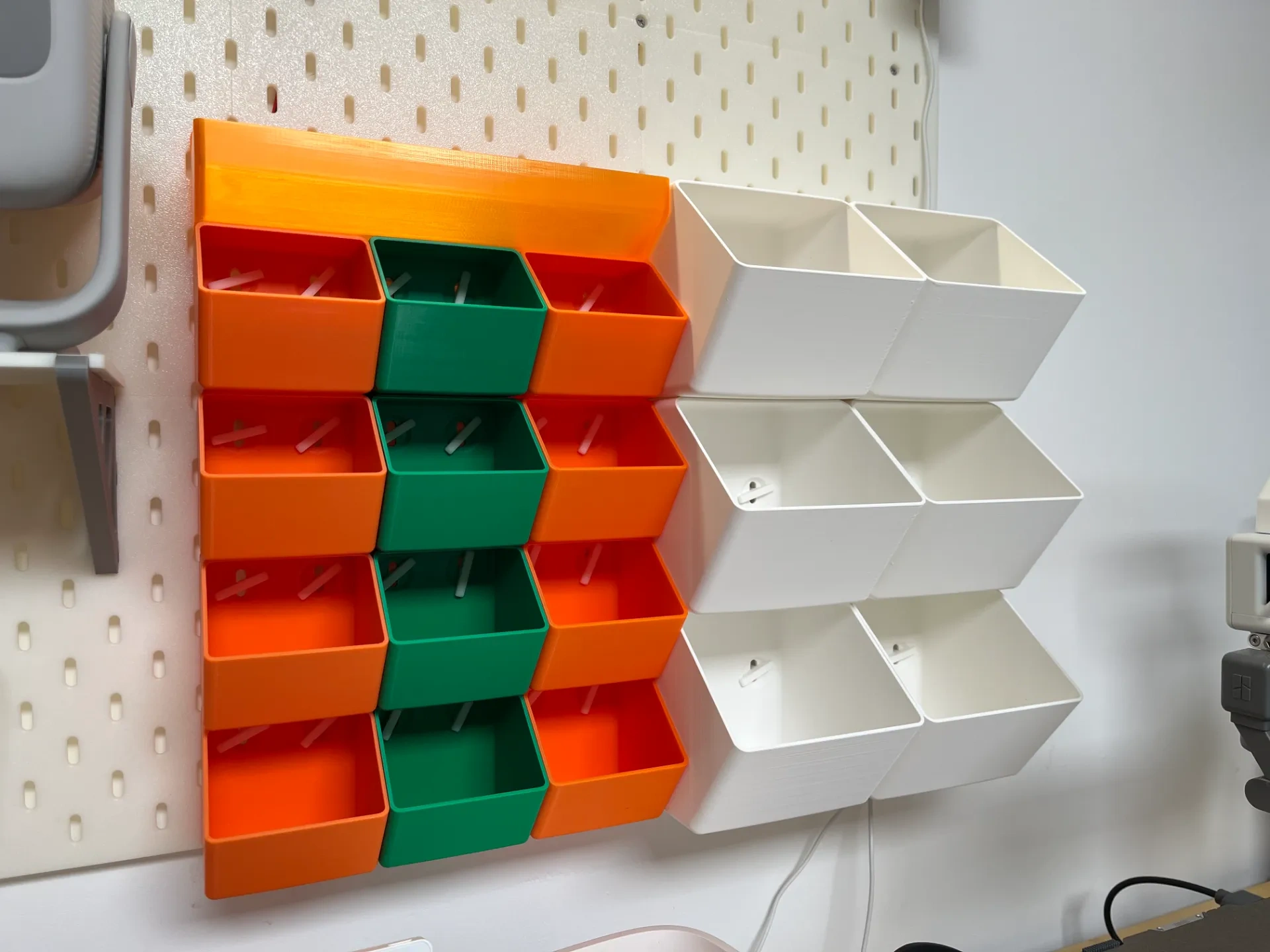

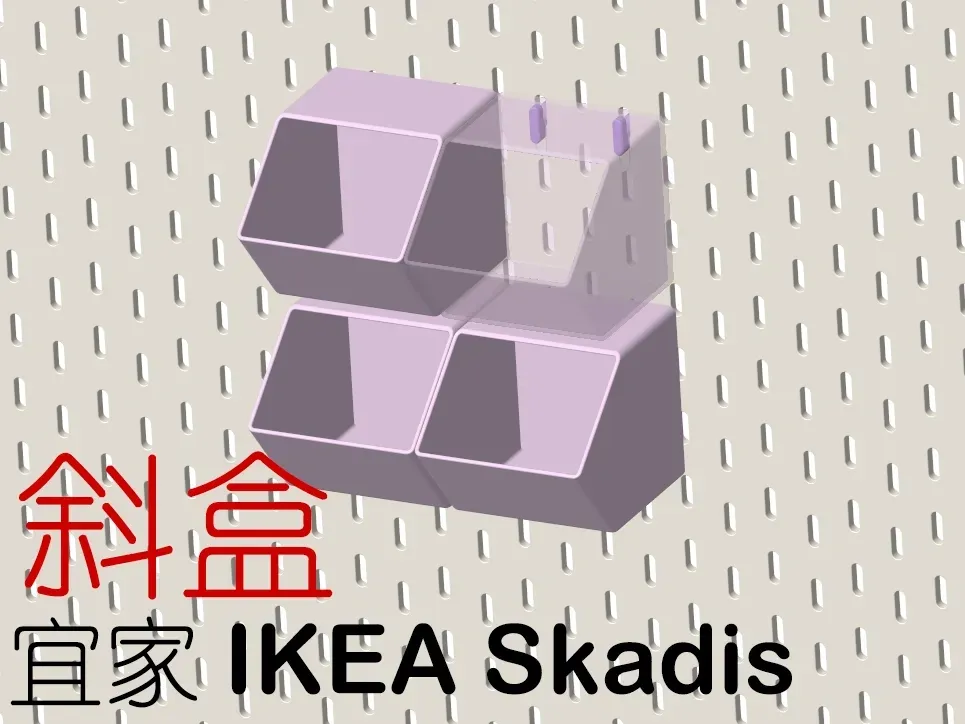

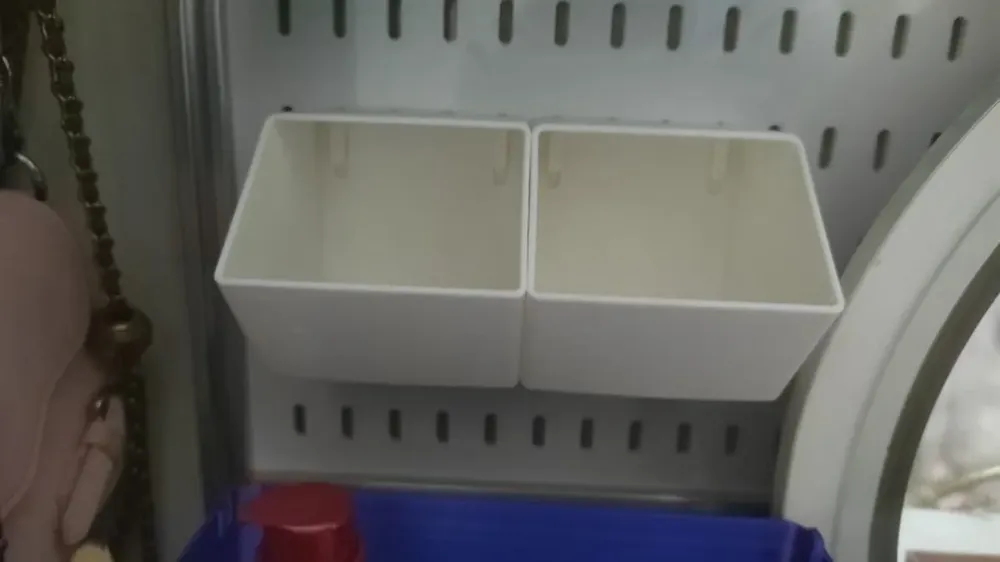

A storage box compatible with pegboards, its installation method is as follows:
- First, snap the buckle into the waist-shaped hole of the pegboard.
- Align the hole on the slanted side of the box with the buckle and push down, completing the installation.

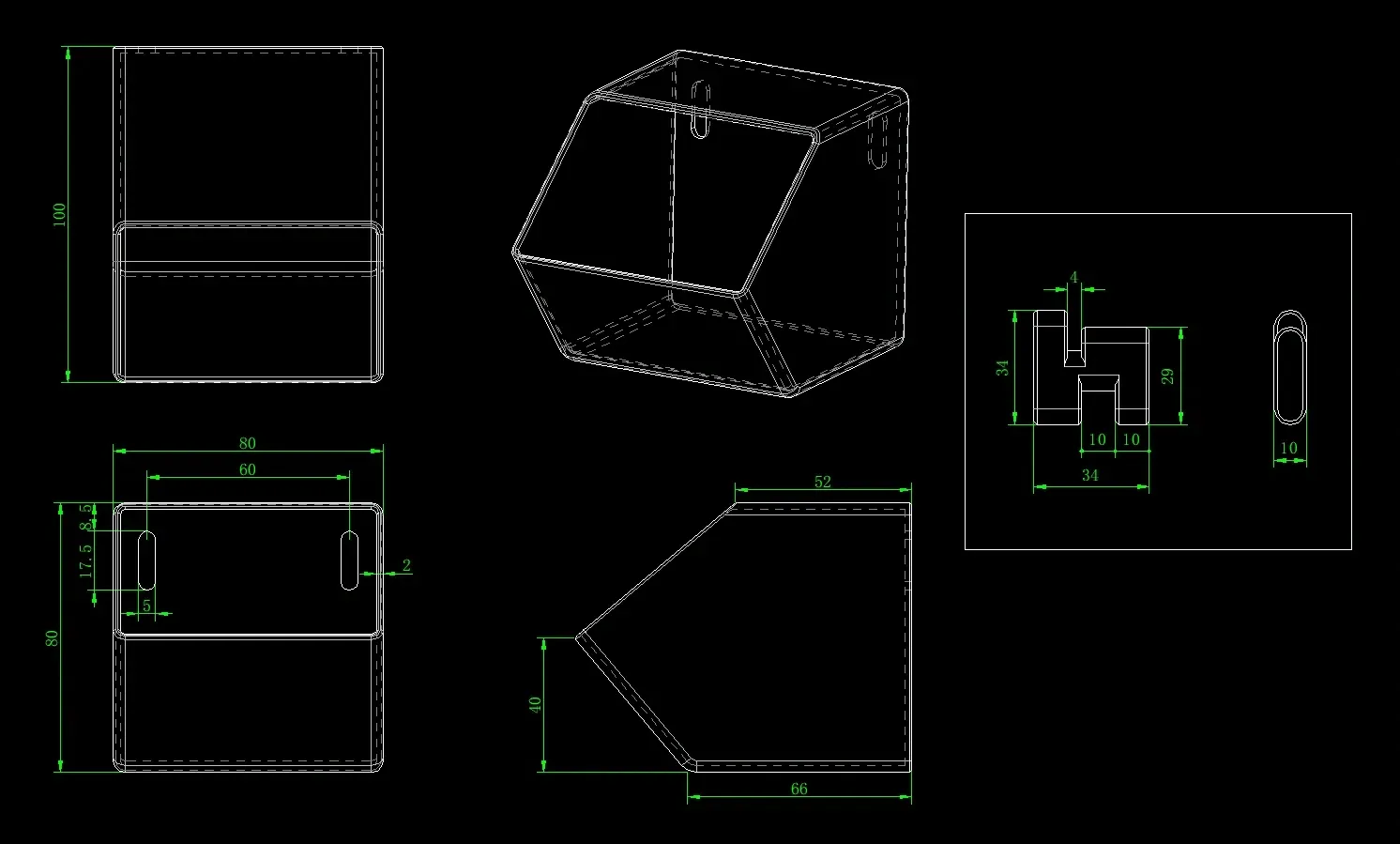

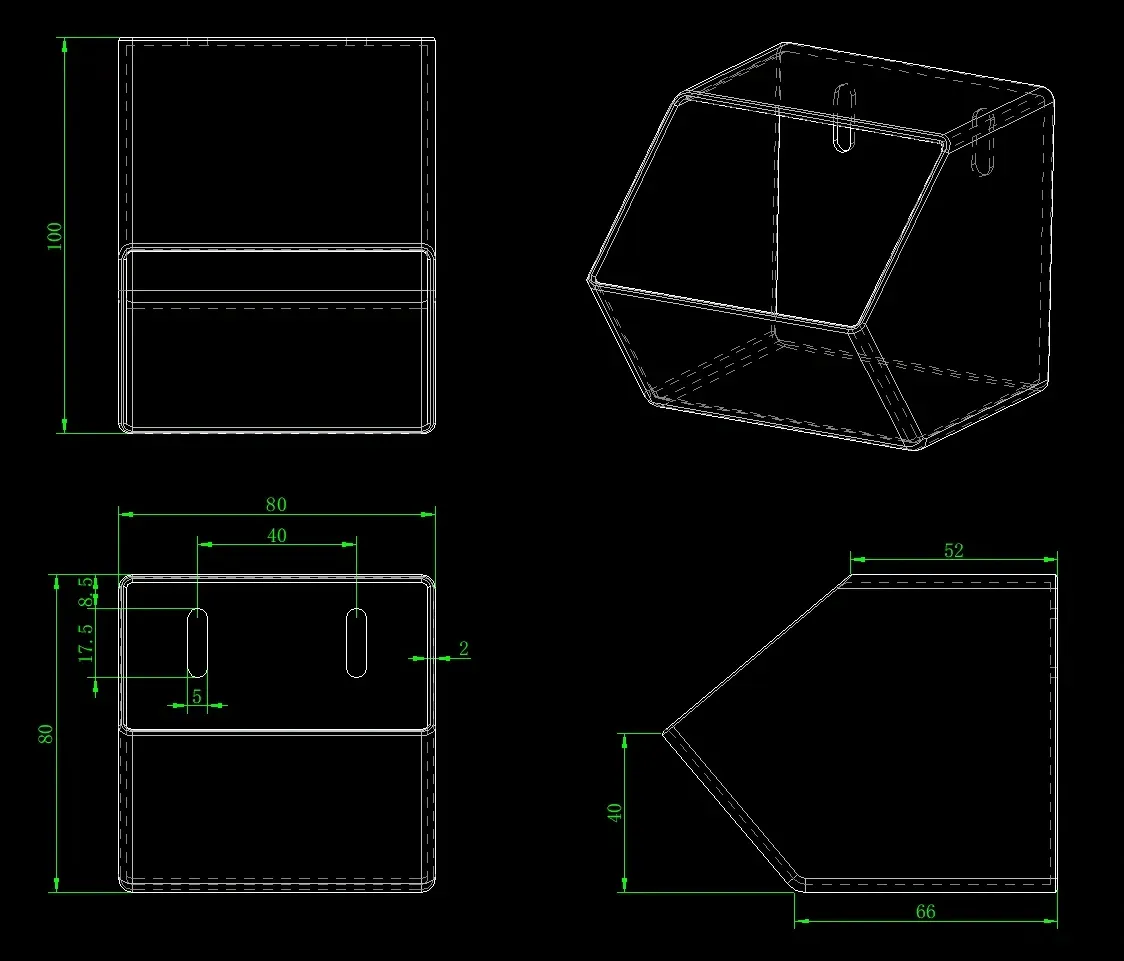

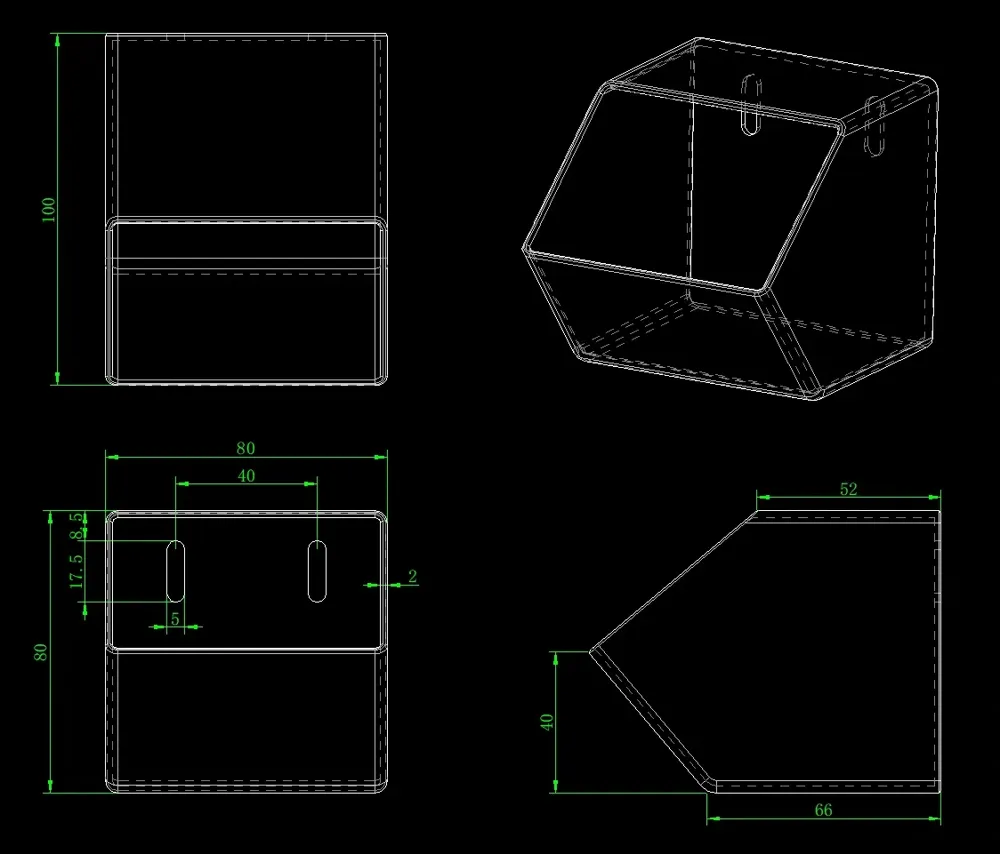

Detailed dimensional diagram:
————If you need other accessories, please click here《Pegboard Accessories》 to download and print————
