TONUINO AiO+ Music Box
Print Profile(1)
Bill of Materials
- TonUINO All-In-One-Plus Platine x 1:
- Lautsprecher FS5045 x 1:
- TonUINO Button Cable 10xQC x 1:
- TonUINO All-In-One Blende x 1:
- Akku 3.2V 6000mAh Pack mit Schutz - Arduino/ AiO Spezial - JST-PH 2.0 Stecker x 1:
- Arcade Buttons 24mm x 33mm x 5:
- RFID-Modul (z.B. von AzDelivery) x 1:
- RFID Karten (13,56 MHz) x 1:
- USB-Netzteil mit 5,1V (z.B. Raspberry Pi Netzteil, keins mit QuickCharge!) x 1:
- M3x6 Senkschrauben x 30:
- M3x6 Zylinderkopfschrauben x 6:
- M3x16 Zylinderkopfschrauben x 6:
- M3x5 Einpressmuttern x 30:
- M3 Sechskantmuttern x 2:
Description

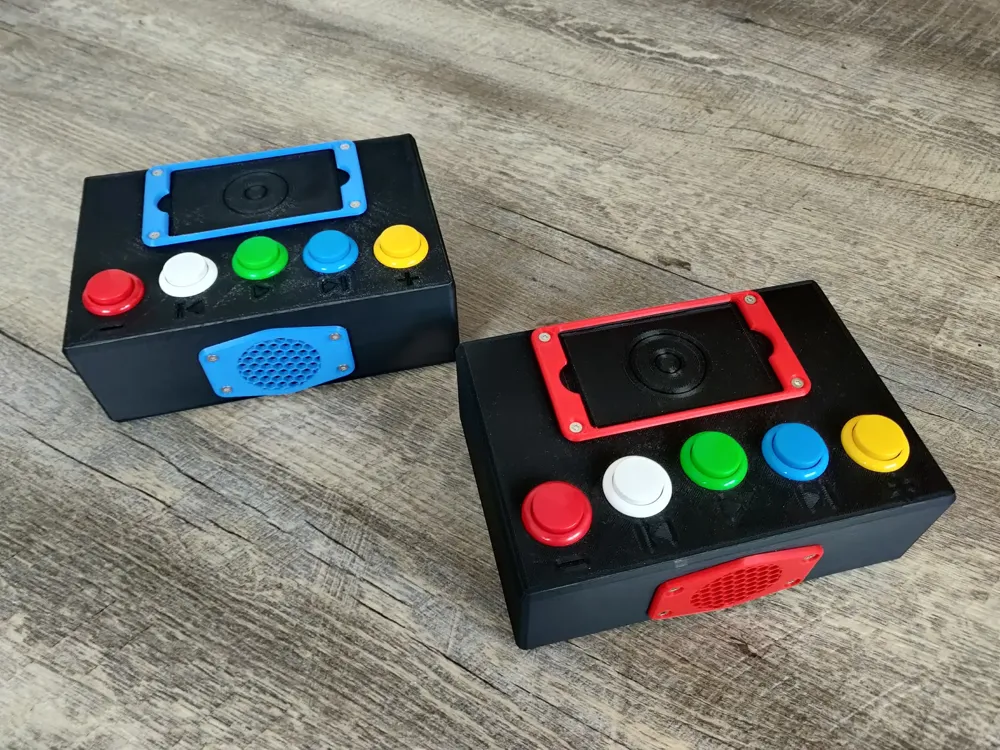

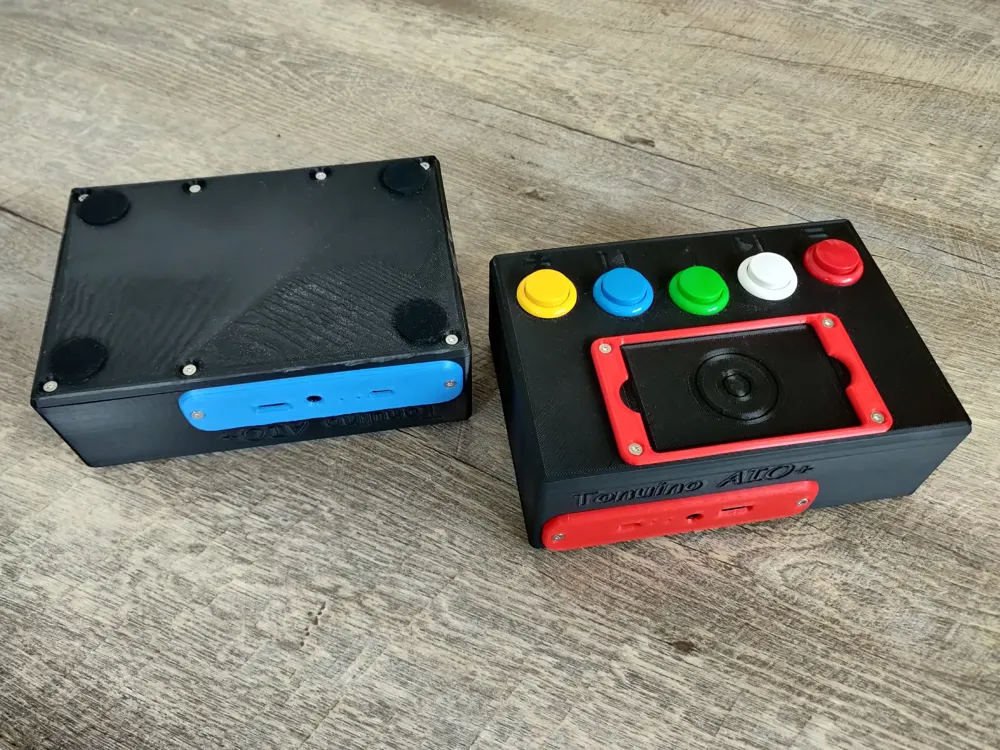

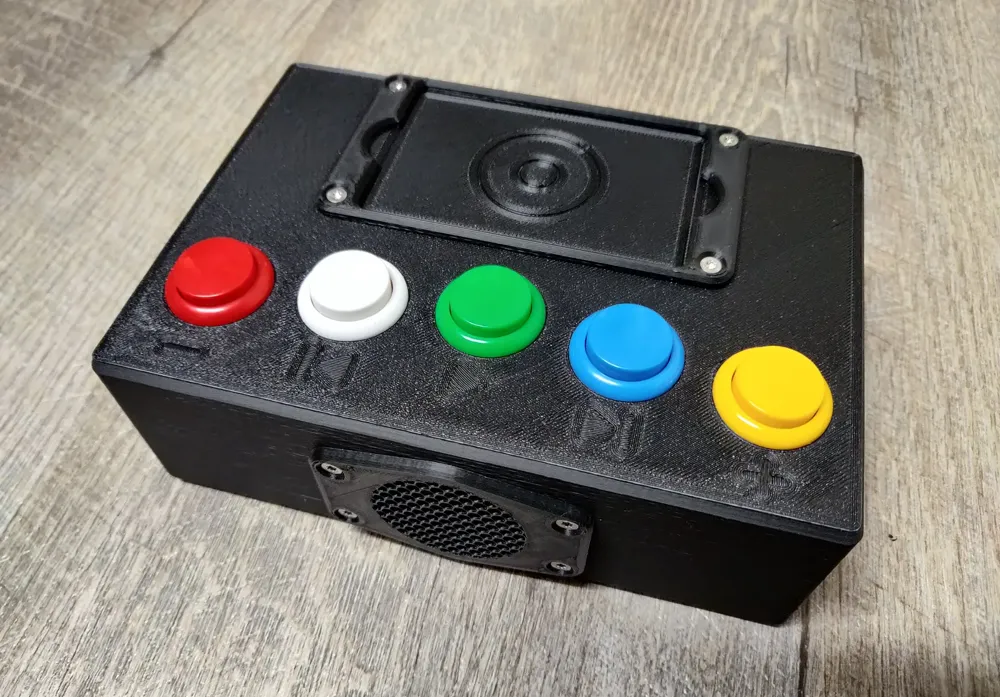

The Tonuino Box can now be easily assembled with ready-made components without the need for soldering. I built boxes for my children based on this.
The instructions can be found at https://www.tonuino.de.
From leiterkartenpiraten.de you will need the following parts:
- TonUINO All-In-One Plus Board
- Speaker FS5045
- TonUINO Button Cable 10xQC
- All-In-One Cover (3D print)
From eremit.de you can get a suitable battery:
- 3.2V 6000mAh Pack with protection - Arduino/ AiO Special - JST-PH 2.0 Connector
From Amazon you only need this:
- Arcade Buttons 24mm x 33mm
- RFID Module (e.g. from AzDelivery)
- RFID Cards (13.56 MHz)
- USB power supply with 5.1V (e.g. Raspberry Pi power supply, not one with QuickCharge!)
- ca. 30x M3x6 countersunk screws
- 6x M3x6 cylinder head screws
- 6x M3x16 cylinder head screws
- ca. 30x M3x5 press-in nuts
- 2x M3 hexagon nuts

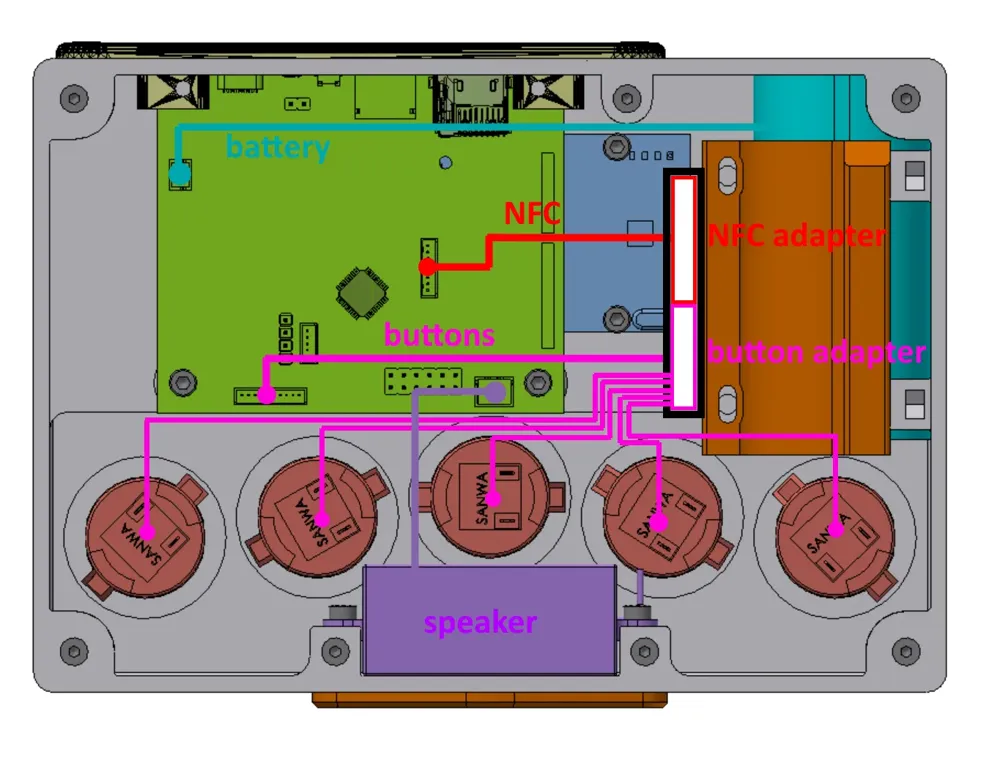

The battery cable needs to be extended slightly so that it reaches the connector on the board.
The AiO+ board comes with an adapter board for the NFC cable or the button cable. Both boards are connected to each other via a break-off point. I simply left them together and plugged them onto the NFC module.
The models can be printed without support material. To ensure that the children can survive them, I have set 4 walls, 4 bottom and top layers and 40% infill.
Attention! The All-in-One-Plus board is no longer available for purchase!
