Bill of Materials
List other parts
- 单节5号电池盒 x 2:
- R300C微型电机 x 1:
- 2脚2档船型开关 x 1: 15*10mm
- 圆形磁铁 x 2: 12*4mm
- 磁力搅拌子 x 1: 长度30mm
Description
Content has been automatically translated.

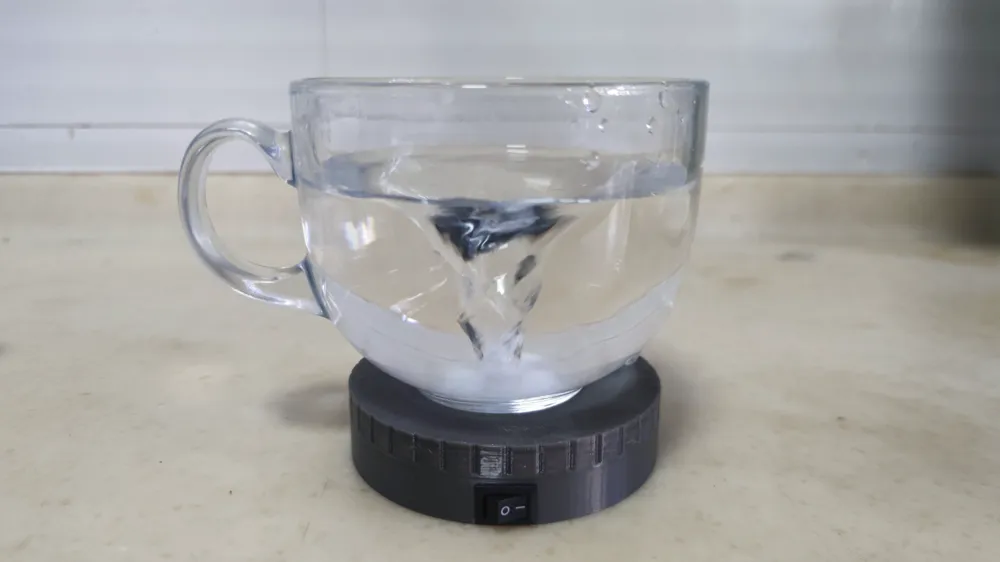

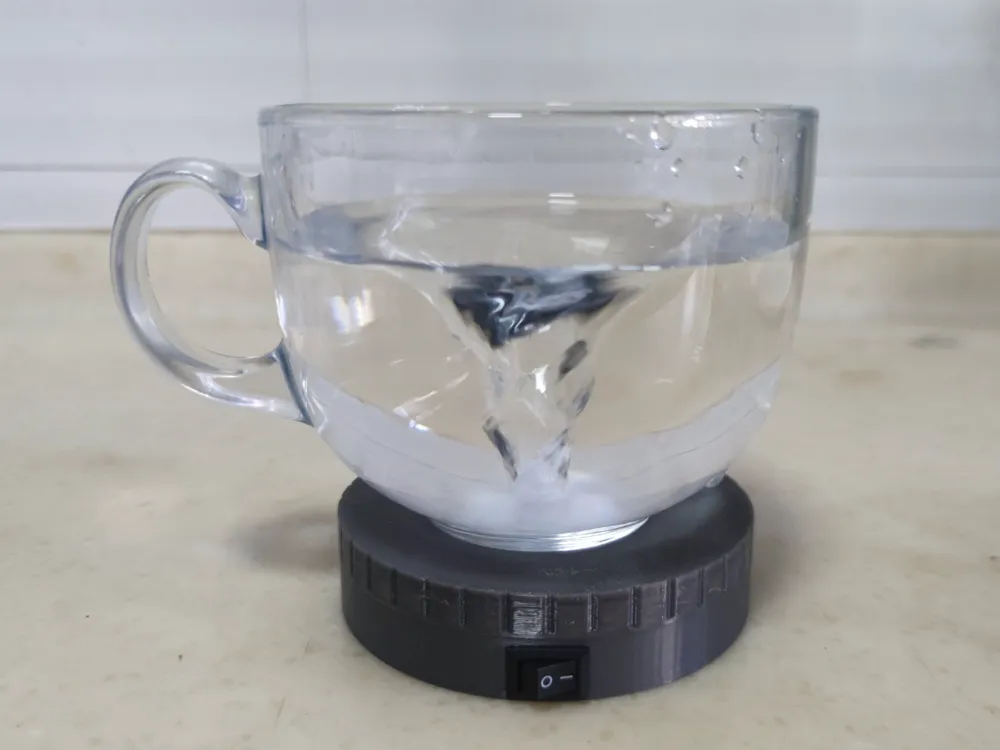

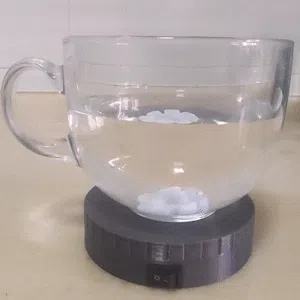

This compact and affordable magnetic stirrer boasts a simple structure, making it easy to print.
When connecting, two AA batteries are connected in series. The positive wire runs through a boat-shaped switch to the motor, while the negative wire connects directly to the motor.

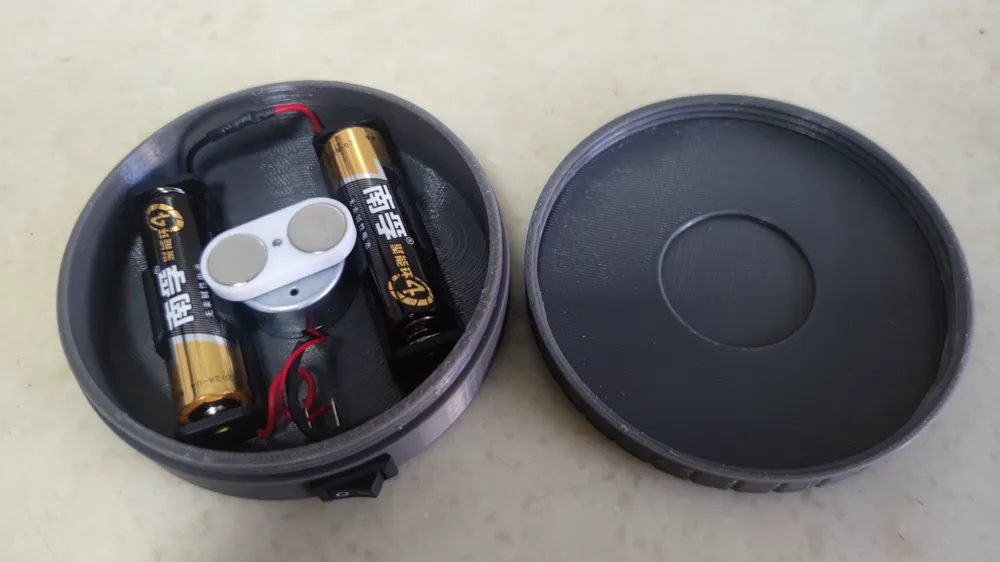

The bottom of the casing has positioning holes for the battery compartment and the motor, secured by a small amount of hot glue.
Two 12x4mm magnets, paired with a stirring rod roughly 30mm long, allow for effective suction and rotation even on thicker cup bottoms.
Bill of Materials:
Single AA Battery Holder*2
R300C Miniature DC Motor*1
15x10mm 2-pin 2-position boat-shaped switch*1
12x4mm Round Magnet*2
Magnetic Stirring Rod approximately 30mm long*1
