Description

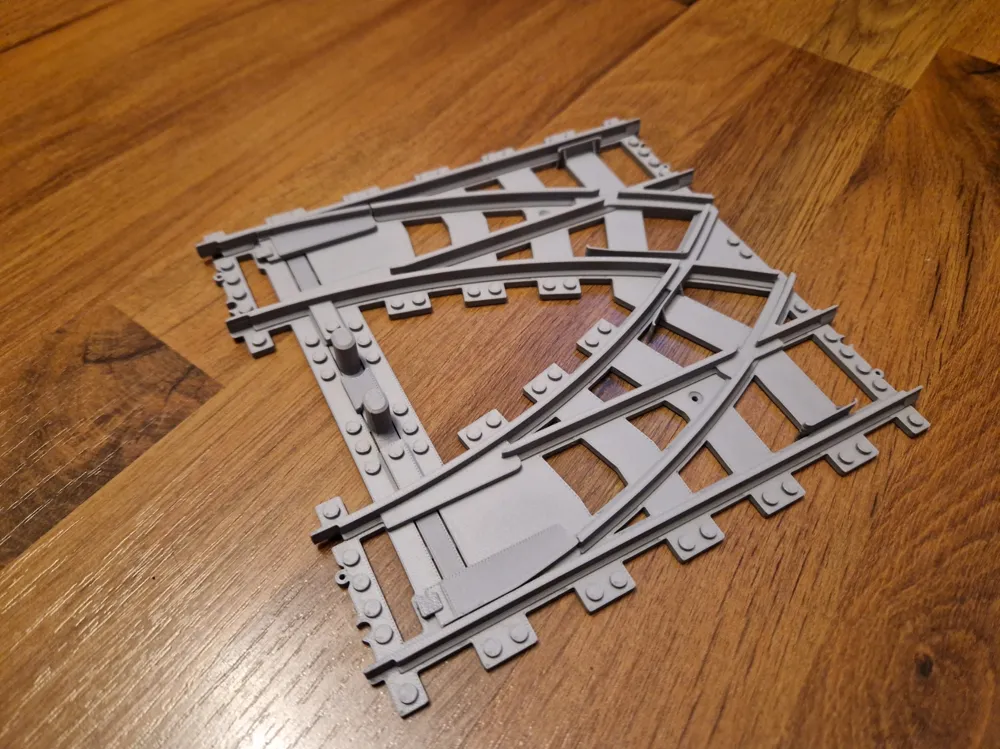

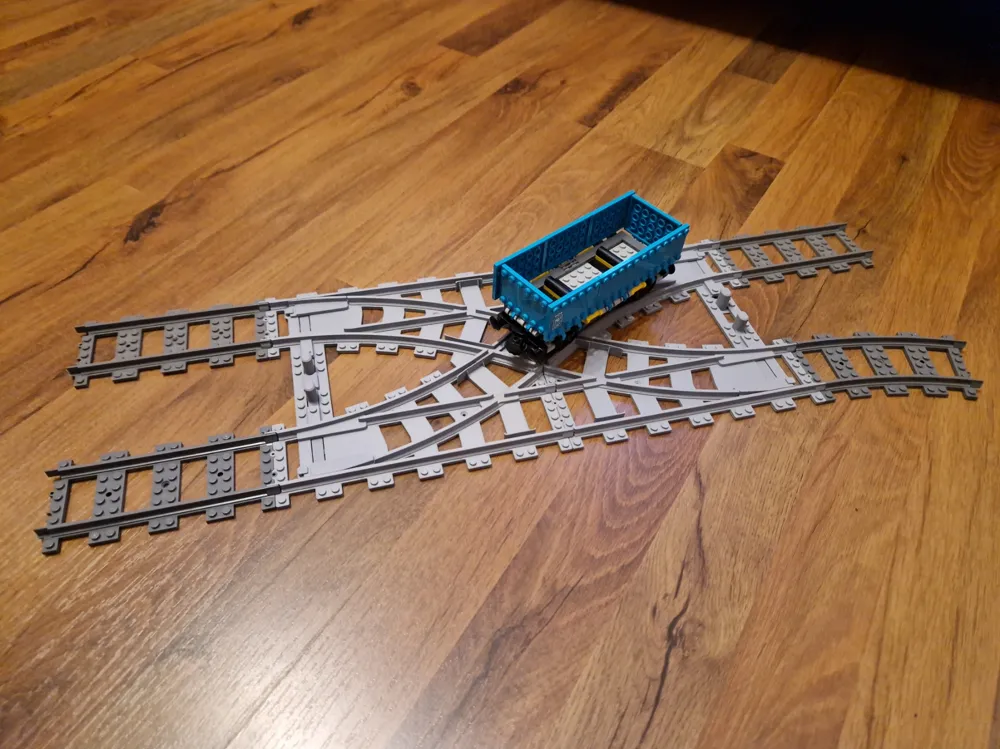

Compatible building brick Train Double Crossover Switch, compatible with original (Denmark) building brick

Designe idea from original building brick part (7996)

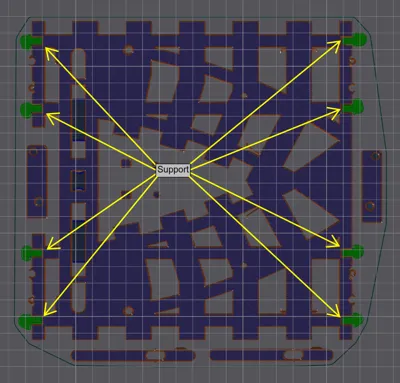

Printed from PLA, Support needed. (see on picture)

Print list:

Switch_Part_1_V5 (2x)
Switch_Part_2_V2 (2x +2x mirrored!)
Switch_Part_3_holder_V2 (4x)
Switch_Part_4_Handle_V5 (4x)
Switch_Part_5_Stift_V3 (4x)

Update 1:

New part: SwitchHandleV5Stronger its have a smaller hole for stronger part. Not so easy to brake.

New part: Updated “Part_3_holder_V2_Smaller toleranz” if the part not tight enough.

Update 2:

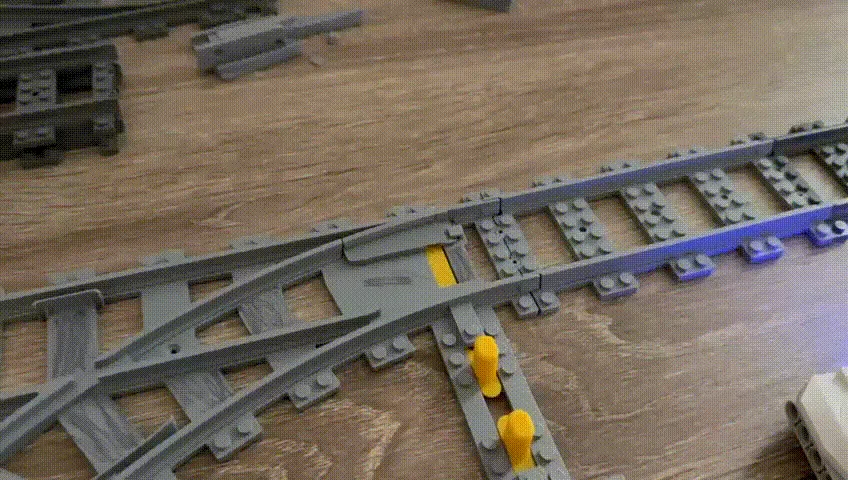

I redesigned the switch part so that the train can pass through from both directions, regardless of the switch’s position.

The modell finde here
